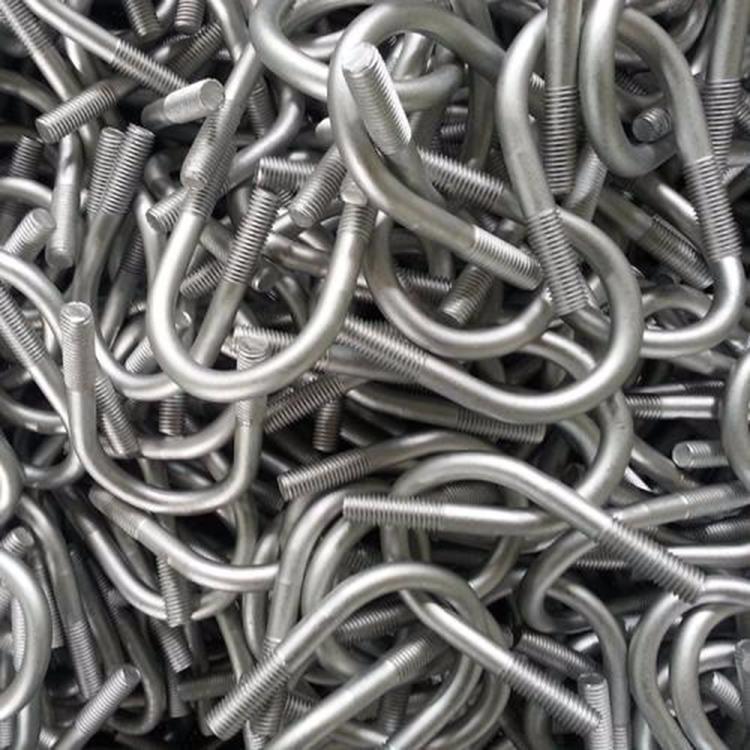

Name: U-Bolt
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

U-Bolt Supplier In China

　　U-bolts are non-standard pipe fittings. They are named after their U-shaped shape. They have threads at both ends that can be combined with nuts. They are mainly used to fix tubular objects such as water pipes or sheets.

　　U-bolts are primarily used to hang piping in industrial applications and are often called out by the nominal size pipe they are hanging. Standard U-bolts typically come with nuts, however, the nuts need to be specified for special grade U-bolts.

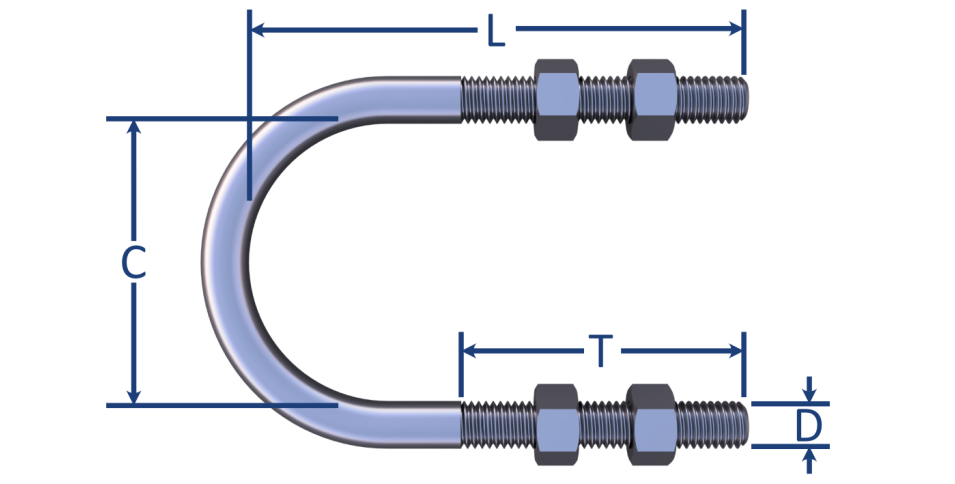

U-Bolt Dimensions

Pin Fields		Diameter, D, and UNC Thread	Inside Length, L			Inside Width, C			Thread Length, T		Nominal Pipe Size
3 D	5 LCT	Diameter, D, and UNC Thread	Basic	Max.	Min.	Basic	Max.	Min.	Max.	Min.	Nominal Pipe Size
04	012	¹/₄ – 20	1.250	1.280	1.220	0.563	0.593	0.533	0.810	0.690	¹/₄
04	013	¹/₄ – 20	1.250	1.280	1.220	0.750	0.780	0.720	0.685	0.565	³/₈
04	022	¹/₄ – 20	2.250	2.280	2.220	0.750	0.780	0.720	1.560	1.440	³/₈
04	017	¹/₄ – 20	1.750	1.780	1.720	1.000	1.030	0.970	1.060	0.940	¹/₂
04	020	¹/₄ – 20	2.000	2.030	1.970	1.000	1.030	0.970	1.060	0.940	³/₄
04	031	¹/₄ – 20	3.125	3.155	3.095	1.000	1.030	0.970	1.560	1.440	³/₄
04	023	¹/₄ – 20	2.250	2.280	2.220	1.125	1.155	1.095	1.310	1.190	³/₄
04	027	¹/₄ – 20	2.750	2.780	2.720	1.125	1.155	1.095	1.435	1.315	1
04	034	¹/₄ – 20	3.438	3.468	3.408	1.125	1.155	1.095	2.435	2.315	1
04	030	¹/₄ – 20	3.000	3.030	2.970	1.250	1.280	1.220	1.435	1.315	1 ¹/₄
04	032	¹/₄ – 20	3.250	3.280	3.220	1.250	1.280	1.220	1.435	1.315	1¹/₂
05	021	⁵/₁₆ – 18	2.188	2.218	2.158	1.375	1.405	1.345	1.435	1.315	¹/₂
05	022	⁵/₁₆ – 18	2.188	2.218	2.158	1.375	1.405	1.345	1.060	0.940	³/₄
05	023	⁵/₁₆ – 18	2.188	2.218	2.158	1.500	1.530	1.470	1.060	0.940	1
05	026	⁵/₁₆ – 18	2.688	2.718	2.658	1.500	1.530	1.470	1.185	1.065	1 ¹/₄
05	045	⁵/₁₆ – 18	4.500	4.530	4.470	1.750	1.780	1.720	2.060	1.940	1 ¹_/4
05	027	⁵/₁₆ – 18	2.688	2.718	2.658	1.750	1.780	1.720	1.060	0.940	1 ¹/₂
05	047	⁵/₁₆ – 18	4.750	4.780	4.720	1.750	1.780	1.720	3.060	2.940	1 ¹/₂
05	032	⁵/₁₆ – 18	3.188	3.218	3.158	1.750	1.780	1.720	1.060	0.940	2
05	056	⁵/₁₆ – 18	5.625	5.685	5.565	2.000	2.030	1.970	3.060	2.940	2
05	037	⁵/₁₆ – 18	3.688	3.718	3.658	2.000	2.030	1.970	1.060	0.940	2 ¹/₂
06	022	³/₈ – 16	2.250	2.280	2.220	2.000	2.030	1.970	1.310	1.190	¹/₂
06	023	³/₈ – 16	2.250	2.280	2.220	2.000	2.030	1.970	1.310	1.190	³/₄
06	025	³/₈ – 16	2.250	2.530	2.470	2.500	2.530	2.470	1.310	1.190	1
06	027	³/₈ – 16	2.750	2.780	2.720	2.500	2.530	2.470	1.185	1.065	1 ¹/₄
06	026	³/₈ – 16	2.625	2.655	2.595	2.500	2.530	2.470	1.310	1.190	1 ¹/₂
06	031	³/₈ – 16	3.125	3.155	3.095	3.000	3.030	2.970	1.310	1.190	2
06	036	³/₈ – 16	3.625	3.655	3.595	3.000	3.030	2.970	1.310	1.190	2 ¹/₂
06	066	³/₈ – 16	6.625	6.685	6.565	3.000	3.030	2.970	3.060	2.940	2 ¹/₂
06	041	³/₈ – 16	4.125	4.155	4.095	3.000	3.030	2.970	1.310	1.190	3
06	055	³/₈ – 16	5.500	5.560	5.440	3.500	3.530	3.470	2.310	2.190	3 ¹/₂
08	045	¹/₂ – 13	4.500	4.530	4.470	3.500	3.530	3.470	1.685	1.565	2 ¹/₂
08	050	¹/₂ – 13	5.000	5.060	4.940	3.500	3.530	3.470	1.560	1.440	3
08	085	¹/₂ – 13	8.500	8.590	8.410	4.000	4.030	3.970	3.060	2.940	3
08	055	¹/₂ – 13	5.500	5.560	5.440	4.000	4.030	3.970	1.560	1.440	3 ¹/₂

Features of a U-Bolt

　　Shape: The “U” shape allows it to wrap around pipes or round bars.

　　Threads: Both ends of the bolt are threaded so that nuts can be attached to clamp the bolt in place.

　　Material: Often made of steel, stainless steel, or galvanized materials for strength and corrosion resistance.

　　Sizes: Available in a wide range of sizes to fit various diameters and load requirements.
　　
Types of U-Bolts

　　Round U-Bolts: Designed for pipes or tubes.

　　Square U-Bolts: Used for square or flat-sided components.

　　Custom U-Bolts: Tailored for specific shapes or load-bearing requirements.
