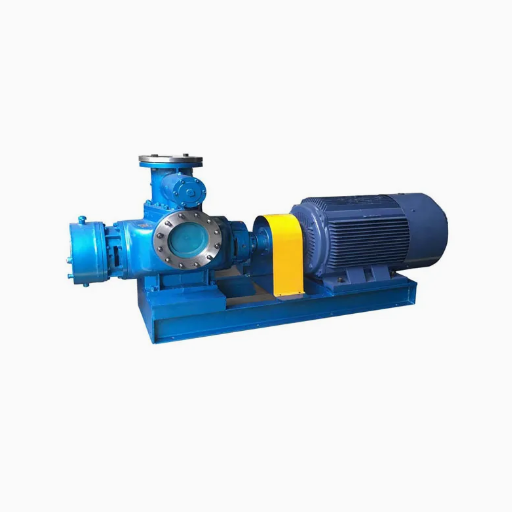

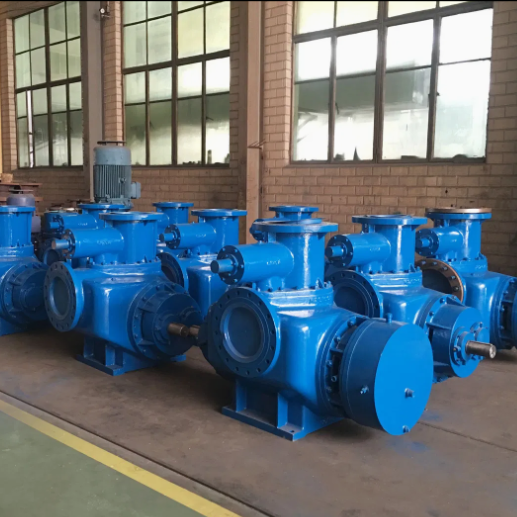

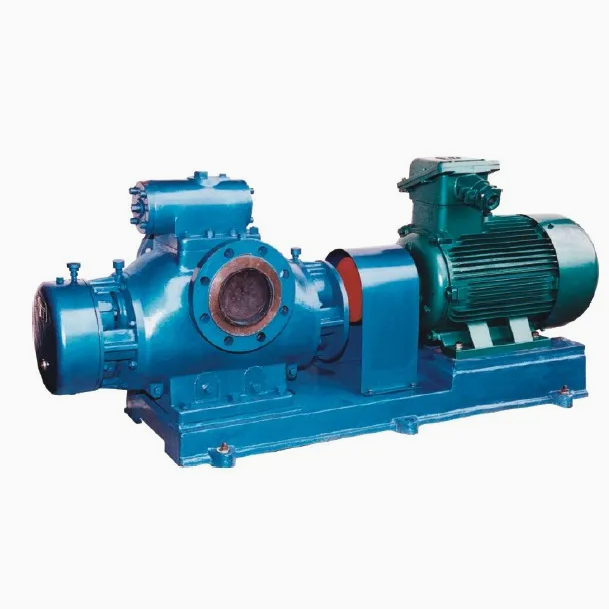

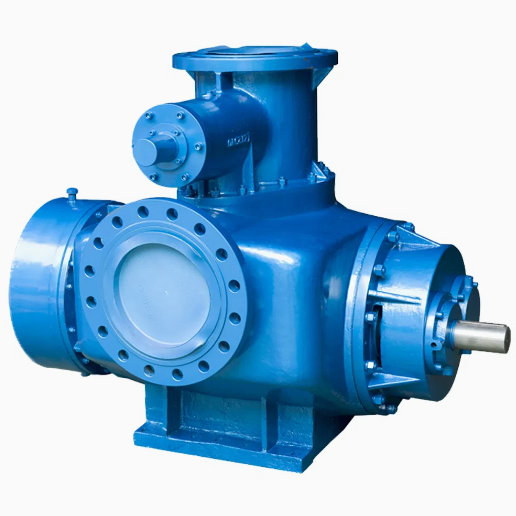

Twin Screw Pump Manufacturer,Twin Screw Pump For Oil,Twin Screw Pump Supplier In China Twin-screw pumps (TSP) are heavy-duty, general-purpose pumps used in a wide variety of applications. Excellent flow control with the highest efficiency over a wide operating range for almost all types of fluids and fluid viscosities make these pumps unique. TSPs are self-priming pumps with excellent suction lift, smooth operation and very low NPSH requirements. The ability to clean in place (CIP) is not the only way to simplify processes, improve product quality and reduce operating costs.
Product Description
Capacity: 0.5-1500m3/h
Pressure: 0.1-1.6MPa
Viscosity: 0.5-1000mm2/s
Temperature: -30 - 200 C
Medium: Various lubricating oil and fuel oil
Certificate: ISO9001: 2000, CE, CCS, BV, NK, KR, ABS, RINA, GL, etc.
Construction: Horizontal, vertical, portable structure, heating chamber
Safety: Explosion-protection, water-protection, safety valve, alarming sensor.
Feature of Twin Screw Pump
A unique feature of TSPs is their ability to provide constant flow regardless of system pressure requirements. Pump flow rate is a function of pump speed – the pump pressure is a function of the hydraulic system response. Whatever pressure the system requires, the pump will support any pressure up to its rated pressure at any speed. Furthermore, the pump only needs the energy related to actual flow and actual pressure requirements of the hydraulic system. As a result, the pump always operates at its highest efficiency. The pump is not limited to operating close to its design point but can operate safely and efficiently across its wide operating range.
Performance Parameter Of Twin Screw Pump
| Speed n=1450r/min |
| Model |
ΔP
Bar |
Viscosity(mm 2 /s) |
| 1 |
15 |
35 |
75 |
150 |
350 |
750 |
1500 |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
Flow
M 3 /h |
Power
Kw |
| 2HM7000-100 |
2 |
466 |
32 |
468 |
35 |
469 |
37 |
470 |
37.6 |
471 |
46 |
472 |
55 |
473 |
63 |
473 |
70 |
| 4 |
438 |
60 |
441 |
65 |
443 |
71 |
445 |
71.2 |
446 |
87 |
447 |
102 |
448 |
115 |
448 |
130 |
| 6 |
424 |
83 |
425 |
95 |
428 |
103 |
430 |
103 |
431 |
125 |
432 |
145 |
433 |
165 |
433 |
185 |
| 8 |
406 |
107 |
410 |
120 |
413 |
133 |
415 |
133 |
416 |
160 |
417 |
186 |
418 |
212 |
419 |
240 |
| 10 |
388 |
128 |
393 |
145 |
397 |
160 |
400 |
160 |
401 |
195 |
402 |
225 |
404 |
256 |
406 |
285 |
| 12 |
373 |
148 |
378 |
168 |
382 |
185 |
386 |
185 |
388 |
225 |
390 |
260 |
393 |
296 |
396 |
330 |
| 14 |
|
|
352 |
186 |
362 |
206 |
368 |
206 |
370 |
250 |
373 |
290 |
377 |
330 |
380 |
370 |
| 16 |
|
|
328 |
205 |
342 |
227 |
354 |
227 |
357 |
280 |
360 |
320 |
364 |
363 |
368 |
405 |
| 18 |
|
|
|
|
324 |
244 |
338 |
244 |
341 |
300 |
344 |
342 |
347 |
390 |
350 |
440 |
| 20 |
|
|
|
|
295 |
250 |
310 |
250 |
314 |
330 |
318 |
350 |
342 |
400 |
345 |
450 |
| 2HM7000-128 |
2 |
590 |
40 |
595 |
45 |
598 |
48 |
600 |
48 |
601 |
58 |
603 |
70 |
605 |
80 |
608 |
90 |
| 4 |
565 |
75 |
570 |
85 |
572 |
92 |
574 |
92 |
575 |
112 |
577 |
130 |
580 |
150 |
582 |
165 |
| 6 |
545 |
108 |
550 |
120 |
553 |
133 |
555 |
133 |
557 |
160 |
560 |
188 |
563 |
212 |
567 |
240 |
| 8 |
525 |
138 |
530 |
155 |
533 |
172 |
536 |
172 |
538 |
208 |
540 |
240 |
543 |
275 |
547 |
310 |
| 10 |
500 |
166 |
508 |
186 |
513 |
207 |
517 |
207 |
520 |
250 |
523 |
257 |
526 |
330 |
530 |
370 |
| 12 |
480 |
192 |
486 |
216 |
493 |
240 |
498 |
240 |
500 |
290 |
503 |
336 |
506 |
384 |
510 |
430 |
| 14 |
|
|
450 |
240 |
462 |
265 |
470 |
265 |
472 |
320 |
475 |
370 |
478 |
420 |
482 |
475 |
| 16 |
|
|
|
|
420 |
290 |
430 |
290 |
432 |
350 |
435 |
406 |
438 |
460 |
442 |
520 |
Application Field Of Twin Screw Pump
1. Oilfield: transporting a variety of oil, sewage,sump oil, polymer, crude oil (oil-gas mixture transportation).
2. Ship-building industry: used as marine cargo oil pump, sweeping-cabin pump, marine ballast pump,main engine lubricating oil pump, loading pump and so on.
3. Transportation and storage of petroleum products: used for oil storage, wharf, loading and unloading oil and transferring various oil products.
4. Petrochemical industry: a transportation and ejection pump for all kinds of acid, alkali, saline liquid and resin, pigment, printing ink, paint, glycerol,paraffin and so on.
5.Thermal power plant: as heavy oil and thick oil transfer pump, heavy oil and fuel pump, fuel ejection pump.
6. Food industry: to transport alcohol, honey, syrup, toothpaste, milk, cream, soy, plant oil, animal oil, wine and so on in distillery, food products factory, canning factory and so on.
7.Paint industry: the barrel loading pump and backward pump for coatings , paintings.
Twin screw pumps is the best choice to be used as Fuel Oil pump, Diesel Oil pump, Heavy Oil Transfer Pump, lube oil Pump, lubricating oil pump or chemical pump.
Twin-screw pump can transfer various non-solid contained fluid medium or extremely high viscosity medium. They have wide availability and high reliability for lubricating or non lubricating medium, for corrosive medium or gas-liquid mixture.
