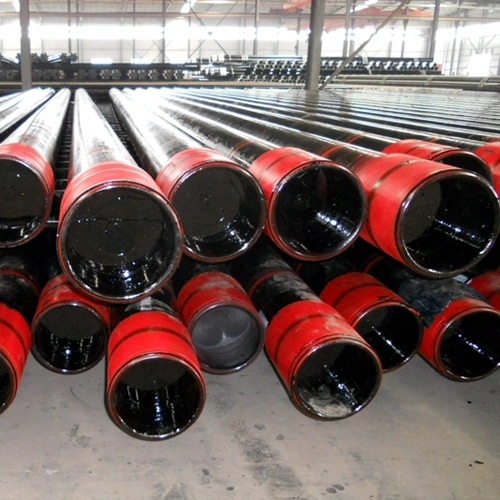

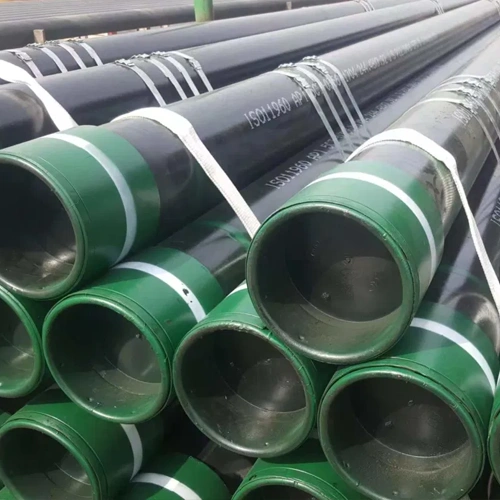

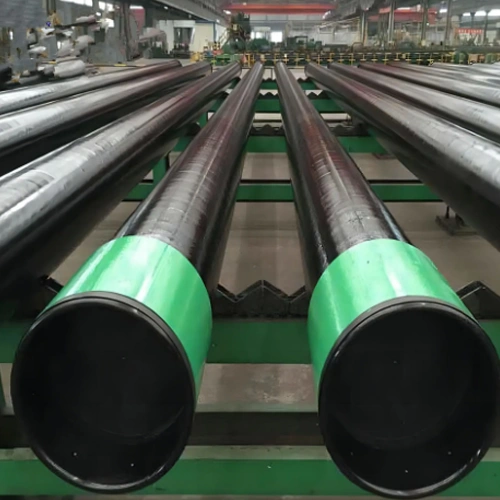

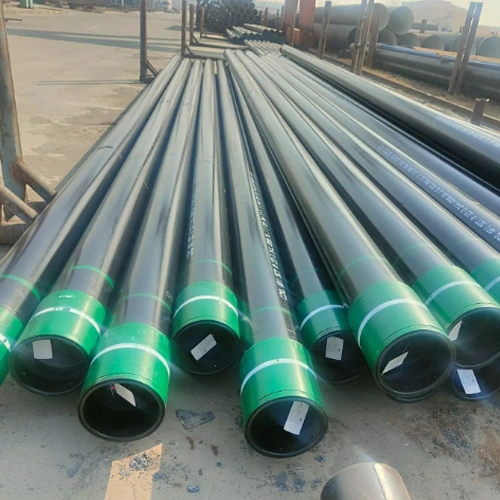

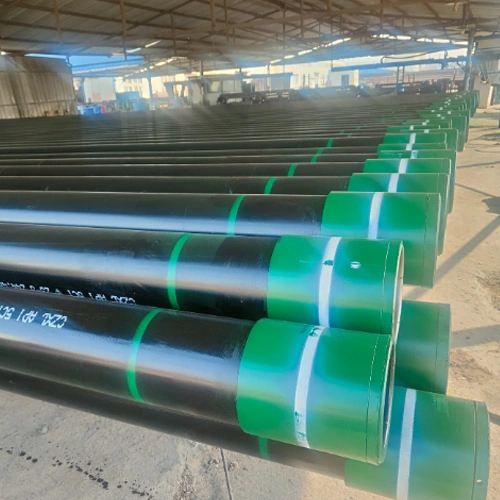

Name: Tubing Pipe
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Type: API Tubing,EUE Seamless Tubing；NU Seamless Tubing；Premium Tubing

Outer Diameter (OD):48.26mm-114.30mm

Wall Thickness(WT):3.18mm-16mm

Length:R1, R2, R3

Standard:API 5CT J55,N80-1,V80-Q;L80-1;L80-9Cr;L80-13Cr;C90;C95;P110,Q125

Materials: H40, J55, K55, N80, L80, C90,T95 and P110

Thread type:NUE.EUE,BAM,Special clearance,VAN TOP,NEW VAM

Application:Oil Tubing is widely used for transporting crude oil and natural gas to surface after drilling, which also bears pressure from exploration.

Production technology:Plain pipe-end upsetting- Austenite treatment-Quenching-Tempering-straightening-(Non-Destructive Testing)- Threading-Thread inspection-coupling MPI-phosphating-Coupling make up-Drifting-Hydrostatic testing-Measuring&Weight-Marking&Stenciling-Coating-Packing Casing and tubing-Transportation

Specification

Specification

API 5CT Oil Tubing Dimension:
Label				OD (mm)	WT (mm)	Type of End-finish
Inch	NU T&C	EU T&C	IJ	OD (mm)	WT (mm)	H40	J55	L80	N80	C90	T95	P110
1.9	2.75	2.9	2.76	48.26	3.68	PNUI	PNUI	PNUI	PNUI	PNUI	PNUI	-
1.9	3.65	3.73	-	48.26	5.08	PU	PU	PU	PU	PU	PU	PU
1.9	4.42	-	-	48.26	6.35	-	-	P	-	P	P	-
2 3/8	4	-	-	60.32	4.24	PU	PN	PN	PN	PN	PN	-
2 3/8	4.6	4.7	-	60.32	4.83	PNU	PNU	PNU	PNU	PNU	PNU	PNU
2 3/8	5.8	5.95	-	60.32	6.45	-	-	PNU	PNU	PNU	PNU	PNU
2 3/8	6.6	-	-	60.32	7.49	-	-	P	-	P	P	-
2 3/8	7.35	7.45	-	60.32	8.53	-	-	PU	-	PU	PU	-
2 7/8	6.4	6.5	-	73.02	5.51	PNU	PNU	PNU	PNU	PNU	PNU	PNU
2 7/8	7.8	7.9	-	73.02	7.01	-	-	PNU	PNU	PNU	PNU	PNU
2 7/8	8.6	8.7	-	73.02	7.82	-	-	PNU	PNU	PNU	PNU	PNU
2 7/8	9.35	9.45	-	73.02	8.64	-	-	PU	-	PU	PU	-
2 7/8	10.5	-	-	73.02	9.96	-	-	P	-	P	P	-
3 1/2	7.7	-	-	88.9	5.49	PN	PN	PN	PN	PN	PN	-
3 1/2	9.2	9.3	-	88.9	6.45	PNU	PNU	PNU	PNU	PNU	PNU	PNU
3 1/2	10.2	-	-	88.9	7.34	PN	PN	PN	PN	PN	PN	-
3 1/2	12.7	12.95	-	88.9	9.52	-	-	PNU	PNU	PNU	PNU	PNU
3 1/2	14.3	-	-	88.9	10.92	-	-	P	-	P	P	-
3 1/2	15.5	-	-	88.9	12.09	-	-	P	-	P	P	-
4	9.5	-	-	101.6	5.74	PN	PN	PN	PN	PN	PN	-
4	10.7	11	-	101.6	6.65	PU	PU	PU	PU	PU	PU	-
4	13.2	-	-	101.6	8.38	-	-	P	-	P	P	-
4	16.1	-	-	101.6	10.54	-	-	P	-	P	P	-
4 1/2	12.6	12.75	-	114.3	6.88	PNU	PNU	PNU	PNU	PNU	PNU	-
4 1/2	15.2	-	-	114.3	8.56	-	-	P	-	P	P	-
P-Plain end; N-Non Upset;U-External upset;T&C-Threaded and coupled

Chemical Composition & Mechanical Properties

Mechanical Properties:
Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max (HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-

Sizes

OD
D
mm

Weight

wt
t
mm

Type of end

NU kg/m

EU kg/m

IJ
kg/m

H40

J55

L80

N80

C90

T95

P110

4
4
4
4
4
4

9.50
10.70
13.20
16.10
18.90
22.20

–
11.00
–
–
–
–

–
–
–
–
–
–

101.60
101.60
101.60
101.60
101.60
101.60

14.14
–
19.64
23.96
28.13
33.04

–
16.37
–
–
–
–

–
–
–
–
–
–

5.74
6.65
8.38
10.54
12.70
15.49

PN
PU
–
–
–
–

PN
PU
P
P
P
P

PN
PU
–
–
–
–

PN
PU
P
P
P
P

–
–
–
–
–
–

4-1/2
4-1/2

12.60
15.20

12.75
–

–
–

114.30
114.30

18.75
22.62

18.97
–

–
–

6.88
8.56

PNU
–

PNU
P

PNU
–

PNU
P

–
–

4-1/2
4-1/2
4-1/2
4-1/2
4-1/2

17.00
18.90
21.50
23.70
26.10

–
–
–
–
–

114.30
114.30
114.30
114.30
114.30

25.30
28.13
32.00
35.27
38.84

–
–
–
–
–

9.65
10.92
12.70
14.22
16.00

–
–
–
–
–

P
P
P
P
P

–
–
–
–
–

P
P
P
P
P

–
–
–
–
–

P——Plain end;N—Non-upset threaded and coupled;U—External upset threaded and coupled;I—insert joint.

Note: other premium connection shall be provided as per customer requirements.
