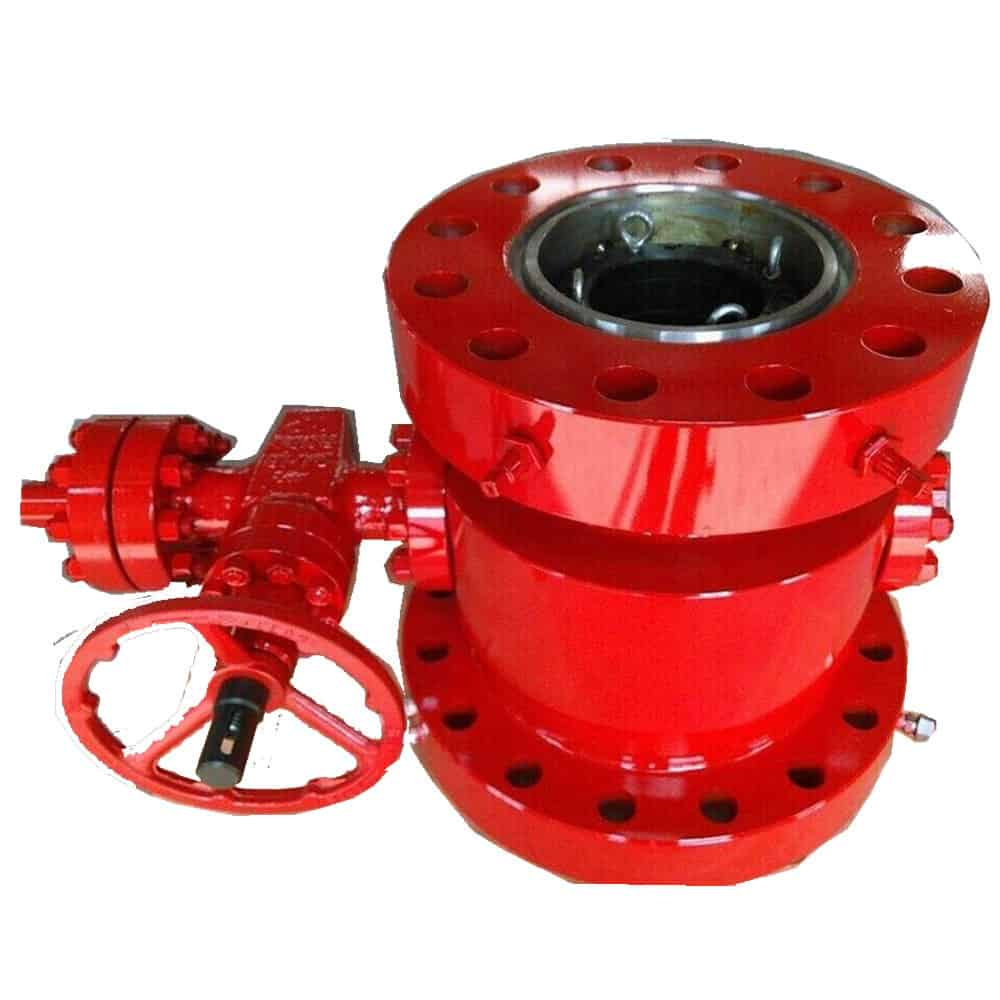

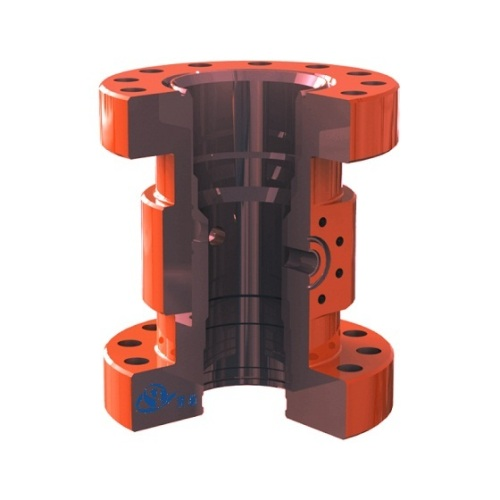

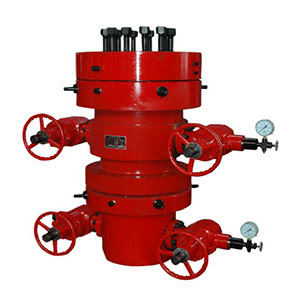

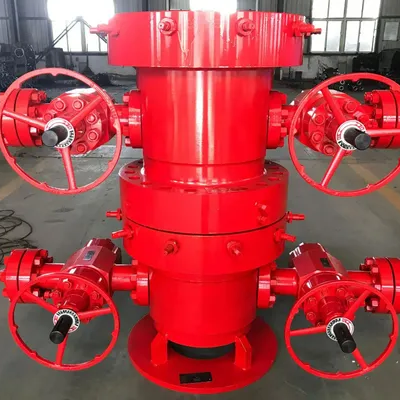

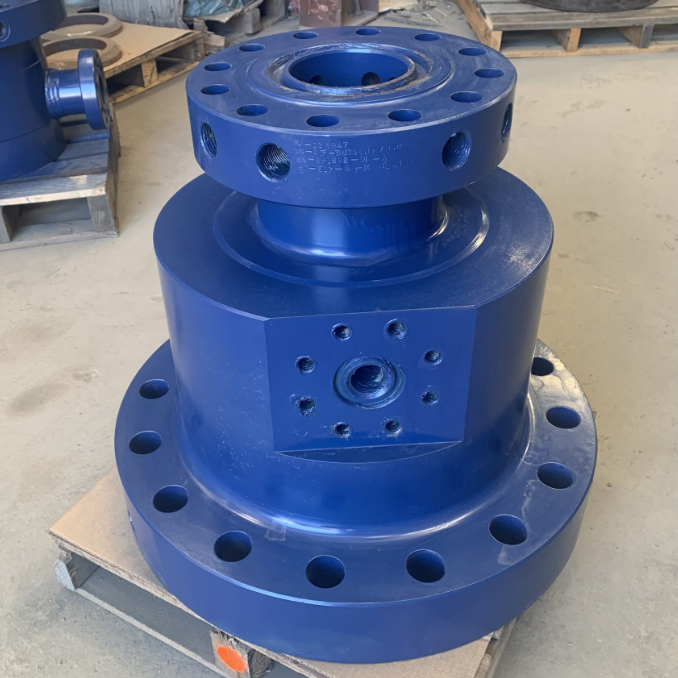

The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well's sinking, and inject balance liquids etc.
·It can be designed into general or integral structure as required;
·It can be completed with pneumatic/hydraulic safety valve;
·It can be classified into two kinds of single-wing and dual-wing.
·As required, matched choke may be positive choke or adjustable choke alternatively.
|
Product Name
|
Casing Head and Tubing Head
|
|
Connection Thread
|
Slip, Welled, Threaded
|
|
Nominal Bore Diameter
|
7 1/16-21 1/4
|
|
Temperature Class
|
L-U
|
|
Material Class
|
AA-HH
|
|
PSL
|
1-3
|
|
PR
|
1-2
|
|
MOQ
|
1 Set
|
Fabricated with BT technology seal and could be field mounted by cutting casing pipe to accommodate the seal height.
Tubing hanger and top flange are designed to run cable through.
Several control ports are available for connecting pipeline.
Made of forged or special smelt steel, providing high bearing strength, safety and reliability.
| Working Pressure |
2000 psi~15000 psi (14 Mpa ~105 Mpa) |
| Working Medium |
crude oil, natural, mud |
| Temperature Ratings |
-46~121℃(LU) |
| Material Class |
AA~HH |
| Product specification levels |
PSL1~PSL4 |
| Performance levels |
PR1~PR |

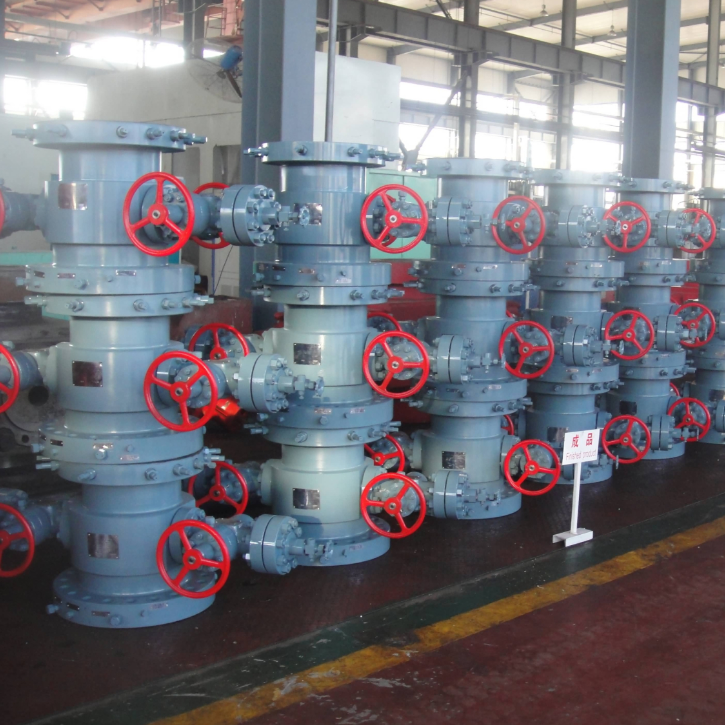

Our featuring an advanced steel forge plant, a sprawling 38,000 sq.ft machining workshop, and a comprehensive 20,000 sq.ft heat treatment facility equipped with six state-of-the-art furnaces. Moreover, we boast a 16,000 sq.ft workshop dedicated to the precision machining, assembly, and painting of valves, ensuring every product not only meets but surpasses our high standards of quality and durability.
