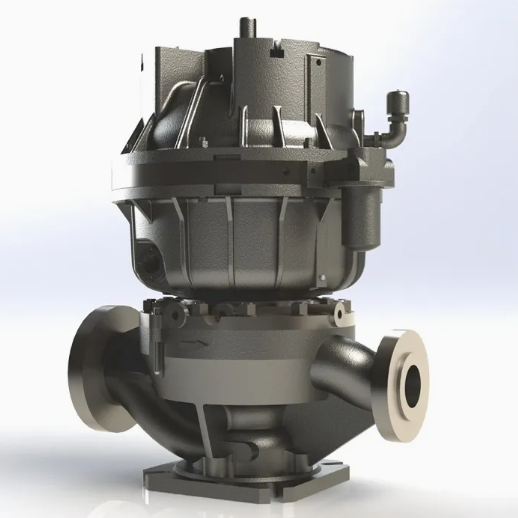

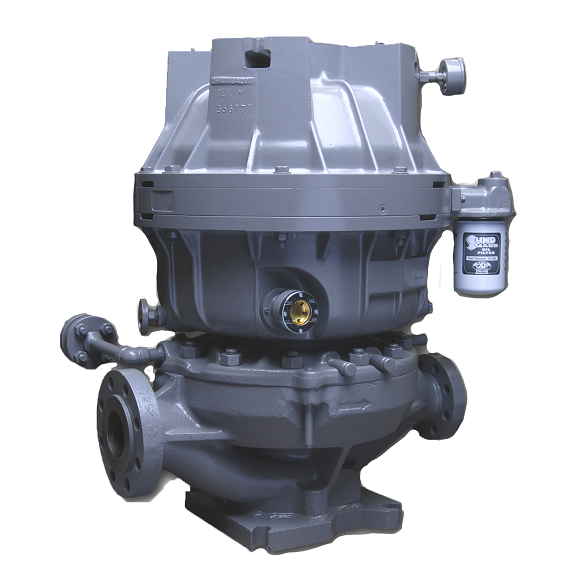

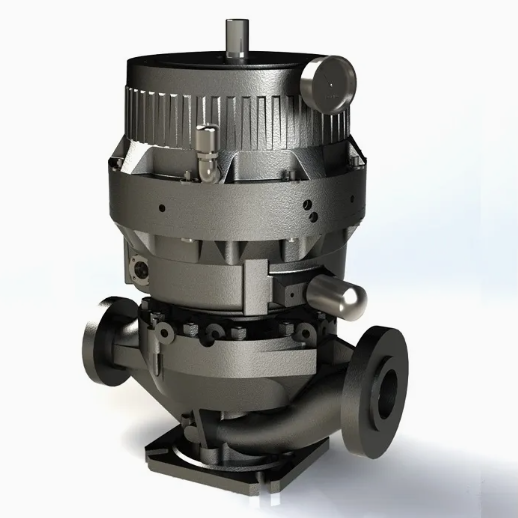

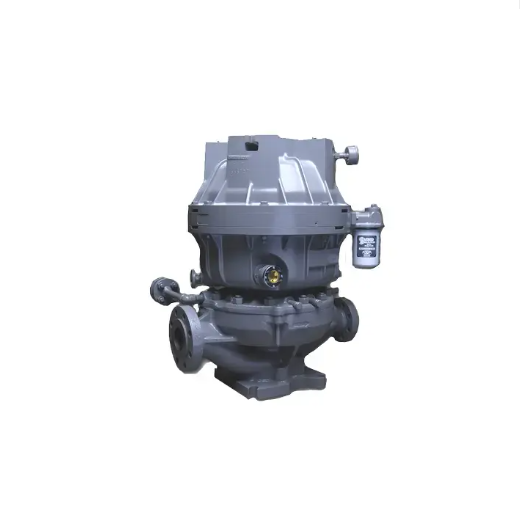

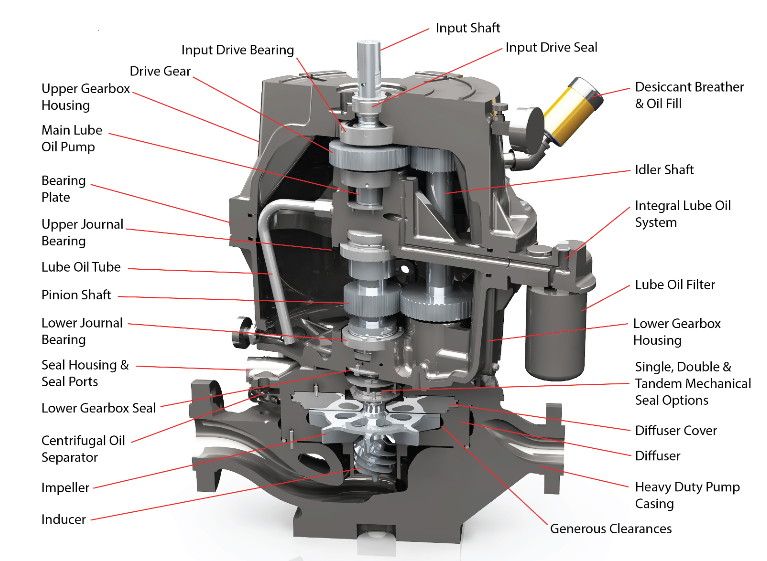

Sundyne LMV-311 Pump, 11th Edition OH6 Integrally Gear Driven Pumps are engineered for critical high-head, low-flow, heavy-duty services required by process and rotating equipment engineers within the hydrocarbon, chemical, petrochemical, power generation, gas production, and specialty processing industries. Sundyne pumps are renowned for high suction pressure and a wide range of operating temperatures.
Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency. An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.
Flows to 400 gpm (73 m³/hr)
Heads to 6,300 ft (1,348 m)
Suction Pressure 1,000 psi (71 kg/cm²)
Temperature Range -200 to 650°F (-130 to 340°C)
Multi-stage performance in a single stage pump
The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
Sundyne LMV-311 Pump Specifications
| Heads to | 6,300 ft |
| Flows to | 400 gpm |
| Standards | API 610 OH6 |
| Maximum Motor Power | 200 HP |
| Temperature Range | -200 to 650°F |
| Maximum Case Working Pressure | 1,260 psi |
| Maximum Suction Pressure | 1,000 psi |
| Differential Head | 6,300 ft |
| Maximum Viscosity | 750 cp |
| Solids Range | 0.015″, 400 microns |
| Mounting Configuration | Vertical, Horizontal |
| Seal Configurations | Single, Double, Tandem |
| Inducer | Yes |
| Flanges | ANSI 600# RF, 900# RF Optional |
| Suction and Discharge | 3″ x 2″ |
| API Plans | 11, 12, 13, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62, J |
|
LMV 311 BUILD CODES |
A |
E |
J |
O (1) |
W |
|
API 610 BUILD (2) |
S-5 (3) |
A-7 (4) |
S-8 (4) |
N/A |
S-9 (4) |
|
Pump Case |
C.S. |
316 SS |
C.S. |
316 SS |
Monel Clad C.S. |
|
Case Studs |
B-7 |
B-7 |
 B-7 |
B-8M |
K-Monel |
|
Seal Housing |
C.S. |
316 SS |
C.S. |
316 SS |
Monel |
|
Separator |
316 SS |
316 SS |
316 SS |
316 SS |
Monel |
|
Diffuser Insert |
C.S. |
316 SS |
316 SS |
316 SS |
Monel |
|
Diffuser Cover |
C.S. |
316 SS |
316 SS |
316 SS |
Monel |
|
Impeller |
316 SS |
316 SS |
316 SS |
316 SS |
Monel |
|
Impeller Bolt |
316 SS |
316 SS |
316 SS |
316 SS |
K-Monel |
|
Inducer |
316 SS |
316 SS |
316 SS |
316 SS |
Monel |
|
Tab Washer |
316 SS |
316 SS |
316 SS |
316 SS |
Monel |
|
Shaft Sleeve |
316 SS |
316 SS |
316 SS |
17-4 PH |
Monel |
|
Throttle Bushing |
316 SS |
316 SS |
316 SS |
316 SS |
Monel |
|
Metal Seal Parts |
316 SS |
316 SS |
316 SS |
316 SS |
Monel |
|
Stationary Face |
Binderless Carbon or Silicon Carbide |
||||
|
Rotating Face |
Tungsten Carbide with Cobalt or Nickel Binder |
||||
Sundyne LMV-311 Pump Applications
Feed pumps
Booster pumps
Bottoms pumps
Wash water pumps
Reflux pumps
Condensate pumps
