Name: Spiral Wound Gasket
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Spiral Wound Gasket Stockist In China

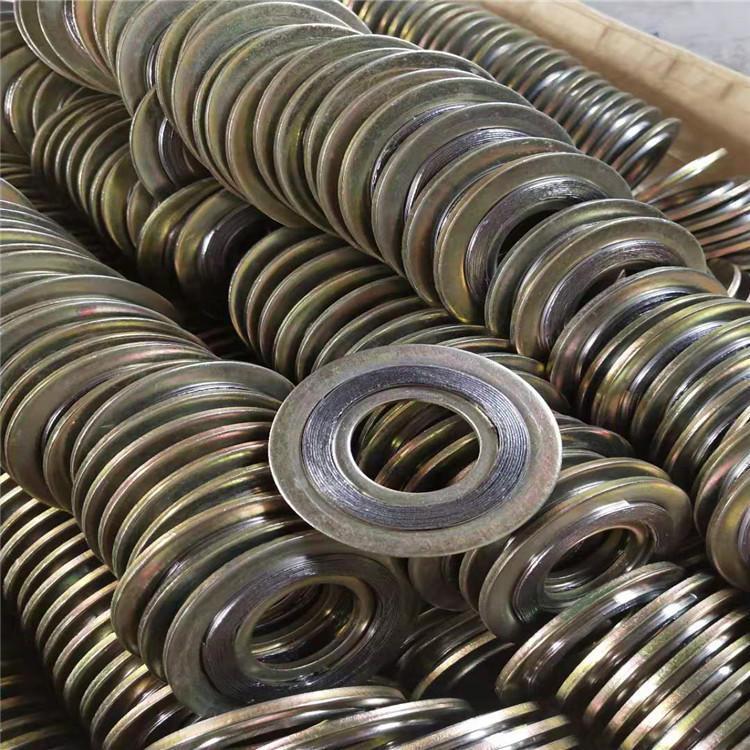

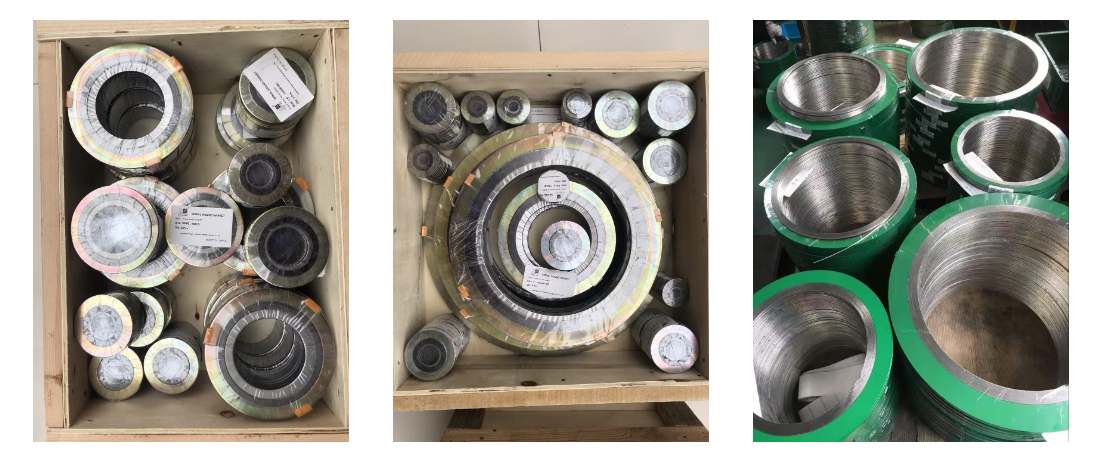

　　Shengtian Group has supplied customers worldwide with Spiral Wound Gaskets. Spiral Wound Gaskets are Widely used in their resilience and strength under a wide range of conditions and applications.
　　Widely used throughout refineries and chemical processing plants, Spiral Wound Gaskets are well-suited for power generation, pulp and paper, aerospace, and a variety of other specialty applications.

Spiral Wound Gaskets Materials:

Metal Winding & Inner Ring	Filler Materials	Outer Ring Materials
As Standard	Flexible graphite	As Standard
SS304(L)	PTFE	Carbon Steel
	Mica	others
Others	Ceramic	304(L)
Stainless Steel	Non-asbestos	316(L)
309		317
310		310
317L		321
321		347
347		410
Alloy 20		Alloy 20
Monel 400		Monel 400
Titanium 1,2,7		Titanium 1,2,7
Nickel 200		Nickel 200
Inconel 600,635		Inconel 600,635
Incoloy 800,825		Incoloy 800,825
Hastelloy B2		Hastelloy B2
C276		C276
Duplex 31803		Duplex 31803
Copper
Inner ring: Carbon steel also abailable

Spiral Wound Specifications Temperature Limit And Color Coding
terial	Min Temp ºC	Max Temp ºC	Abreviation	Color Coding
304L Stainless Steel	-195	650	304	Yellow
316L Stainless Steel	-100	800	316L	Green
321L Stainless Steel	-195	870	321	Turquoise
347L Stainless Steel	-195	870	347	Blue
Carbon Steel	-40	500	CS	Silver
Alloy 20	185	600	A-20	Black
Hastelloy B2/B3	-185	700	Hast B	Brown
Hastelloy C276	-185	700	Hast C	Beige
Incoloy 800	-100	850	InCo800	N/A
Incoloy 825	-100	850	InCo825	N/A
Inconel 600	-100	1000	InCo600	Gold
Inconel 625	-100	1000	InCo625	Gold
Inconel X750	-100	1000	InCo750	N/A
Monel 400	-200	800	Mon400	Orange
Nickel 200	-320	600	NI200	Red
Titanium	-320	1090	TI	Purple
*Color Coding following ASME B16-20
Material	Min Temp ºC	Max Temp ºC	Abreviation	Color Coding
Graphite	-212	550	Graph	Grey Stripe
PTFE	-240	260	PTFE	White Sripe
Mica	-212	1000	MICA	Light Green
*Stripe Coding following ASME B16-20

Type of Spiral Wound Gasket

　　Spiral Wound Gaskets are winding by "V" shaped metallic strip and soft non-metallic filler.
　　According to the requestment, the gaskets can be within inner and outer rings for improving the gaskets handling, fitting and versatility.
　　Depend on its excellent compresion resilience, it's suitable for sealing spots where the alteration of temperature and pressure are frequenty.
　　Basic Type:
　　Basic type gasket: inner and outer diameters are reinforced with several piles of metal without filler to give greater stability and better compression characteristics.
　　Suitable for tongue and groove, male and famale or grooved to flat face flange essemblies.
　　Inner Ring Type:
　　Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce trubulent flow of process fluids and minimize erosion, damages of gasket between flange bore and the inside diameter, the annular space is filled up by solid inner metal ring;
　　Suitable for male and female pipe flanges.
　　Outer Ring Type:
　　Solid outer accurately locates the gasket on the flange face to give the additional radial strength to prevent gasket blowout and acts as a compression limiter. In case of installing the outer ring, it is very easy to install the gasket to flange face because the end of outer ring will touch at bolts;
　　Suitable for use with flat face and raised face flanges. For class 900 and above an internal ring is recommended.
　　Inner & Outer Ring Type:
　　An inner ring and outer ring type gasket will give an additional compression limiting stopper for gasket inner and outer side. It will prevent the corrosions on flange face at annular space;
　　Suitable for use with flat face and raised face flanges and specified for high pressure and temperature service, Class 900 and above or where corrosive or toxic media are present.
