Pipe Fitting Tee

A Tee is a pipe fitting which is shaped like a "T" and has two outlets at 90° to the single inlet connection.
Tees are generally used to combine or split a fluid flow.
Straight Tees have inlets and outlets of the same size.
Reducing Tees have inlets and outlets of differing sizes, the smaller one typically being at 90 degrees to the two lager ones.
  • Pipe Fitting Tee
  • Pipe Fitting Tee
  • Pipe Fitting Tee
  • Pipe Fitting Tee
  • Pipe Fitting Tee

Description

      Pipe Fitting Tee

        A Tee is a pipe fitting which is shaped like a "T" and has two outlets at 90° to the single inlet connection.

  Tees are generally used to combine or split a fluid flow.

  Straight Tees have inlets and outlets of the same size.

  Reducing Tees have inlets and outlets of differing sizes, the smaller one typically being at 90 degrees to the two lager ones.

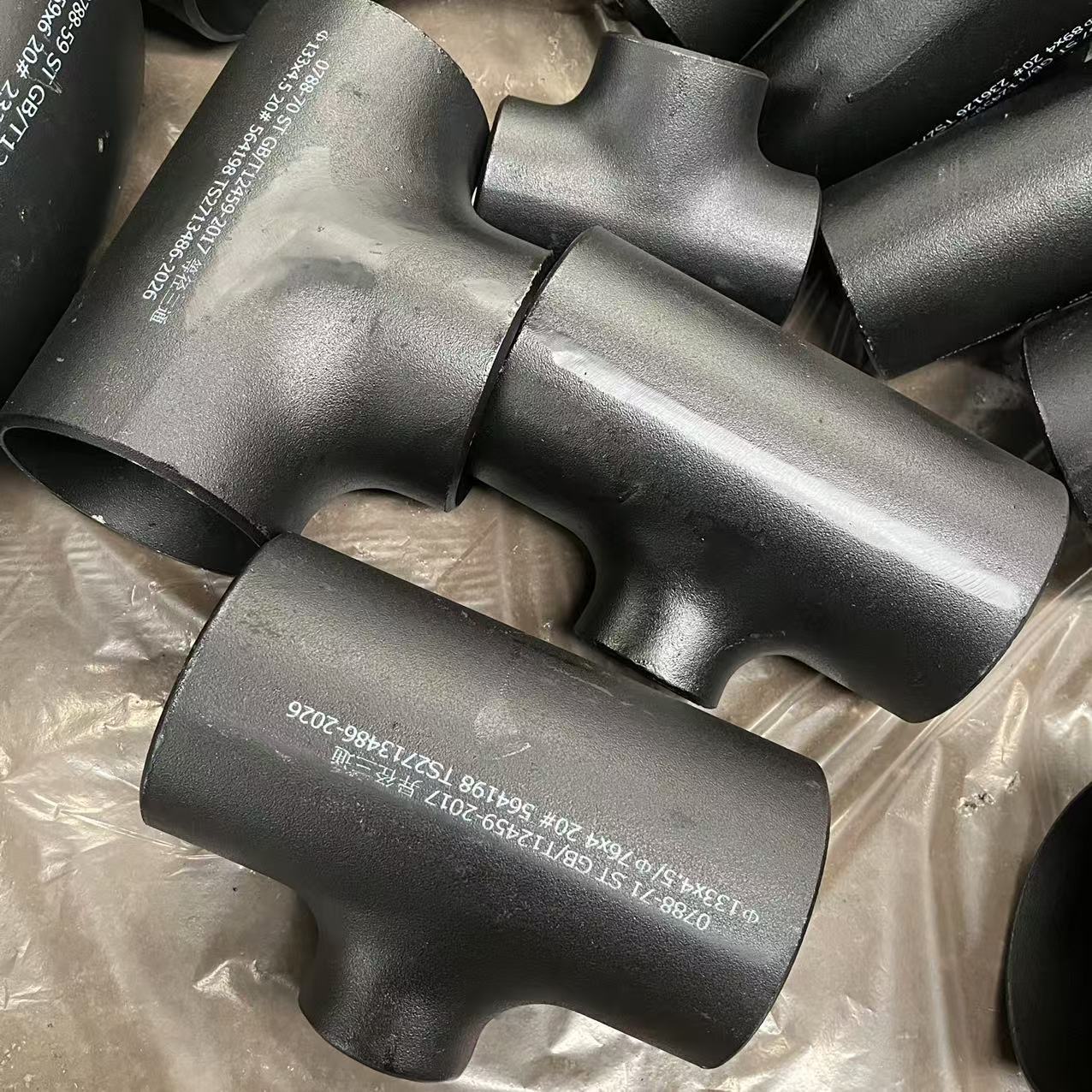

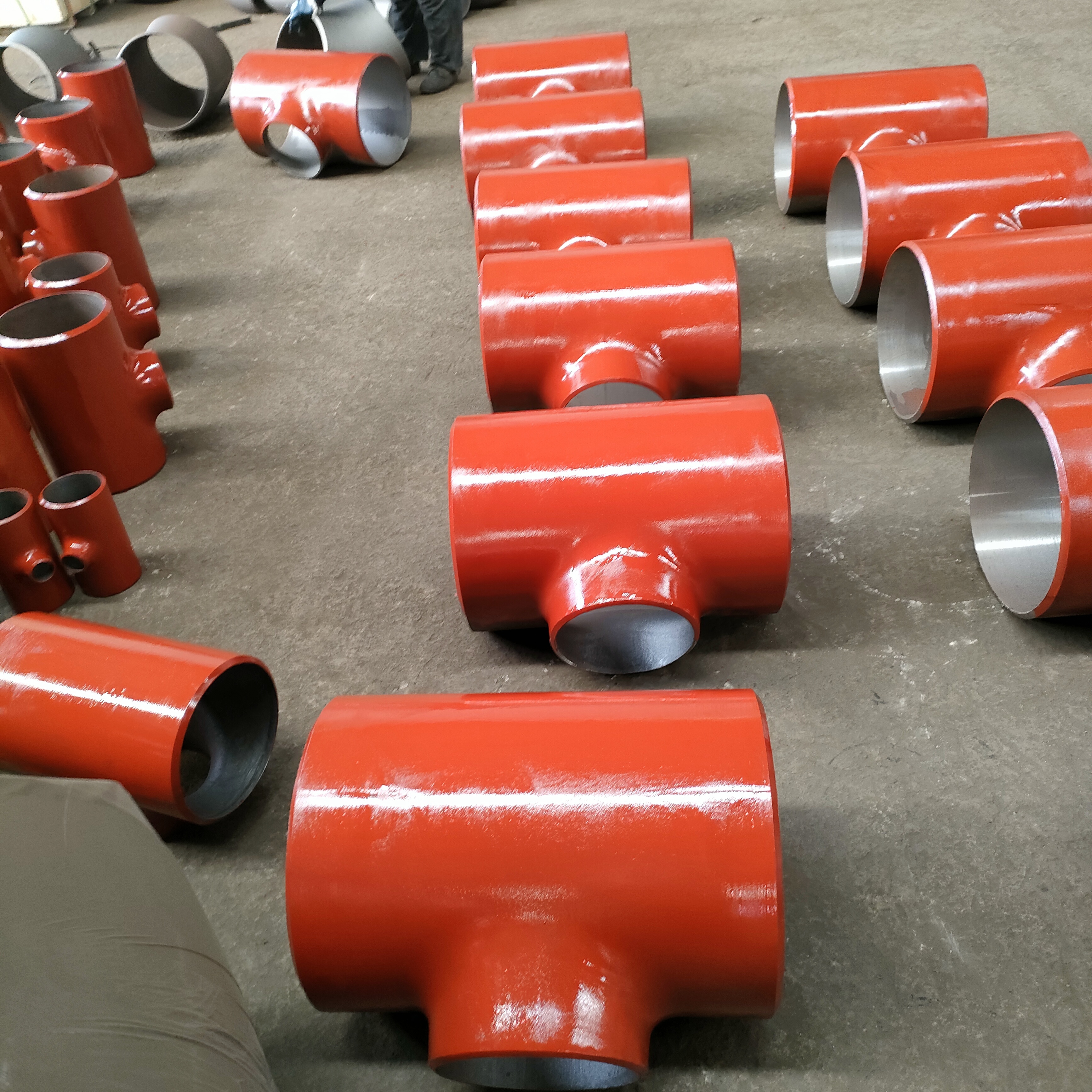

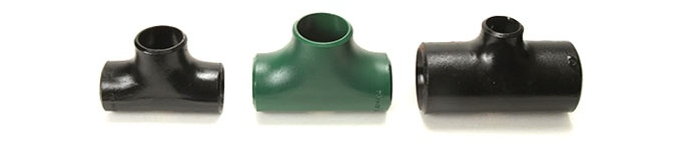

  Carbon Steel Buttweld Pipe Fitting Tee

  Carbon Steel Buttweld Tees conform to ASTM A234.

  Both straight and reducing Carbon Steel Buttweld Tees are stocked.

  Straight Tees are available in sizes from 1" to 20".

  Reducing Tees are available in sizes from (1.50" X 1.00") to (12" X 10").

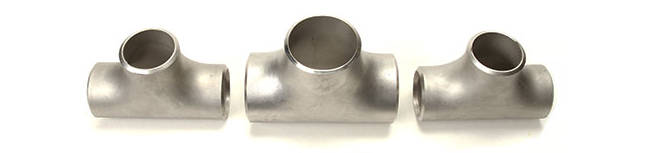

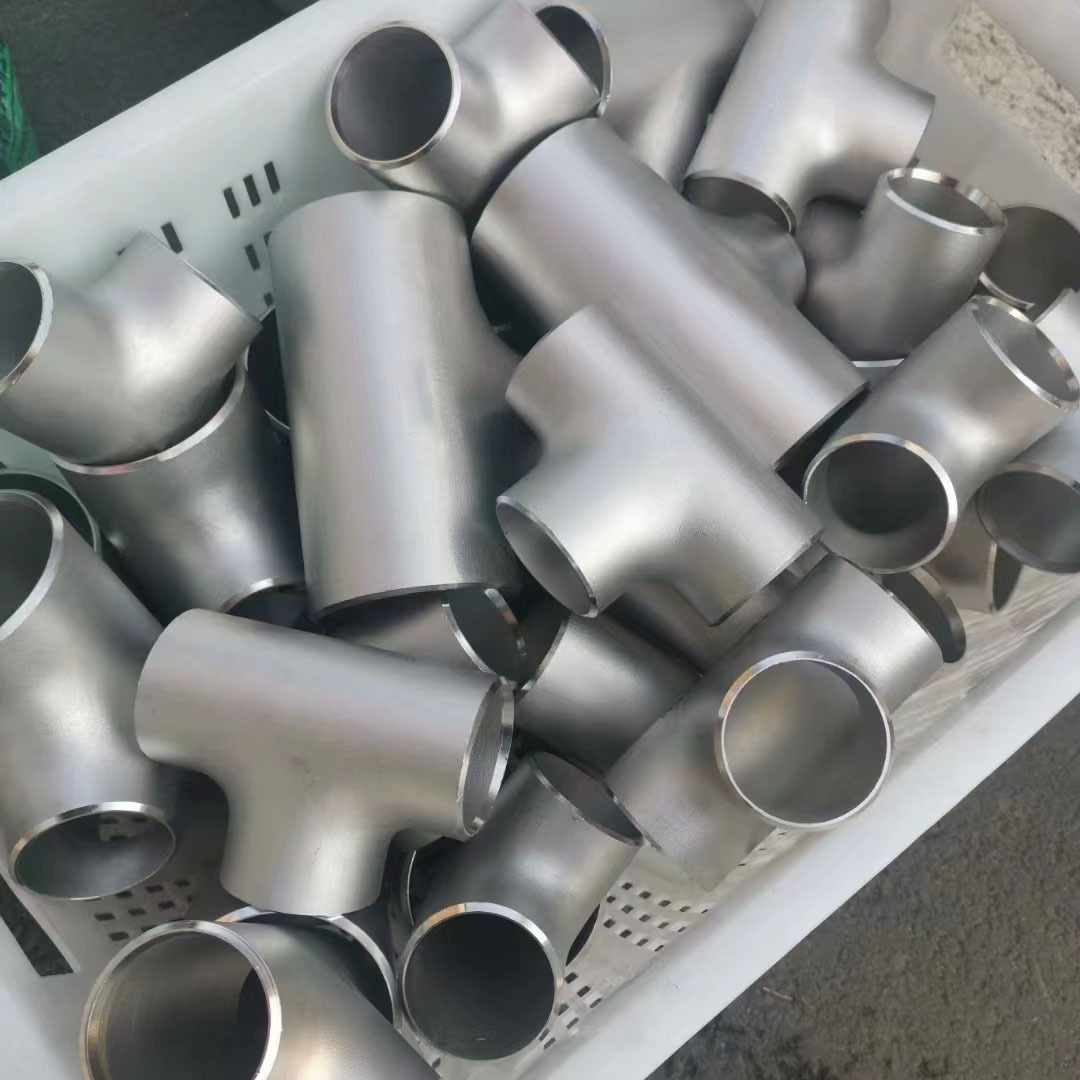

  Stainless Buttweld Pipe Fitting Tee

  Stainless Buttweld Tees conform to ASTM A403.

  Stocked in sizes from 1.50" to 6".

  Both standard (STD) and schedule 10 are stocked.

  Stainless Buttweld Tees are available in grades 304L and 316L (L=low carbon).

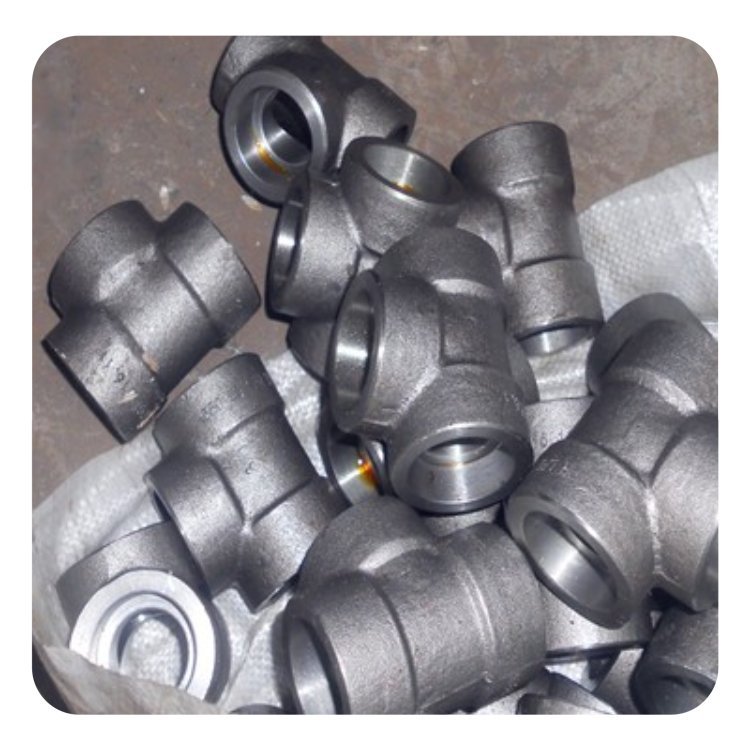

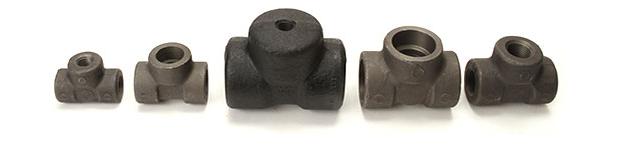

  Forged Steel Pipe Fitting Tee

  Forged Steel Tees conform to ASTM A105 and ASME SA105.

  Stocked in sizes from 1/8" to 4".

  Forged Steel Tees are available with both socket weld and threaded ends.

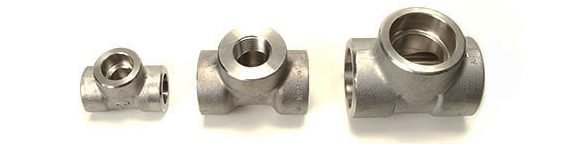

  Forged Stainless Steel Pipe Fitting Tee

  Forged Stainless Tees conform to ASTM A182.

  Stocked in sizes from 1/4" to 2".

  Both socket weld and threaded Forged Stainless Tees are in stock.

  Available in grades 304L and 316L (L=low carbon).

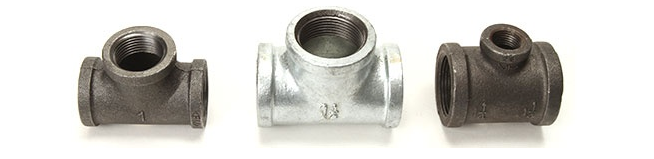

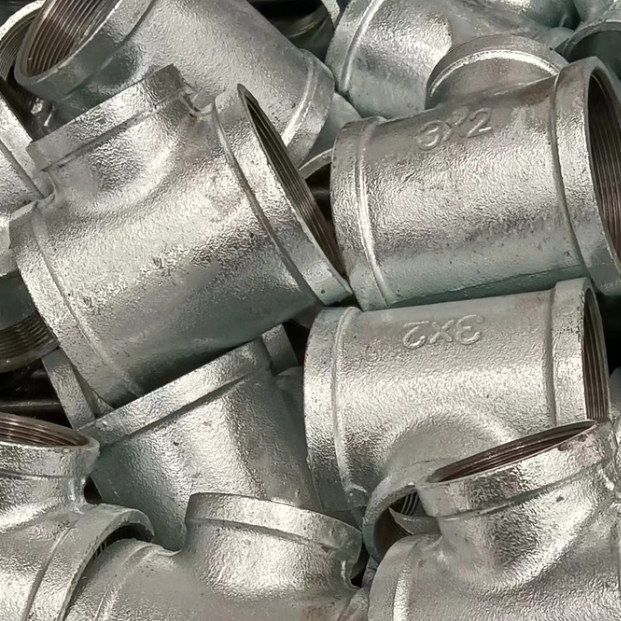

  Malleable Iron Pipe Fitting Tee

  Malleable Iron Tees are available in both black and galvanized finishes.

  Both straight and reducing Malleable Iron Tees are stocked.

  Straight Tees in sizes from 1/8" to 6".

  Reducing Tees in sizes from (1/2" X 1/4") to (2.50" X 2.00").

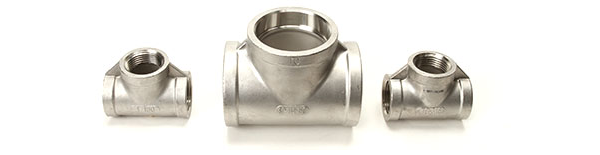

  Cast Stainless Steel Pipe Fitting Tee

  Cast Stainless Tees are stocked in sizes from 1/8" to 4".

  Available in grades 304 and 316.

  Both threaded and socket weld end Cast Stainless Tees are stocked.

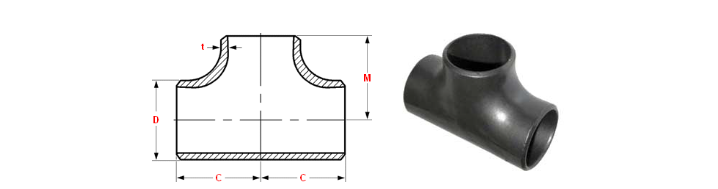

Pipe Tee Parameters

NPS O.D.
D
Center to End
C
Center to End
M
1/2 21.3 25 25
3/4 26.7 29 29
1 33.4 38 38
1.1/4 42.2 48 48
1.1/2 48.3 57 57
2 60.3 64 64
2.1/2 73 76 76
3 88.9 86 86
3.1/2 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
10 273 216 216
12 323.8 254 254
14 355.6 279 279
16 406.4 305 305
18 457 343 343
20 508 381 381
22 559 419 419
24 610 432 432
26 660 495 495
28 711 521 521
30 762 559 559
32 813 597 597
34 864 635 635
36 914 673 673
38 965 711 711
40 1016 749 749
42 1067 762 711
44 1118 813 762
46 1168 851 800
48 1219 889 838
