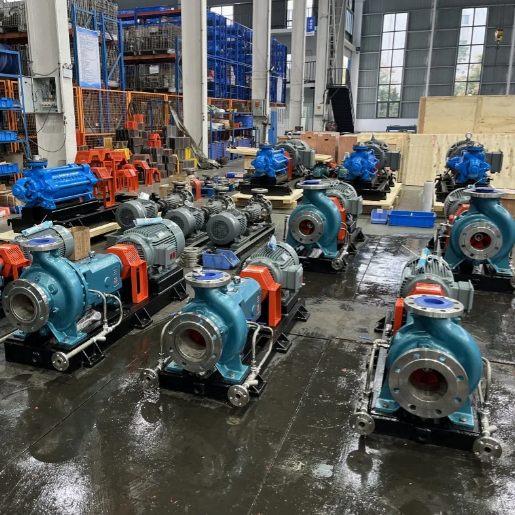

Name: Oil Process Pump
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Product feature

　　KXG type low capacity and high head centrifugal pump execute the standard of APl610 named

　　GB3251-1985 of Common technical Condition for Centrifugal Used in Oil fining, Chemical and Petro

　　leum- Chemical Process and Centrifugal pump Used for Petroleum, Weight- Chemical and Gas

　　Industry (Edition 8th).

　　The main parts of the pump are as following: casing, cover, impeller, seal component, shaft

　　support, basement and so on. it has simple configuration and easy to be dismounted (Ref. The Figure

　　of configuration ).

　　The overflow parts is hydraulic desianed optimized, therefore, the pump has the features of high

　　efficiency and stability.

　　The impelleris an open type together with balance hole

　　The bearing is lubricated by thin grease, the oil is raised by oil ring, and measurement oil cup is

　　mounted on the support.

　　Particular integrated seal is used, the seal includes one side mechanical seal, mechanical seals in

　　series and metal ripple tube. So ,the performance of the pump is reliable.

　　The pump and the motor is mounted on the same basement and connected by coupling. Slice coupling

　　or elastic ones can be chosen by the requirement of the users

Our advantages

　　*Excellent quality, competitive price, prompt delivery, on-time service and good reputation.

　　 *Low minimum order

　　 *We offer knowledgeable tech support before and after the sale.

　　 *We pass the authentication of ISO,API,CE.

Detailed performance parameter table of CZ standard chemical pump

Model	Pump rated speed n=2900r/min					Pump rated speed n=1400r/min
	Flow	Head	NPSH	effectiveness	Motor power and model when the specific gravity of the medium is 1.35	Flow	Head	NPSH	effectiveness	Motor power and model when the specific gravity of the medium is 1.35
	Flow	Head	NPSH	effectiveness		Flow	Head	NPSH	effectiveness
	m³/h	m	m	%		m³/h	m	m	%
CZ32-160	7.5	34.5	2	62	Y112M-2 4KW	3.75	8.6	2	49	Y90S-4 1.1KW
	12.5	32	2			6.3	8	2
	15	30	2.5			7.5	7.5	2.5
CZ32-200	7.5	51.8	2	51	Y132S2-2 7.5KW	3.75	12.9	2	47	Y90L-4 1.5W
	12.5	50	2			6.3	12.5	2
	15	48	2.5			7.5	12	2.5
CZ32-250	7.5	82	2	40	Y160M2-2 15KW	3.75	20.5	2	37	Y100L1-4 2.2KW
	12.5	80	2			6.3	20	2
	15	78.5	2.5			7.5	16.2	2.5
CZ40-160	15	34.2	2	63	Y132S2-2 7.5KW	7.5	8.55	2	60	Y90L-4 1.5W
	25	32	2			12.5	8	2
	30	30	2.5			15	7.5	2.5
CZ40-200	15	53.2	2	60	Y160M1-2 11KW	7.5	13.3	2	57	Y100L1-4 2.2KW
	25	50	2			12.5	12.5	2
	30	47.6	2.5			15	11.9	2.5
CZ40-250	15	81.2	2	50	Y180M-2 22KW	7.5	20.3	2	48	Y100L2-4 3KW
	25	80	2			12.5	20	2
	30	78.4	2.5			15	19.6	2.5
CZ40-315	15	126.8	2	50	Y200L2-2 37KW	7.5	32.4	2	45	Y132S-4 5.5KW
	25	125	2			12.5	32	2
	30	124	2.5			15	31.7	2.5
CZ50-160	30	36	2	73	Y160M1-2 11KW	15	9	2	70	Y90L-4 1.5KW
	50	32	2.3			25	8	2.3
	60	28.4	3.3			30	7.2	3.3
CZ50-200	30	55.2	2	72	Y160L-2 18.5KW	15	13.5	2	70	Y100L1-4 2.2KW
	50	50	2.5			25	12.5	2
	60	45.2	3.2			30	11.5	2.5
CZ50-250	30	84	2.5	64	Y200L2-2 37KW	15	21	2	59	Y112M-4 4KW
	50	80	2.5			25	20	2
	60	75	2.5			30	18.8	2.5
CZ50-315	30	128	2.5	60	Y280S-2 75KW	15	32.5	2	58	Y132M-4 7.5KW
	50	125	2.5			25	32	2.5
	60	123	3			30	31.5	3
CZ65-160	60	37	3.8	74	Y180M-2 22KW	30	9.25	3	68	Y100L1-4 2.2KW
	100	32	4.3			50	8	3.4
	120	28	5			60	7	3.7
CZ65-200	60	56	3.4	73	Y200L2-2 37KW	30	14	2.5	73	Y112M-4 4KW
	100	50	3.9			50	12.5	2.5
	120	44	5.2			60	11	3
CZ65-250	60	88	30	71	Y250M-2 5.5KW	30	22	2.5	67	Y132S-4 5.5KW
	100	80	3.6			50	20	2.5
	120	74	4.5			60	18.5	3
C65-315	60	132	2.8	66	Y280S-2 75KW	30	33.5	2	62	Y160M-4 11KW
	100	125	3.2			50	32	2
	120	119	4.2			60	30.5	2.5
CZ80-160	130	16	4.7	76	Y180M-2 22KW	65	4	2.5	70	Y112M-4 4KW
	150	22	5.3			70	5	2.8
	160	26	5.8			75	8	3.5
CZ80-200	110	26	4.5	79	Y225M-2 45KW	65	9	2.5	73	Y160M-4 11KW
	130	26	5			75	11	2.9
	150	38	5.8			80	12	3.6
CZ80-250	130	47	3.7	80	Y280M-2 90KW	70	11	2	78	Y160L-4 15KW
	150	55	4.5			85	17	2.3
	180	75	5.5			90	19	3
CZ80-315	150	75	4	76.5	Y315M1-2 132KW	70	18	2.5	72	Y180M-4 18.5KW
	160	100	4.5			85	25	2.5
	200	130	5			100	32	3
CZ80-400						75	30	2.5	63	Y225S-4 37KW
						90	40	2.5
						100	50	3
CZ100-200	150	61	4.5	81	Y250M-2 55KW	60	15.3	2.5	80	Y132M-4 7.5KW
	200	50	5			100	12.5	2.9
	240	41	5.8			120	10.3	3.6
CZ100-250	120	90	3.7	81.5	Y280M-2 90KW	60	22.5	2	75	Y160M-4 11KW
	200	80	4.5			100	20	2.3
	240	73	5.5			120	18.3	3
CZ100-315	120	132.5	4	75.5	Y315M1-2 132KW	60	33.5	2.5	72	Y180M-4 18.5KW
	200	125	4.5			100	32	2.5
	240	120	5			120	30.5	3
CZ100-400						60	52	2.5	70	Y225S-4 37KW
						100	50	2.5
						120	58.5	3
CZ125-250						120	23	2.5	84	Y180L-4 22KW
						200	20	2.8
						240	18	3
CZ125-315						120	35.6	3	79	Y225S-4 37KW
						200	32	3.5
						240	29.4	4
CZ125-400						120	55.8	3	74.5	Y280S-4S 75KW
						200	50	3.5
						240	47	4
CZ150-250						240	23	3	85	Y225M-4 45KW
						400	20	3.5
						460	18	4
CZ150-315						240	35.6	3	82.5	Y280S-4 75KW
						400	32	3.5
						460	29.4	4
CZ150-400						240	55.8	3	80	Y315S-4 110KW
						400	50	3.5
						460	47	4
CZ150-500						340	50	3.5	78	Y315M2-4 160KW
						360	65	4
						400	70	4.3
CZ200-250						500	10	3.5	85	Y225S-4 37KW
						540	11	4.2
						600	12	4.5
CZ200-315						500	13	4.5	83.5	Y280S-4S 75KW
						600	20	4.5
						650	24	5
CZ200-400						500	40	4.5	84	Y315M2-4 18.5KW
						550	45	4.8
						650	52	5
CZ200-500						450	40	4.5	81.5
						550	55	4.8
						650	65	5
CZ250-315						800	16	4.5	86
						900	20	5
						950	22	5.5
CZ250-400						800	24	4.9	83
						900	38	5
						1000	44	5.5
CZ250-500						850	45	5.5	85
						1000	55	5.5
						1200	80	6
CZ300-400						1300	20	5.5	87
						1400	30	5.5
						1500	40	6
CZ300-500						1100	40	5.5	83.5
CZ300-500									83.5
