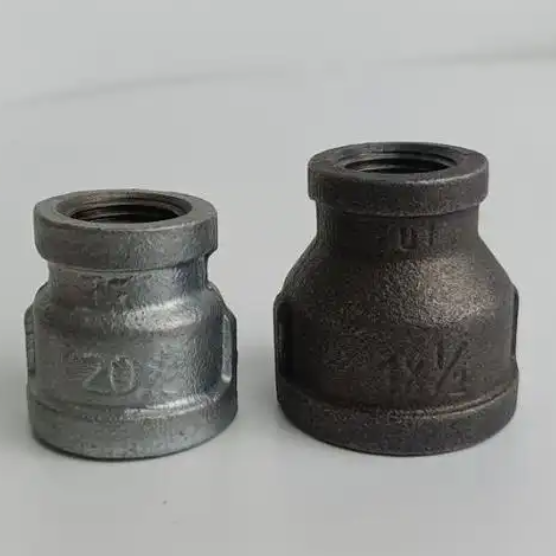

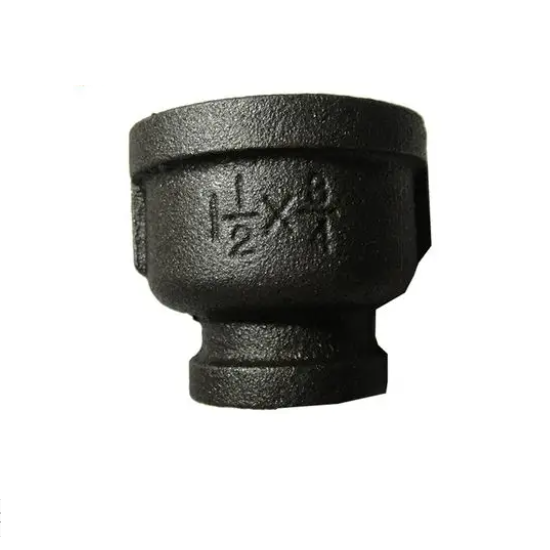

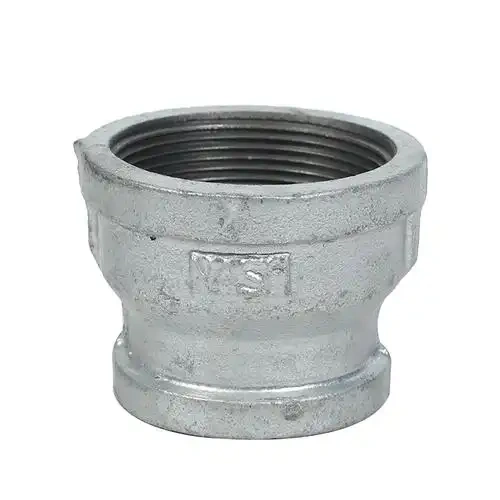

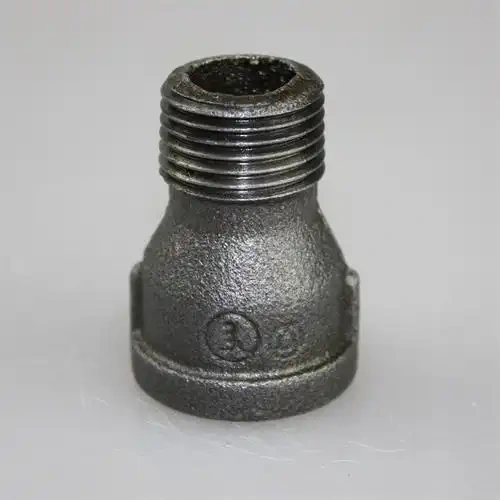

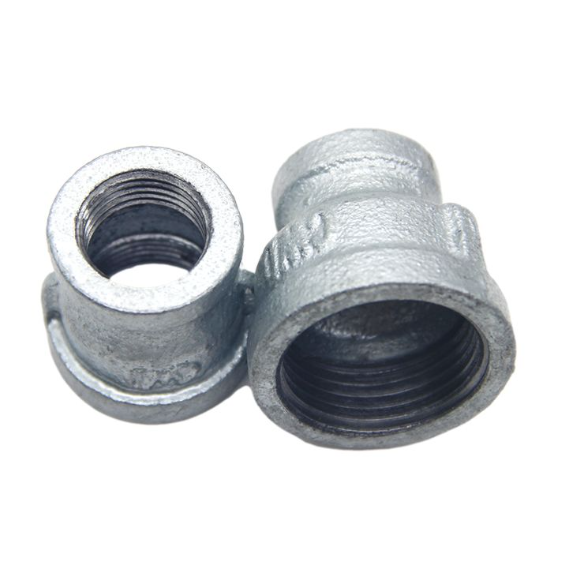

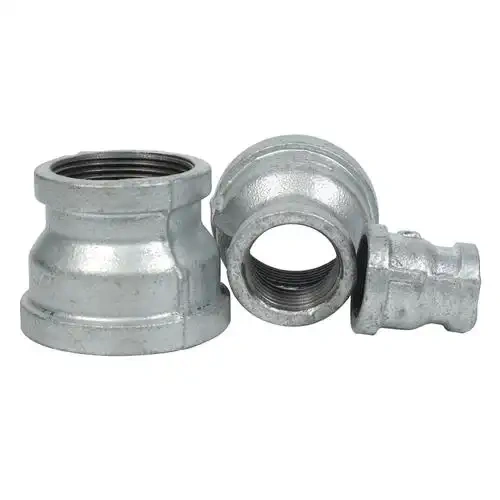

Malleable Iron Reducer

Malleable Iron Reducer is made of malleable cast iron , with the character of high intensity, plasticity, and impact toughness. Physical characteristics of malleable iron are somewhat stronger and less brittle than gray iron, therefore Malleable Iron Reducers are generally used where shock and vibration resistance are required and where fittings are subject to quick temperature changed.
  • Malleable Iron Reducer
  • Malleable Iron Reducer
  • Malleable Iron Reducer
  • Malleable Iron Reducer
  • Malleable Iron Reducer
  • Malleable Iron Reducer

Description

Malleable Iron Reducer Stockist,Malleable Iron Reducer Manufacturer In China

  Malleable Iron Reducer is made of malleable cast iron , with the character of high intensity, plasticity, and impact toughness. Physical characteristics of malleable iron are somewhat stronger and less brittle than gray iron, therefore Malleable Iron Reducers are generally used where shock and vibration resistance are required and where fittings are subject to quick temperature changed.

Product Description

Application: For pipeline holding water, gas, oil, etc.
Specifications: ISO5922/ ISO49/ ISO7-1,
BS EN1562:1997, BS EN10242,
DIN2950/1692/2999,
ANSI/ASME A197/ A197M-2000,
ANSI/ASME 16.3-92/ B1.20.1-83
Material Grade: Black heart malleable iron 300-06, 330-08, 350-10,
Working Pressure: Hydrostatic ≥ 20bar, Pneumatic ≥ 5bar
Designed Shape: Banded, beaded, banded with rib, beaded with rib,
Surface Treatment: Black, hot dip galvanized, electric zinc coating, epoxy coating,
Weight Model: Light, Medium, Heavy,
Packing: Cartons and pallets, nylon bags,

Chemical Composition & Mechanical Properties Of Malleable Iron Reducer

Chemical Composition:
Specified values % C Si Mn P S Cr Ni Mo Cu N V Co Ti
2.4-2.9 1.4-1.9 0.4-0.65 <0.1 <0.2%
Mechnical Properties:
Specified Values  Rm  (MPa) Rp0.2  (MPa) A5X10  (%) J  (-46C) HB %
Tensile strength  Limit of elasticity Elongation Charpy Impaction  Brinell Hardness  Ferrite Percentage
>=300mpa   >=10%   <=150HB

  Our Malleable Iron Galvanized and Black Fitting is manufactured to meet the highest standards. It complies with ENGB/T-3287, BS EN-10242, and KHT300-6, ensuring its quality and reliability.

  The fitting is made from durable malleable iron, providing strength and longevity. It is available in two surface finishes: galvanized or natural black. The galvanized surface offers excellent corrosion resistance, making it suitable for various applications. The natural black surface provides a classic and timeless look.

  The inner surface of the fitting can be chosen with or without PVC coating. The PVC coating adds an extra layer of protection, preventing any potential damage to the fitting and ensuring its longevity.

  With our Malleable Iron Galvanized and Black Fitting, you can trust that you are getting a high-quality product that meets industry standards. Its versatility and durability make it suitable for a wide range of applications.

Malleable Iron Reducer P
arameter

Size mm 10x8 15x8 15x10 20x15 25x10 25x15
In 3/8x1/4 1/2x1/4 1/2x3/8 3/4x1/2 1x3/8 1x1/2
A 29 35 36 38 44 44
Size mm 32x15 32x20 32x25 40x15 40x20 40x25
In 1¼x1/2 1¼x3/4 1¼ x1 1½x1/2 1 ½x 3/ 4 1½ x1
A 49 49 49 53 53 53
Size mm 40x32 50x15 50x20 50x25 50x32 50x40
In 1½x1¼ 2 x1/2 2x3/4 2x1 2x1¼ 2x1½
A 53 63 63 63 63 63
Size mm 65x15 65 x 20 65x25 65x32 65x40 65x50
In 2½x1/2 2 ½x3/4 2 1/2x2 2½ x1¼ 2 ½x1½ 2 ½ x2
A 72 72 72 72 72 72
Size mm 80x15 80x 20 80x25 80x32 80x40 80x50
In 3 x 1/2 3x3/4 3x1 3x1¼ 3x1½ 3x2
A 71 71 71 71 71 71
Size mm 80x65 100 x15 100x20 100 x 25 100x32 100x40
In 3x2½ 4x1/2 4x3/4 4x1 4x1¼ 4x 1½
A 71 84 84 84 84 84
Size mm 100x50 100x 65 100x80 25x20
In 4x2 4x2½ 4x3 1x3/4
A 84 84 84 44
