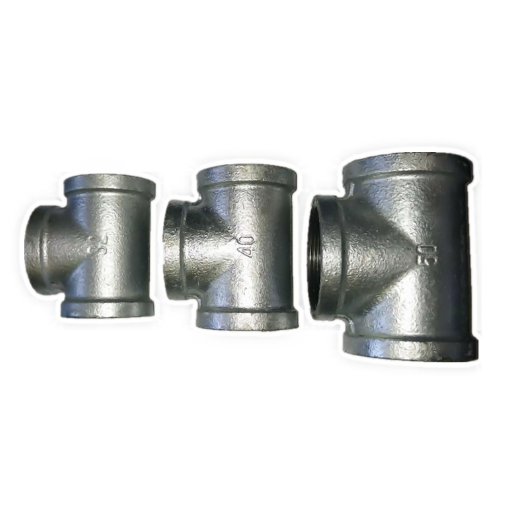

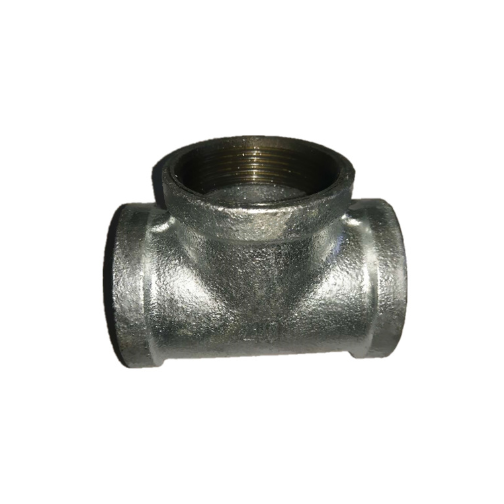

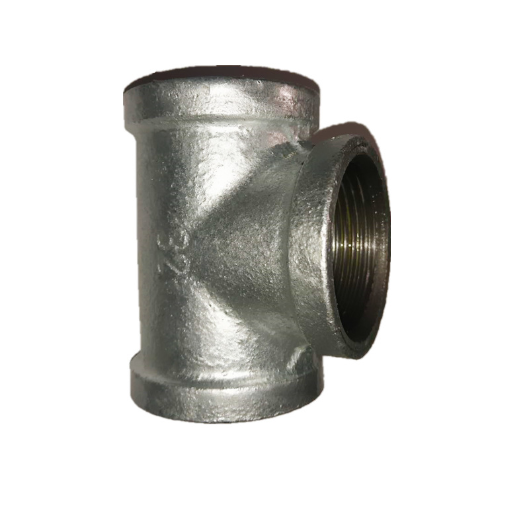

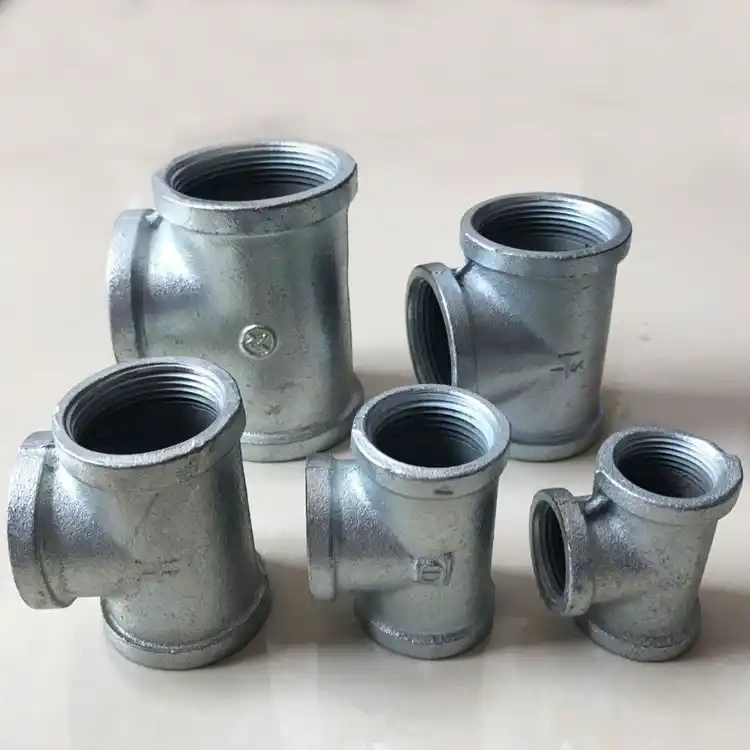

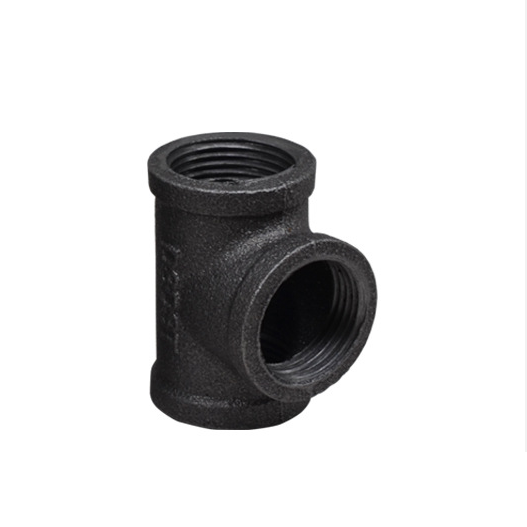

A black malleable iron pipe tee is used to connect three pipe segments at a common junction or intersection.
Consists of a main run segment and two offset branch segments that intersect at 90 degree angles.
Available in threaded sizes from 1/2" to 6" to match common pipe dimensions.

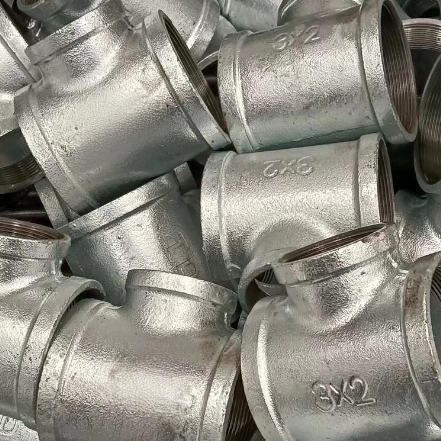

May have reducing couplings, bushings for joining different pipe sizes. Straight or 45 degree branch pipe fitting tee also available.
Malleable iron pipe tee has NPT threading on all three openings for connection to iron or steel piping systems.
| Material |
Malleable Iron |
| Standard |
British Standard, American Standard, DIN standard |
| Chemical Property |
(C% 2.4-2.9), (Si%1.4-1.9), (Mn% 0.4-0.65), (P% <0.1), (S% <0.2) |
| Physical Property |
Tensile Strength>=300Mpa, Elongation>=6%, Hardness<=150HB |
| Testing Pressure |
2.5Mpa Hydraulic Pressure |
| Working Pressure |
1.6Mpa Hydraulic Pressure |
| Type |
Banded, Beaded, Plain |
| Surface Treatment |
Electro Galvanized, Hot Dipped Galvanized and Normal Black |
| Series |
Standard |
| Application |
Fire Fighting, Plumbing, Oil, Gas, Decoration, Infrastructure and Construction |
| Transportation mode |
By Sea, By Railway or By Air |
| Delivery |
30-50 Days after Prepayment |
Malleable Iron Pipe Fitting Tee Standard
| |
Materials |
Dimension |
Galvanized |
Threads |
| NPT |
ASTM A-197 |
ASME B16.3 16.14 |
ASTM A153 |
ANSI B1.20.1 |
| ANSI/ASME/A197-79 |
ANSI/ASME B16.3-85 |
/ |
ANSI/ASME B1.20.1 |
| BSPT |
ASTM A-197 |
BS EN 10242 |
ASTM A153 |
ISO 7/1 |
| EN1562 |
BS 143&1256 |
/ |
/ |
| ISO5922 |
ISO49 |
/ |
/ |
| DIN |
ASTM A-197 |
DIN EN 10242 |
ASTM A153 |
ISO 7/1 |
| EN1562 |
ISO49 |
ISO 1460 |
DIN 2999 |
| ISO5922 |
DIN2950 |
/ |
/ |
| DIN 1692 |
/ |
/ |
/ |
Whether you need a standardized malleable cast iron tee or a unique customized malleable cast iron tee, Shengtian Group will supply high-quality malleable cast iron tees.
