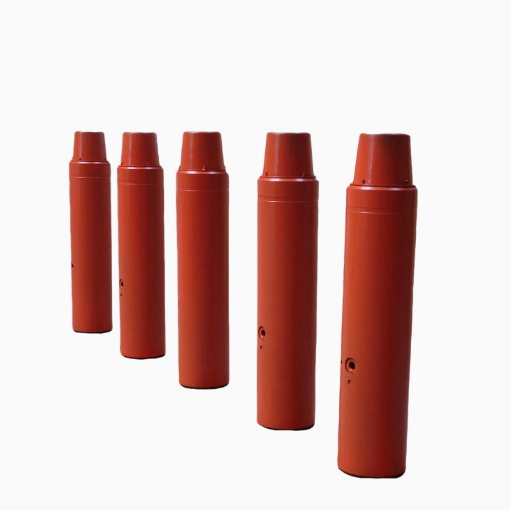

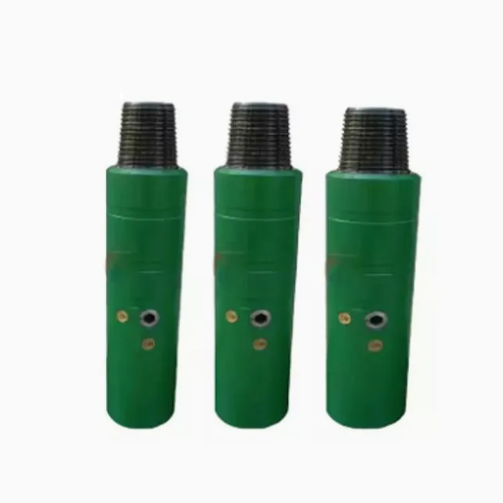

Name: Ibop/Inside Bop
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Ibop Manufacturer,Inside Bop Supplier,Well Control Equipment Producer

　　Well Control Equipment are used on wellhead, they are used for preventing blowout or similar effect. Well control equipment includes IBOP, Kelly Valve, Float Valve, BOP, Drilling Spool and Manifolds.

Product Description

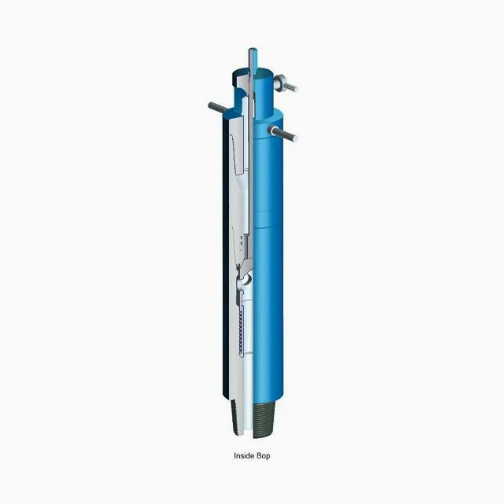

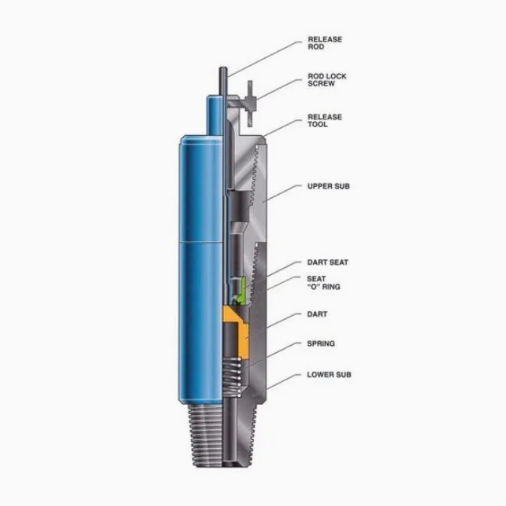

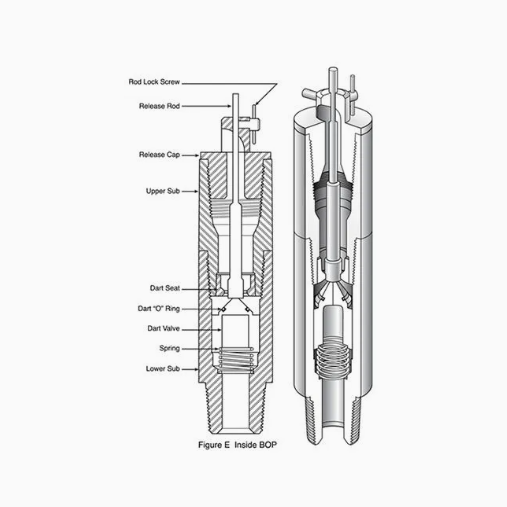

　　The IBOP is a non-return valve (check valve), also called Gray Valve or BVR, is a back pressure valve used in the drill string to prevent the well from flowing uncontrollably up the drill string. It is used to hold the tool open therefore it is possible to stab the valve while the fluid is flowing through the drill pipe. With the IBOP valve installed in the drill string, it allows you to strip in hole without mud flowing through the drill sting. The IBOP valve should not be used for shut the well in while tripping.

　　We produce H2S resistance Inside Bop Valves, which adopt high quality import sulfur-resistance material.

　　Available with a wide variety of sizes and end connections.

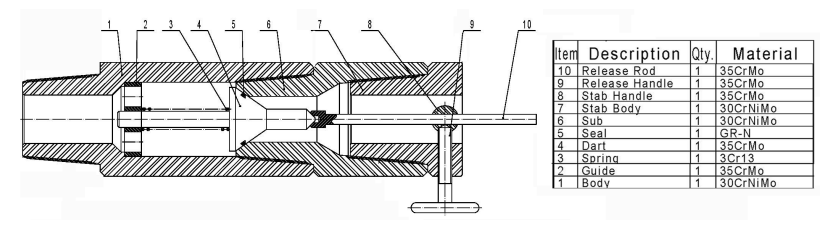

　　Two piece body with full drift bores.

　　Operating wrench and thread protectors included.

　　Major repair kits available for every valve.

　　Comes with certified test report.

　　Identifiable open and close markings.

　　Can be H2S corrosion resistant as per NACE MR0175.

Ibop Parameter

Thread connection	O.D. mm(inch)	I.D. mm(inch)	OAL mm(inch)	Working pressure (Mpa)
NC26	88.9 (3-1/2)	31.75 (1-1/4)	686 (27)	70 (35)
NC26	95 (3-3/4)	35 (1-3/8)	660 (26)	70 (35)
NC31	104.8 (4-1/8)	41.3 (1-5/8)	711 (28)	70 (35)
NC31	111 (4-3/8)	35 (1-3/8)	670 (26-3/8)	70 (35)
NC38	120.1 (4-3/4)	50 ( 2 )	462 (30)	70 (35)
NC38	121 (4-3/4)	45 (1-49/64)	685 (26-31/32)	70 (35)
NC46	158.75 (6-1/4)	61.9 (2-7/16)	838 (33)	70 (35)
NC50	159 (6-1/4)	57.2 (2-1/4)	760 (29-59/64)	70 (35)
NC50	165 (6-1/2)	57.2 (2-1/4)	760 (29-59/64)	70 (35)
NC50	168.28 (6-5/8)	71.4 (2-13/16)	838 (33)	70 (35)
5 1/2FH	177.8 ( 7 )	76.2 ( 3 )	889 (35)	70 (35)
HT55	177.8 ( 7 )	57.2 (2-1/4)	998 (38-57/64)	70 (35)
6-5/8REG	203.2 ( 8 )	76.2 ( 3 )	965 (38)	70 (35)
6-5/8REG	203.2 ( 8 )	71.4 (2-13/16)	998 (38-57/64)	70 (35)
7-5/8REG	241(9-1/2)	71.4 (2-13/16)	998 (38-57/64)	70 (35)
7-5/8REG	241(9-1/2)	76.2 ( 3 )	965 (38)	70 (35)

Specification -Inside BOP

Inside Blowout
Thread connection	Product Code	O.D.(in)	I.D.(in)	Length (in)	Working Pressure(MPa)
NC26	F0108900	3 1/2	1 1/4	27~28	70(35)
NC31	F0110500	4 1/8	1 5/8	28~30	70(35)
NC38	F0112100	4 3/4	2	30~31	70(35)
NC46	F0115900	6 1/4	2 7/16	33~34	70(35)
NC50	F0116800	6 5/8	2 13/16	33~34	70(35)
5 1/2 FH	F0117800	7	3	35~38	70(35)
6 5/8 REG	F0120300	8	3	38	70(35)
7 5/8 REG	F0124100	9 1/2	3	38	70(35)
