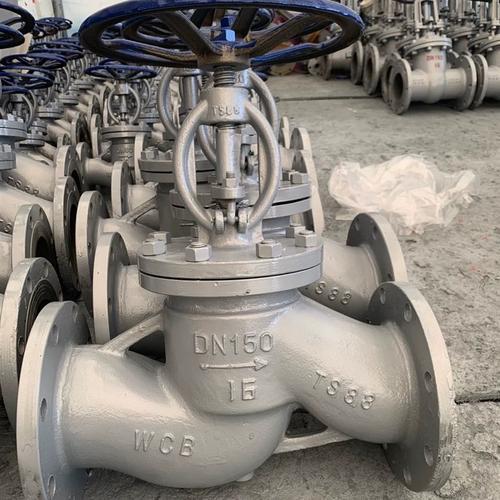

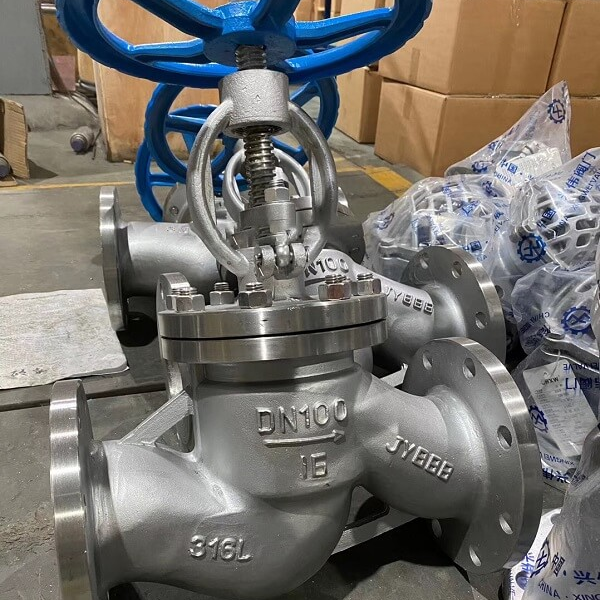

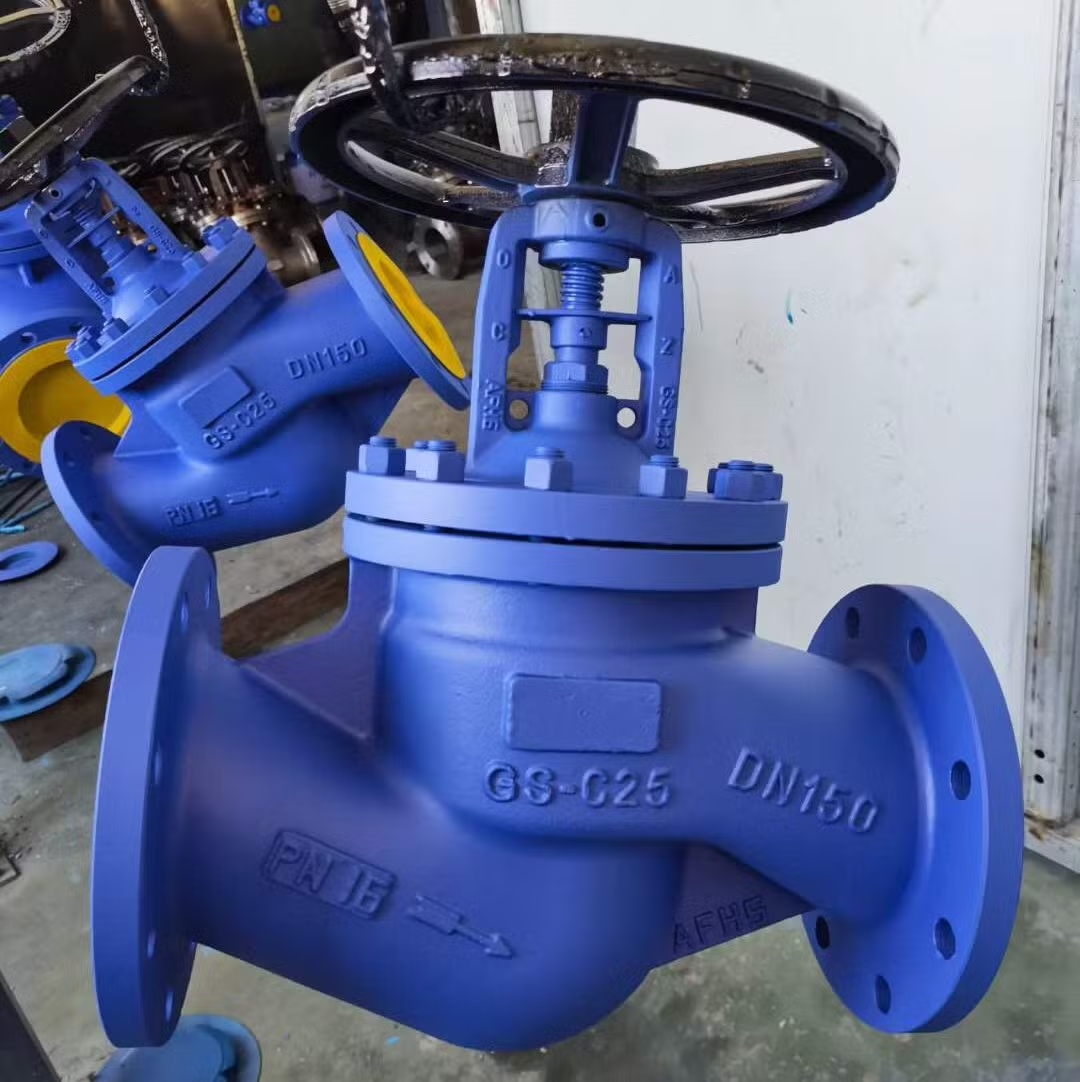

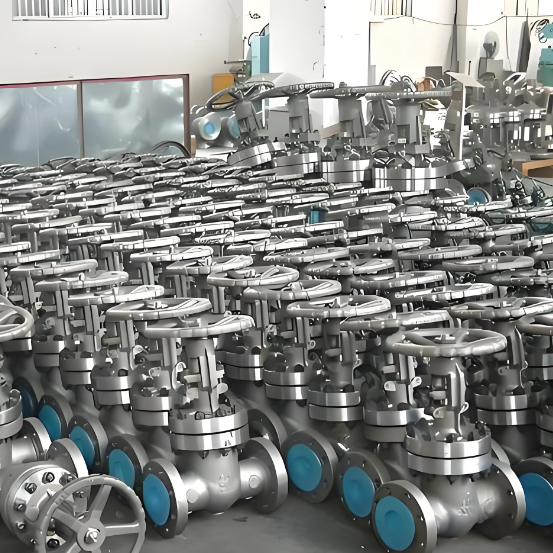

Standard:API598,DIN3356,BS7350
Size : DN15~DN300mm (1/2"-12")
Pressure : PN1.0~15MPa(class150-class900)
Suitable Mediums: water, oil, gas,steam
Body material: Carbon Steel A216 WCB/A105 ,Stainless steel
Standard:API598,DIN3356,BS7350
Size : DN15~DN300mm (1/2"-12")
Pressure : PN1.0~15MPa(class150-class900)
Suitable Mediums: water, oil, gas,steam
Body material: Carbon Steel A216 WCB/A105 ,Stainless steel
The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.
· Design and Manufacture Conform to ANSI B16.34
· Flange dimensions Conform to ASME B16.5
· Face to Face dimensions Conform to ASME B16.10
· Testing Conform to API 598
| NO. | PART | ASTM Material | Shengtian Group | ||||
| WCB | LCB(1) | WC6 | CF8(M) | CF3(M) | |||
| 1 | BODY | A216 WCB+13Cr | A352 LCB+13Cr | A217 WC6+STL | A351 CF8(M)+STL | A351 CF3(M)+STL | |
| 2 | DISC | A216 WCB+13Cr | A352 LCB+13Cr | A182 F11+STL | A351 CF8(M) | A351 CF3(M) | |
| 3 | STEM | A182 F6 | A182 F6 | A182 F6 | A182 F304(F316) | A182 F304L(F316L) | |
| 4 | SLEEVE | A105 | A105 | A182 F11 | A182 F304(F316) | A182 F304L/F316L | |
| 5 | BONNET BOLT | A193 B7 | A320 L7 | A193 B16 | A193 B8(M) | A193 B8(M) | |
| 6 | BONNET NUT | A194 2H | A194 7 | A194 4 | A194 8(M) | A194 8(M) | |
| 7 | GASKET | SS304+GRAPHITE | PTFE/SS304+GRAPHITE | PTFE/SS316+GRAPHITE | |||
| 8 | BONNET | A216 WCB | A352 LCB | A217 WC6 | A351 CF8(M) | A351 CF8(M) | |
| 9 | BACKSEAT | A182 F6 | A182 F6 | A182 F6 | |||
| 10 | PACKING | FLEXIBLE GRAPHITE | PTFE/FLEXIBLE GRAPHITE | ||||
| 11 | GLAND | A182 F6 | A182 F6 | A182 F6 | A182 F304(F316) | A182 F304L/F316L | |
| 12 | GLAND FLANGE | A216 WCB | A352 LCB | A217 WC6 | A351 CF8 | A351 CF3 | |
| 13 | GLAND EYEBOLT | A193 B7 | A193 B8 | A193 B8 | |||
| 14 | NUT | A194 2H | A194 8 | A194 8 | |||
| 15 | PIN | AISI 1025 | AISI 1025 | ||||
| 16 | STEM NUT | BRONZE | BRONZE | ||||
| 17 | HANDWHEEL NUT | AISI 1035 | AISI 1035 | ||||
Dimensions data(mm)
| Size | in | 1/2 | 3/4 | 1 | 11/2 | 2 | 21/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| L/L1 (RF/BW) |
in | 6.5 | 7.5 | 8.5 | 9.5 | 11.5 | 13 | 14 | 17 | 22 | 26 | 31 | 33 | - | - |
| mm | 165 | 190 | 216 | 241 | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | - | - | |
| L2 (RTJ) |
in | - | - | - | - | 11.62 | 13.12 | 14.12 | 17.12 | 22.12 | 26.12 | 31.12 | 33.13 | - | - |
| mm | - | - | - | - | 295 | 333 | 359 | 435 | 562 | 663 | 790 | 841 | - | - | |
| H (Open) |
in | 7.25 | 7.62 | 9 | 11 | 17.5 | 19.75 | 21 | 24.5 | 29.5 | 36.5 | 44.88 | 53.12 | - | - |
| mm | 185 | 195 | 230 | 280 | 445 | 502 | 533 | 622 | 750 | 927 | 1140 | 1350 | - | - | |
| D0 | in | 4 | 4 | 6 | 8 | 10 | 11 | 13 | 16 | 18 | 20 | 24 | 24 | - | - |
| mm | 100 | 100 | 140 | 200 | 240 | 280 | 320 | 400 | 450 | 500 | 600 | 600 | - | - | |
| WT (Kg) |
BW | 6 | 8 | 14 | 23 | 35 | 50 | 60 | 110 | 230 | 410 | 770 | 1140 | - | - |
| RF/RTJ | 4.8 | 6.2 | 9.5 | 16.5 | 27 | 34 | 42 | 84 | 192 | 350 | 680 | 1030 | - | - |
