GLV701-300
Standard:API598,DIN3356,BS7350,ANSI B16.34
Size : DN15~DN300mm (1/2"-12")
Pressure : PN1.0~5MPa(class300)
Suitable Mediums: water, oil, gas,steam
Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
GLV701-300
Standard:API598,DIN3356,BS7350,ANSI B16.34
Size : DN15~DN300mm (1/2"-12")
Pressure : PN1.0~5MPa(class300)
Suitable Mediums: water, oil, gas,steam
Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
| Part Name | Material |
| Body | A216-WCB+Cr13 |
| Disk | A105+Cr13 |
| Stem | A182-F6a |
| Bonnet Stud | A193-B7 |
| Bonnet Stud Nut | A194-2H |
| Bonnet | A216-WCB |
| Stem Back Seat | A276-420 |
| Packing | Graphite |
| Gland | A276-420 |
| Gland Flange | A216-WCB |
| Yokesleeve | Aluminum-Bronze |
| Handwheel | Steel |
| DN | 2 | 2½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| L | 267 | 292 | 318 | 356 | 400 | 444 | 559 | 622 | 711 |
| D | 165 | 191 | 210 | 254 | 279 | 318 | 381 | 445 | 521 |
| D1 | 127 | 149.4 | 168.1 | 200.2 | 235 | 269.7 | 330.2 | 387.4 | 450.9 |
| D2 | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 |
| b | 20.9 | 23.9 | 26.9 | 30.4 | 33.9 | 35.4 | 39.9 | 46.4 | 49.4 |
| n-d | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 | 16-28 | 16-32 |
| f | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
| H | 325 | 363 | 405 | 462 | 518 | 578 | 665 | 728 | 820 |
| W | 200 | 250 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |

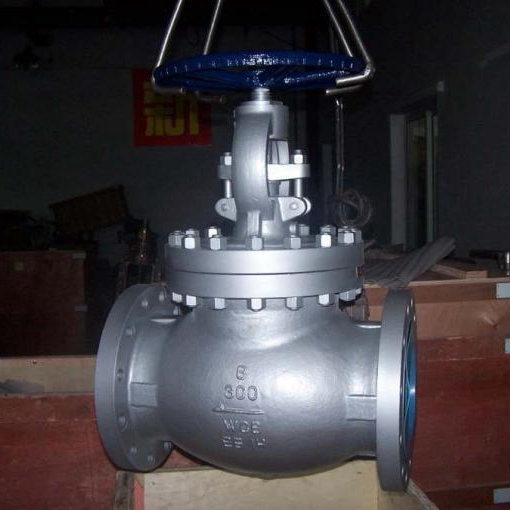

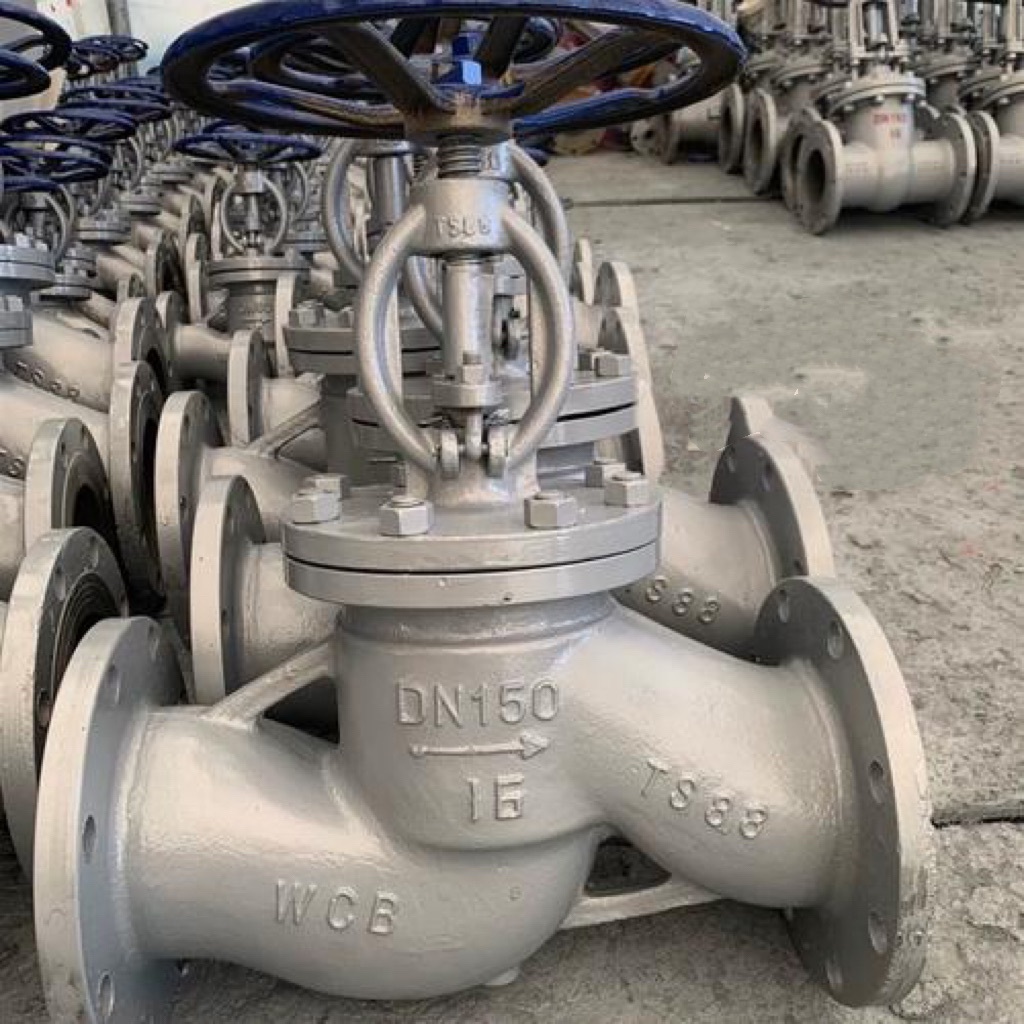

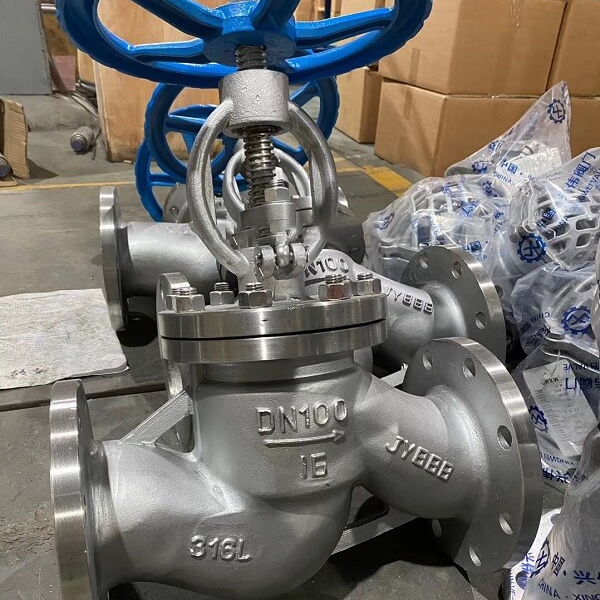

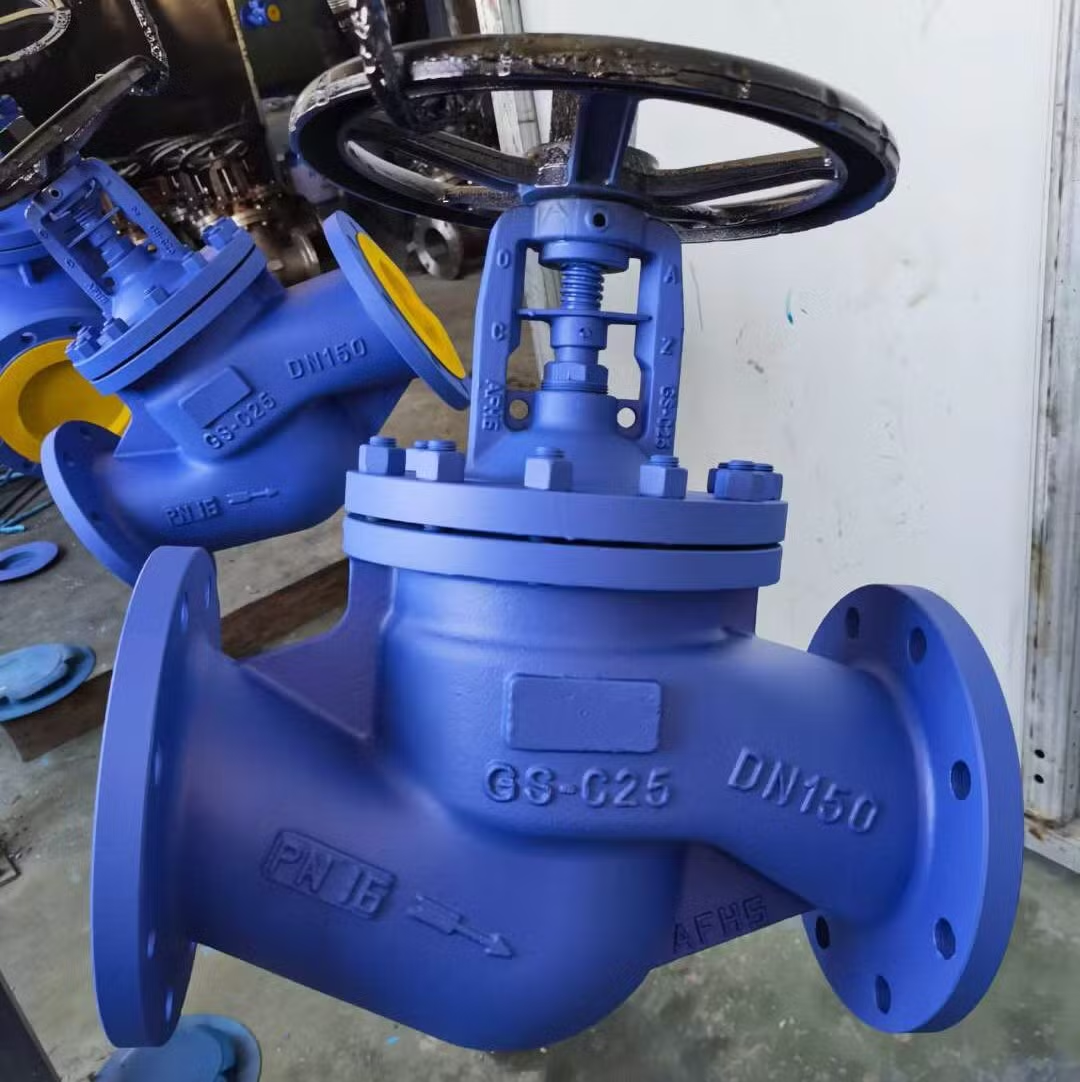

Product Photos
