A105 ,Stainless steel

Name: GLV601 Globe Valve
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

　　Product Overview

　　The range can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

　　Technical Requirement

　　Design and Manufacture:API 602, BS5352,ASME B16.34

　　Connection end Socket Weld End(SW):ASME B16.11 Threaded End(NPT):ASME B1.20.1 Butt-Weld End(BW):ASME B16.25 Flange End(RF/RTJ):ASME B16.5

　　Test & Inspection:API 602, API 598

　　Design Description:Bolted Bonnet(BB),Welded Bonnet(WB), Outside Screw and Yoke(OS&Y)

　　Main Materials:A105,LF2,F5,F11,F22,304(L),316(L),F347,F321,F51,Alloy 20, Monel

Dimensions Data

Specification

No.	PART	ASTM Material
No.	PART	A105	LF2	F11	F304(L)	F316(L)	F51
1	BODY	A105+SS304	LF2	F11	F304(L)	F316(L)	F51
2	DISC	F6a	F6a	F6a+STL	F304(L)	F316(L)	F51
3	STEM	410	410	410	304(L)	316(L)	F51
4	GASKET	A105	LF2	F11	304+Graphite	316(L)+Graphite	316(L)+Graphite
5	BONNET	304+Graphite B16			F304(L)	F316(L)	F51
6	BOLT	B7	L7	F11	B8(M)	B8(M)	B8M
7	PACKING	Flexible Graphite
8	GLAND	A182 F6	LF2	F11	F304	F304	F304
9	GLAND FLANGE	A105	LF2		F304	F304	F304
10	NUT	A194 2H			8
11	EYEBOLT	A193 B7			B8
12	STEM NUT	A276 410
13	LOCK NUT	AISI 1035
14	NAMEPLATE	AL
15	HANDWHEEL	ASTM A197

CL150-300-600		Bolted Bonnet/Welded Bonnet,Outside Screw and Yoke(OS&Y). RF/RJT Flange End.Design:API602
Size(NPS)			R.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2	Shengtian Group
Face to face(mm)	CL150		L(RF)	-	108	117	127	140	165	203
	CL300			-	152	178	203	216	229	267
	CL600			-	165	190	216	229	241	292
Handwheel Diameter			W	-	100	100	125	160	160	180
Height	CL150		H	-	180	184	217	224	260	300
Height	CL300/CL600		H	-	164	164	203	224	260	300
Flow Port Diameter			d	-	9	13	17.5	23	30	35
Weight	CL150	RF		-	3.45	4	6.19	9.6	10.5	17
	CL150	BW		-	2.3	3.6	7.8	8.2	12	15
	CL300	RF		-	3.8	5.1	7.2	12	13.5	19.7
	CL300	BW		-	2.8	4	8.5	9.2	12.6	16.8
	CL600	RF		-	5.6	7.8	12.5	17	23.5	38.8
	CL600	BW		-	3.4	4.7	9.2	10.5	13.3	18.9

If you want to order the integral flange,please contact sale department

CL800		Bolted Bonnet/Welded Bonnet,Full Port/Reduced Port,Outside Screw and Yoke(OS&Y). Threaded,Butt Weld,Socket Weld.Design:API602
Size(NPS)		R.P	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	Shengtian Group
		F.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2
Face To Face		L	79	92	111	120	152	172	220
Handwheel Diameter		W	100	100	125	160	160	180	200
Height		H	164	164	203	224	260	300	355
Flow Port Diameter		d	10.5	13.5	17	22	28	34	43
Weight	B.B		2.28	2.37	4.3	5.75	7.8	12.5	17.5
Weight	W.B		1.7	1.9	3.3	5.2	6.8	10.6	13.8

CL900-1500	Bolted Bonnet/Welded Bonnet,Reduced Port,Outside Screw and Yoke(OS&Y). RF/RTF Flange End.Design:API602
Size(NPS)	R.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2	Shengtian Group
Face To Face	L(RF)	-	216	229	254	279	305	368
Handwheel Diameter	W	-	125	125	160	160	180	200
Height	H	-	207	207	230	160	300	355
Flow Port Diameter	d	-	12	15	20	28	32	40
Weight		-	11	13.2	17.4	19	24.5	31

If you want to order the integral flange,please contact sale department

CL900-1500		Bolted Bonnet/Welded Bonnet,Full Port/Reduced Port,Outside Screw and Yoke(OS&Y). Threaded,Butt Weld,Socket Weld.Design:API602
Size(NPS)		R.P	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	Shengtian Group
Size(NPS)		F.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2
Face To Face		L	92	111	120	152	172	220	-
Handwheel Diameter		W	100	125	160	160	180	240	-
Height		H	171	207	240	258	330	370	-
Flow Port Diameter		d	7	10.5	13.5	22	28	34	-
Weight	B.B		2.3	3.7	6.8	7.6	11.6	21.9	-
Weight	W.B		2	3.4	6	5.6	10.3	18	-

CL2500		Welded Bonnet,Full Port/Reduced Port,Outside Screw and Yoke(OS&Y). Threaded,Butt Weld,Socket Weld.Design: ASME B16.34
Size(NPS)		R.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2	Shengtian Group
Face To Face		L	111	120	152	172	220	-	-
Handwheel Diameter		W	125	160	160	180	240	-	-
Height		H	207	240	258	330	370	-	-
Flow Port Diameter		d	8	10.5	13.5	22	28	-	-
Weight	W.B		3.4	6	5.6	10.3	18	-	-

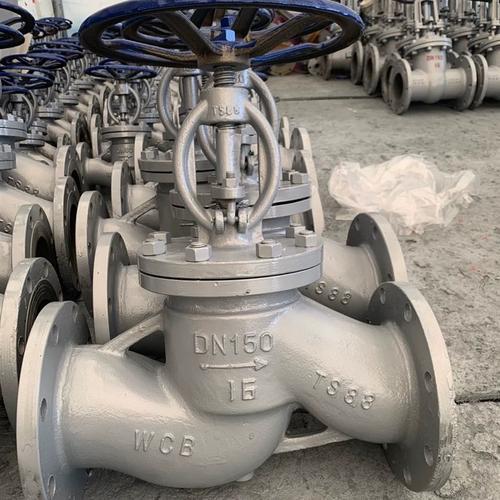

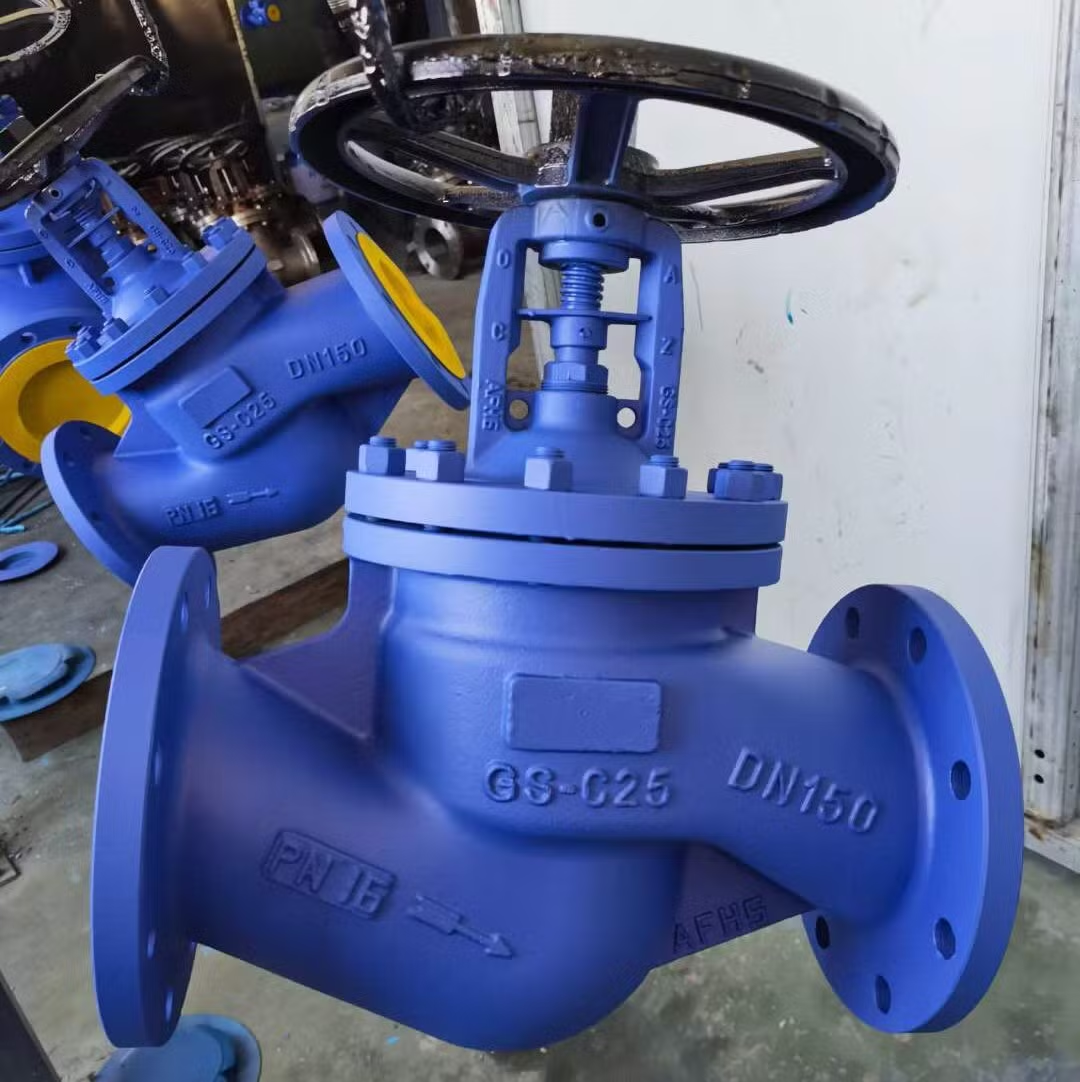

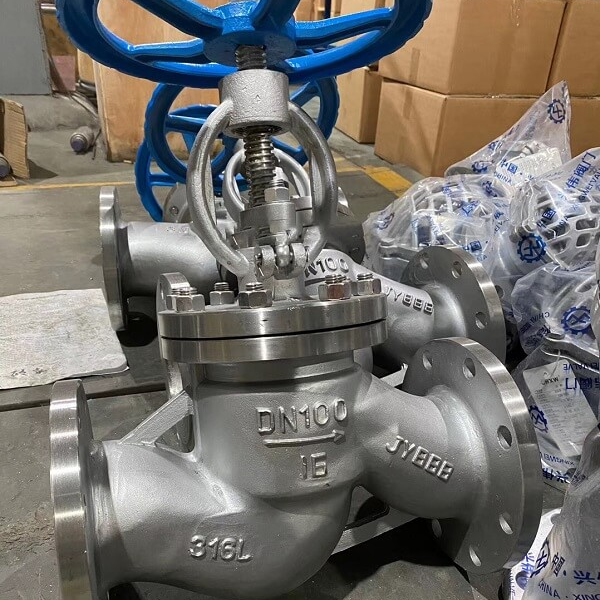

Product Display

Factory Direct Sale ANSI Stainless Steel Carbon Steel Flange Globe Valve

GLV601 Globe Valve

Standard:API598,API602,ANSI16.34Size : DN15~DN65mm (1/2"-2 1/2")Pressure : Class150-class2500Suitable Mediums:water , oil , gas,steamBody material:Carbon Steel A216 WCB/A105 ,Stainless steel

Description

Forged Steel GLV601 Globe Valve Supplier,GLV601 Globe Valve ManufacturerStandard:API598,API602,ANSI16.34Size : DN15~DN65mm (1/2"-2 1/2")Pressure : Class150-class2500Suitable Mediums:water , oil , gas,steamBody material:Carbon Steel A216 WCB/A105 ,Stainless steel

Dimensions Data

Specification

Standard:API598,API602,ANSI16.34
Size : DN15~DN65mm (1/2"-2 1/2")
Pressure : Class150-class2500
Suitable Mediums:water , oil , gas,steam
Body material:Carbon Steel A216 WCB/A105 ,Stainless steel

Forged Steel GLV601 Globe Valve Supplier,GLV601 Globe Valve Manufacturer

Standard:API598,API602,ANSI16.34
Size : DN15~DN65mm (1/2"-2 1/2")
Pressure : Class150-class2500
Suitable Mediums:water , oil , gas,steam
Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
