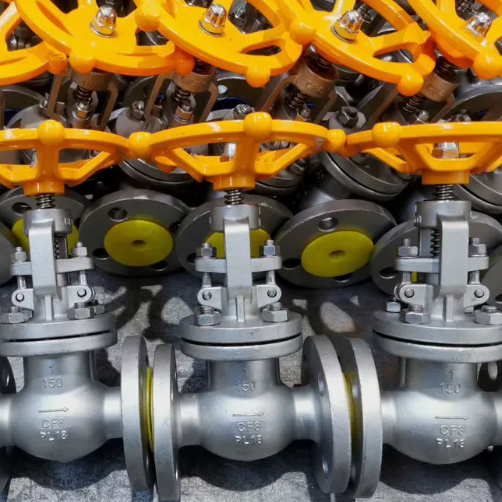

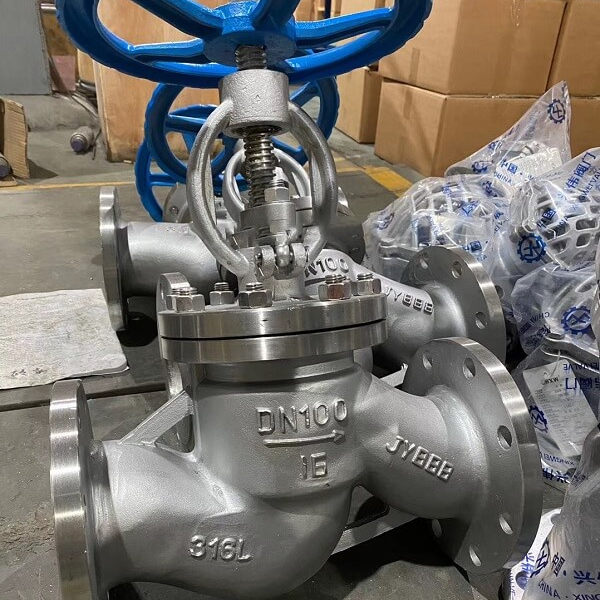

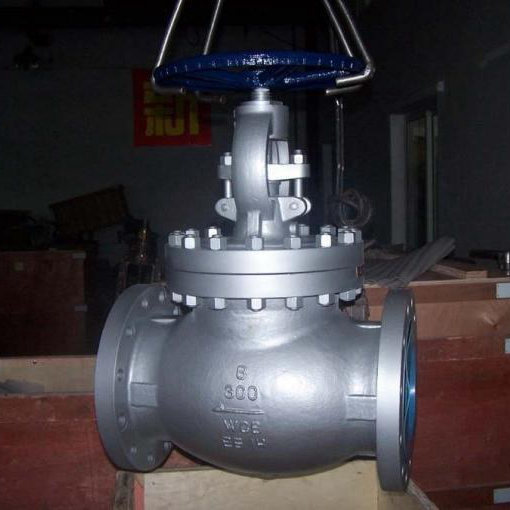

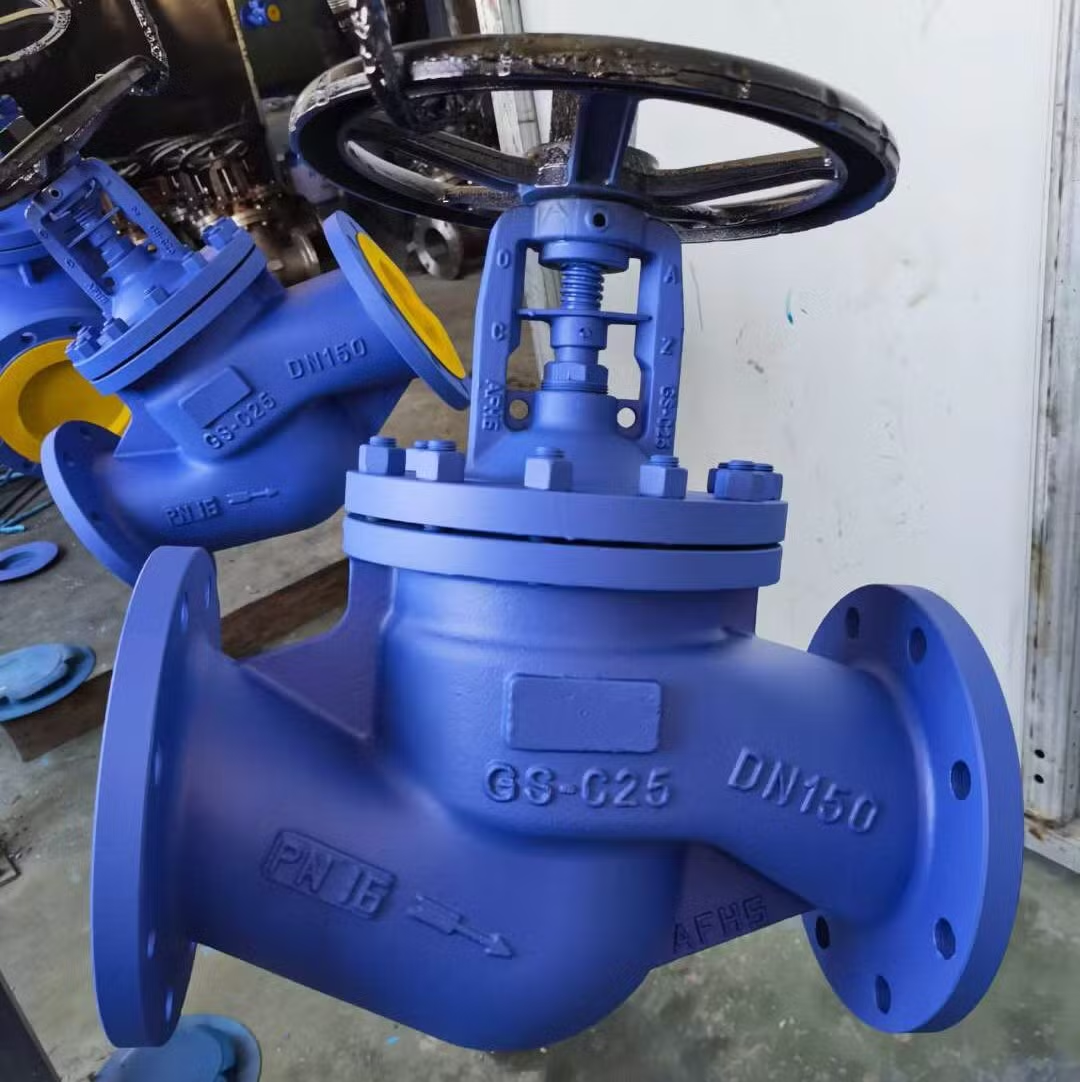

GLV504-PN25
Size : DN15~DN300mm (1/2"-12")
Pressure : PN25
Suitable Mediums: water, oil, gas, steam
Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
GLV504-PN25
Size : DN15~DN300mm (1/2"-12")
Pressure : PN25
Suitable Mediums: water, oil, gas, steam
Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
Product features of bellow seal globe valve:
1. Reasonable product structure, reliable sealing performance, beautiful appearance;
2. Co-based hard alloy surfacing on the sealing surface, good wear resistance, corrosion resistance, anti-friction performance, long service life;
3. Valve stem tempering and surface nitriding treatment, with good anti-corrosion and anti-friction performance;
4. Double sealing of right-angle German standard bellows stop valve, more reliable performance;
5. Valve stem lifting position indication, more intuitive;
6. Parts material, flange and butt welding number size can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.
| DIN 3356 Cast Iron Globe Valve Pn16 main material of parts | |
| Body,Bonnet | GG25(EN-GJL-250),GGG40,1.0619+N(GS-C25),1.4308(CF8), 1.4408(CF8M) |
| Stem | 2Cr13,SS304, SS316 |
| Stem Nut | Brass |
| Disc | ASTM A216 WCB+13CR |
| Seat | 13Cr/STM A351 CF8/STM A351 CF8M |
| Bellows | SS304/SS316 |
| Hand wheel | Cast Iron |
| Gasket | Graphite |
| Packing | Graphite |
| DIN 3356 Cast Iron Globe Valve Pn16 range: | |
| Size | 1/2"-24" |
| Pressure range | PN10,PN16,PN25 |
| DIN 3356 Cast Iron Globe Valve Pn16 Standard | |
| Design Standard | EN 13709:2003,DIN3356 |
| Face to Face | EN 558-1,DIN3202 F1 |
| Flange Standard | EN1092-1 |
| Testing Standard | EN 12266 |
| Packing Details: | Plywoodcase ,Pallet | Customized |
| Delivery Details: | Generally it is 5-10 days if the goods are in stock. Or 30~45 days after receiving the payment. | |
