GAV701-600 Gate Valves Supplier,API600 Class 600 OS&Y Cast Steel Gate Valve Factory,Gate Valve Manufacturer
GAV701-600 Gate Valves with full port offers durability throughout a wide range of industrial applications, oil and gas. Handwheel operated and offered in ANSI 150, offering minimum leakage and maximum service life.
Designed to API 600 and pressure tested in accordance with API 598/EN12266-1.

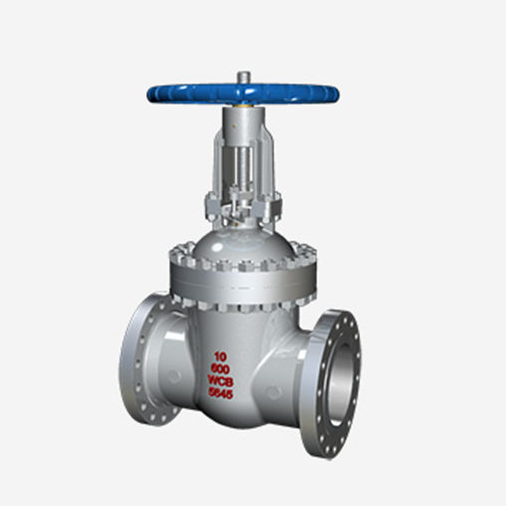

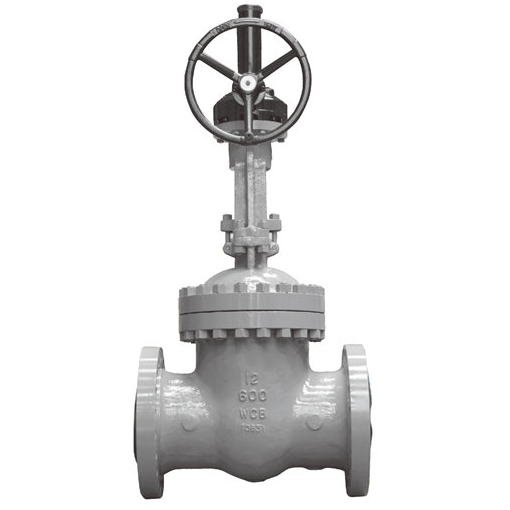

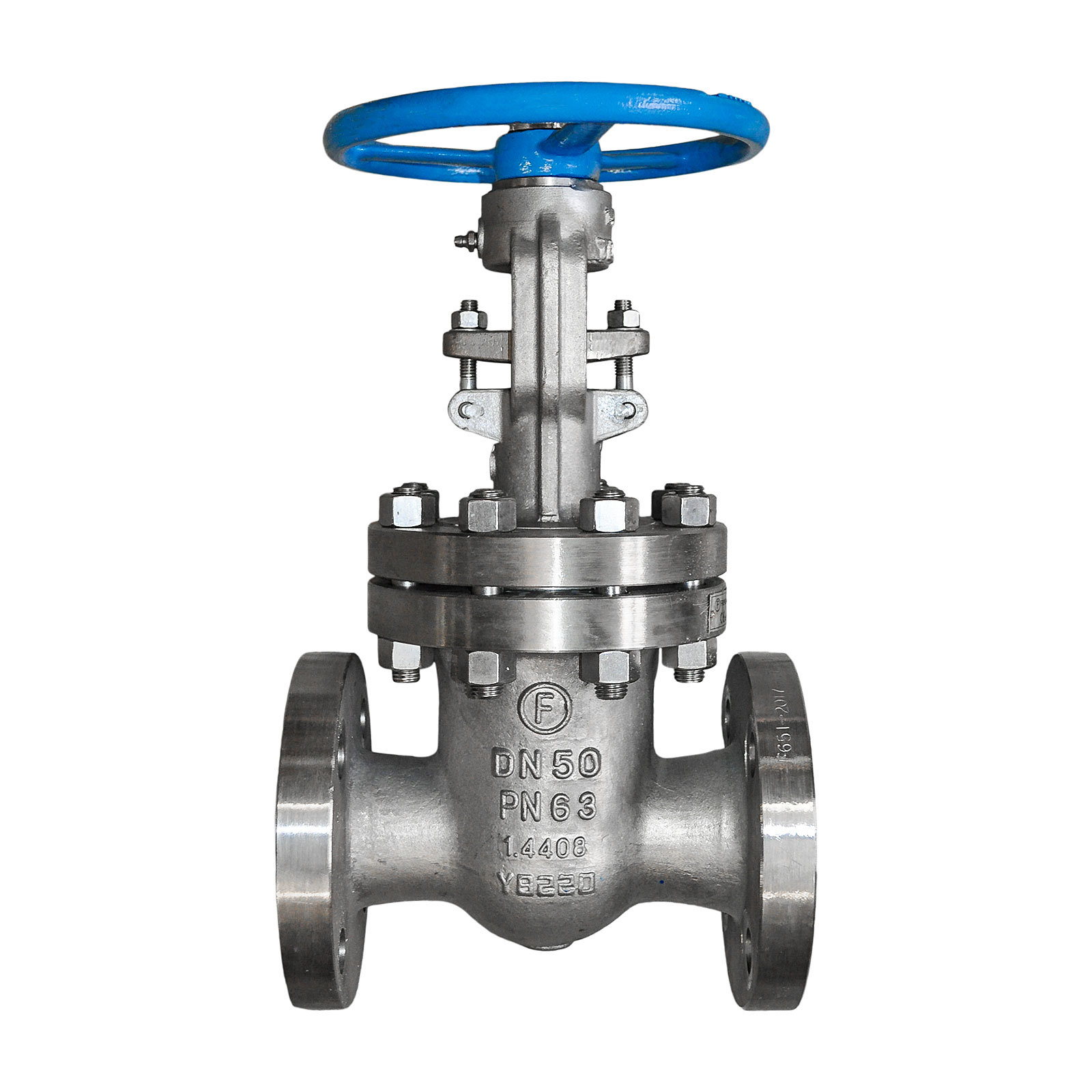

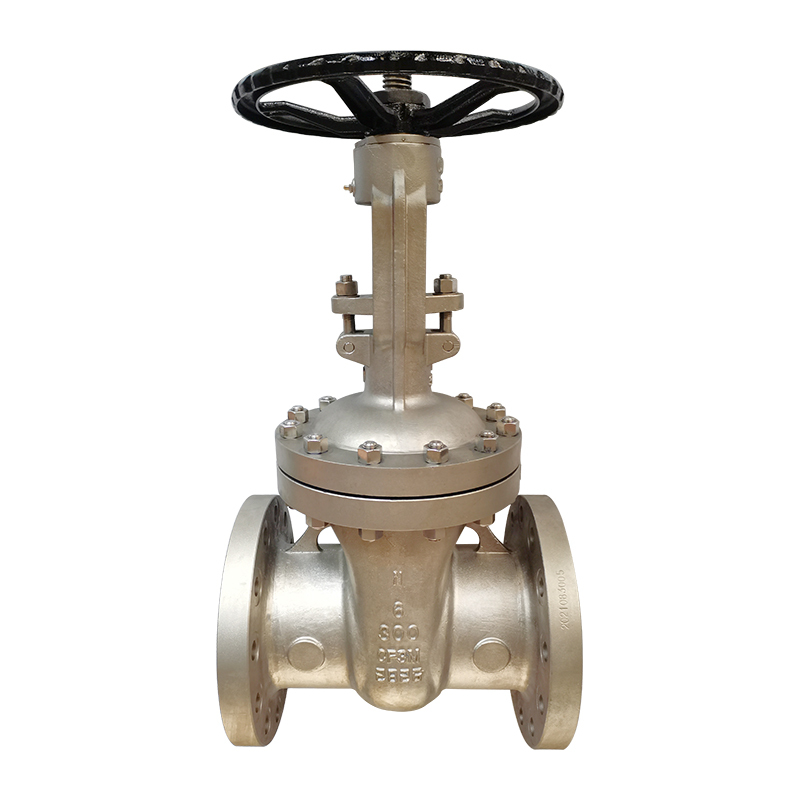

Used commonly where a minimum pressure drop is important. This cast steel gate valve offers efficient isolation of flow in either direction of the valve. Outside screw and yoke with rising stem for open / close indication. WCB heavy duty body with full port. The wedge disc is fully guided to ensure tight sealing. Bolted body construction with handwheel operation.

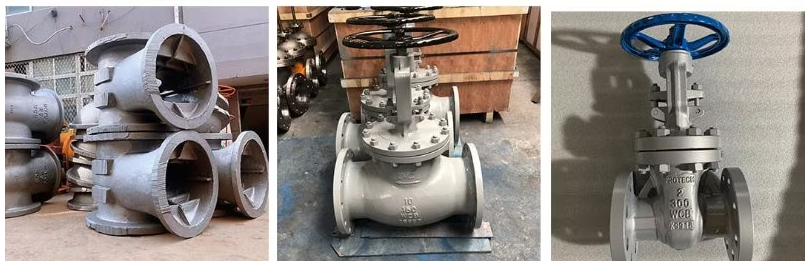

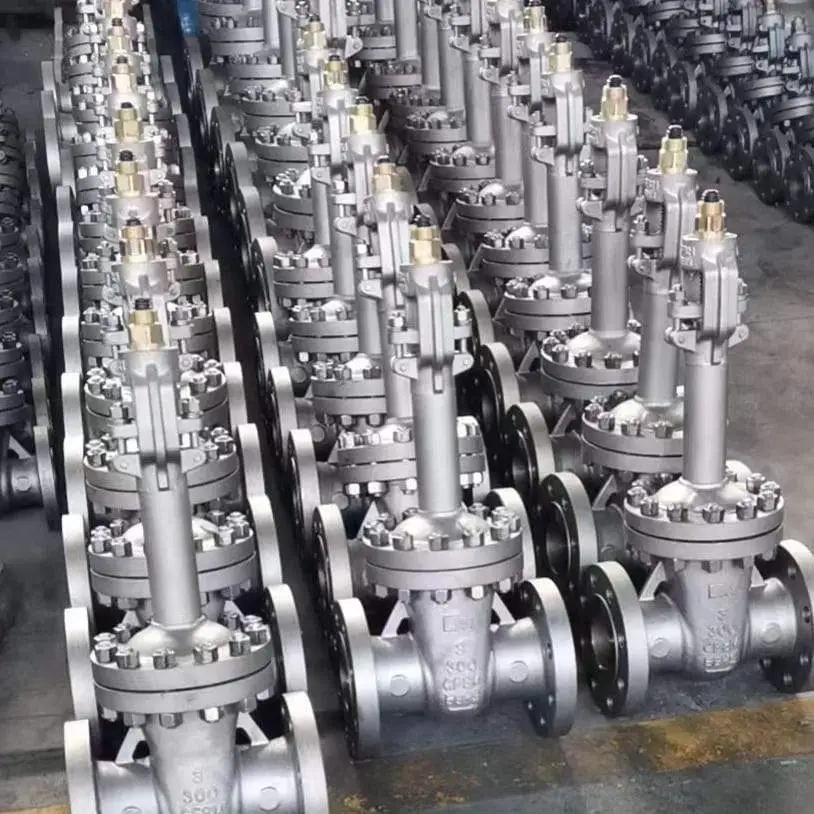

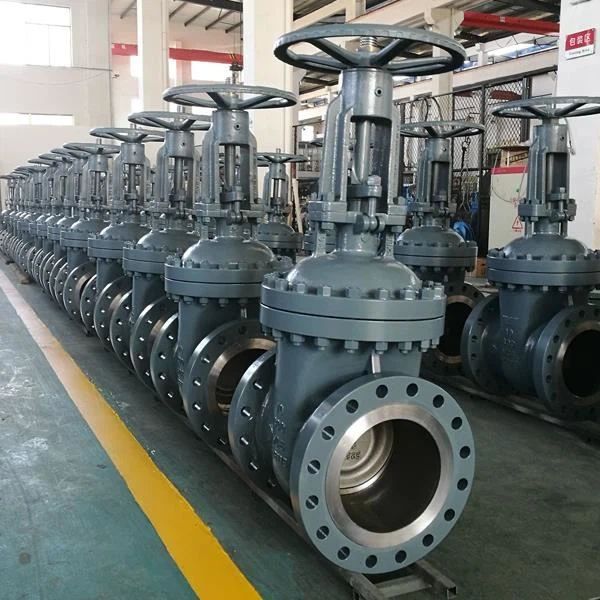

Product Display
GAV701-600 Gate Valves Dimensions
| NPS |
2 |
2½ |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
| L |
177.8 |
190.5 |
203.2 |
228.6 |
254 |
266.7 |
292.1 |
330.2 |
355.6 |
381 |
406 |
432 |
457 |
508 |
| D |
152 |
178 |
191 |
229 |
254 |
279 |
343 |
406 |
483 |
533 |
597 |
635 |
699 |
813 |
| D1 |
120.7 |
139.7 |
152.4 |
190.5 |
215.9 |
241.3 |
298.5 |
362 |
431.8 |
476.3 |
539.8 |
577.9 |
635 |
749.3 |
| D2 |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
413 |
470 |
533 |
584 |
692 |
| b |
14.4 |
16.4 |
17.9 |
22.4 |
22.4 |
23.9 |
26.9 |
28.9 |
30.2 |
33.9 |
35.4 |
38.4 |
41.4 |
46.4 |
| n-d |
4-19 |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
8-22 |
12-25 |
12-25 |
12-29 |
16-29 |
16-32 |
20-32 |
20-35 |
| f |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
| H |
345 |
387 |
430 |
513 |
583 |
648 |
790 |
935 |
1100 |
1200 |
1330 |
1480 |
1635 |
1935 |
| W |
200 |
200 |
250 |
250 |
300 |
300 |
350 |
400 |
450 |
500 |
500 |
600 |
600 |
650 |
API 600 gate valves are widely used in industries such as petroleum, natural gas, chemicals, and power, to control the flow of various media. Their excellent sealing performance and reliability make them crucial equipment in key process flows.
API 600 gate valves, with their stringent standards and excellent performance, have become indispensable valve equipment in the industrial field. By strictly controlling their design, materials, manufacturing, and inspection, API 600 gate valves can provide reliable service under harsh conditions, ensuring the safety and stable operation of process flows.
The API 600 standard is established by the American Petroleum Institute (API) to ensure the quality and reliability of steel gate valves. This standard covers the design, material selection, manufacturing processes, inspection, and testing of gate valves.
API 600 gate valves are widely used in industries such as petroleum, natural gas, chemicals, and power, to control the flow of various media. Their excellent sealing performance and reliability make them crucial equipment in key process flows.
API 600 gate valves, with their stringent standards and excellent performance, have become indispensable valve equipment in the industrial field. By strictly controlling their design, materials, manufacturing, and inspection, API 600 gate valves can provide reliable service under harsh conditions, ensuring the safety and stable operation of process flows.
