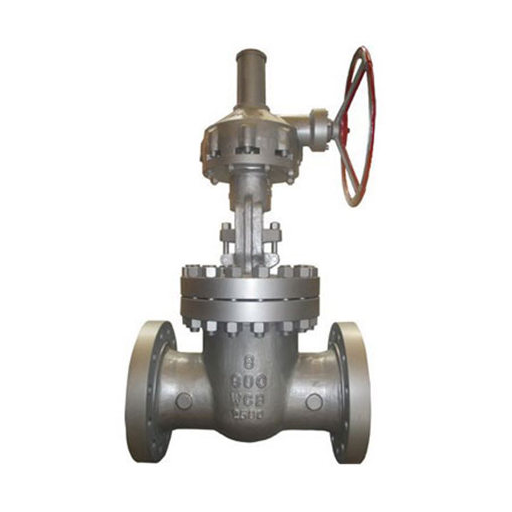

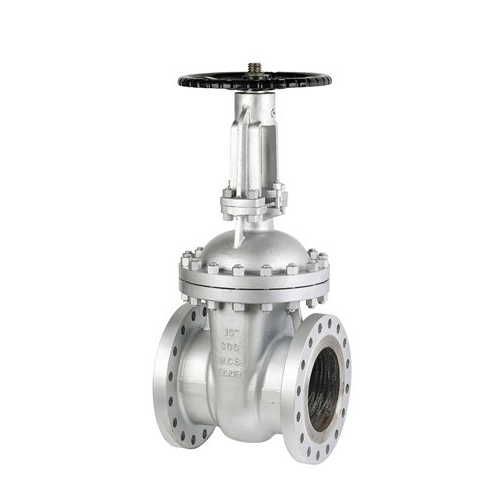

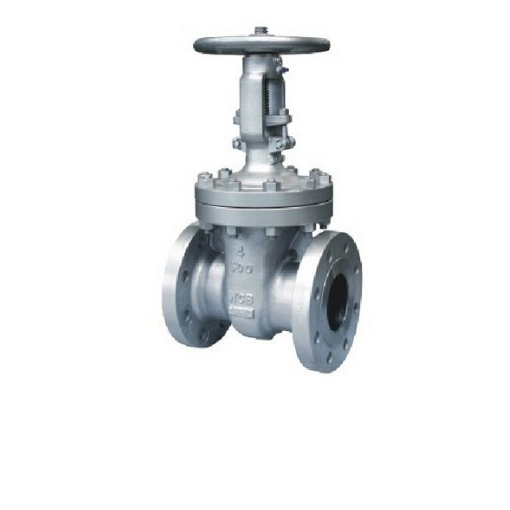

Name: GAV701-300 Gate Valves
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

GAV701-300 Gate Valves Stockist,API600 Class 300 OS&Y Cast Steel Gate Valve Supplier,Gate Valve Producer

　　OS&Y Cast Steel Gate Valve's design is significantly different from other types of valves: the handwheel is mounted on a bushing at the top of the stem, rather than on the stem itself. This means that the handwheel does not rise as the valve opens, which is advantageous in applications where space is limited or operational efficiency is a concern.
　　The key benefits of the OS&Y design are evident in the enhanced durability, improved operational efficiency, and maintenance, which is why this design approach was adopted
　　By combining these design features, API600 OS&Y gate valve provide a reliable and durable solution for industrial applications, especially in working environments where corrosion risks are high and can be prioritized.

Product Description

1. Material	Stainless Steel A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M, etc. & Dupex steel, alloy steel option.
2. Size	DN15-DN300(1/2"-12")
3. Port	Full Port
4. Working Pressure	10K/20K
5. Connection Ends	RF,RTJ,BW,SW,NPT
6. Working Temp.	-20ºC~180ºC
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operated	Manual
9. Features	Easy to install ,media flow is relatively free,not restricted.
10. Disc type	Conical Type or Flat Type
11. Design standard	API600
12. Inspection & Testing	API598,GB/T13927,JB/T9092
13. Brand	ST

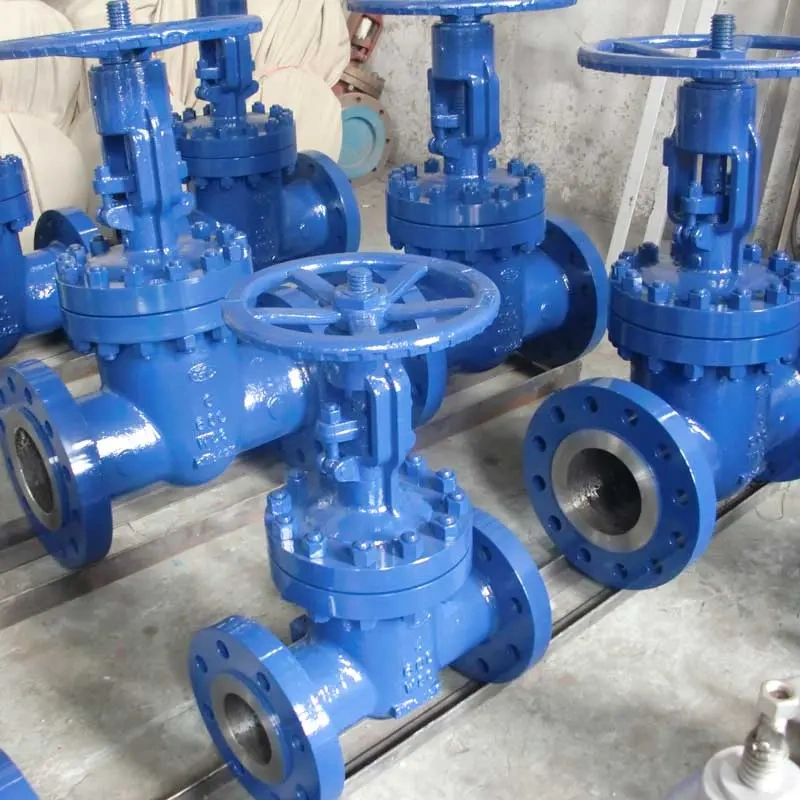

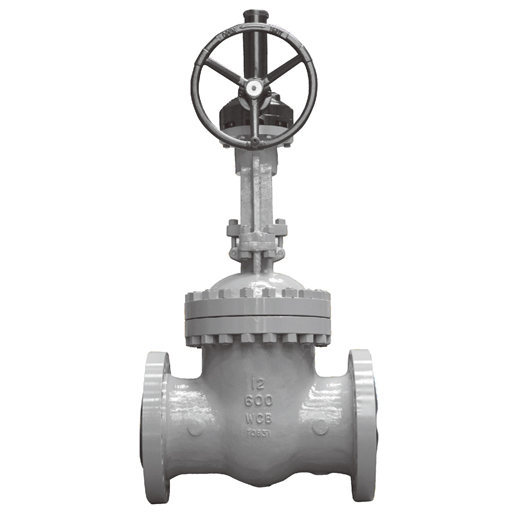

Detailed Photos

API600 Class 300 OS&Y Cast Steel Gate Valve Specification

Part Name	Material
Body	A216-WCB
Wedge	A216-WCB+CR13
Bonnet Stud Nut	A194-2H
Bonnet Stud	A193-B7
Stem	A182-F6a
Bonnet	A216-WCB
Stem Back Seat	A276-420
Eyebolt pin	Carbon Steel
Handwheel	Ductile Iron

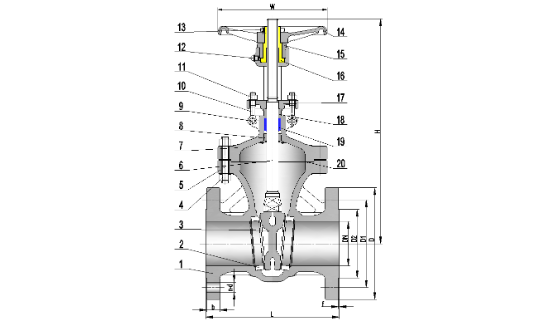

GAV701-300 Gate Valves Dimensions

NPS	2	2½	3	4	5	6	8	10	12	14	16	18	20	24
L	177.8	190.5	203.2	228.6	254	266.7	292.1	330.2	355.6	381	406	432	457	508
D	152	178	191	229	254	279	343	406	483	533	597	635	699	813
D1	120.7	139.7	152.4	190.5	215.9	241.3	298.5	362	431.8	476.3	539.8	577.9	635	749.3
D2	92	105	127	157	186	216	270	324	381	413	470	533	584	692
b	14.4	16.4	17.9	22.4	22.4	23.9	26.9	28.9	30.2	33.9	35.4	38.4	41.4	46.4
n-d	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25	12-29	16-29	16-32	20-32	20-35
f	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
H	345	387	430	513	583	648	790	935	1100	1200	1330	1480	1635	1935
W	200	200	250	250	300	300	350	400	450	500	500	600	600	650

GAV701-300 Gate Valves Parameters

Design & Manufacture standard	API602,BS5352,ANSI B16.34
Socket welded dimension	ANSI B16.11,JB/T1751
Screw ends dimension	ANSI B1.20.1,JB/T7306
Butt-welded	ANSI B16.25,JB/T12224
Test & Inspect standard	API598,GB/T13927,JB/T9092

Testing Pressure(Mpa):

Pressure	150LB	300LB	600LB	900LB	1500LB	2500LB
Strength Testing	3.0	7.5	15.4	23.0	37.5	63.0	Mpa
Seal Testing	2.2	5.5	11.2	16.9	27.5	46.2
Air Testing	0.6	0.6	0.6	0.6	0.6
