Name: GAV701-1500 Gate Valves
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

GAV701-1500 Gate Valves Factory,API600 Class 1500 OS&Y Cast Steel Gate Valve Stockist

API600 Class 1500 OS&Y Cast Steel Gate Valve Overview

　　API600 Class 1500 OS&Y Cast Steel Gate Valve can be engineered to suit your application, with body construction, material, and ancillary features optimised to meet your process needs. Being ISO 9001 certified, we adopt systematic ways to ensure high quality, you can be assured of outstanding reliability and sealing performance through the design life of your asset.

GAV701-1500 Gate Valves Technical Requirement

　　· Design and Manufacture Conform to API 600

　　· Flange dimensions Conform to ASME B16.5

　　· Face to Face dimensions Conform to ASME B16.10

　　· Testing Conform to API 598

　　· Driving mode: hand wheel, bevel gear, electric

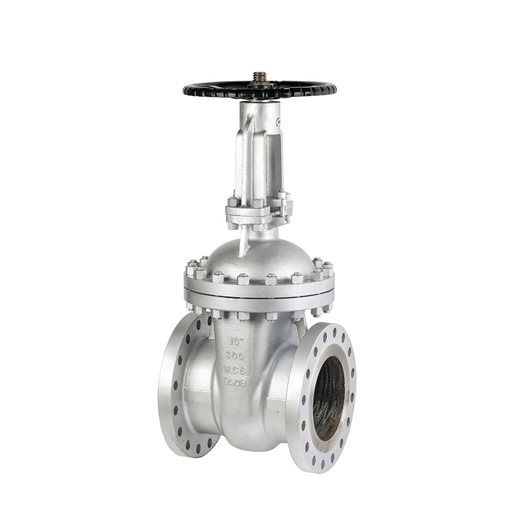

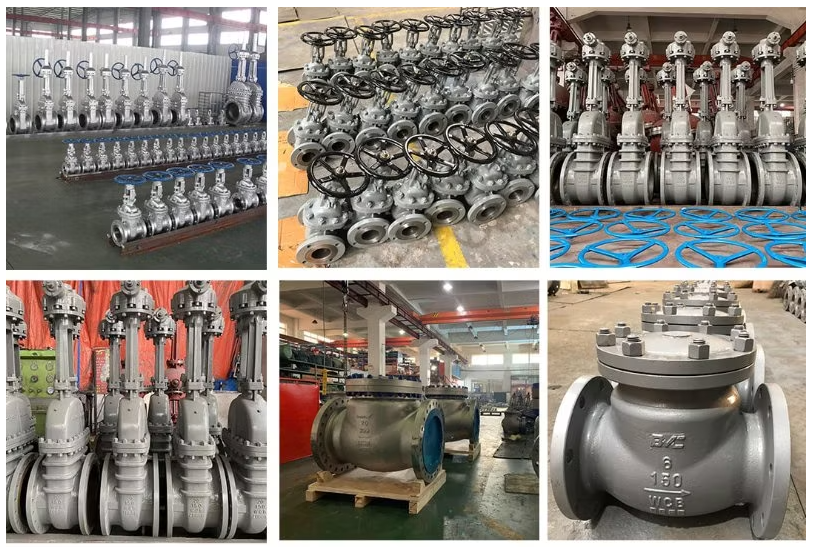

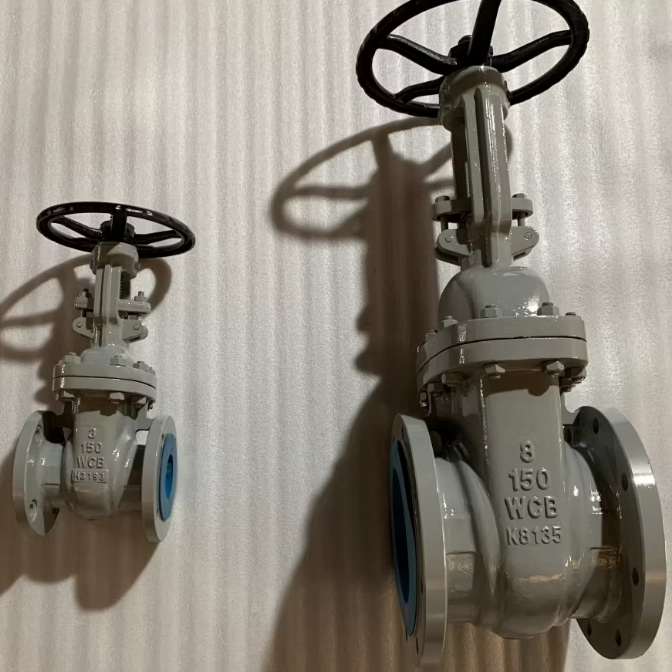

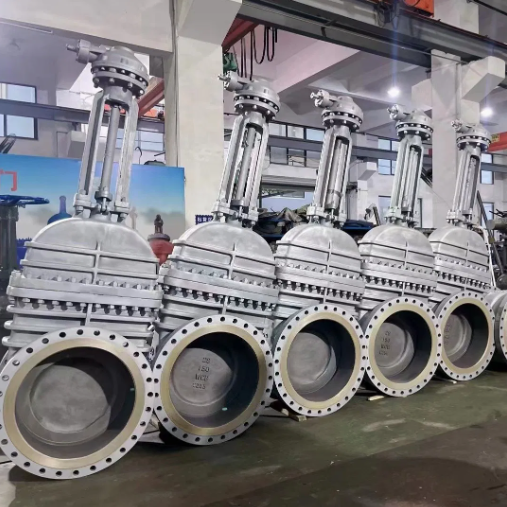

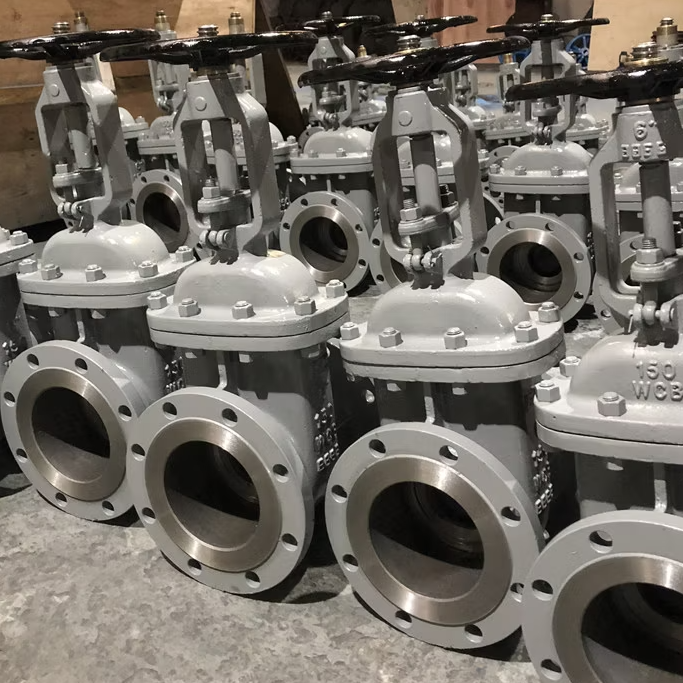

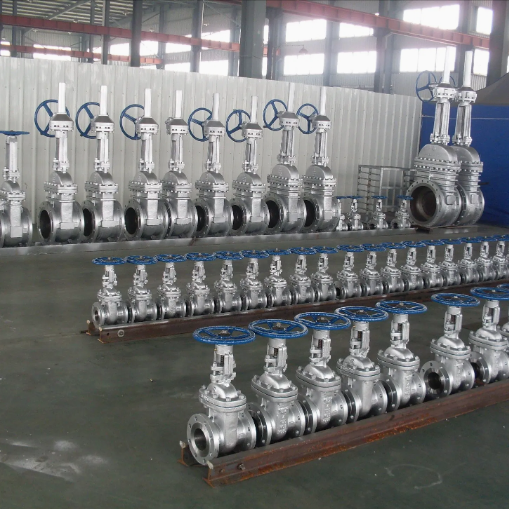

Product Display

GAV701-1500 Gate Valves Dimensions

NO.

PART

ASTM Material

Shengtian Group

WCB

LCB

WC6

CF8(M)

CF3(M)

BODY

A216 WCB

A352 LCB

A217 WC6

A351 CF8(M)

A351 CF3(M)

GATE

A216 WCB+13Cr

A352 LCB+13Cr

A217 WC6+STL

A351 CF8(M)

A351 CF3(M)

SEAT

A105+13Cr

A217 WC6+STL

A351 CF8(M)+STL6

A351 CF3(M)+STL6

STEM

A182 F6

A182 F304/F316

A182 F304L/F316L

BONNET BOLT

A193 B7

A320 L7

A193 B16

A193 B8(M)

BONNET NUT

A194 2H

A194 7

A194 4

A194 8(M)

GASKET

SS304+GRAPHITE

PTFE/SS304+GRAPHITE

PTFE/SS316+GRAPHITE

BONNET

A216 WCB

A352 LCB

A217 WC6

A351 CF8(M)

A351 CF3(M)

BACKSEAT

A182 F6

PACKING

FLEXIBLE GRAPHITE

PTFE/FLEXIBLE GRAPHITE

GLAND

A182 F6

A182 F304

A182 F304L/F316L

GLAND FLANGE

A216 WCB

A352 LCB

A217 WC6

A351 CF8(M)

A351 CF3(M)

GLAND EYEBOLT

A193 B7

A193 B8

NUT

A194 2H

A194 8

AISI 1025

STEM NUT

BRONZE

HANDWHEEL NUT

AISI 1035

SCREW

ASTM A36

HANDWHEEL

A536 60-40-18

BEARING GLAND

AISI 1035

GREASE NIPPLE

BRASS

NAMEPLATE

SS304

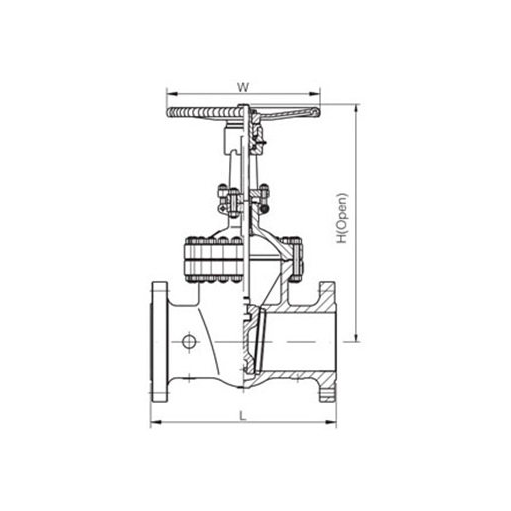

Dimensions data(mm)

Size	in	2	21/2	3	4	6	8	10	12	14	16	18	20	24
Size	mm	50	65	80	100	150	200	250	300	350	400	450	500	600
L/L1 (RF/BW)	in	14.5	16.5	18.5	21.5	27.75	32.75	39	44.5	49.5	54.5	60.5	65.5	76.5
L/L1 (RF/BW)	mm	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
L2 (RTJ)	in	15.5	16.62	18.62	21.62	28	33.12	39.38	45.12	50.25	55.38	61.38	66.38	77.62
L2 (RTJ)	mm	371	422	473	549	711	841	1000	1146	1276	1407	1559	1686	1972
H (OPEN)	in	24.25	26	30	34.12	39.5	45	54	61	74.88	80.5	93.75	101.5	114.75
H (OPEN)	mm	615	658	760	868	1005	1145	1370	1550	1900	2050	2380	2580	2915
W	in	10	12	18	20	24	18	18	24	24	24	24	24	24
W	mm	250	300	450	500	600	460	460	600	600	600	600	600	600
WT (Kg)	RF/RTJ	116	166	209	296	510	920	1910	3145	4100	6200	8965	13100	15860
WT (Kg)	BW	105	150	188	265	412	760	1640	2755	3200	5300	8070	11790	14275

　　Shengtian Group has very extended experience in manufacturing of Cast Gate Valves. Our Cast Steel Valves are designed, engineered and manufactured in strict conformance to API, ASTM, ASME, ANSI and other recognized standards.
