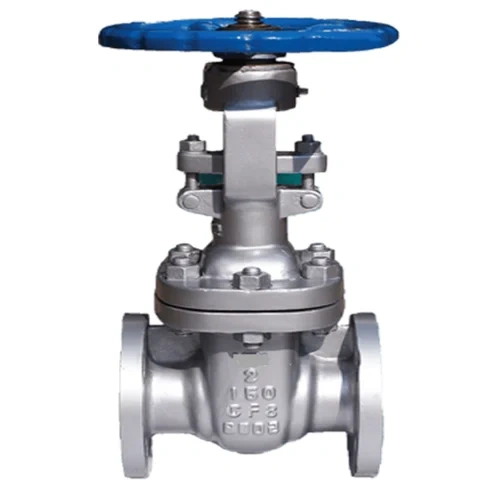

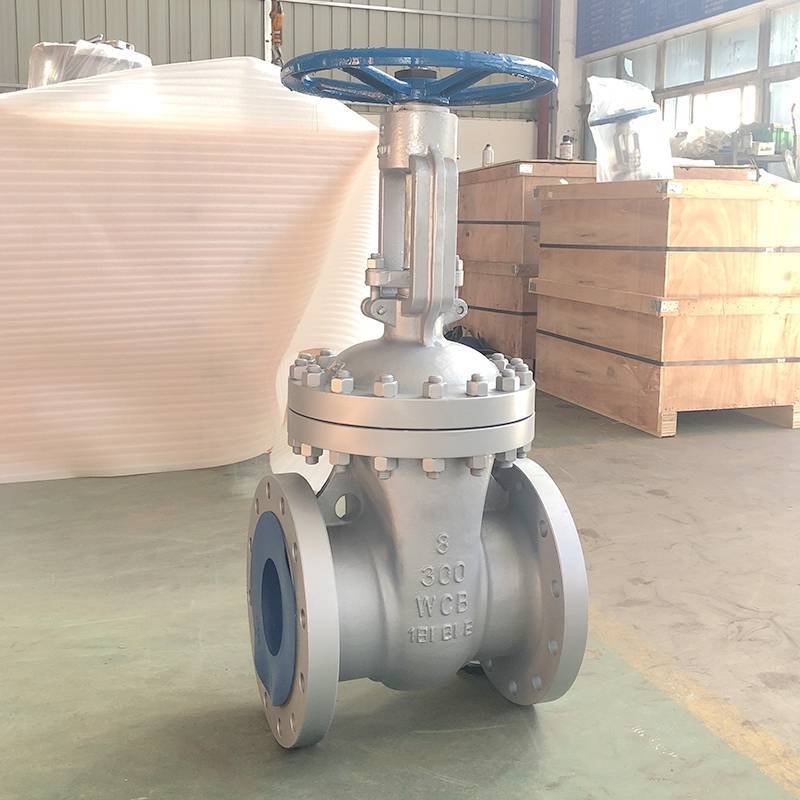

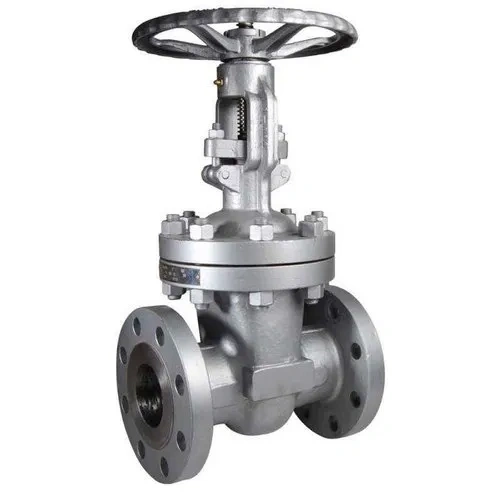

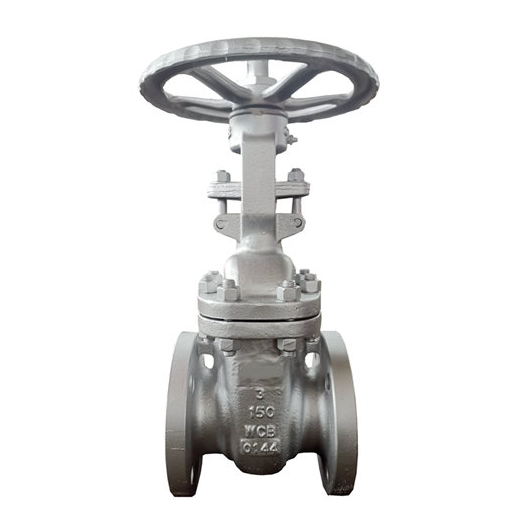

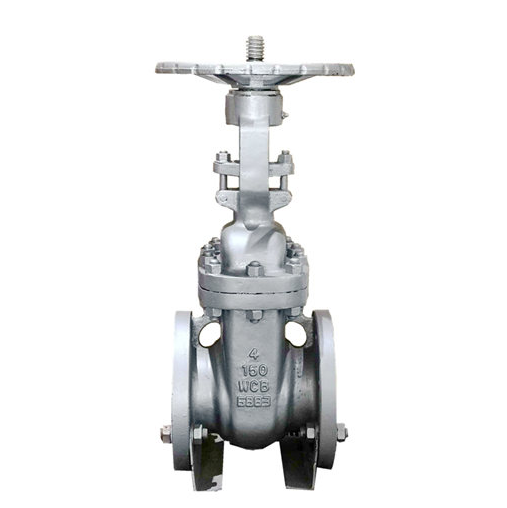

Name: GAV701-150 Gate Valves
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

GAV701-150 Gate Valves Exporter,API600 Class 150 OS&Y Cast Steel Gate Valve Producer,Gate Valve Manufacturer

　　GAV701-150 Gate Valves are used when it is important to know by immediate inspection whether the valve is open or closed and when the threads (stem and gate) exposed to the fluid could become damaged by fluid contaminants. In this design, the stem rises out of the gate valve when the valve is opened.
　　The wedge gate of the Shengtian gate valve provides tight sealing even at low differential pressure. Grooved wedge guided and fitted by the body, assures proper and consistent seal regardless of valve position, and also minimizes seat wear and damage since seating surfaces of the wedge and seat are in contact during less than 5% of the total wedge travel.
　　Shengtian Group manufactures a wide range of valve products including Ball,Gate,Globe,Check and Butterfly Valves for Oil,Gas&Petrochemical industries,marine,energy,water and waste among others.

Product Description

　　Consistent product quality and best prices make Shengtian Group a dependable choice for cast and forged valves in carbon, stainless and alloy steel materials.

　　BODY MATERIALS:

　　ALLOY STEEL:ASTM A217 WC1,WC6,WC9,C5,C12.A182 F11,F22,F5,F91......

　　STAINLESS STEEL:ASTM A351 CF8M, CF3M, CF8, CF8C.A182 F304,F316,F321,F347,F51,F53......

　　CARBON STEEL:ASTM A216 WCB, A105N,A352 LCB/LCC,A350 LF2.

　　Shengtian Group maintains an extensive quality system, which complies with the requirements of major oil companies, industry standards and to ISO 9001:2015 &2014/68/EU PED CE standard.

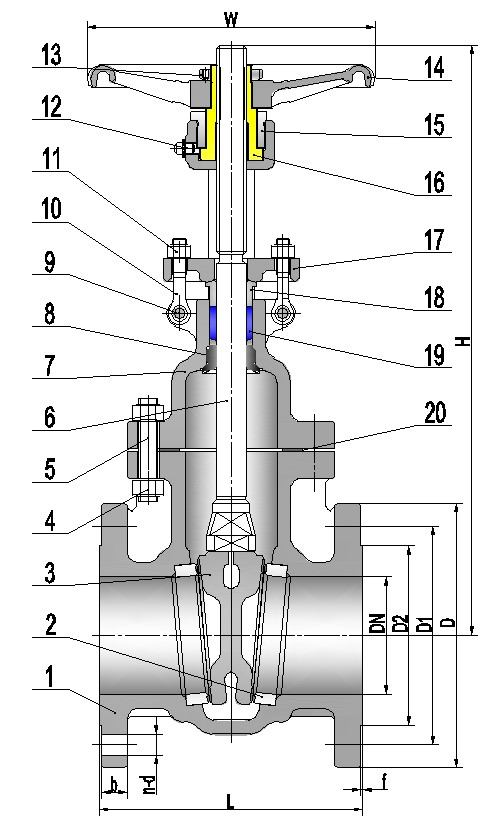

GAV701-150 Gate Valves Specification

No.	Part Name	Material
1	Body	A216-WCB
2	Seat Ring	A105+CR13
3	Wedge	A216-WCB+CR13
4	Bonnet Stud Nut	A194-2H
5	Bonnet Stud	A193-B7
6	Stem	A182-F6a
7	Bonnet	A216-WCB
8	Stem Back Seat	A276-420
9	Eyebolt pin	Carbon Steel
10	Eyebolt	Carbon Steel
11	Eyebolt Nut	Carbon Steel
12	Grease Fitting	Brass+Steel
13	Handwheel Nut	Carbon Steel
14	Handwheel	Ductile Iron
15	Yokesleeve Jam nut	Carbon Steel
16	Yokesleeve	Bronze
17	Gland Flange	A216-WCB
18	Gland	A276-420
19	Packing	Graphite
20	Bonnet Gasket	Graphite+304

GAV701-150 Gate Valves Dimensions data(mm)

NPS	2	2½	3	4	5	6	8	10	12	14	16	18	20	24
L	177.8	190.5	203.2	228.6	254	266.7	292.1	330.2	355.6	381	406	432	457	508
D	152	178	191	229	254	279	343	406	483	533	597	635	699	813
D1	120.7	139.7	152.4	190.5	215.9	241.3	298.5	362	431.8	476.3	539.8	577.9	635	749.3
D2	92	105	127	157	186	216	270	324	381	413	470	533	584	692
b	14.4	16.4	17.9	22.4	22.4	23.9	26.9	28.9	30.2	33.9	35.4	38.4	41.4	46.4
n-d	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25	12-29	16-29	16-32	20-32	20-35
f	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
H	345	387	430	513	583	648	790	935	1100	1200	1330	1480	1635	1935
W	200	200	250	250	300	300	350	400	450	500	500	600	600	650
