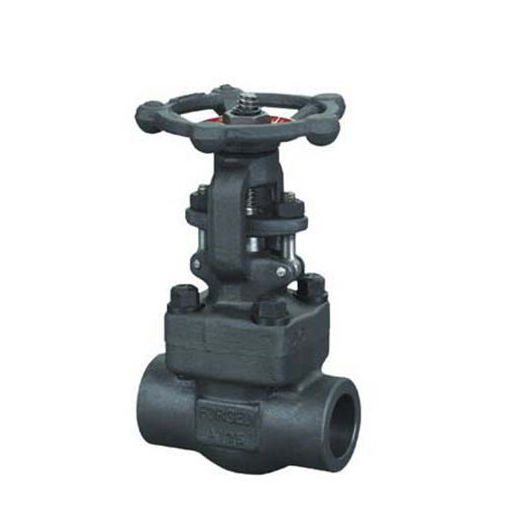

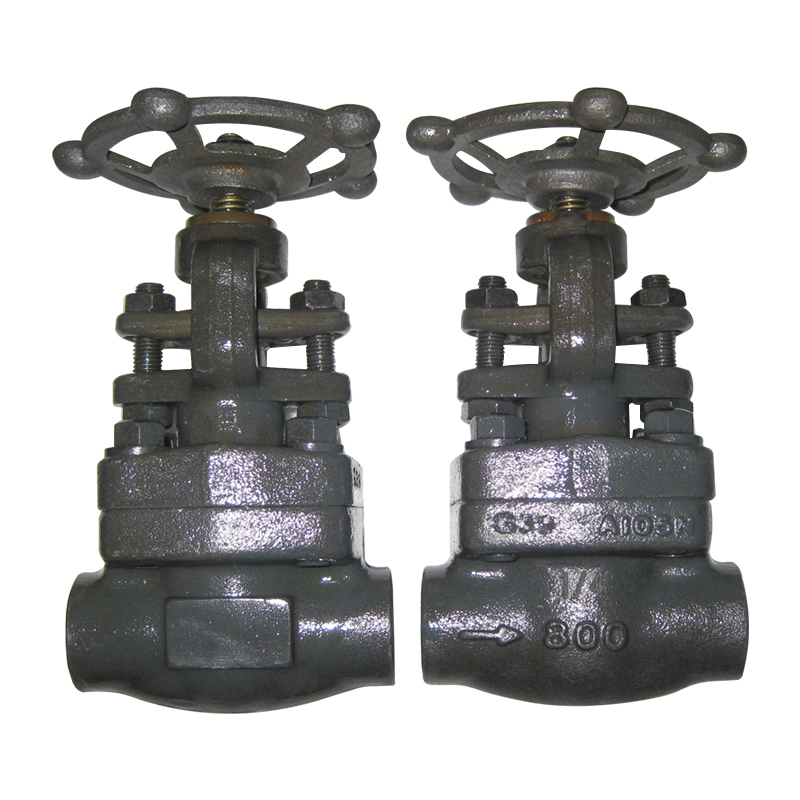

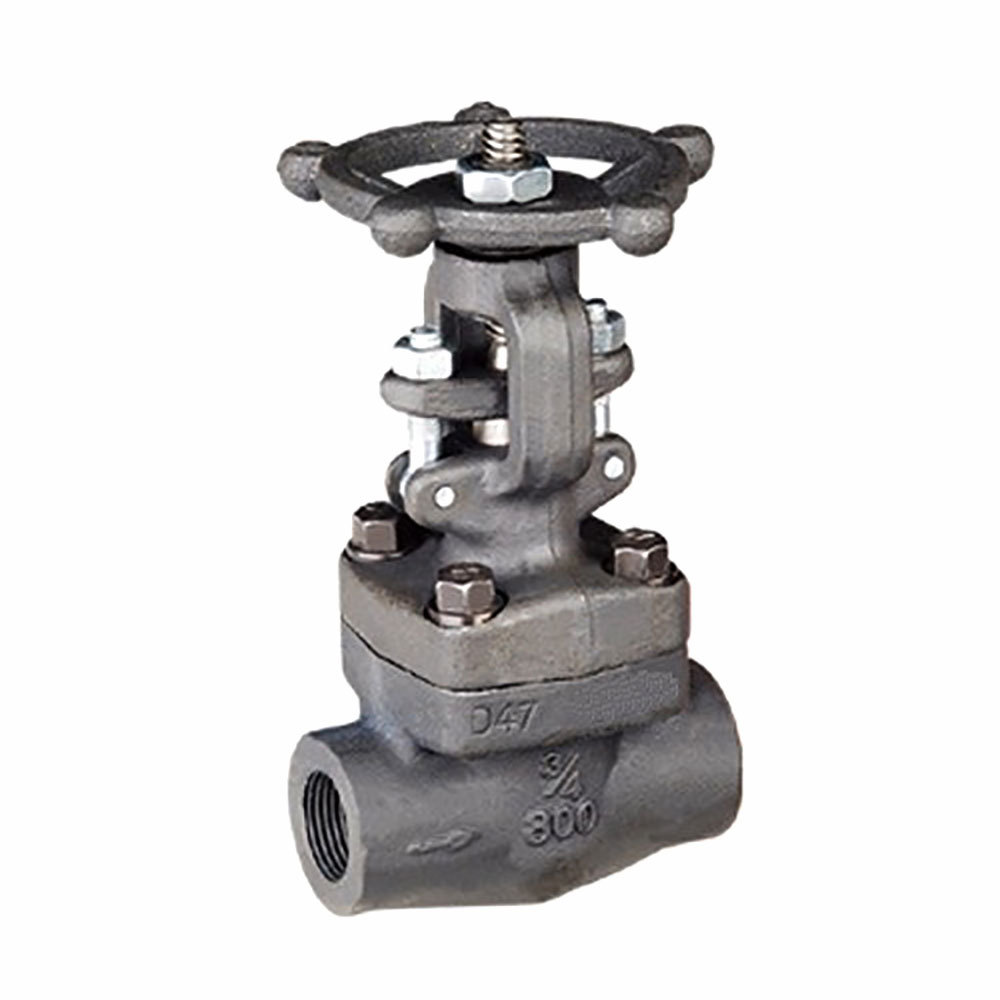

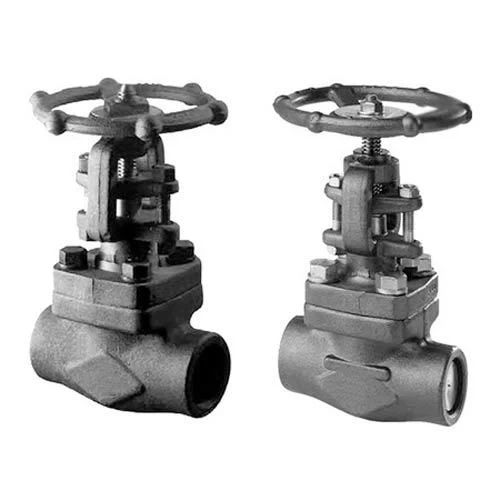

Name: GAV601 Gate Valves
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

GAV601 Gate Valves Manufacturer,Forged Steel Gate Valve Supplier,GAV601 Forged Steel Gate Valve Stockist

　　The opening and closing component of forged steel gate valves is the gate plate, and the direction of movement of the gate plate is perpendicular to the direction of the fluid. Forged steel gate valves can only be fully open and fully closed, and cannot be adjusted or throttled. The gate plate of forged steel gate valve has two sealing surfaces, and the most commonly used mode of gate valve is that the two sealing surfaces form a wedge shape, and the wedge angle varies with the valve parameters.

　　The driving methods of forged steel gate valves include manual, pneumatic, electric, and gas-liquid linkage.

　　Forged steel gate valve refers to a valve in which the closing member (gate) moves vertically along the centerline of the passage. Forged steel gate valves are mainly used for cutting off in pipelines. Forged steel gate valve is a widely used valve, and it is generally used for cutting devices with a diameter ≤ 2 ".

Product Description

Material	F304/316/304L/316L(CF8/CF8M/CF3/CF3M),A105,F11,F22,F51,LF2,etc.
Size	1/2"-2"
Thread standard	ISO9001 & CE,TS
Port	Full Port/Reduce Port
Working Pressure	150LB-2500LB
Connection Ends	NPT/SW/BSP/BSPT/BW/Flange
Working Temp	-29~425ºC,or according to customer requirements for different industry.
Suitable Medium	Water,Natural Gas,oil and some corrosive liquid
Operated	Handwheel
Inspenction & Testing	According to API598

GAV601 Gate Valves Material List

Part	A105/F6	A105/F6H S	LF2/304	F11/F6HF S	F304/304	F316/316
Wheel nut	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
Nameplate	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Hand wheel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
Yoke Nut	410	410	F304	410	F304	F316
Gland Nut	2H	2H	GR8	GR8	GR8	GR8
Gland Flange	A105	A105	F6	F6	F304	F316
Gland Stud	410	410	B8	B8	B8	B8
Gland	304SS	304SS	304SS	304SS	304SS	304SS
Packing	Graphite	Graphite	Graphite	Graphite	Graphite	Graphite
Bolts	B7	B7	L7	B16	B8	B8
Stem	410	410	304	410	304	316
Bonnet	A105	A105	LF2	F11	F304	F316
Gasket	Sp.Wound	Sp.Wound	Sp.Wound	Sp.Wound	Sp.Wound	Sp.Wound
Seat	410	410 HF	304	410 HF	304	316
Disc	410	410	304	410	304	316
Body	A105	A105	LF2	F11	F304	F316

GAV601 Gate Valves Dimensions

PART	ASTM Material
PART	A105	LF2	F11	F304(L)	F316(L)	F51
BODY	A105+SS304	LF2	F11	F304(L)	F316(L)	F51
DISC	F6a	F6a	F6a+STL	F304(L)	F316(L)	F51
STEM	410	410	410	304(L)	316(L)	F51
GASKET	A105	LF2	F11	304+Graphite	316(L)+Graphite	316(L)+Graphite
BONNET	304+Graphite B16			F304(L)	F316(L)	F51
BOLT	B7	L7	F11	B8(M)	B8(M)	B8M
PACKING	Flexible Graphite
GLAND	A182 F6	LF2	F11	F304	F304	F304
GLAND FLANGE	A105	LF2		F304	F304	F304
NUT	A194 2H			8
EYEBOLT	A193 B7			B8
STEM NUT	A276 410
LOCK NUT	AISI 1035
NAMEPLATE	AL
HANDWHEEL	ASTM A197

CL150-300-600

Bolted Bonnet Reduced Port.Outside Screw and Yoke(OS&Y)Flange-welded or Socket-welded ends;

Design to API602;BS5352

Size(NPS)

1/4

3/8

1/2

3/4

11/4

11/2

21/2

Face to face

CL150

L(RF)L1(BW)

108

117

127

140

165

178

190

CL300

140

152

165

178

190

216

241

CL600

165

190

216

229

241

292

330

Handwheel diameter

100

125

160

180

200

Height

CL150

176

184

217

226

250

290

357

CL300,CL600

161

163

196

226

250

290

357

Height (angle dimension)

13.5

36.5

Weight(kg)

CL150

3.4

3.98

6.12

7.2

10.4

15.5

24.5

2.8

3.3

5.4

7.1

8.2

12.5

CL300

3.77

4.89

7.23

9.6

12.64

26.2

3.5

4.4

6.8

8.1

9.2

15.4

CL600

4.2

5.8

8.8

12.1

15.6

19.5

4.5

5.1

8.2

10.5

12.4

20.1

CL800	Bolted Bonnet/Welded Bonnet,Full Port/Reduced Port,Outside Screw and Yoke(OS&Y). Threaded,Butt Weld,Socket Weld.Design:API602
	Size(NPS)	R.P	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2
		F.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2
	Face To Face	L	79	92	111	120	120	140	178
	Handwheel Diameter	W	100	100	125	160	160	180	200
	Height	H	161	163	196	223	251	290	333
	Flow Port Diameter	d	10.3	13.5	18	23	29	36	45
	Weight	B.B	2.22	2.39	4.24	5.7	7.05	10.9	16.8
	Weight	W.B	1.9	2.1	3.2	6.9	6.9	10.4	15.8

CL900-CL1500	Welded Bonnet.Full Port,Outside Screw and Yoke(OS&Y) Flange-welded or Socket-Welded ends;Design to API602,BS5352
	Size(NPS)		1/4	3/8	1/2	3/4	1	11/4	11/2	2
	Face to face	L(RF),L1(BW)	-	-	216	229	254	279	305	368
	Face to face	L(RTJ)	-	-	216	229	254	279	305	371
	Handwheel diameter	W	-	-	125	125	160	180	200	220
	Height	H	-	-	191	192	219	257	296	316
	Height(angle dimension)	d	-	-	13.5	18	24	29	36.5	45
	Weight(Kg)		-	-	7.2	11.5	15.6	16.2	22.6	28.2

CL900-1500	Bolted Bonnet/Welded Bonnet,Full Port/Reduced Port,Outside Screw and Yoke(OS&Y). Threaded,Butt Weld,Socket Weld.Design:API602
	Size(NPS)	R.P	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2
	Size(NPS)	F.P	3/8	1/2	3/4	1	1.1/4	1.1/2	2
	Face To Face	L	92	111	120	120	140	178	-
	Handwheel Diameter	W	100	125	160	160	180	200	-
	Height	H	191	191	219	243	296	316	-
	Flow Port Diameter	d	10.5	13.5	18	23	29	36	-
	Weight	B.B	2.3	4.4	6.8	7.6	11.6	15	-
	Weight	W.B	2.1	3.5	6.9	6.9	10.4	13.8	-
