Frac Head Manufacturer,drop ball, plug, perforate, screw or conventional fracturing heads SupplierWhether it's drop ball, plug, perforate, screw or conventional fracturing heads, we can manufacture fracturing heads in any configuration to meet our customers' needs. Shengtian Group offers a wide range of frac heads in sizes up to 7 1/16 "and pressures up to 15,000 psi. All fracturing head equipment is maintained and certified according to API standards. DEENPU offers many different configurations using manual and/or hydraulic valves, depending on the specific requirements of the customer.

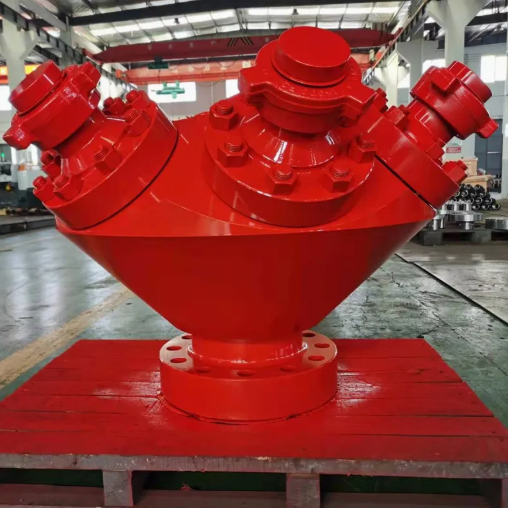

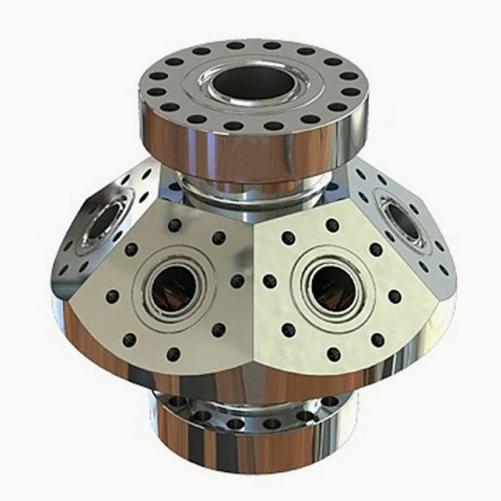

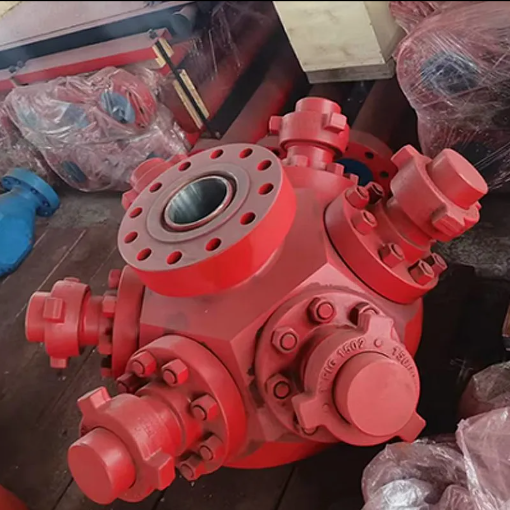

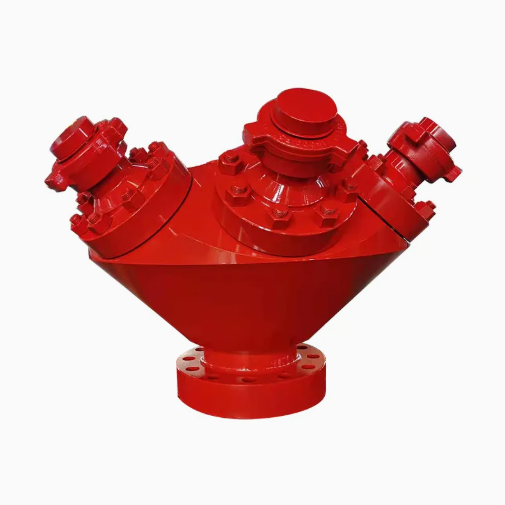

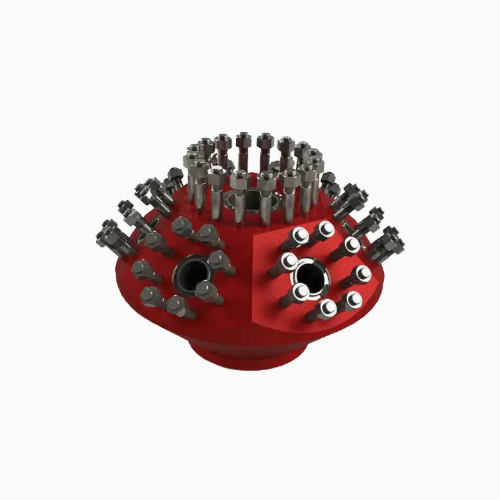

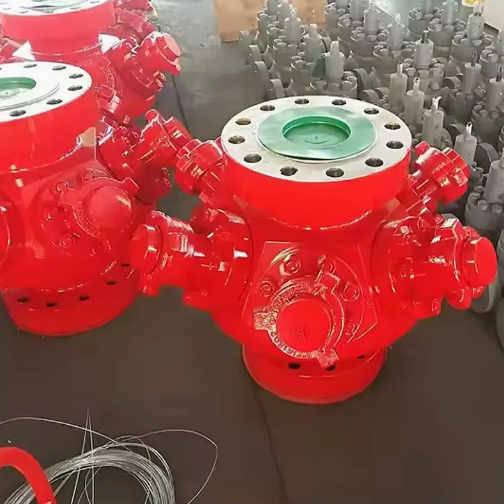

Fracture Head
Product Description
Explore the versatile world of Goat Heads: essential equipment in the realm of fracturing operations. Widely utilized on both frac trees and frac stacks, these robust devices feature studded and flanged connections, designed to streamline operations seamlessly. Offered in a range of sizes with multiple inlets, these heads efficiently connect various frac lines to the frac tree, ensuring optimal performance. At JEFA Machinery, our goat heads are crafted with precision, adhering strictly to the API 6A Standard and API Spec Q1, guaranteeing reliability and field-proven excellence. Whether you require four-way or six-way connections, our expertise allows for customized designs to meet your unique specifications. Additionally, Weco adapter assemblies are readily available, enhancing the versatility of our goat heads for your operational needs.
Product Parameters
1. Discover the Frac Head, also known as the Fracturing Head or Goat Head, a pivotal component in fracturing operations on the Frac Tree and Frac Stack. Expertly designed to enable systematic and secure fluid flow, this equipment supports high-volume pumping at extreme pressures during frac completions. The frac head is engineered to mitigate the inherent risks associated with inferior equipment, ensuring a safer, more efficient operation.2. Our Fracturing Head is available in a variety of wellhead connection sizes and offers two pressure ranges, featuring 2-in, 3-in, or 4-in 1502 frac inlets. Constructed to withstand rigorous demands, they are available with either 15,000 psi or 10,000 psi working pressure flanges. Tailor your equipment to your exact requirements with our customizable frac head options, designed to meet your specific needs and challenges.3. The Frac Head typically features studded and flange-end connection types. Beyond the conventional flanged style, we also offer threaded and 'Inlet' type frac heads. Available in various sizes and with multiple inlets to accommodate the integration of numerous frac lines into the frac tree, we pride ourselves on our ability to design and manufacture frac heads tailored to meet your precise specifications, ensuring exceptional performance and adaptability.
| Types |
Details |
| Sizes |
4 1/16", 5 1/8", 7 1/16" |
| Outlet Angles |
45 degree or 60 degree |
| Outlet Options |
4 to 6 |
| Outlet Sizes |
3 1/16" to 4 1/16" |
| Working Pressures |
5 psi to 15 psi |
| Working Temperature |
-46°C-121ºC |
| Material Class |
AA - HH |
| Specification Class |
PSL-1 to PSL-4 |
| Performance Class |
PR-1 to PR-2 |
| Connections |
Flanged and studded (Top and Bottom) |
