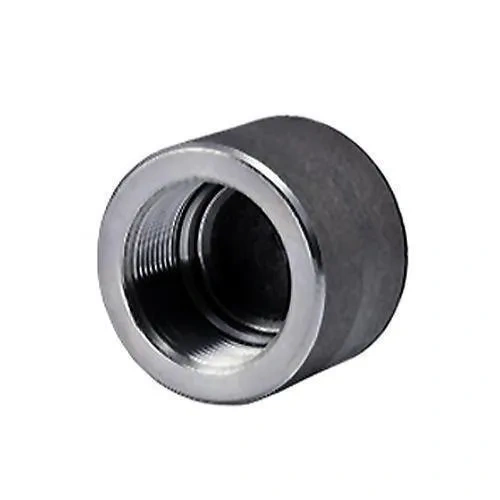

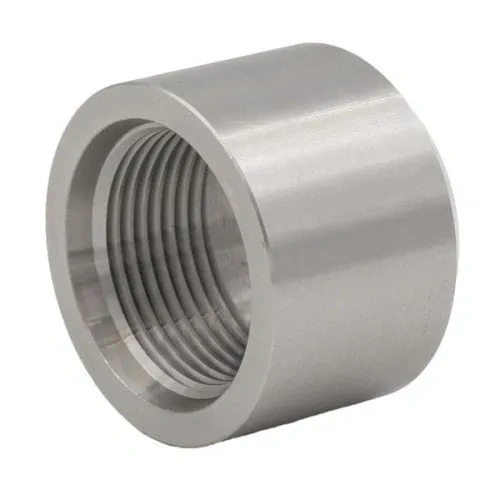

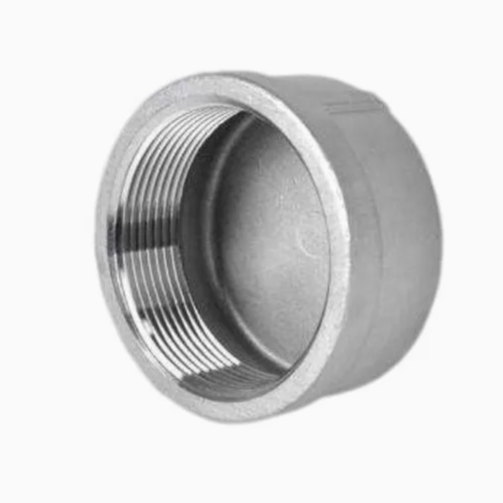

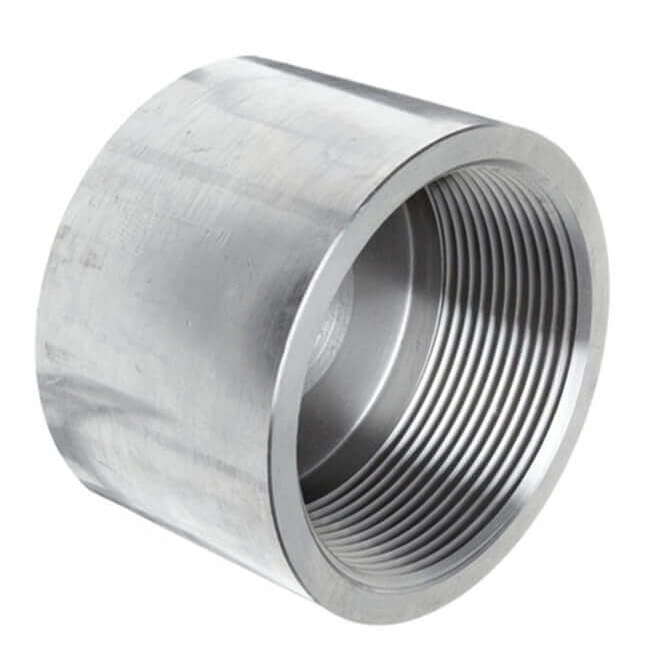

Forged Cap Supplier,Forged Cap Factory,Forged Cap Stockist In China A forged cap is a pipe fitting used to seal the end of a pipe. It is also known as a pipe end cap or simply a pipe cap. Forged pipe caps are forged from high-quality materials such as carbon steel or stainless steel to ensure maximum strength and durability.
Forged caps are available in a variety of sizes and can be customized to meet specific pipe requirements. They are designed to provide a leak-proof and secure seal at the end of a pipe, preventing the flow of fluids or gases. They can be used in a variety of applications, including the oil and gas, chemical processing, and power generation industries.
Forged caps can be connected to the end of a pipe by threading, welding, or socket welding. Threaded pipe caps have threads on the inside and can be screwed into the end of a threaded pipe; while welded pipe caps are welded to the end of a pipe.
Forged pipe caps provided by Shengtian Group are an important part of many piping systems, and their role is to provide a safe and reliable seal at the end of a pipe.
Product Description
✦Size Range: 1/8" - 4"(6mm - 100mm)
✦Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS
✦Standard: ASME B 16.11, MSS-SP-79\ 83\ 95\97
✦Material:Carbon steel: ASTM A105/A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2
Stainless steel: ASTM A182 F304/ F304/ F316/F316L/F317/ 317L/ F321/ F310/ 347/ 904
✦Technology: Forged
✦Packing: Wooden cases or wooden pallet or as per customers requirement Delivery Time: 25 days after order conformed
✦Payment: By T/T or L/C
✦Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,
✦Papermaking, construction etc
✦Delivery Time:30-45 Days After Order Confirmed
✦Shipping Terms:EXW / FOB / CIF / CFR
✦Quality Certificate:ISO9001 , CE
Forged Cap Dimensions
| (NPS) Normal Pipe Size |
Socket Bore |
Depth Of Socket |
Length Of ASTM A105 Pipe Cap |
Socket Cap Diameter |
| B |
J |
Q |
R |
| 1/2 |
21.95
21.70 |
10 |
19 |
32 |
| 3/4 |
27.30
27.05 |
13 |
23 |
38 |
| 1 |
34.05
33.80 |
13 |
26 |
45 |
| 1.1/4 |
42.80
42.55 |
13 |
28 |
55 |
| 1.1/2 |
48.90
48.65 |
13 |
30 |
65 |
| 2 |
61.35
61.10 |
16 |
36 |
75 |
| 2.1/2 |
74.20
73.80 |
16 |
38 |
92 |
| 3 |
90.15
89.80 |
16 |
42 |
110 |
| 4 |
115.80
115.45 |
19 |
48 |
140 |
Forged pipe caps are pipe fittings formed by forging in the pipe fittings manufacturing industry. The forming methods are divided into integral forging and split forging. Integral forging is formed by single heating and is suitable for pipe fittings with simple structures; split forging is a combination of segmented forging and welding, which is mostly used in the manufacture of pipe fittings with complex shapes. The production process mainly includes three categories: die forging, free forging and cutting. Die forging uses rolled profiles or steel ingots for die forging, which is suitable for small pipe fittings such as socket welding and threaded connections; free forging uses air hammers or hydraulic presses to forge approximate shapes, which are used for special structural pipe fittings; cutting directly turns bars or thick-walled pipes, and the material fiber flow direction must be consistent with the axial direction of the pipe fitting.
The pipe fittings are made of carbon steel, alloy steel, stainless steel, etc., and comply with industry standards such as ASTM A105/A105N and ASME B16.11, and quality is ensured through heat treatment and chemical composition testing. The interface types are socket welding, butt welding and threaded connection, with pressure levels ranging from 2000LB to 9000LB and sizes ranging from 1/8 inch to 4 inches. It is mainly used in high-pressure pipeline systems in the fields of petroleum, chemical industry, electric power and shipbuilding, and undertakes functions such as pipeline connection and flow direction regulation.
