The constituents of an Epoxy Coating includes a resin as well as a polyamine hardener. The polyamine hardener is also referred to as a catalyst. Once both the resin and hardener have been mixed, they engage in a chemical reaction which results in the formation of cross-links between the elements, once the mixture has been cured. A fully cured product results in an Epoxy Coated Pipe is a strong and rigid type of plastic coating with copious levels of sought-after mechanical properties. Epoxy coatings are distinguished for their exceptional mechanical characteristics. The epoxy coated ductile iron pipe exhibits mechanical properties such as hardness & durability, in addition to abrasion resistance, impact & chemical resistance.

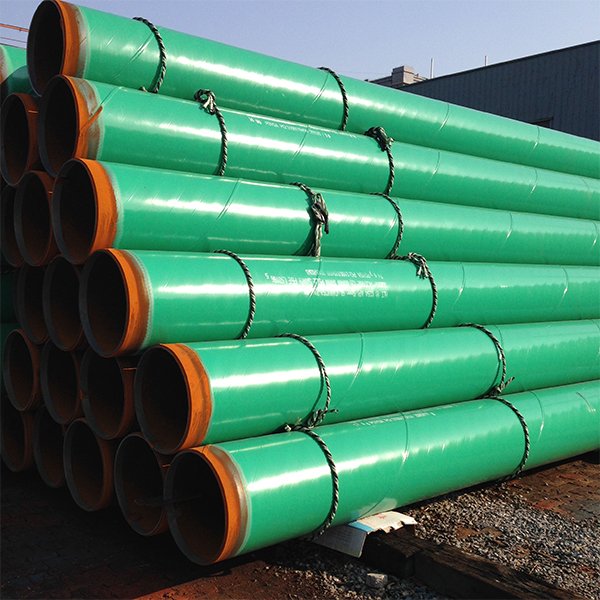

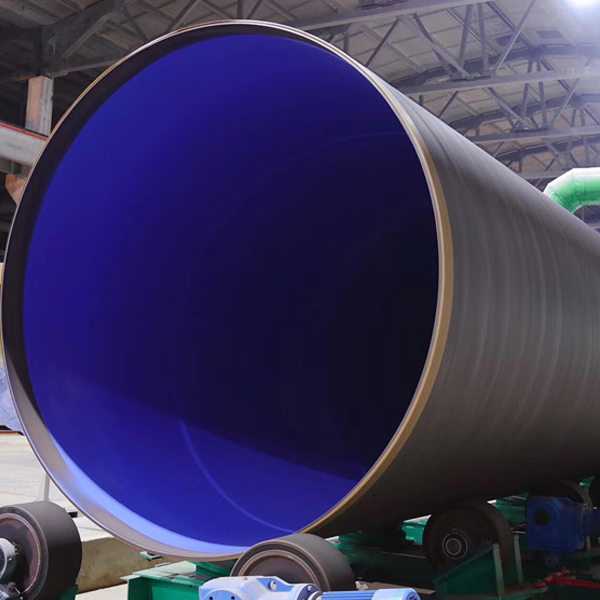

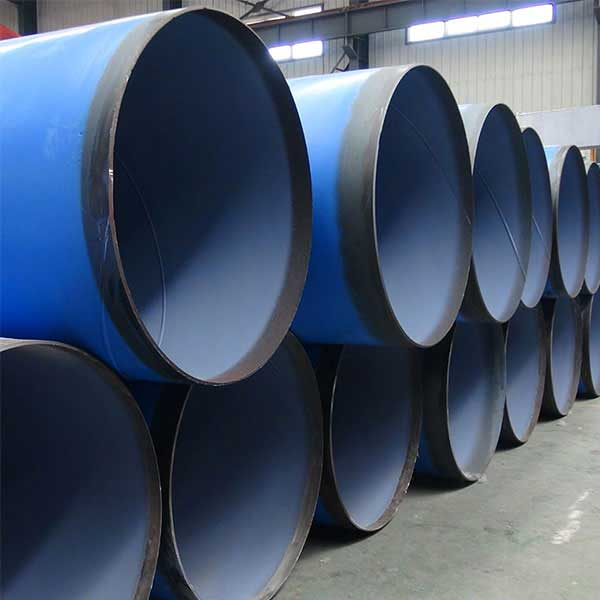

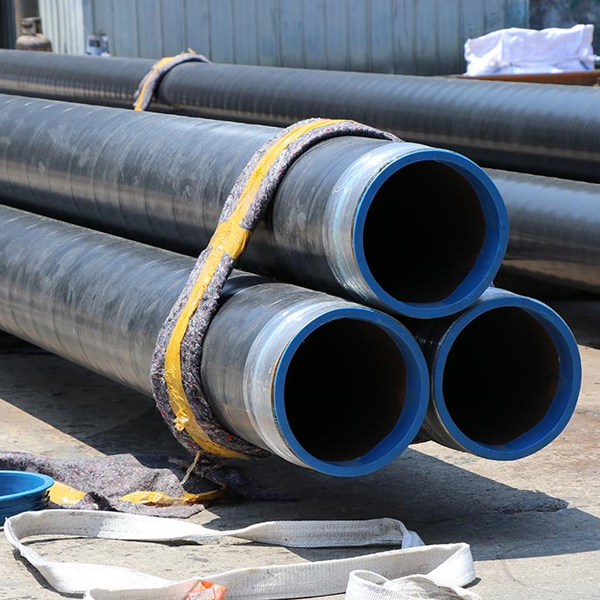

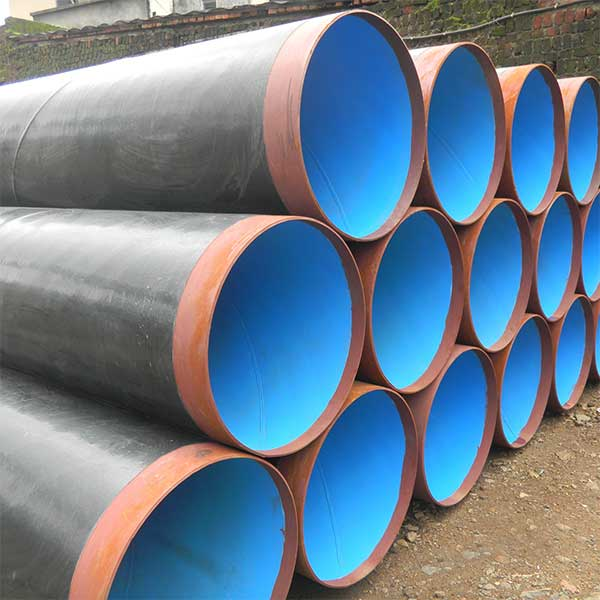

Product Name:Epoxy Coated Pipe, Epoxy Coating Pipeline
Size Range: 60.3mm-2540mm
Type:Seamless / ERW / Welded / Fabricated / LSAW
Length:Single Random, Double Random
End:Plain End, Bevelled End, Threaded
Application: Used for natural gas, petroleum, water & sewage, and pipe systems
Product Name:Epoxy Coated Pipe, Epoxy Coating Pipeline
Size Range: 60.3mm-2540mm
Type:Seamless / ERW / Welded / Fabricated / LSAW
Length:Single Random, Double Random
End:Plain End, Bevelled End, Threaded
Application: Used for natural gas, petroleum, water & sewage, and pipe systems
|
Standard |
API 5L |
||
|
Grade |
PSL-1 |
API 5L – Gr.B/X42/X46/X52/X60/X70 etc. |
|
|
( Material) |
PSL-2 |
ISO3183 – L245/L290/L320/L360/L415/L485 etc. |
|
|
Minimum Order Quantity |
1 Ton |
||
|
Outside Diameter Ranges |
PSL-1 |
0.405-80(in) or 10.3mm-2032mm |
|
|
PSL-2 |
4 1/2 -80(in) or 114.3mm-2032mm |
||
|
Wall Thickness Ranges |
SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm |
||
|
Length |
For 20Ft Container |
4.8m-5.8m |
|
|
(negotiable) |
For 40Ft Container |
4.8m-12m |
|
|
Most common choice |
6m, 12m |
||
|
Type |
Welded |
ERW,LSAW/SSAW |
|
|
Seamless |
Cold Drawn,Hot Finished,Hot Expanded |
||
|
Cap (negotiable) |
Pipe size should under DN600 |
||
|
Pipe End |
Plain end |
All sizes |
|
|
Bevel end |
Pipe size above DN50, and the thickness should greater than 3.2mm |
||
|
Our advantages |
·Diverse products(Steel pipes, pipe fittings, other fittings) |
||
|
·Any third party inspection is accepted by we company. |
|||
|
·Quick response in quotation,delivery,after-service. |
|||
|
·Focus on pipe & tube solution for project application. |
|||
|

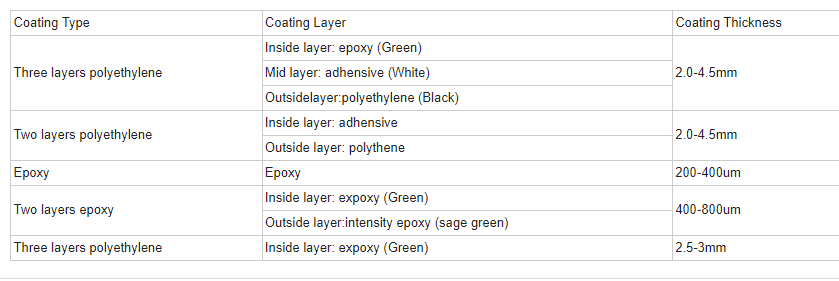

External Coating |
|
|
Coating type |
Coating Standard |
|
3LPE/3LPP |
DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009 |
|
2LPE/2LPP |
SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009 |
|
FBE(Fusion-bond epoxy) |
SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001 |
|
Bitumen coating Enamel &Tape hot-applied |
BS534-1990,AWWA203-2002,AWWA214-2000 |
|
Liquid epoxy coating |
AWWWA C210-2007 |
|
Polyurethane insulated coating |
SY/T0415-1996,CJ/T114-2000.EN253-1994 |
|
Internal Coating |
|
|
Liquid Epoxy Coating |
AWWAC210-2007 |
|
FBE |
AWWAC213-2001 |
|
Cement Mortar Lining |
BS534-1990,AWWA C205-2001 |
|
Bitumen Coating |
BS534-1990 |
|
Coating Thickness |
.004" to .006" per coat |
|
Temperature Range |
300°F maximum |
|
Chemical Resistance (ASTM D543) |
Excellent |
|
Hardness (ASTM D3363) |
> 8 H |
|
Adhesion (ASTM D4541) |
1933 psi |
|
Coating Color |
various options available |
|
Standard of Epoxy Coated Pipe |
AC298 Internal Epoxy Barrier Pipe Coating AWWA C210 Liquid Epoxy Coating and Lining IGC 189-2006 : Internal Epoxy Barrier Pipe Coating Material NSF/ANSI Standard 61 -for Drinking Water Systems Components AWWA C 213 CSA Z245.20 IS 3589 Annexure C |
|
FBE Coated Pipe Marking |
Manufacturer’s name, logo or trademark Trade Designation NSF SE |
|
Color Code of Solvent Free Epoxy Coating |
Yellow Black Green Gray Iron red Light blue |
