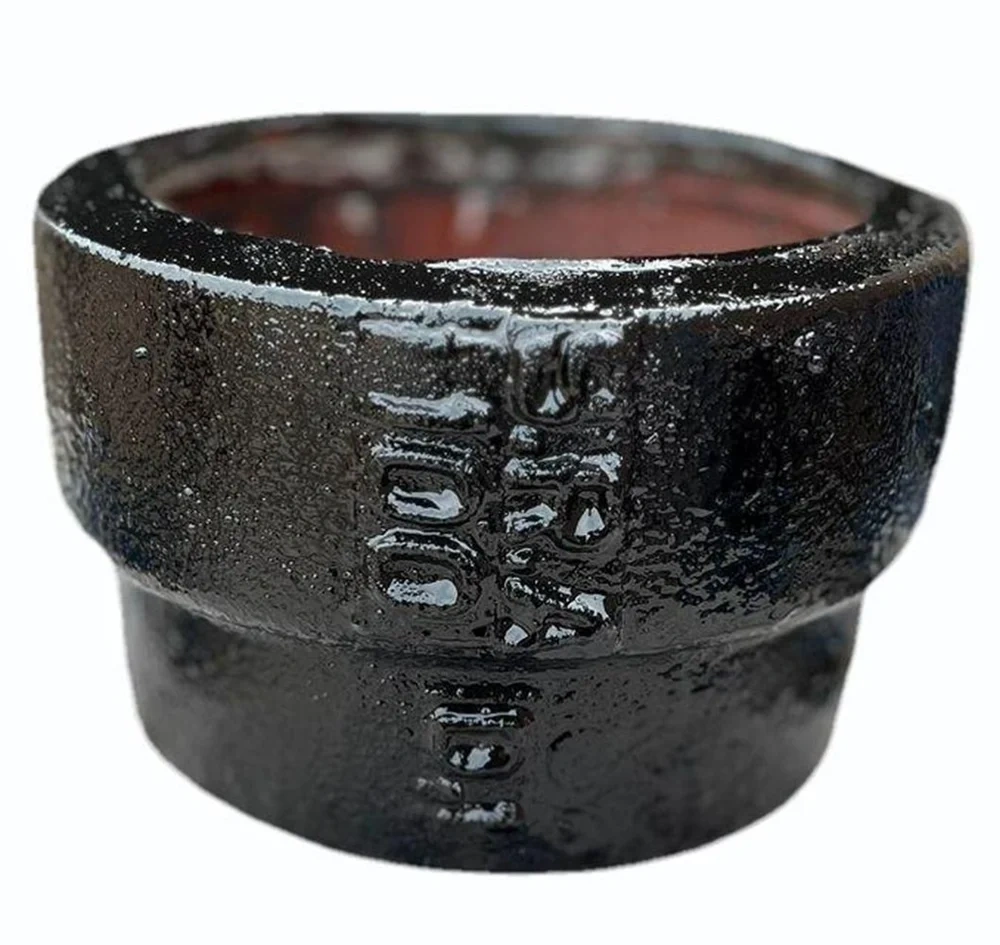

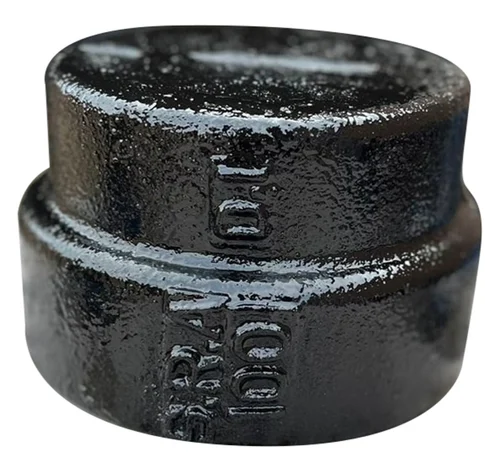

Name: Ductile Iron End Cap
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Ductile Iron End Cap Producer,Ductile Iron End Cap Stockist,Ductile Iron End Cap Supplier

　　Ductile iron pipe caps should be a kind of fittings used in pipeline systems, mainly used to seal the ends of pipes. Ductile iron material itself has the characteristics of high strength and good toughness, and is often used in water supply and gas pipelines.
　　Ductile iron caps are pipe fittings that are designed to close the ends of piping systems. The Ductile Iron Caps are designed with primary alloys of carbon, silicon, iron, manganese, and other alloys. The caps are made from 90% recycled iron material. A Ductile Iron End Cap ensures they allow for waterproof sealing. The pipe caps are internally threaded to the externally threaded end. The Di Pipe Cap has good toughness and exceptional machinability. These caps prevent the entry of harsh media into them. This makes the Di Mj Cap have good tolerance to corrosive media in different environments. The caps can be availed in schedules 20 to schedule 160 and XXS. The 6 Di Cap can be threaded, welded, or fabricated as per specifications. The caps are designed in sizes of 15NB to 1200NB. The common Di Cap types are available in a round, square, rectangular, U shape, I shape, hex shapes, etc.

Specification Of Ductile Iron End Cap

Pressure	PN10,PN16,PN25,PN40
Technology	Casting
Surface Finish	FBE Coating, Bitumen Coating
Standard	ISO2531,EN545,EN598,BS4772,EN12842,AWWA C110 / C153
End Connection	Flanged,Socketed
Body Material	Ductile Iron - GGG40,GGG45,GGG50
Bonnet Material	Ductile Iron - GGG40,GGG45,GGG50;Cast Iron - GG20,GG25,GG30
Stem Material	Stainless Steel - 2CR13,SS304,SS316,SS420
Wedge Material	Ductile Iron - GGG40,GGG45,GGG50;Cast Iron - GG20,GG25,GG30
Sealing Material	EPDM / NBR / Stainless / Brass / Bronze
Size	DN40 - DN2600
Packages	Plywood Cases + Plywood Pallets + Boxes
Application	Petrochemical & Gas Industry,Chemical,Machinery,Electric Power,Ship Building,Construction Water Works,Valve Industry.
Advantages	High Quality + Ready Stock + Faster Delivery + Customized
Brand	ST
Certificate	ISO9001,API,CE,UL/FM,WRAS

Weight Of Ductile Iron End Cap Fittings

Size (inch)	Weight in kg
4	4.08
6	6.80
8	9.97
10	14.51
12	19.05
14	29.93
16	41.73
18	51.70
20	56.69
24	75.29
30	156.48
36	284.85
42	301.63
48	408.68

How To Measure Ductile Iron Pipe End Cap Thickness?

　　The ductile iron pipe end cap is measured based on its internal and outside diameter. You can subtract the OD and ID of the Di End Cap and divide it by 2. The number that comes is the wall thickness of the material.
