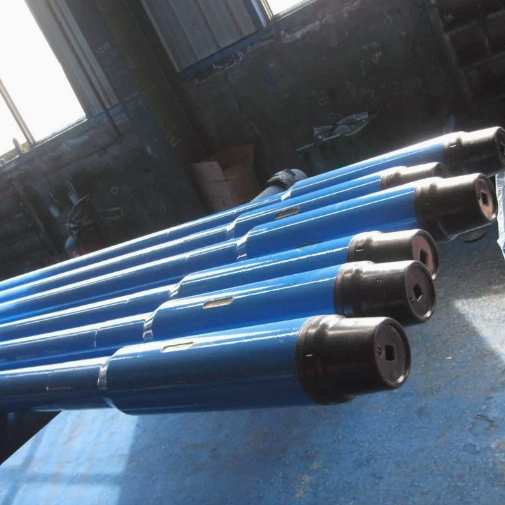

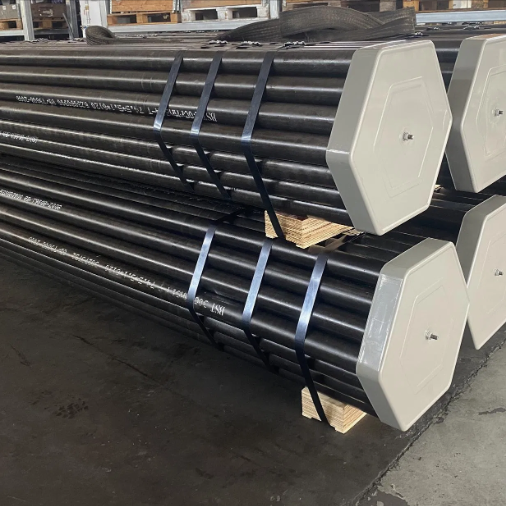

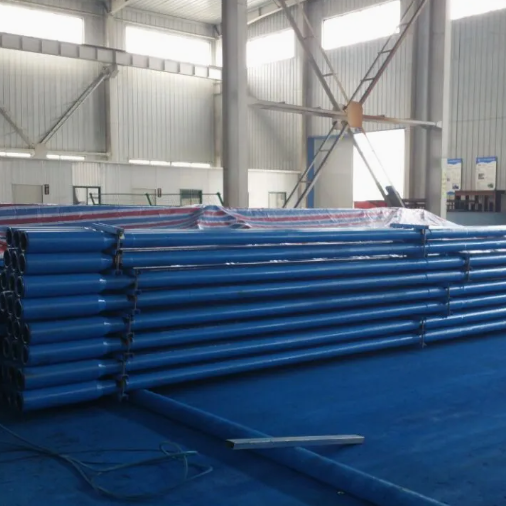

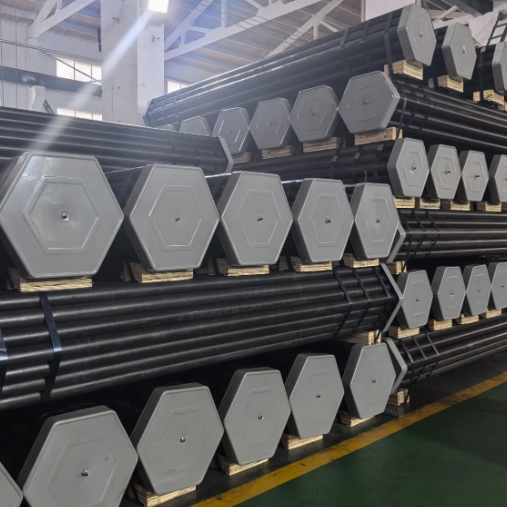

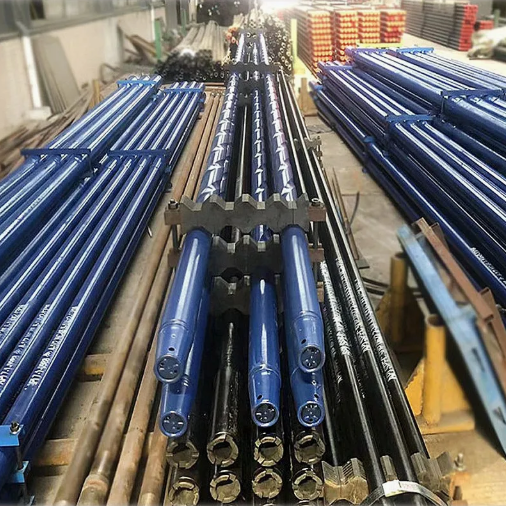

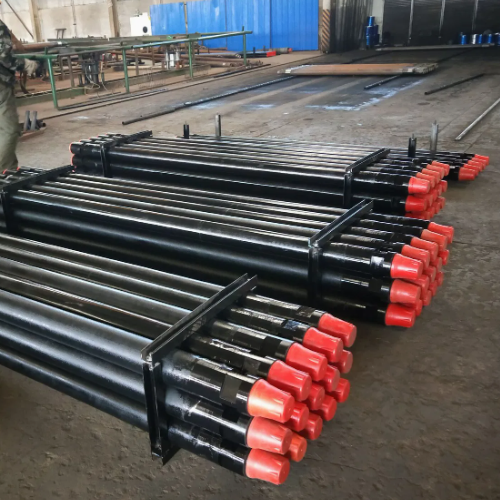

Drill Pipe- 4" x 20' Bottle Neck
w/ 3 1/2" I.F Threads
172 Joints / 3,440'
15.7 LBS per foot (approximate)
Product Description
| Size (in) |
O.D. (in) |
I.D. (in) |
Tool Joint O.D. (in) | Tool Joint I.D(in) | Thread | Max.elevator dia (in) |
Central upset dia.(in) | Min.drift dia. (in) |
| 3-1/2 | 3-1/2 | 2-1/4 | 4-3/4 (4-7/8, 5) |
2-1/4 | NC38 | 3-7/8 | 4 | 2 |
| 2-1/16 | 2-1/16 | 1-13/16 | ||||||
| 4 | 4 | 2-1/2 | 5-1/4 | 2-1/2 | NC40 | 4-3/16 | 4-1/2 | 2-1/4 |
| 2-9/16 | 2-9/16 | 2-5/16 | ||||||
| 4-1/2 | 4-1/2 | 2-11/16 | 6-1/4 | 2-11/16 | NC46 | 4-11/16 | 5 | 2-7/16 |
| 2-3/4 | 2-3/4 | 2-1/2 | ||||||
| 2-13/16 | 2-13/16 | 2-9/16 | ||||||
| 5 | 5 | 3 | 6-5/8 | 3 | NC50 | 5-1/8 | 5-1/2 | 2-3/4 |
| 5-1/2 | 5-1/2 | 3-1/4 | 7 (7-1/4, 7-1/2) |
3-1/4 | 5-1/2 FH | 5-11/16 | 6 | 3 |
| 3-3/8 | 3-3/8 | 3-1/8 | ||||||
| 3-7/8 | 3-7/8 | 3-5/8 | ||||||
| 4 | 4 | 3-3/4 | ||||||
| 6-5/8 | 6-5/8 | 4 | 8 (8-1/4, 8-1/2) |
4 | 6-5/8 FH | 6-15/16 | 7-1/8 | 3-3/4 |
| 4-1/2 | 4-1/2 | 4-1/4 | ||||||
| 5 | 5 | 4-3/4 |
