Drill pipe, is hollow, thin-walled, steel or aluminium alloy piping that is used on drilling rigs. It is hollow to allow drilling fluid to be pumped down the hole through the bit and back up the annulus. It comes in a variety of sizes, strengths, and wall thicknesses, but is typically 27 to 32 feet in length (Range 2). Longer lengths, up to 45 feet, exist (Range 3).
Standard:API 5DP drill pipe, API SPEC 7 Standards
Size: 60.3 ~ 168.3mm
Grade: E75,X95,G105,S135
Upset Type: EU, IEU
API 5DP drill pipe internal Coating:High abrasion resistance and low friction factor,
Hard-banding: Good balance between anti-wear and friction-reduction; The wear rate is less than 6% of that of the bare tool joint, which can prolong 3 times of the tool joint service life; Reduce the torque of drilling string; Good weldability with a little splash and good re-welding performance
Sdxl Api 5ct 5dp High Standard Drill Pipe
|
Drill pipe specifications
|
|||||||||
|
Designations
|
Pipe body OD.
|
Pipe wall thickness
|
Tool joint OD.
|
Tool joint PIN ID.
|
Approx mass
|
||||
|
Lable 1
|
Lable 2
|
Grade
|
Upset type
|
RSC type
|
mm
|
mm
|
mm
|
mm
|
kg/m
|
|
Internal-upset
|
|||||||||
|
4
|
14.00
|
E
|
IU
|
NC40
|
101.60
|
8.38
|
133.4
|
71.4
|
22.42
|
|
4
|
14.00
|
G
|
IU
|
NC40
|
101.60
|
8.38
|
139.7
|
61.9
|
22.76
|
|
4-1/2
|
13.75
|
E
|
IU
|
NC40
|
114.3
|
6.88
|
152.4
|
85.7
|
22.5
|
|
3-1/2
|
15.5
|
G
|
EU
|
NC38
|
88.9
|
11.4
|
120.7
|
54.0
|
25.38
|
|
2-3/8
|
6.65
|
E
|
EU
|
NC26
|
60.32
|
7.11
|
85.7
|
44.5
|
10.45
|
|
2-7/8
|
10.40
|
S
|
EU
|
NC31
|
73.02
|
9.19
|
111.1
|
41.3
|
17.19
|
|
We can supply full size drill pipe with API 5D/5DP, including IU, EU, IEU. Please leave a message for consultation.
|
|||||||||
|
Drill collar specifications
|
|||||||
|
Nominal Size
|
OD
|
ID
|
Length
|
Bevel Dia. mm
|
Bending Strength Ratio
|
||
|
mm
|
in
|
mm
|
in
|
mm
|
|||
|
NC31-41(2-7/8IF)
|
104.8
|
4-1/8
|
50.8
|
2
|
9150
|
100.4
|
2.43:1
|
|
NC35-47
|
120.7
|
4-3/4
|
50.8
|
2
|
9150
|
114.7
|
2.58:1
|
|
NC38-50(3-1/2IF)
|
127
|
5
|
57.2
|
2-1/4
|
9150
|
121
|
2.38:1
|
|
NC44-60
|
152.4
|
6
|
71.4
|
2-13/16
|
9150/9450
|
144.5
|
2.84:1
|
|
NC44-62
|
158.8
|
6-1/4
|
57.2
|
2-1/4
|
9150/9450
|
149.2
|
2.91:1
|
|
NC46-62(4IF)
|
158.8
|
158.8
|
71.4
|
2-13/16
|
9150/9450
|
150
|
2.63:1
|
|
NC50-70(4-1/2IF)
|
177.8
|
7
|
57.2
|
2-1/4
|
9150/9450
|
164.7
|
2.54:1
|
|
NC56-77
|
196.8
|
7-3/4
|
71.4
|
2-13/16
|
9150/9450
|
185.3
|
2.70:1
|
|
6-5/8REG
|
209.6
|
8-1/4
|
71.4
|
2-13/16
|
9150/9450
|
195.7
|
2.93:1
|
|
NC61-90
|
228.6
|
9
|
71.4
|
2-13/16
|
9150/9450
|
212.7
|
3.17:1
|
|
We can supply full size drill collar with API 5D/5DP, Please leave a message for consultation.
|
|||||||
|
Heavy weight drill pipe specifications
|
||||||
|
Nominal size
|
Pipe body
|
Tool Joint
|
Single weight Bec
|
|||
|
OD.
|
ID.
|
RSC type
|
OD.
|
ID.
|
kg/pcs
|
|
|
3-1/2
|
3-1/2
|
2-1/4
|
NC38
|
4-3/4
4-7/8
|
2-1/4
|
319
|
|
4
|
4
|
2-1/2
2-1/16
|
NC40
|
5-1/4
|
2-1/2
2-9/16
|
434
423
|
|
4-1/2
|
4-1/2
|
2-3/4
|
NC46
|
6-1/4
|
2-3/4
|
578
|
|
5
|
5
|
3
|
NC50
|
6-5/8
|
3
|
702
|
|
5-1/2
|
5-1/2
|
3-1/4
|
5-1/2FH
|
7
|
3-1/4
|
842
|
|
6-5/8
|
5-1/2
|
4-1/2
|
6-5/8FH
|
8-1/4
|
4-1/2
|
1084
|
|
We can supply full size drill pipe with API 5D/5DP, Please leave a message for consultation.
|
||||||

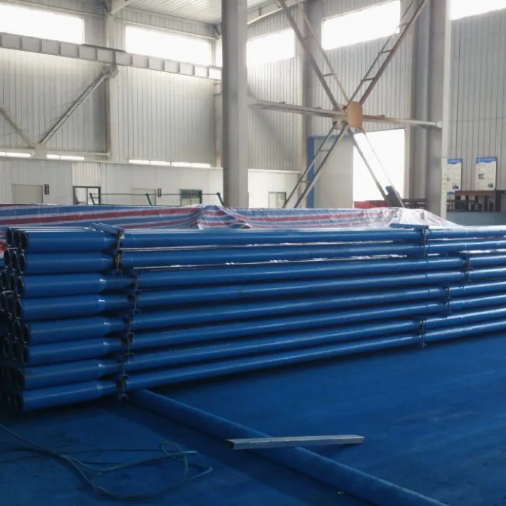

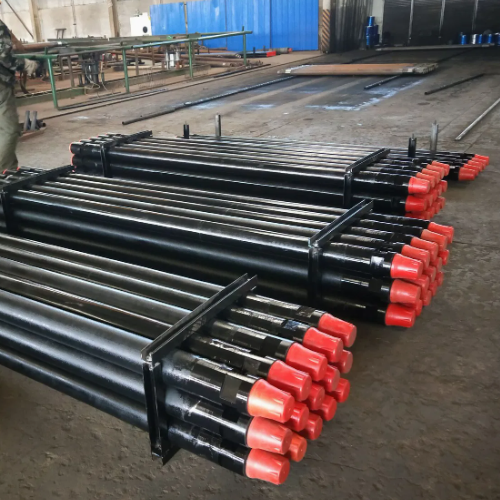

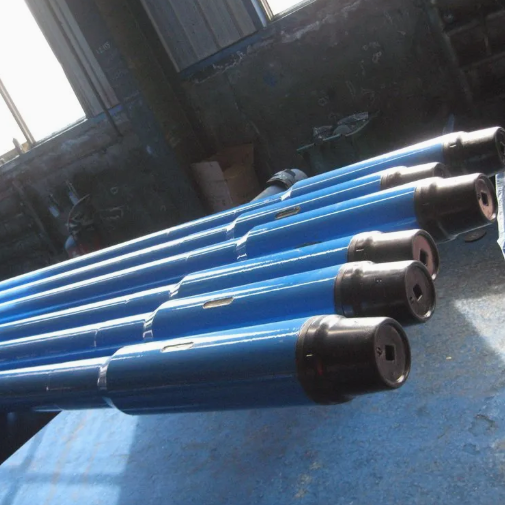

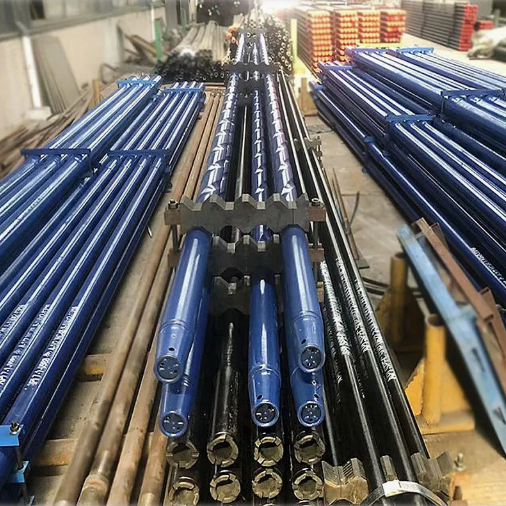

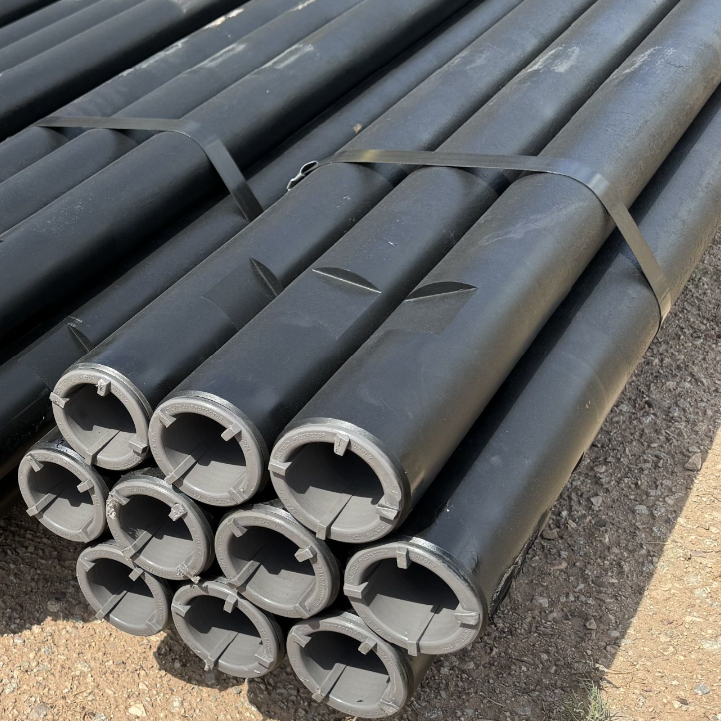

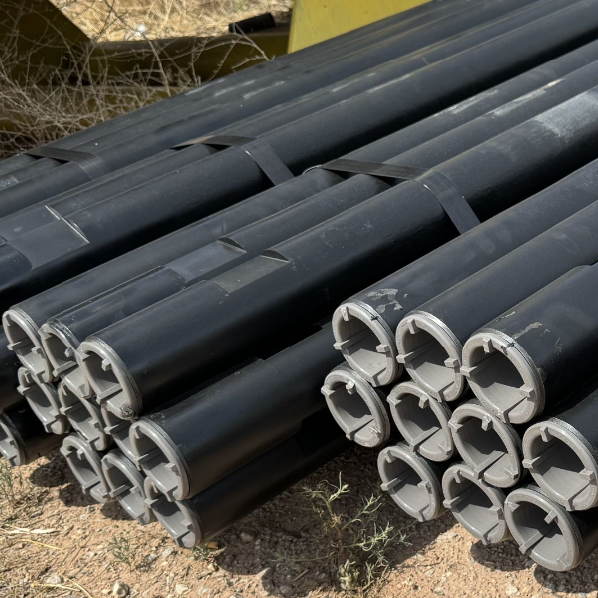

Detailed Photos
