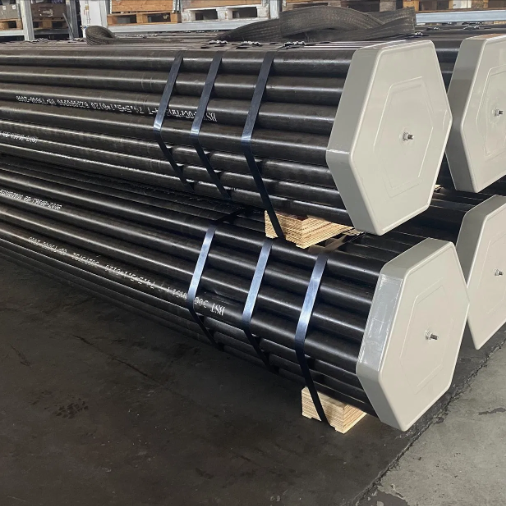

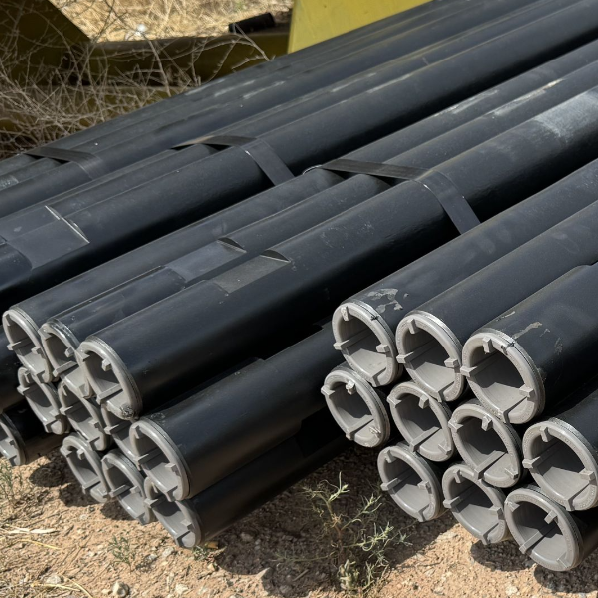

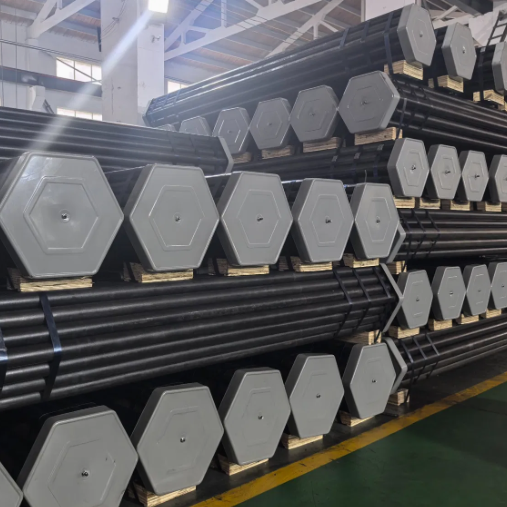

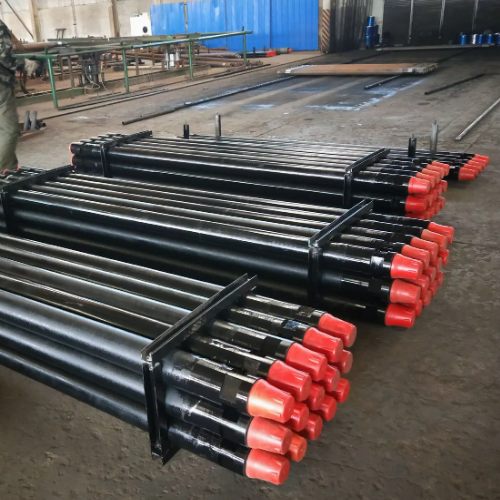

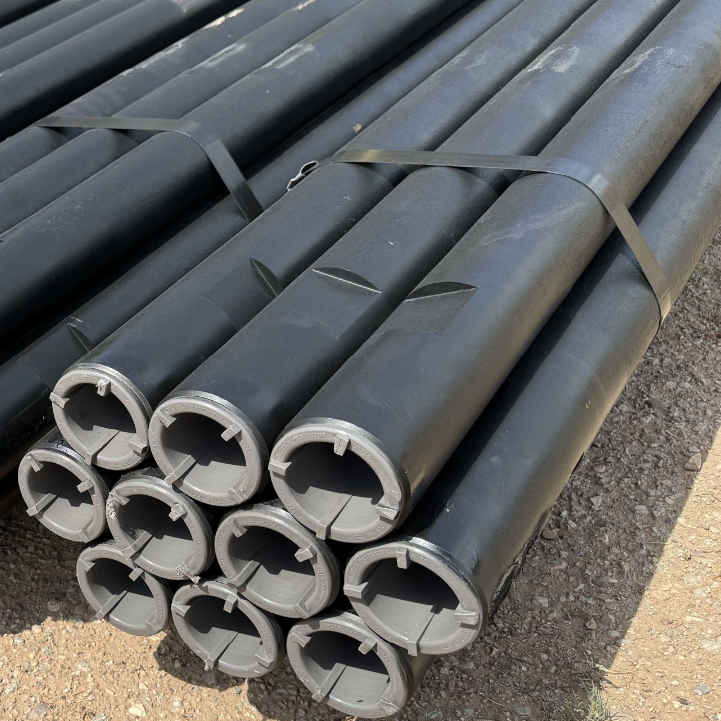

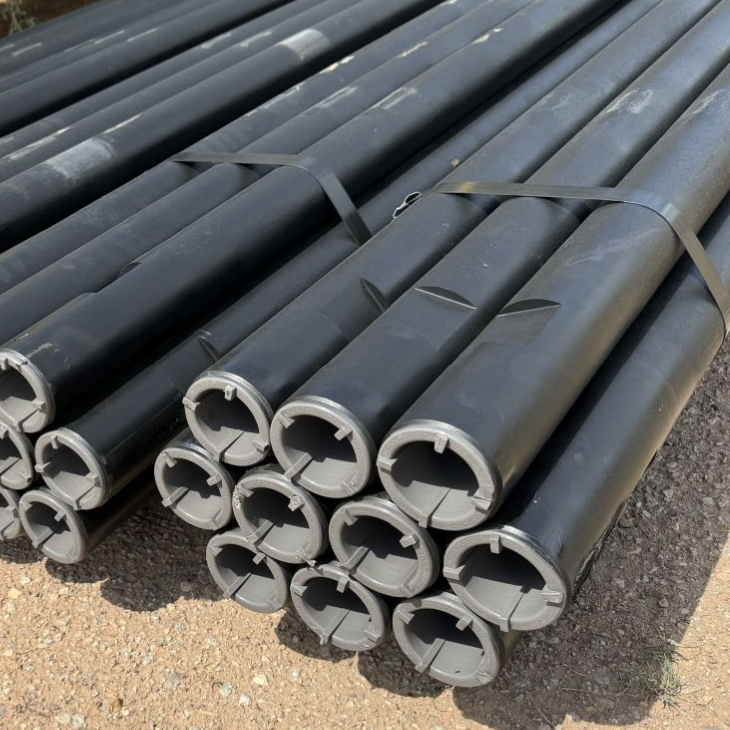

Drill pipe - (NEW) 3 1/2" x 20' Flush Joint
w/ 2 3/8" IF Threads W/ wrench flats
Weight: 13.3 lbs per pound (Approx.)
Drill pipe - (NEW) 3 1/2" x 20' Flush Joint
w/ 2 3/8" IF Threads W/ wrench flats
Weight: 13.3 lbs per pound (Approx.)
| Outer diameter | Thread | Wall thickness | Length | Wrench flat | Weight |
| mm | mm | mm | mm | Approx Kg | |
| 76 | 2-3/8 API REG | 5.5 | 1000 | 57 | 17 |
| 1500 | 22 | ||||
| 2000 | 26 | ||||
| 3000 | 35 | ||||
| 1000 | 65 | 17 | |||
| 1500 | 22 | ||||
| 2000 | 26 | ||||
| 3000 | 35 | ||||
| 6.5 | 3000 | 46 | |||
| 4500 | 56 | ||||
| 6000 | 73 | ||||
| 89 | 2-3/8 API REG | 5.5 | 1000 | 65 | 20 |
| 1500 | 25 | ||||
| 2000 | 30 | ||||
| 3000 | 40 | ||||
| 6.5 | 1000 | 21 | |||
| 1500 | 26 | ||||
| 2000 | 32 | ||||
| 3000 | 45 | ||||
| 4500 | 65 | ||||
| 6000 | 84 | ||||
| 102 | 2-3/8 API REG | 6.5 | 1000 | 75 | 25 |
| 1500 | 33 | ||||
| 2000 | 40 | ||||
| 3000 | 55 | ||||
| 4500 | 78 | ||||
| 6000 | 100 | ||||
| 2-7/8 API REG | 1000 | 83 | 25 | ||
| 1500 | 33 | ||||
| 2000 | 40 | ||||
| 3000 | 55 | ||||
| 4500 | 78 | ||||
| 6000 | 100 | ||||
| 114 | 3-1/2 API REG | 6.5 | 1000 | 95 | 31 |
| 1500 | 40 | ||||
| 2000 | 49 | ||||
| 3000 | 66 | ||||
| 4500 | 86 | ||||
| 6000 | 110 |
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.
According to different application, different diameters of drill tubes are needed. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm 127mm, 140mm, 159mm etc.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.
Related Products
We can also supply other drilling rig, drilling equipment and drilling tools, such as Trailer Mounted Drilling Rig, Truck Water Well Drill Rig, Core Drill Rig, Mud Pump, Air Compressor, DTH Hammer, Tricone Bit, Drag Bit, DTH Bit, etc.
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
