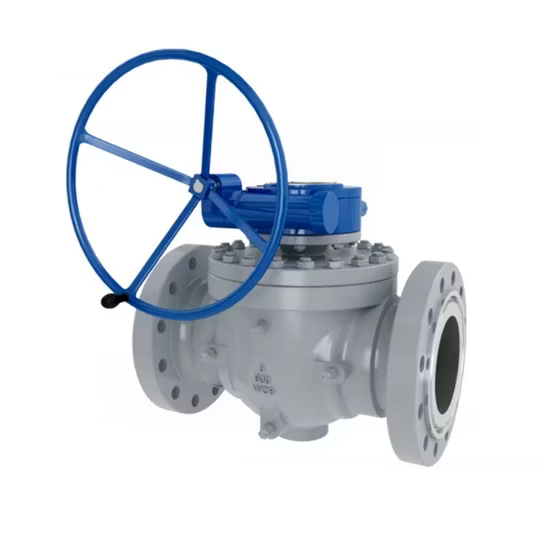

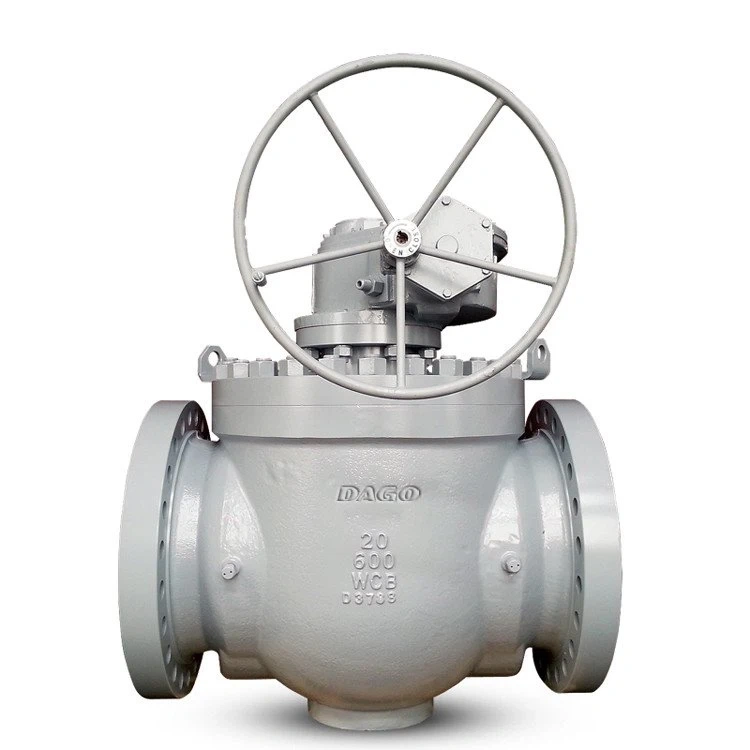

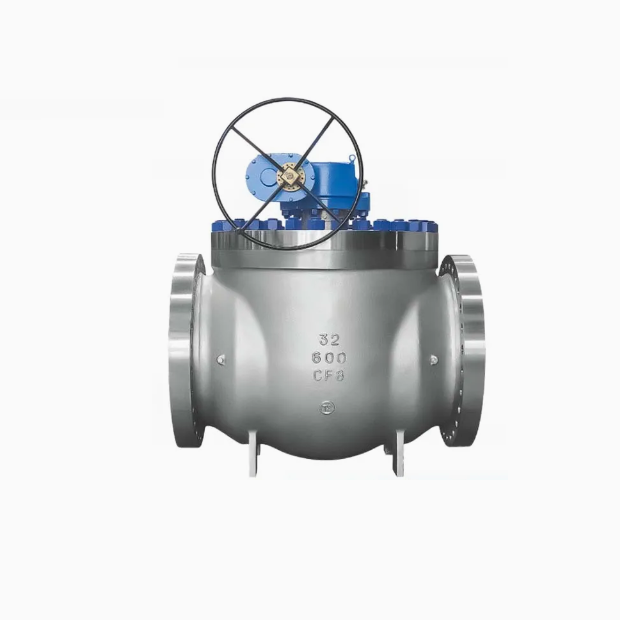

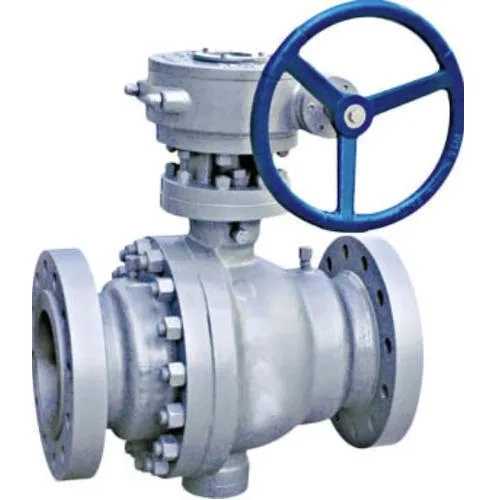

Cryogenic Top-Entry Ball Valve

       Valve Size : 1/2” ~ 20” (Cast Steel) / 1/2” ~ 36” (Forged)


 Applicable Rating : ASME 150# ~ 1500#


Temperature : Down to -196 ℃


 Code & Standard : API, BS, ASME, ASTM
  • Cryogenic Top-Entry Ball Valve
  • Cryogenic Top-Entry Ball Valve
  • Cryogenic Top-Entry Ball Valve
  • Cryogenic Top-Entry Ball Valve
  • Cryogenic Top-Entry Ball Valve
  • Cryogenic Top-Entry Ball Valve

Description

Cryogenic Top-Entry Ball Valve Stockist,Ball Valve Factory In China


The Cryogenic Top-Entry Ball Valve, as an important on/off component in the cryogenic pipeline system, is an important part of the petrochemical industry, air separation, and natural gas industry. The structure of Top-Entry Ball Valve can realize online maintenance, and is suitable for low-temperature liquid or gas media, such as liquefied natural gas (LNG), liquefied petroleum gas (LPG), liquid hydrogen, liquid oxygen, ethylene and other conditions. Compared with the Side-Entry ball valve under the same conditions, Top-Entry Ball Valve is more convenient to maintain with a wider scope of application, and is more common.

Cryogenic Top-Entry Ball Valve Specifications


 Valve Size : 1/2” ~ 20” (Cast Steel) / 1/2” ~ 36” (Forged)


 Applicable Rating : ASME 150# ~ 1500#


 Temperature : Down to -196 ℃


 Code & Standard : API, BS, ASME, ASTM


Designed by BS5351, ASME B16.34, and ASME B16.25/16.5


 Shell & Seat Leak Test : API 598 & BS6364


 Constructions:


End Connection : Socket-Welded, Butt-Welded or Flanged Type


Long Extended Bonnet


Trunnion Ball,Floating Ball, Full Bore / Reduce Bore


Fire Safety Construction(Certified by TUV)


Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)


Uni- / Bi-Direction, Double Block & Bleed Design

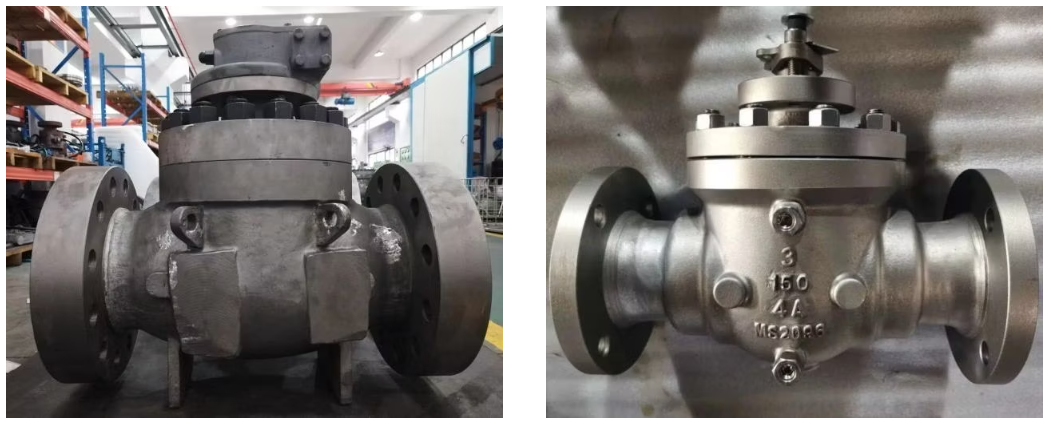

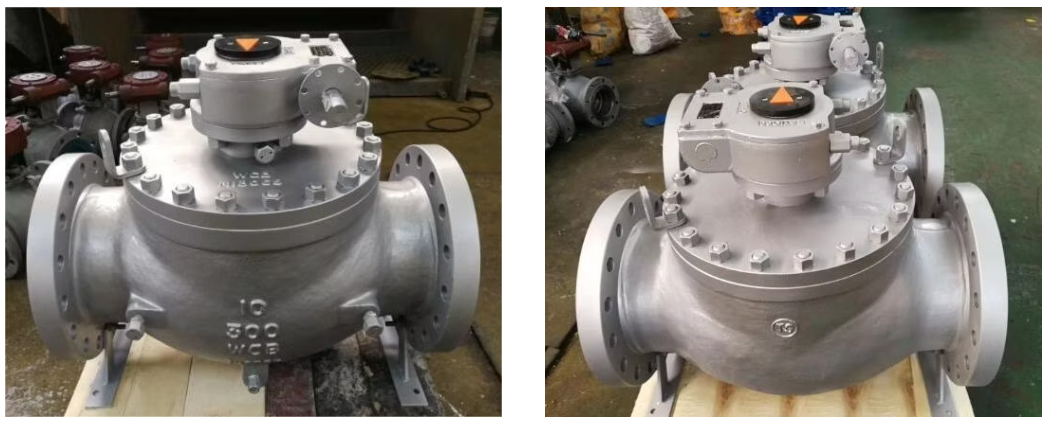

Product Display



Cryogenic Top-Entry Ball Valve Feature


  1. The structure of Top-Entry Ball Valve enables online valve maintenance.

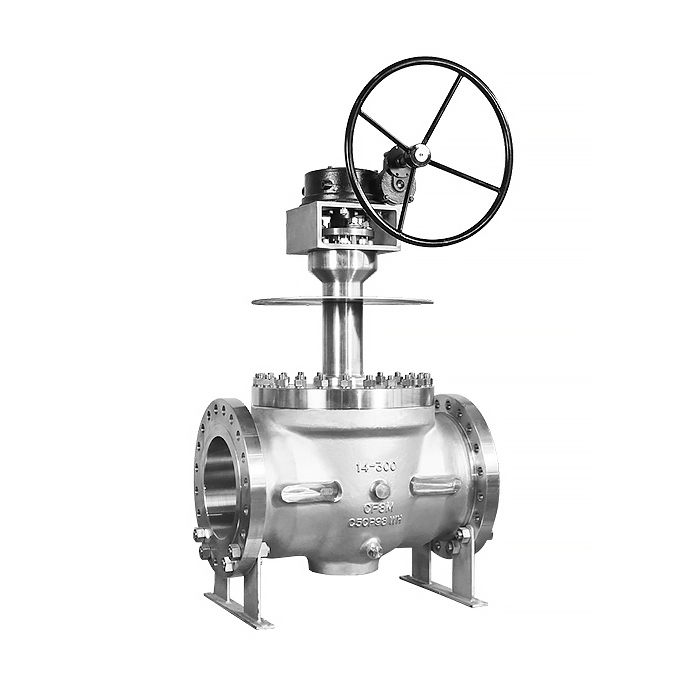

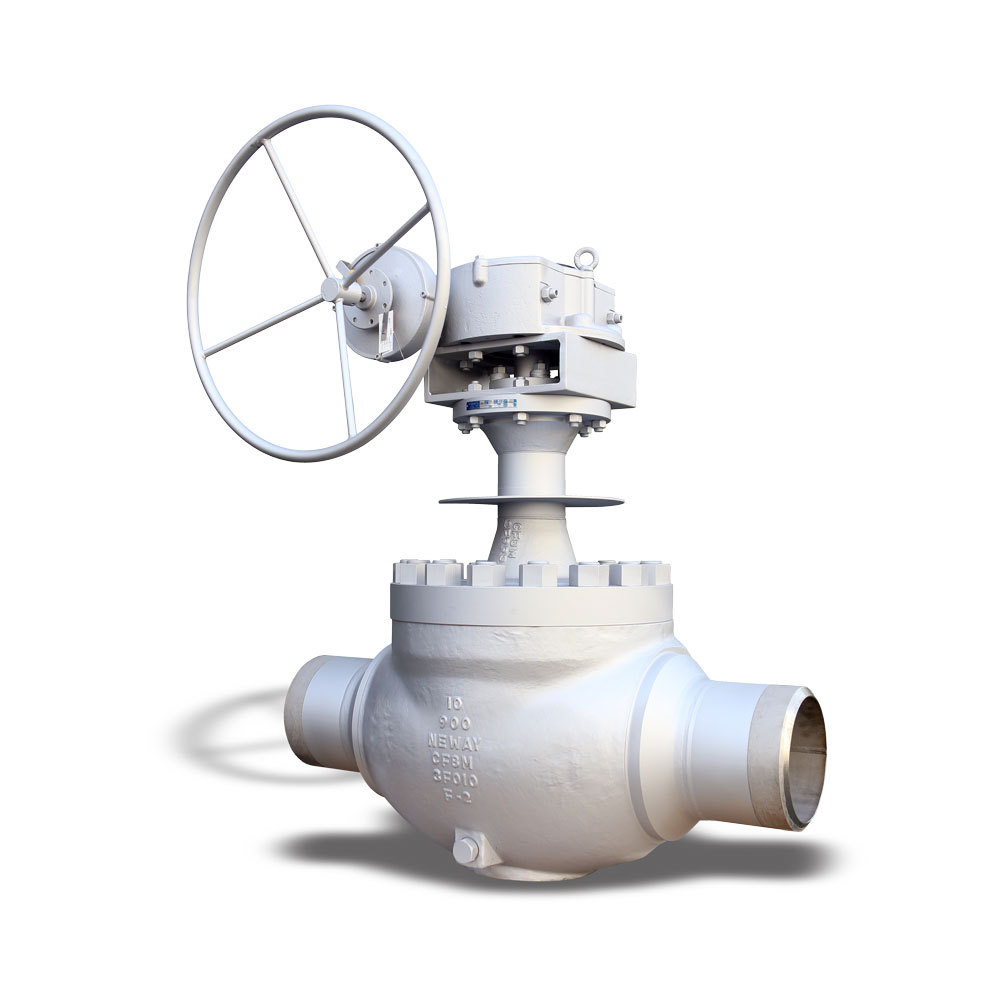

  2. Extended bonnet design.

  3.Design of live-loaded seal structure of valve stem.

  4.Special design of valve seat assembly, reliable sealing, detachable valve seat structure.

  5.Valve cavity overpressure relief design.

  6.Stem anti-settling design.

  7.The extended bonnet has a drip tray design, which can effectively prevent condensate from flowing into the insulation layer.

  8.Fire-resistant, anti-static, anti-stem ejection function.
