Name: Concentric Reducer
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Concentric Reducer Factory,Concentric Reducer Exporter,Concentric Reducer Stockist

　　A concentric reducer is a type of fitting used in piping systems. It is designed to connect two pipes of different diameters, allowing for a smooth transition of fluid or gas flow. The reducer is called "concentric" because the center line of the larger and smaller pipes coincide.Carbon steel is a commonly used material for reducers due to its strength, durability, and resistance to corrosion. It is suitable for various industrial applications, including oil and gas, chemical processing, and power generation.The dimensions of a carbon steel concentric reducer typically include the larger and smaller pipe sizes, as well as the length and thickness of the reducer. The reducer is installed by inserting the larger pipe end into one side and the smaller pipe end into the other side, then welding or using flanges to secure the connection.It is important to consider factors such as pressure rating, temperature, and compatibility with the fluid or gas being transported when selecting a carbon steel concentric reducer. Consulting with an engineer or referring to industry standards and specifications can help ensure the proper selection and installation of the reducer in a piping system.

Product Description

Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″-144″
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and
etc.

　　Material & Grades Of Concentric Reducer :

　　Carbon Steel Concentric Reducer :

　　ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

　　Low Temperature Carbon Steel Buttweld Reducer : ASTM A420 WPL3, A420 WPL6

　　Alloy Steel Concentric Reducer :

　　ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

　　Stainless Steel Concentric Reducer :

　　ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN

　　1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

　　Duplex & Super Duplex Steel Concentric Reducer :

　　ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werksto No. 1.4462

　　Nickel Alloy Concentric Reducer :

　　ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No.

　　N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel

　　600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No.

　　N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe

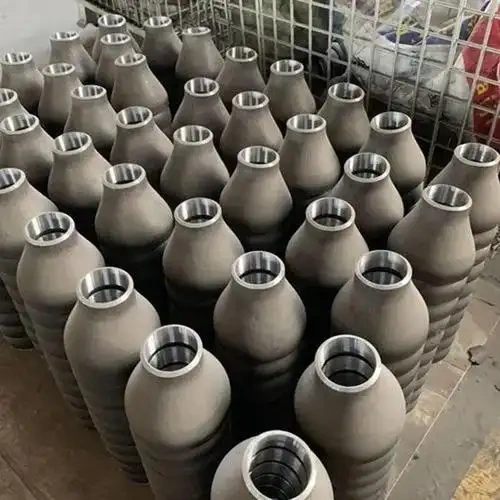

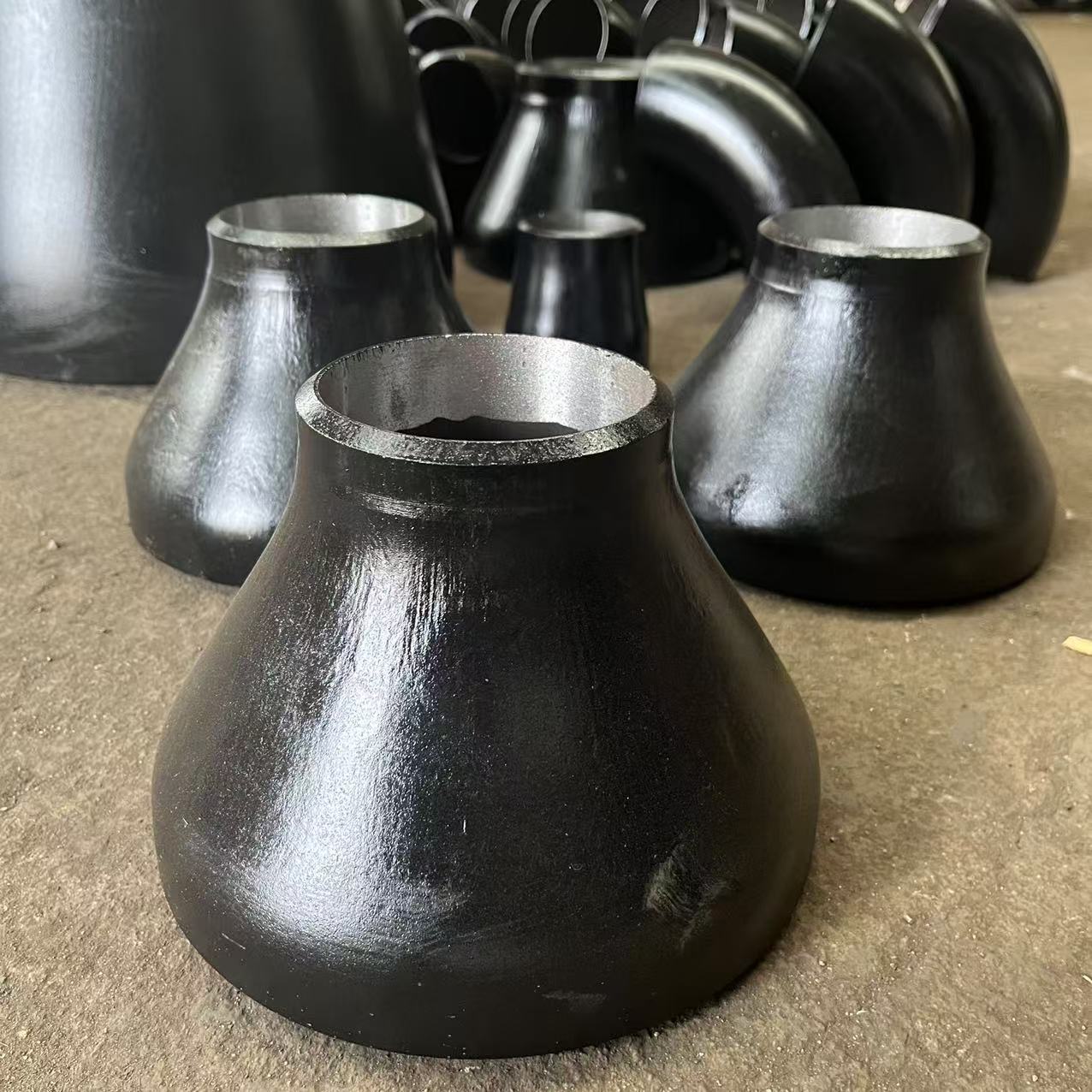

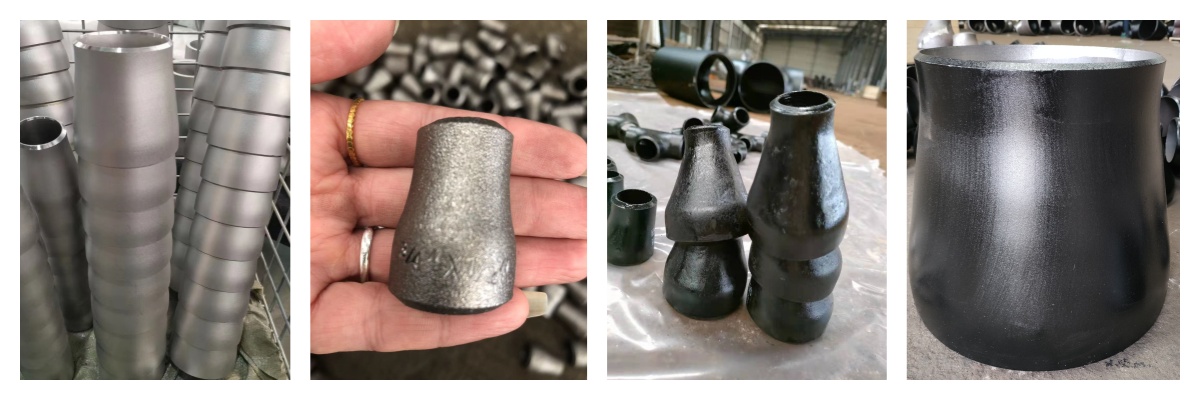

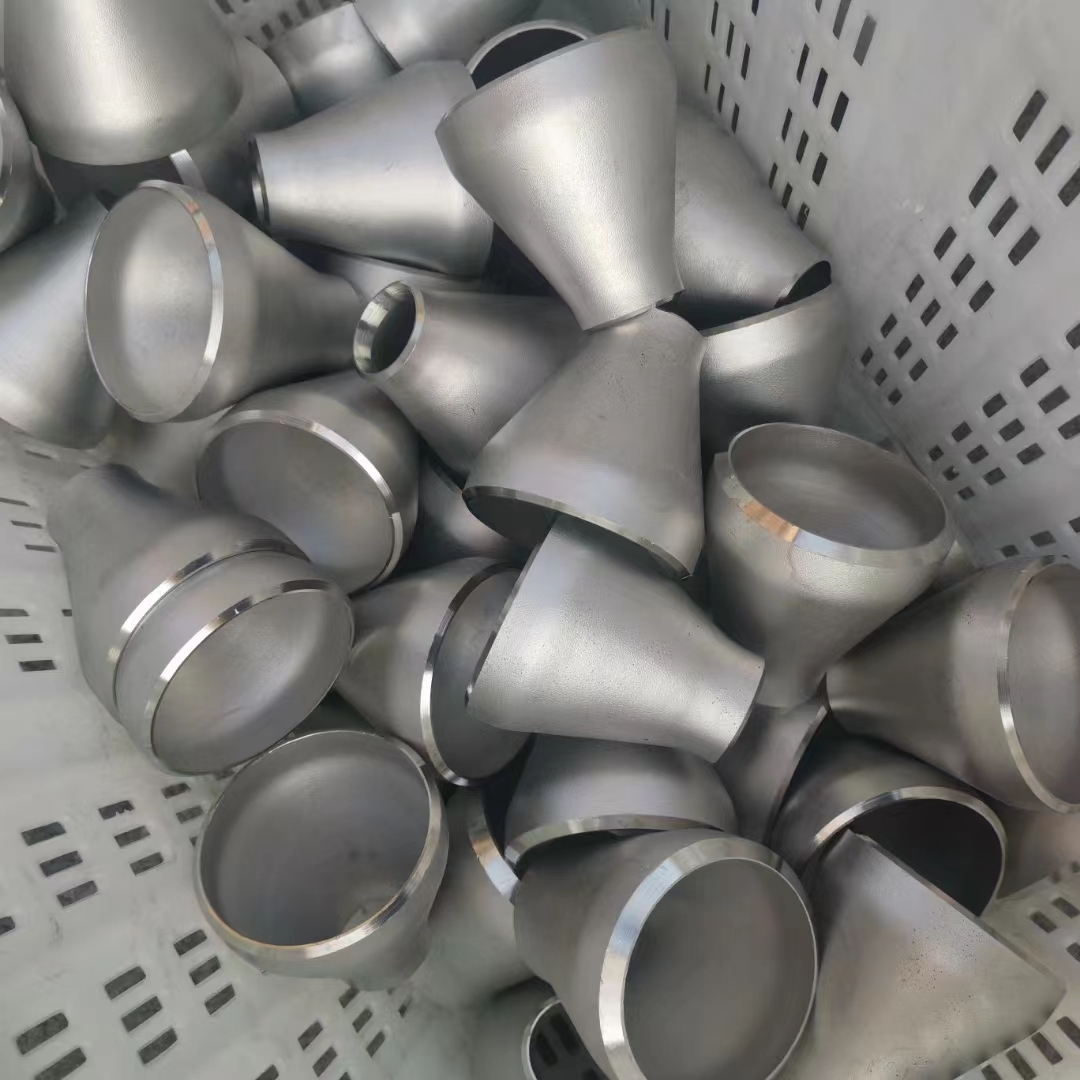

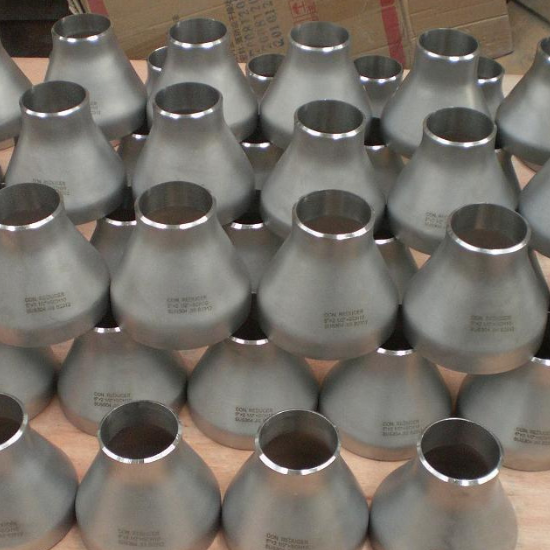

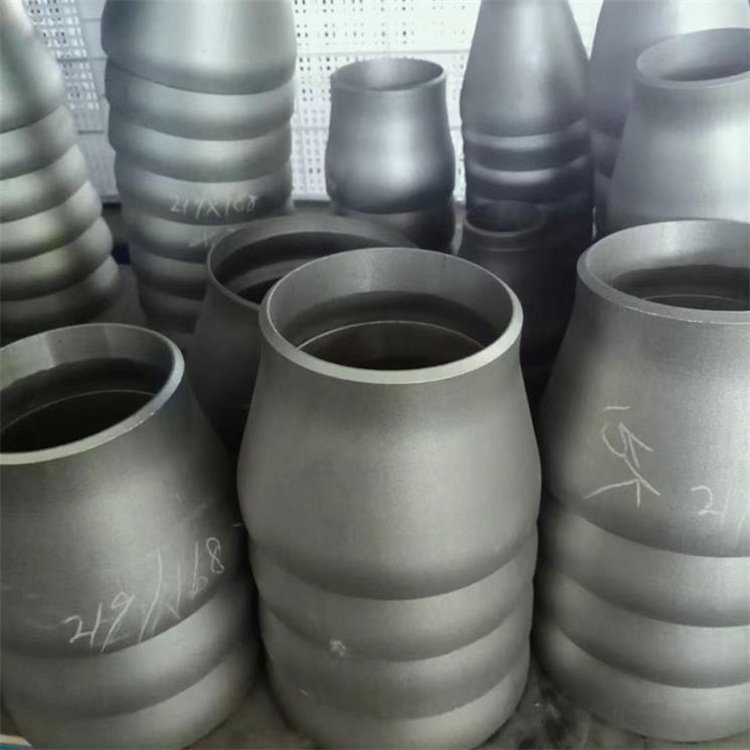

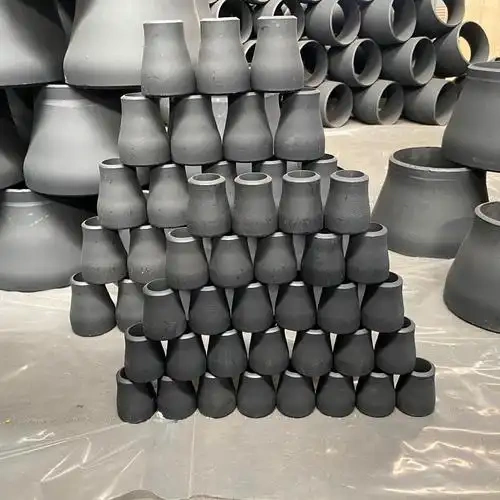

Product Display

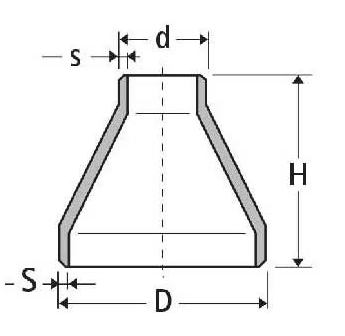

Concentric Reducer Parameters

Standard			Extra Strong
Nominal Pipe Size	Length	Weight in Pounds	Nominal Pipe Size	Length	Weight in Pounds
1 1/4 x 1/2	2	0.42	1 1/4 x 1/2	2	0.53
1 x 3/4	2	0.36	1 x 3/4	2	0.43
1 x 1/2	2	0.36	1 x 1/2	2	0.42
3/4 x 1 1/2	1	0.21	3/4 x 1 1/2	1.5	0.25
1 1/2 x 1 1/4	2.5	0.65	1 1/2 x 1 1/4	2.5	0.78
1 1/2 x 1	2.5	0.57	1 1/2 x 1	2.5	0.72
1 1/2 x 3/4	2.5	0.56	1 1/2 x 3/4	2.5	0.65
1 1/2 x 1/2	2.5	0.56	1 1/4 x 1/2	2.5	0.65
1 1/4 x 1	2	0.48	1 1/4 x 1	2	0.57
1 1/4 x 3/4	2	0.42	1 1/4 x 3/4	2	0.53
1 1/4 x 1/2	2	0.42	2 1/2 x 2	3.5	2.1
2 1/2 x 2	3.5	1.6	2 1/2 x 1 1/2	3.5	1.9
2 1/2 x 1 1/2	3.5	1.5	2 1/2 x 1 1/4	3.5	1.7
2 1/2 x 1 1/4	3.5	1.4	2 1/2 x 1	3.5	1.5
2 1/2 x 1	3.5	1.3	2 1/2 x 12 x 1 1/2	3	1.2
2 x 1 1/2	3	0.94	2 x 1 1/4	3	1.1
2 x 1 1/4	3	0.88	2 x 1	3	1
2 x 1	3	0.81	2 x 3/4	3	0.94
2 x 3/4	3	0.74	3 1/2 x 3	4	4.1
3 1/2 x 3	4	2.8	3 1/2 x 2 1/2	4	3.7
3 1/2 x 2 1/2	4	2.7	3 1/2 x 2	4	3.5
3 1/2 x 2	4	2.6	3 1/2 x 1 1/2	4	3.3
3 1/2 x 1 1/2	4	2.6	3 1/2 x 1 1/2	4	3.3
3 1/2 x 1 1/4	4	2.5	3 1/2 x 1 1/4	4	3.3
3 x 2 1/2	3.5	2.2	3 x 2 1/2	3.5	2.8
3 x 2	3.5	2	3 x 2	3.5	2.6
3 x 1 1/2	3.5	1.9	3 x 1 1/2	3.5	2.4
3 x 1 1/4	3.5	1.8	3 x 1 1/4	3.5	2.3
3 x 1	3.5	1.7	3 x 1	3.5	2.2
4 x 3 1/2	4	3.5	4 x 3 1/2	4	4.9
4 x 3	4	3.3	4 x 3	4	4.7
4 x 2 1/2	4	3.2	4 x 2 1/2	4	4.6
4 x 2	4	3.1	4 x 2	4	4.3
4 x 1 1/2	4	3	4 x 1 1/2	4	4.2
4 x 1 1/4	4	3	4 x 1 1/4	4	4.1
4 x 1	4	2.8	4 x 1	4	4
5 x 4	5	5.5	5 x 4	5	7.5
5 x 3 1/2	5	5.3	5 x 3 1/2	5	6.9
5 x 3	5	5.1	5 x 3	5	6.3
5 x 2 1/2	5	4.8	5 x 2 1/2	5	6.1
5 x 2	5	4.7	5 x 2	5	6
6 x 5	5.5	7.6	6 x 5	5.5	11.5
6 x 4	5.5	7.4	6 x 4	5.5	10.7
6 x 3 1/2	5.5	7.1	6 x 3 1/2	5.5	10
6 x 3	5.5	6.9	6 x 3	5.5	9.7
6 x 2 1/2	5.5	6.6	6 x 2 1/2	5.5	9.1
6 x 2	5.5	6.5	6 x 2	5.5	8.6
8 x 6	6	12.3	8 x 6	6	18.8
8 x 5	6	11.5	8 x 5	6	17.6
8 x 4	6	10.8	8 x 4	6	17
8 x 3 1/2	6	10.6	8 x 3 1/2	6	15.9
8 x 3	6	9.8	8 x 3	6	15
10 x 8	7	22.1	10 x 8	8	29.4
10 x 6	7	20.7	10 x 6	7	28.3
10 x 5	7	19.5	10 x 5	7	26.9
10 x 4	7	18.4	10 x 4	7	24.2
12 x 10	8	32.4	12 x 10	8	41.5
12 x 8	8	30.5	12 x 8	8	38.6
12 x 6	8	29.5	12 x 6	8	37.4
12 x 5	8	27.8	12 x 5	8	36.3
12 x 4	8	26.2	12 x 4	8	34.7
14 x 12	13	63.1	14 x 12	13	81
14 x 10	13	61.4	14 x 10	13	76.7
14 x 8	13	60	14 x 8	13	74.6
14 x 6	13	59.2	14 x 6	13	72.3
16 x 14	14	75.4	16 x 14	14	98
16 x 12	14	72.7	16 x 12	14	95.8
16 x 10	14	71.1	16 x 10	14	93.3
16 x 8	14	69.4	16 x 8	14	91.1
16 x 6	14	67.4	16 x 6	14	89.8
18 x 16	15	87.3	18 x 16	15	118
18 x 14	15	86	18 x 14	15	117
18 x 12	15	84.8	18 x 12	15	115
18 x 10	15	83.7	18 x 10	15	113
20 x 18	20	123	20 x 18	20	162
20 x 16	20	121	20 x 16	20	159
20 x 14	20	119	20 x 14	20	157
20 x 12	20	118	20 x 12	20	155
20 x 10	20	117	20 x 10	20	152
24 x 20	20	156	24 x 20	20	201
24 x 18	20	153	24 x 18	20	197
24 x 16	20	150	24 x 16	20	194
24 x 14	20	147	30 x 24	24	315
24 x 12	20	144	30 x 20	24	315
24 x 10	20	141	30 x 18	24	315
30 x 24	24	315	36 x 30	24	379
30 x 20	24	315	36 x 24	24	379
30 x 18	24	315	36 x 20	24	379
36 x 30	24	379	42 x 36	24	443
36 x 24	24	379	42 x 30	24	443
36 x 20	24	379	42 x 24	24	443
42 x 36	24	443	48 x 42	28	525
42 x 30	24	443	48 x 36	28	525
42 x 24	24	443	48 x 30	28	525
48 x 42	28	525
48 x 36	28	525
48 x 30	28	525
