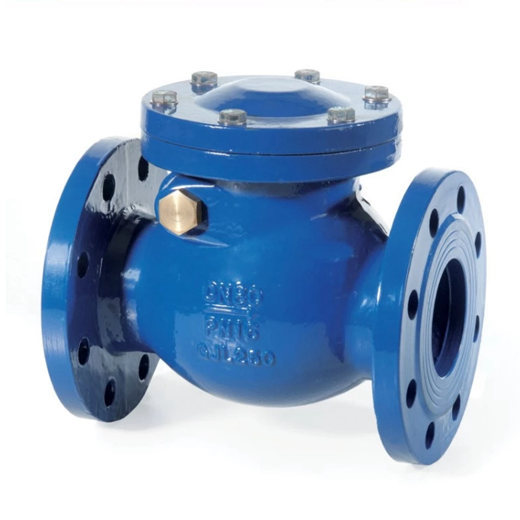

Name: CHV701-900 Check Valves
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

CHV701-900 Check Valves Manufacturer,Class 600-900 Cast Steel Check Valve Supplier,Cast Steel Check Valve Factory,Check Valve Stockist

　　Shengtian Group Manufacturer Suppliers and Exporter of Swing Type Check Valves and Lift Type Check Valves. These NRV Non Return Valves are Bolted Cover Design, with Straight Type Body with Flanged ends and Screwed Ends. Swing Check Valves are Suitable for Horizontal flow or Vertical flow flowing from bottom to (Fluid Flowing Upward) Pipe Layouts.Lift Type Check Valve Bolted Cover, Are Only Suitable for Horizontal Line.

　　Class 600-900 Cast Steel Check Valve with by Pass Arrangement Valve and With STL Seat to meet the Requirement for High Pressure and High Temperature Lines. Makes Swing Type Check Valves With Teflon Seated For Low Vacuum Line. The Disc is Highly Lapped for its Long Life.

Class 600-900 Cast Steel Check Valve Specification

　　★Design:API / British standard Straight Body and Cover Bolted

　　★Material:CS ASTM A216 Gr. WCB, WC6,WC9,LCB, C12,C5,304,316, etc.

　　★Disc & Seat:CS SS304.304L,SS316,316L,

　　★Trims:F6 SS 304,304L, 316,316L, etc.

　　★Rating:600#,900#,1500#

　　★Ends conn.Flanged end, Butt weld / B16.25,B16.11, B16.5

　　★Mfg.BS 1868 API 600

　　★Testing:API 598 / BS 6755

　　★Application:Oil & Gas, Water, Chemicals, Pharma, Air, Acid, Foods, Vacuum, Heat Treatment, Paper & Sugar Industries, Petrochemical industries

　　★Joint Gasket:CAF/ B8 / Compressed Asbestos Fiber / SS 304 Spire Wounded With Caf

　　★Special Type:With By Pass Arrangement Valve On Request

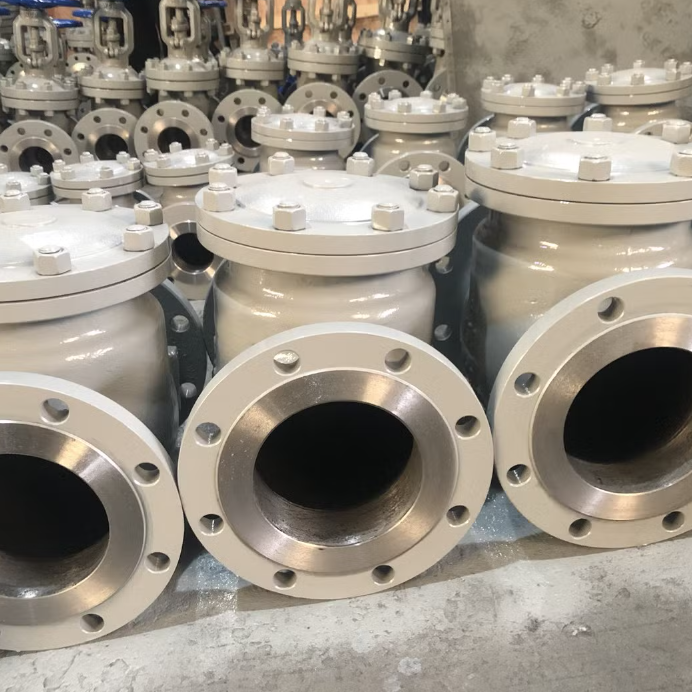

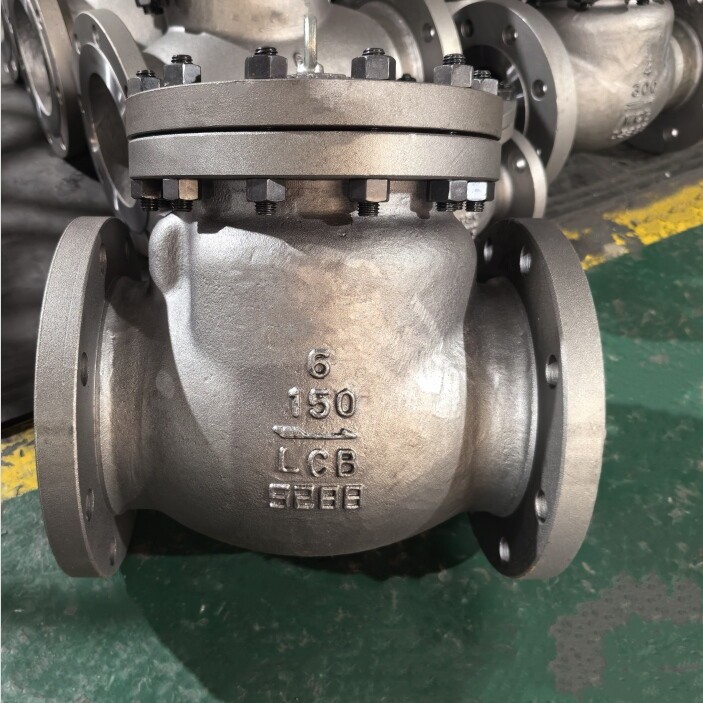

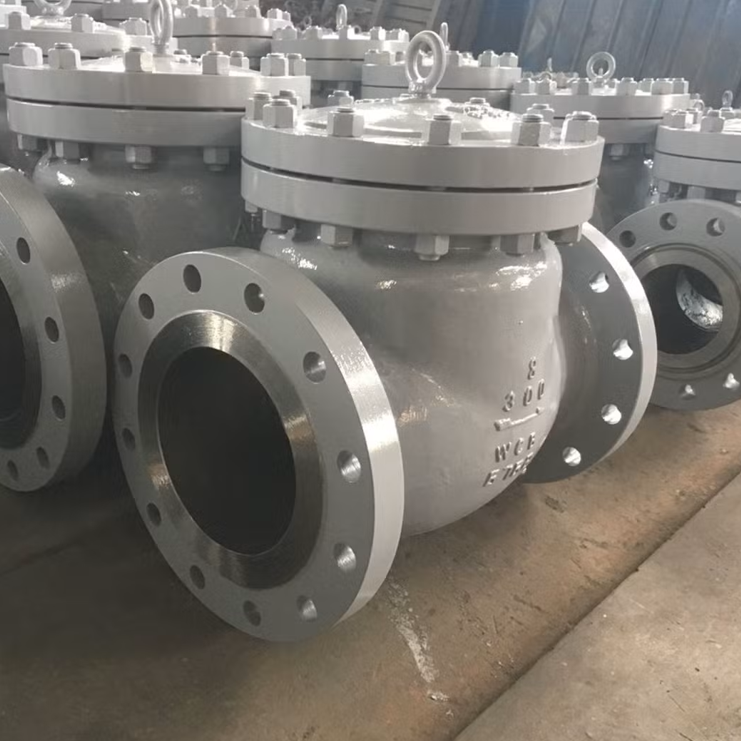

Product Display

Check Valve Parameter

NO.	PART	ASTM Material
NO.	PART	WCB	LCB(1)	WC6	CF8(M)	CF3(M)
1	BODY	A216 WCB	A352 LCB	A217 WC6+STL	A351 CF8(M)+STL	A351 CF3(M)+STL
2	SEAT	A105+13Cr	A105+13Cr	-	-	-
3	DISC	A216 WCB+13Cr	A352 LCB+13Cr	A217 WC6+STL	A351 CF8(M)	A351 CF3(M)
4	HINGE	A216 WCB	A182 F6	A182 F6	A351 CF8(M)	A351 CF3(M)
5	HINGE PIN	A276 304	A182 F6	A182 F6	A182 F304(F316)	A182 F304(F316)
6	FORK	A216 WCB	A352 LCB	A217 WC6	A351 CF8(M)	A351 CF3(M)
7	COVER BOLT	A193 B7	A320 L7	A193 B16	A193 B8(M)	A193 B8(M)
8	COVER NUT	A194 2H	A194 7	A194 4	A194 8(M)	A194 8(M)
9	GASKET	SS304+GRAPHITE			PTFE/SS304+GRAPHITE	PTFE/SS316+GRAPHITE
10	COVER	A216 WCB	A352 LCB	A217 WC6	A351 CF8(M)	A351 CF3(M)

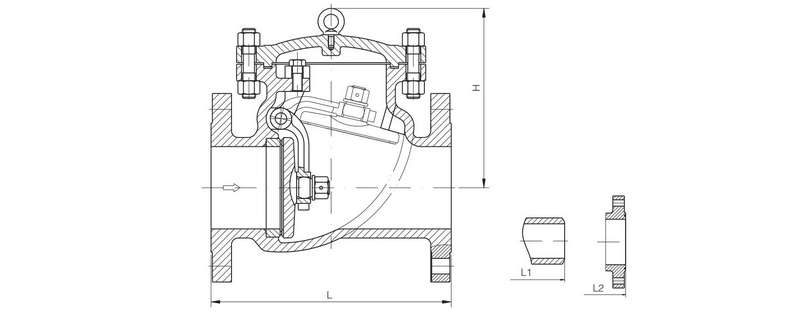

Dimensions and Weights CLASS600

Size	in	1/2	3/4	1	11/2	2	21/2	3	4	6	8	10	12	14	16	18	20	24	26
Size	mm	15	20	25	40	50	65	80	100	150	200	250	300	350	400	450	500	600	650
L/L1 (RF/BW)	in	6.5	7.5	8.5	9.5	11.5	13	14	17	22	26	31	33	35	39	43	47	55	-
L/L1 (RF/BW)	mm	165	190	216	241	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	-
L2 (RTJ)	in	-	-	-	-	11.62	13.12	14.12	17.12	22.12	26.12	31.12	33.12	35.12	39.12	43.12	47.25	55.38	-
L2 (RTJ)	mm	-	-	-	-	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	-
H (Open)	in	3.38	3.5	4.5	5.5	7.5	8	8.75	10	14.5	17.5	19.25	21.38	23.38	25.75	28.75	31	43.5	-
H (Open)	mm	85	90	115	140	190	205	222	255	368	445	490	540	595	655	730	785	1105	-
WT (Kg)	BW	5.5	7.5	12	18	24	35	44	70	125	207	310	460	615	945	1105	1495	1695	-
WT (Kg)	RF/RTJ	4	6	8	12.5	16	19	26	44	87	147	220	350	452	720	845	1160	1280	-

Dimensions and Weights CLASS900

Size	in	2	21/2	3	4	6	8	10	12	14	16
Size	mm	50	65	80	100	150	200	250	300	350	400
L1 (BW)	in	14.5	16.5	15	18	24	29	33	38	40.5	44.5
L1 (BW)	mm	368	419	381	457	610	737	838	965	1029	1130
L (RF)	in	14.5	16.5	15	18	24	29	33	38	40.5	44.5
L (RF)	mm	368	419	381	457	610	737	838	965	1029	1130
L2 (RTJ)	in	14.62	16.62	15.12	18.12	24.12	29.12	33.12	38.12	40.38	44.88
L2 (RTJ)	mm	371	422	384	460	613	740	841	968	1038	1140
H	in	9.5	9.5	10	13.38	15.75	18.12	21.62	24	27	29.5
H	mm	240	240	255	340	400	460	550	610	685	750
WT (Kg)	BW	22	34	38	71	176	485	761	1125	1345	1490
WT (Kg)	RF/RTJ	44	55	61	116	255	630	940	1433	1710	1820

　　The cast steel swing check valves are manufactured according to API, ANSI, ASME standard, for industrial applications. The cast steel swing check valves are manufactured with bolted cover and renewable seats. Standard materials are A216WCB/F6, but other materials and other trims are available upon request.

　　A swing check valve or tilting disc check valve is check valve in which the disc, the movable part to block the flow, swings on a hinge or trunnion, either onto the seat to block reverse flow or off the seat to allow forward flow

　　A lift-check valve is a check valve in which the disc, can be lifted up off its seat by higher pressure of inlet or upstream fluid to allow flow to the outlet or downstream side. A guide keeps motion of the disc on a vertical line, so the valve can later reseat properly. When the pressure is no longer higher, gravity or higher downstream pressure will cause the disc to lower onto its seat, shutting the valve to stop reverse flow.
