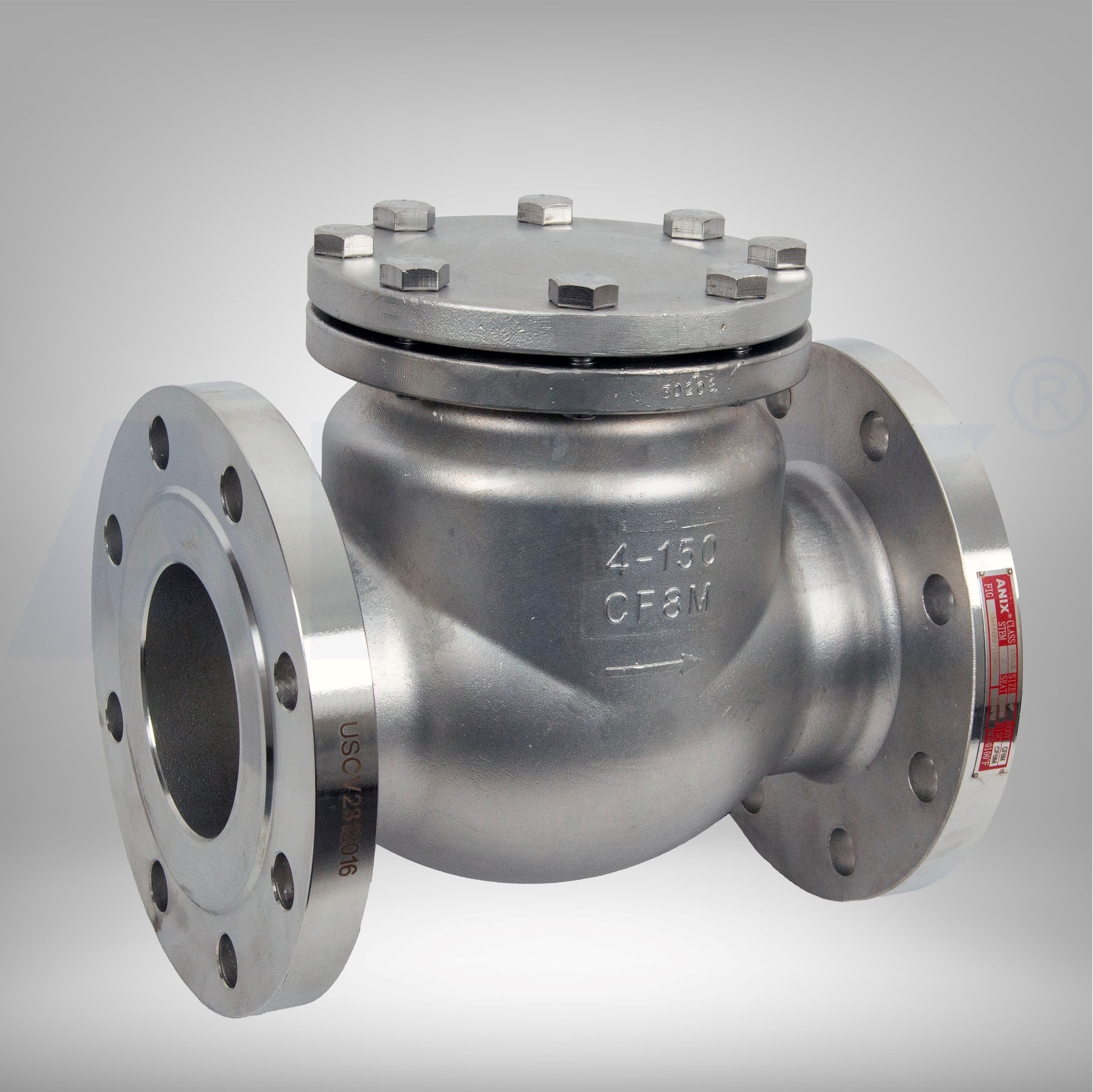

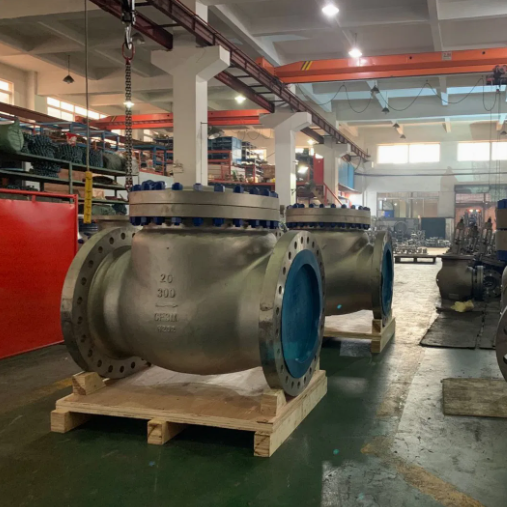

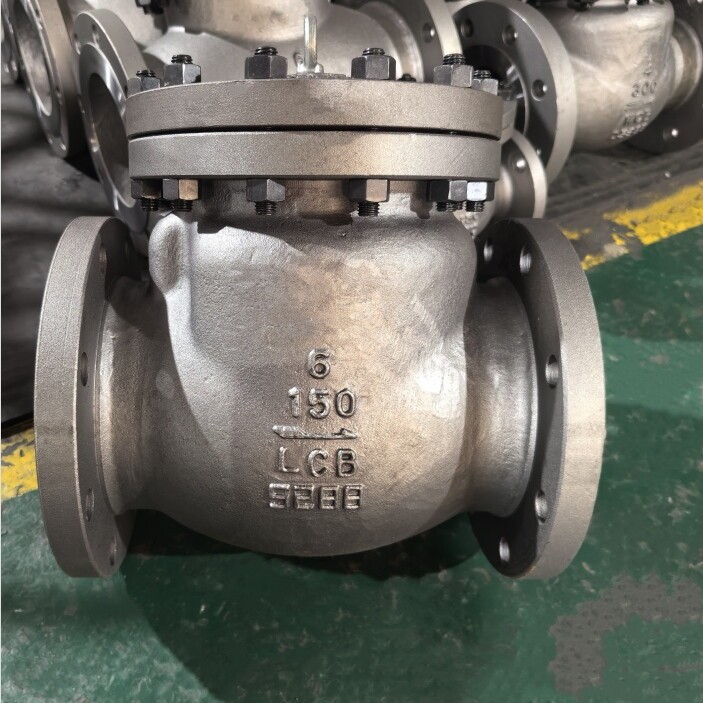

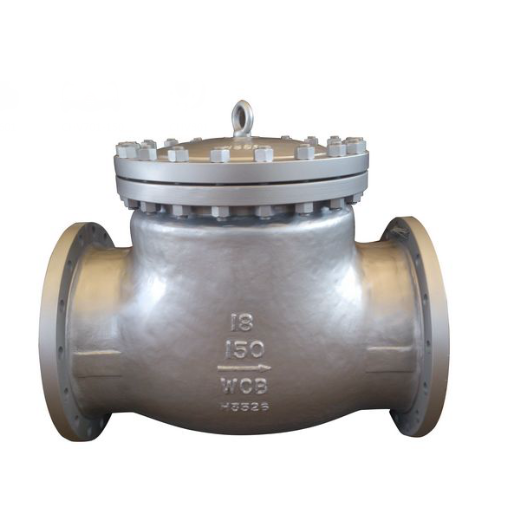

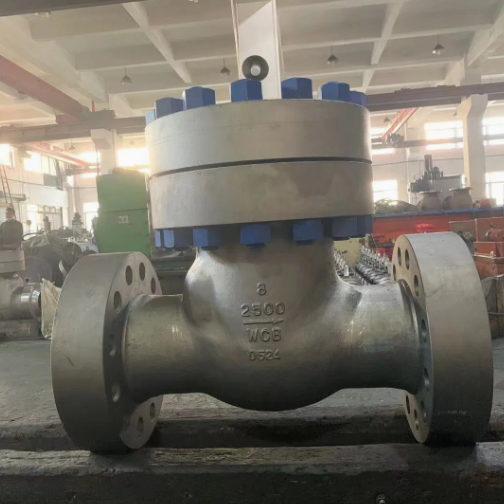

Class 150-300 Cast Steel Check Valve, stainless steel seat, pressure rating 150 lbs and 300 lbs, straight pattern, full bore, bolted bonnet, flange sizes acc. to ASME B 16.5 (“raised face – smooth finish”) and face to face acc. to ASME B16.10. Suitable for horizontal and vertical (upward flow) installation. On request, supplied including EN 10204 3.1B material and test certificate. Application: Steam, water, oil, vapours and gases.
Technical Specifications
Design & Manufacture standard: API 6D, BS 1868
Pressure & Temperature standard: ASME B16.34
Face to face dimension standard: ASME B16.10
Flange standard: ASME B16.5, ASME B16.47
Test & Inspect: API 598
Main Components Material
| Part Name | Material |
| Body | Ductile Iron, Carbon Steel, Stainless Steel |
| Disc | Ductile Iron, Carbon Steel, Alloy Steel, Stainless Steel |
| Seal Ring | Rubber, PTFE, Stainless Steel |
| Stem | 2Cr13 Stainless Steel |
| Expansion Pipe | Carbon Steel, Stainless Steel |
| Packing | Flexible Graphite |
Cast Steel Check Valve Parameter

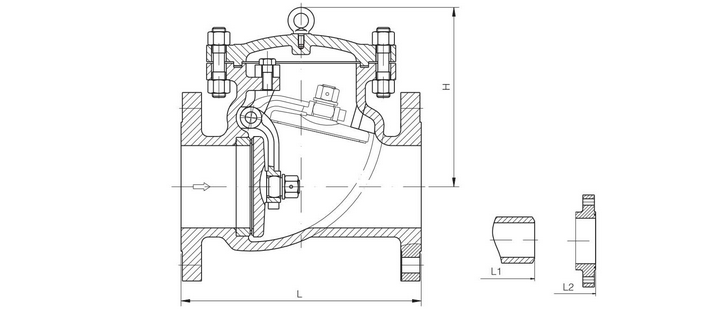

Dimensions and Weights Class 150
| NO. | PART | ASTM Material | ||||
| WCB | LCB | WC6 | CF8(M) | CF3(M) | ||
| 1 | BODY | A216 WCB | A352 LCB | A217 WC6+STL | A351 CF8(M)+STL | A351 CF3(M)+STL |
| 2 | SEAT | A105+13Cr | A105+13Cr | - | - | - |
| 3 | DISC | A216 WCB+13Cr | A352 LCB+13Cr | A217 WC6+STL | A351 CF8(M) | A351 CF3(M) |
| 4 | HINGE | A216 WCB | A182 F6 | A182 F6 | A351 CF8(M) | A351 CF3(M) |
| 5 | HINGE PIN | A276 304 | A182 F6 | A182 F6 | A182 F304(F316) | A182 F304(F316) |
| 6 | FORK | A216 WCB | A352 LCB | A217 WC6 | A351 CF8(M) | A351 CF3(M) |
| 7 | COVER BOLT | A193 B7 | A320 L7 | A193 B16 | A193 B8(M) | A193 B8(M) |
| 8 | COVER NUT | A194 2H | A194 7 | A194 4 | A194 8(M) | A194 8(M) |
| 9 | GASKET | SS304+GRAPHITE | PTFE/SS304+GRAPHITE | PTFE/SS316+GRAPHITE | ||
| 10 | COVER | A216 WCB | A352 LCB | A217 WC6 | A351 CF8(M) | A351 CF3(M) |
| Size | in | 1/2 | 3/4 | 1 | 11/2 | 2 | 21/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | |
| L/L1 (RF/BW) |
in | 4.25 | 4.62 | 5 | 6.5 | 8 | 8.5 | 9.5 | 11.5 | 14 | 19.5 | 24.5 | 27.5 | 31 | 34 | 38.5 | 38.5 | 51 | - |
| mm | 108 | 117 | 127 | 165 | 203 | 216 | 241 | 292 | 356 | 495 | 622 | 699 | 787 | 864 | 978 | 978 | 1295 | - | |
| L2 (RTJ) |
in | - | - | - | - | 8.5 | 9 | 10 | 12 | 14.5 | 20 | 25 | 28 | 31.5 | 34.5 | 39 | 39 | 21.5 | - |
| mm | - | - | - | - | 216 | 229 | 254 | 305 | 368 | 508 | 635 | 711 | 800 | 876 | 991 | 991 | 1308 | - | |
| H (Open) |
in | 3.12 | 3.38 | 3.88 | 4.38 | 6 | 6.5 | 6.88 | 8 | 11.5 | 13.88 | 15.38 | 17 | 18.75 | 20.62 | 22.88 | 24.62 | 24.75 | - |
| mm | 80 | 85 | 100 | 110 | 152 | 165 | 175 | 204 | 293 | 353 | 390 | 432 | 475 | 525 | 582 | 627 | 883 | - | |
| WT (Kg) |
BW | 2.5 | 3.5 | 5 | 7.5 | 14 | 20 | 25 | 40 | 71 | 118 | 177 | 263 | 353 | 542 | 632 | 855 | 970 | - |
| RF/RTJ | 2 | 3 | 3.5 | 5.5 | 10 | 12 | 17 | 29 | 57 | 96 | 143 | 227 | 295 | 468 | 552 | 755 | 831 | - |
| Size | in | 1/2 | 3/4 | 1 | 11/2 | 2 | 21/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 26 |
| mm | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 650 | |
| L/L1 (RF/BW) |
in | 6 | 7 | 8 | 9 | 10.5 | 11.5 | 12.5 | 14 | 17.5 | 21 | 24.5 | 28 | 33 | 34 | 38.5 | 40 | 53 | - |
| mm | 152 | 178 | 203 | 229 | 267 | 292 | 318 | 356 | 445 | 533 | 622 | 711 | 838 | 864 | 978 | 1016 | 1346 | - | |
| L2 (RTJ) |
in | - | - | - | - | 11.12 | 12.12 | 13.12 | 14.62 | 18.12 | 21.62 | 25.12 | 28.62 | 33.62 | 34.62 | 39.12 | 40.75 | 53.88 | - |
| mm | - | - | - | - | 283 | 308 | 333 | 371 | 460 | 549 | 638 | 727 | 854 | 879 | 994 | 1035 | 1368 | - | |
| H (Open) |
in | 3.12 | 3.38 | 3.88 | 4.38 | 6 | 6.5 | 6.88 | 8 | 11.5 | 13.88 | 15.38 | 17 | 18.75 | 20.62 | 22.88 | 24.62 | 34.75 | - |
| mm | 80 | 85 | 100 | 110 | 152 | 165 | 175 | 204 | 293 | 353 | 390 | 432 | 475 | 525 | 582 | 627 | 883 | - | |
| WT (Kg) |
BW | 3 | 4 | 6 | 10 | 16 | 23 | 29 | 46 | 82 | 136 | 204 | 302 | 405 | 625 | 730 | 985 | 1115 | - |
| RF/RTJ | 2.5 | 3.5 | 5 | 7 | 11 | 13 | 18 | 31 | 61 | 103 | 155 | 245 | 315 | 503 | 593 | 812 | 895 | - |
