Name: Casing Spool
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

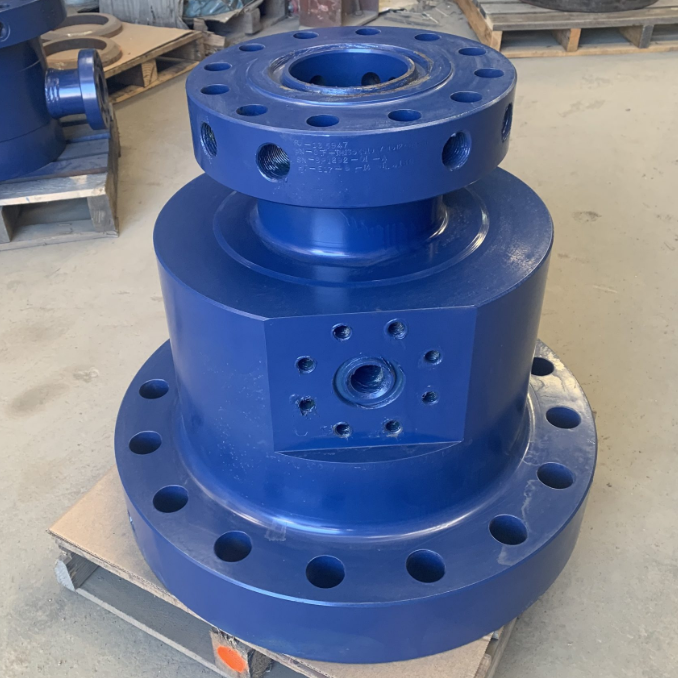

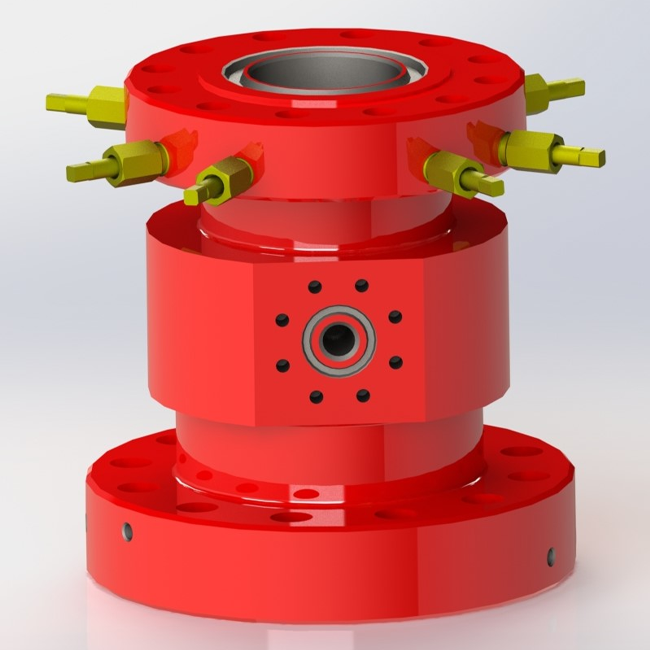

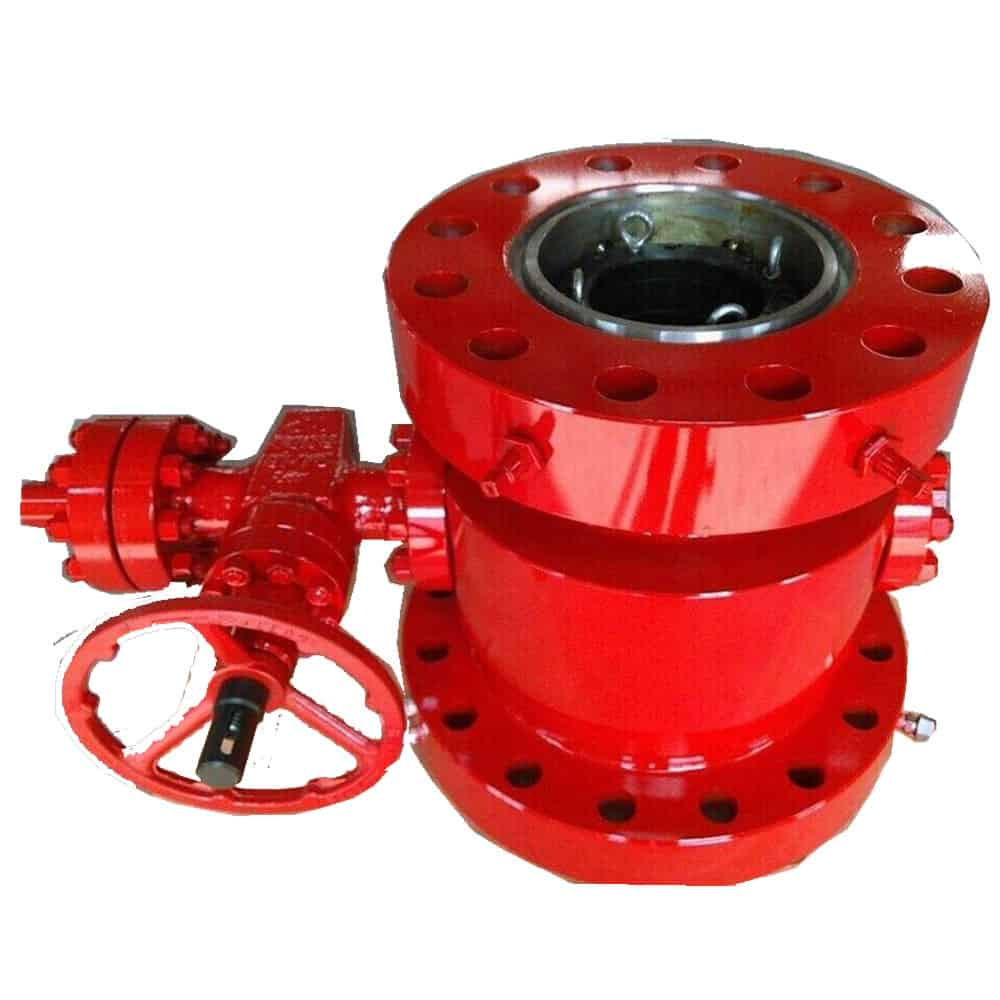

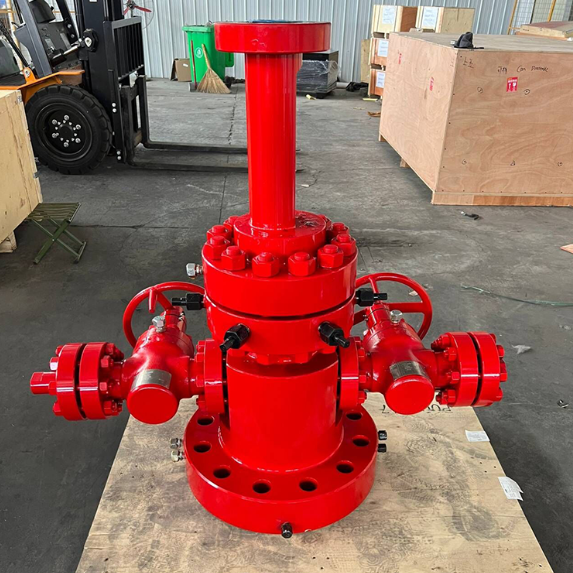

Casing Spool

Casing spool is the very important equipment used in drilling process,casing spool can control the wellhead pressure,casing spool are often flange ended on the top of the casing head and connected with the bottom of the tubing head then become a part of the wellhead system of the oil well.

Description

Casing Spool Manufacturer,Casing Spool Supplier

is the very important equipment used in drilling process,casing spool can control the wellhead pressure,casing spool are often flange ended on the top of the casing head and connected with the bottom of the tubing head then become a part of the wellhead system of the oil well.

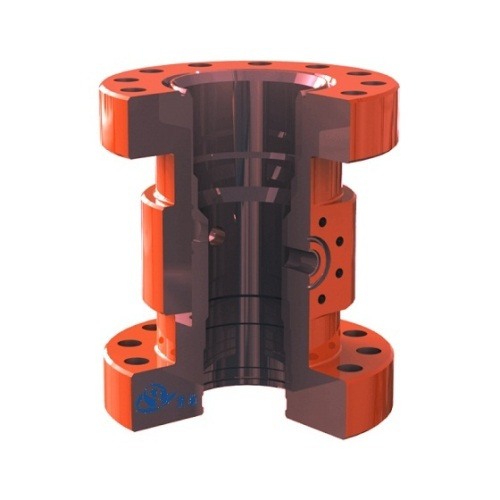

The casing spool has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied. Casing spools are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. they can be used for single completions and model of dual completions.

Product Name	casing spool
Working Pressure	2000 ~10000psi
Nominal Bore	11 ~21-1/4
Working Medium	oil,natural gas,mud and gas containing H2S,CO2
Working Temperature	-46°C~121°C(Class LU)
Material Class	AA,BB,CC,DD,EE,FF,HH
Specification level	PSL1-4

A tubing hanger is an assembly to suspend tubing string by means of a male or female thread and seal the angular space between tubing and casing, which is connected with tubing and seated into the tubing hanger spool by tubing gravity. It is convenient to operate and replace wellheads so it is widely used for intermediate-depth wells and common wells.

Working Pressure	2000PSI-20000PSI
Working Medium	Mud, Oil, Natural Gas
Working Temperature	-46ºC-121ºC(L-U)
Material Class	AA -HH
Specification Class	PSL1-PSL4
Performance Class	PR1-PR2

Spacer Spool:
Size: As per customer's requirement
Pressure rating: 2000psi to 20000 psi
Material of construction: API-6A,API-16A,NACE MR0175
Available with Stainless Steel 316L or Inconel 625 corrosion-resistant alloy ring grooves
Service condition: General, Sour services

Product Display

Hot Sale API Oil Drilling Equipment Casing Spool
