| Type |

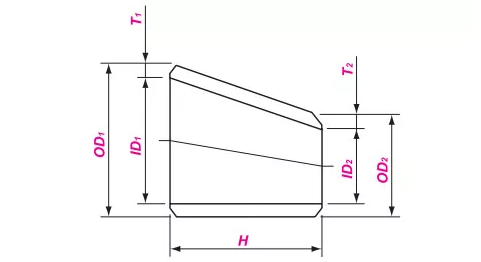

eccentric,concentric |
|
| Size | 1/2" - 48" (Seamless) 16" - 96" (Welded) |
|
| Wall Thickness | Sch5S, 10S, 20S, Sch10, Sch20, Sch30, STD, Sch40S, Sch40, Sch60, XS, 80S, Sch80, Sch100, Sch120, Sch140, Sch160, XXS and etc. | |
| Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE, etc. | |
| Manufacturing process | Push, Press, Forge, Cast, etc. | |
| Packing | Wooden cases, pallets, nylon bags or according to the customers' requirements | |
| Connection | Welding | |
| Custom | Available | |
| Standards | ASME B16.9 ANSI/ASME B16.11 ASME B16.25 ASME B16.5 EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008 DIN2605-1-1992 DIN2605-2-1995 JIS B2311-2009 JIS B2312-2009 JIS B2313-2009 GB/T12459-2005 GB/T13401-2005 GB/T10752-2005 SH/T3408-1996 SH/T3409-1996 SY/T0609-2006 SY/T0518-2002 SY/T0510-1998 DL/T695-1999 GD2000 GD87-1101 HG/T21635-1987 HG/T21631-1990 , MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2616 |
|

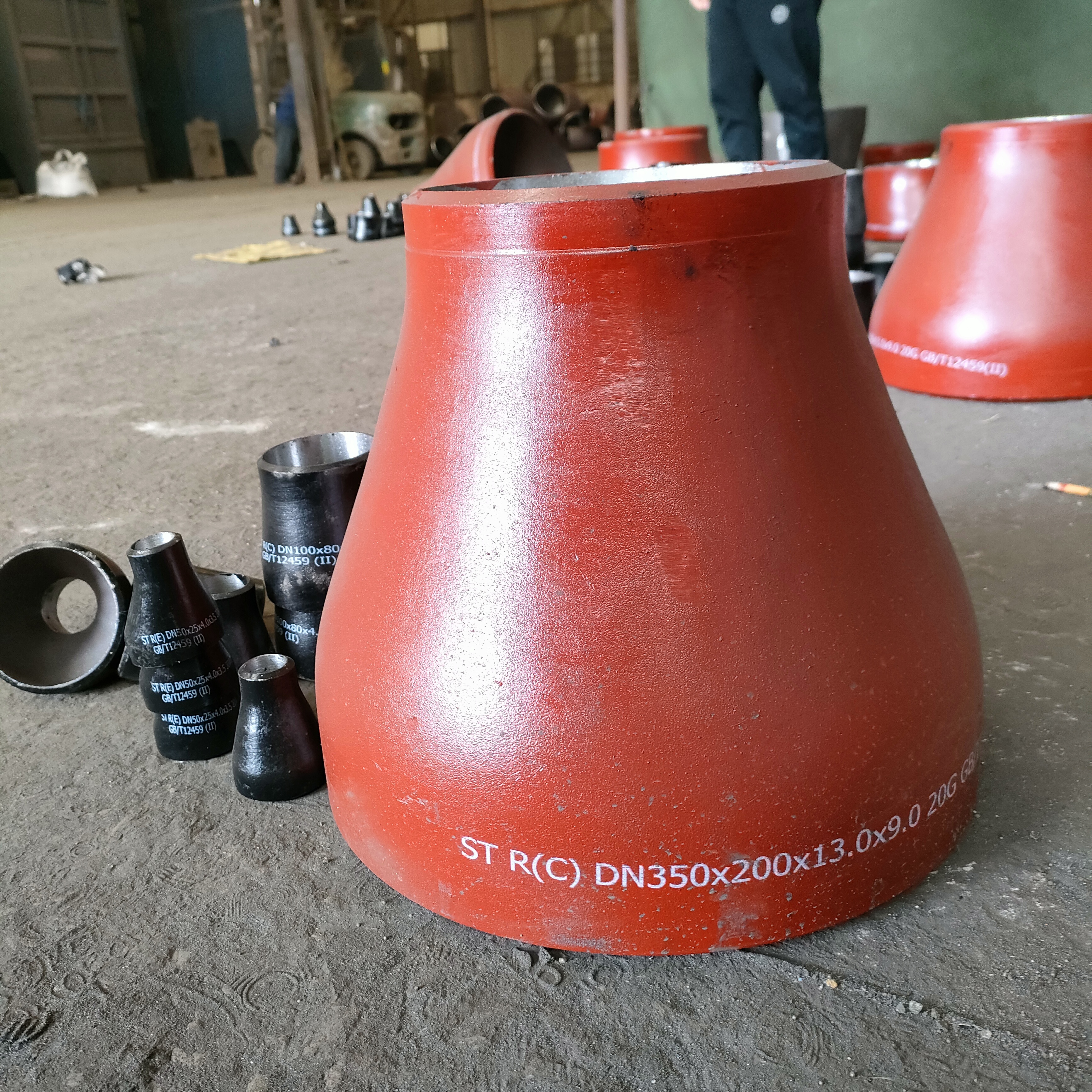

| Materials | Carbon steel | ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8 ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L PLS1&PLS2, X42, X52, X60, X65, X70, X80 |
| Stainless steel | ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
| Alloy steel | ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
|
