Name: Carbon Steel Cap
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Carbon Steel Cap Stockist,Carbon Steel Cap Supplier,Carbon Steel Cap Manufacturer

What Is Carbon Steel End Cap?

　　A Carbon Steel End Cap is a type of pipe fitting used to seal the end of a pipe or tubing, effectively closing it off. It is commonly used in piping systems to stop the flow of fluids or gases, providing a secure and leak-proof closure. Pipe end caps are essential in various industries, including oil and gas, chemical processing, water treatment, and construction.

Product Description

Wall thickness	SCH5 - SCH160 etc
Standard	ASME B16.9, ASME A403, GB12459-2005, DIN, GOST, JIS B2313
Size	1/8" up to 48'' ,caps are seamless. 50'' and above size only can be welded
Application	Chemical industry, oil, petroleum industry, construction industry, metallurgy, pharmaceutical, power industry, gas industry, domestic installation
Material	Carbon steel: A105, Q234, Q235, X52, F60,F70, Y60, Y70, etc
Surface	Pickled, sand blasting, rolling blast, brighten, matt polished, mirror polished, vanished, shinning
Testing	Magnetic particle inspection
	Site direct reading
	Super living inspection
	High temperature tensile test
	Low-temperature impact test,etc

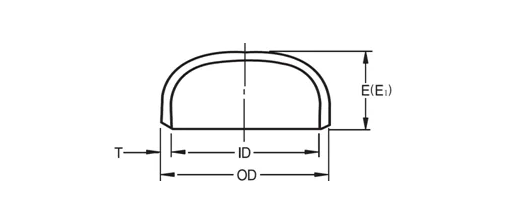

End Caps Dimensions (In mm)

(NPS)		OD	End to End			Weight
(NPS)		OD	Cap			Weight
A	B	D	E	E1	T	KG/PC
15	½	21.7	25.4	–	–	0.03
20	¾	27.2	25.4	–	–	0.04
25	1	34	38.1	–	–	0.08
32	1¼	42.7	38.1	–	–	0.11
40	1½	48.6	38.1	–	–	0.15
50	2	60.5	38.1	44.5	5.5	0.23
65	2½	76.3	38.1	50.8	7	0.34
80	3	89.1	50.8	63.5	7.6	0.51
90	3½	101.6	63.5	76.2	8.1	0.67
100	4	114.3	63.5	76.2	8.6	0.88
125	5	139.8	76.2	88.9	9.5	1.29
150	6	165.2	88.9	101.6	11	1.99
200	8	216.3	101.6	127	12.7	3.61
250	10	267.4	127	152.4	12.7	6.33
300	12	318.5	152.4	177.8	12.7	9.43
350	14	355.6	165.1	190.5	12.7	13.2
400	16	406.4	177.8	203.2	12.7	16.6
450	18	457.2	203.2	228.6	12.7	21.2
500	20	508	228.6	254	12.7	26.4
550	22	558.8	254	254	12.7	31.5
600	24	609.6	266.7	304.8	12.7	36.6
650	26	660.4	266.7	–	–	41

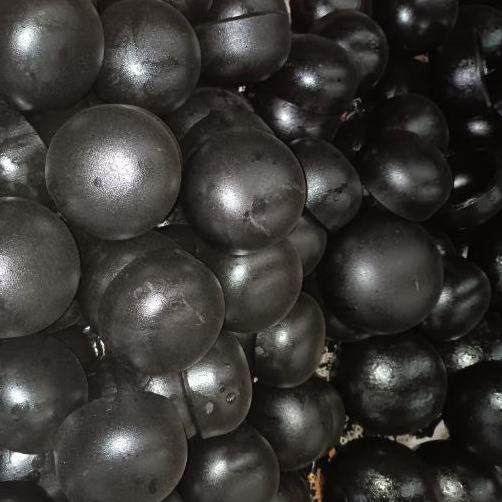

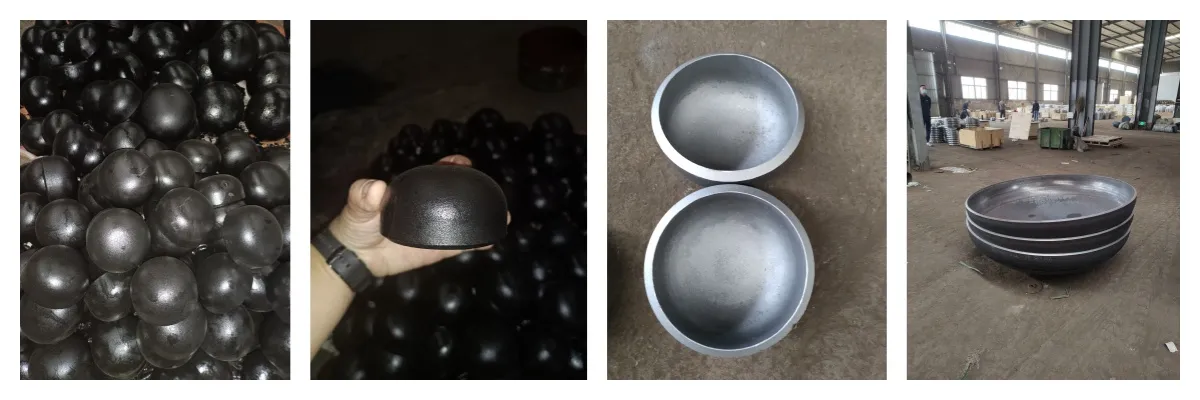

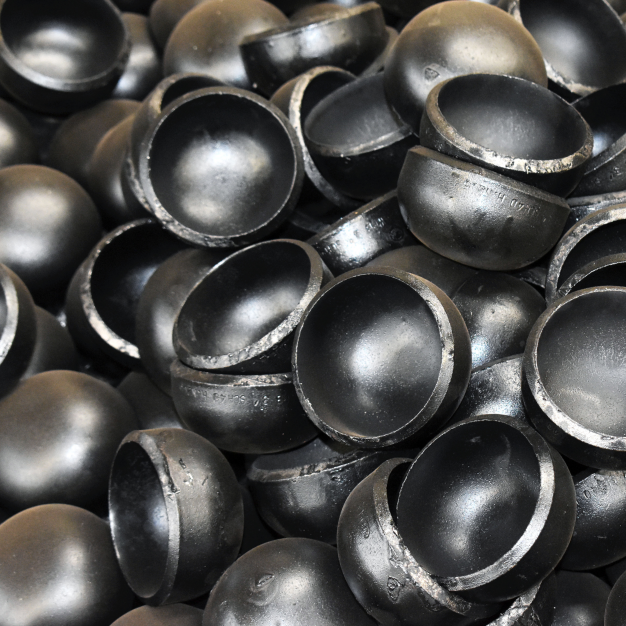

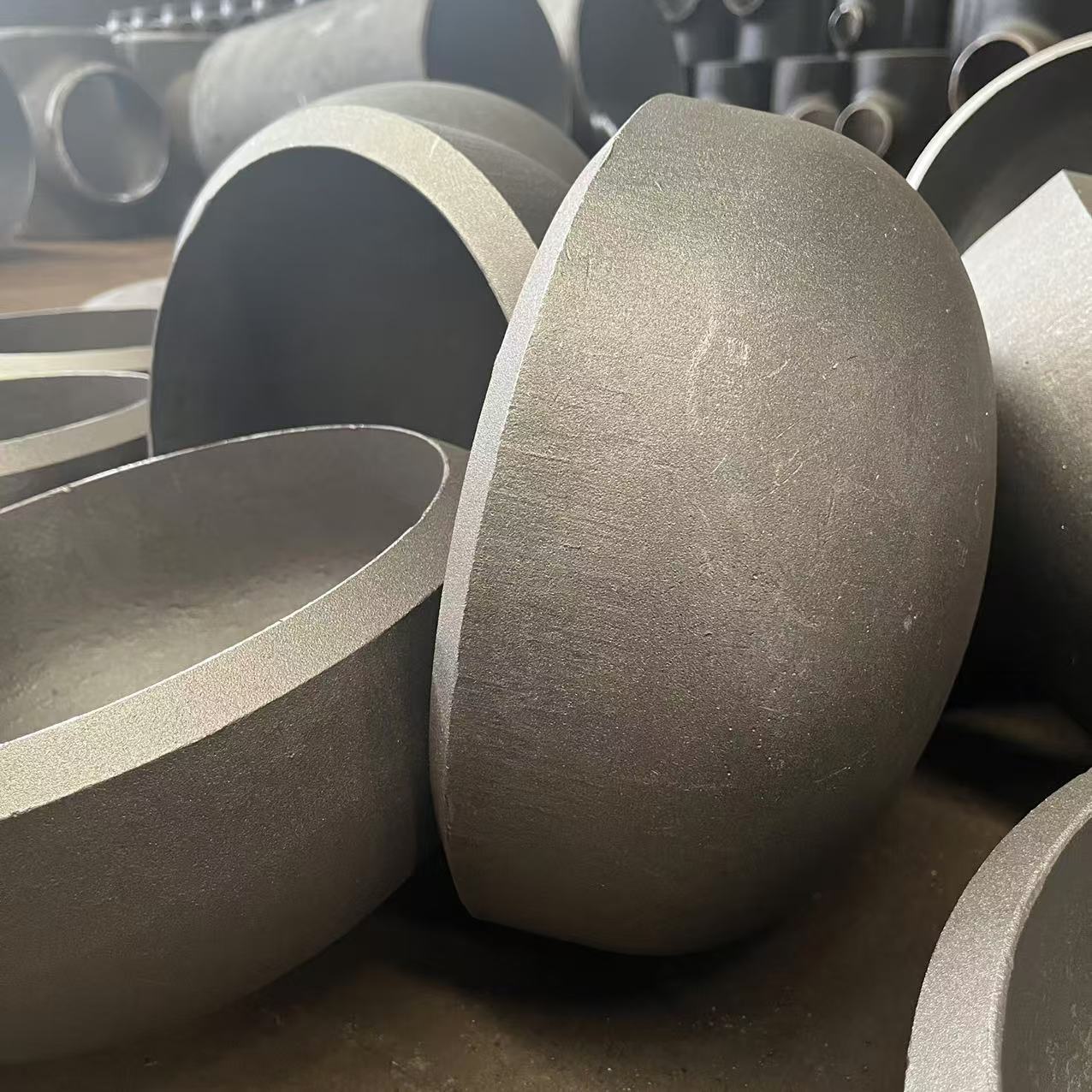

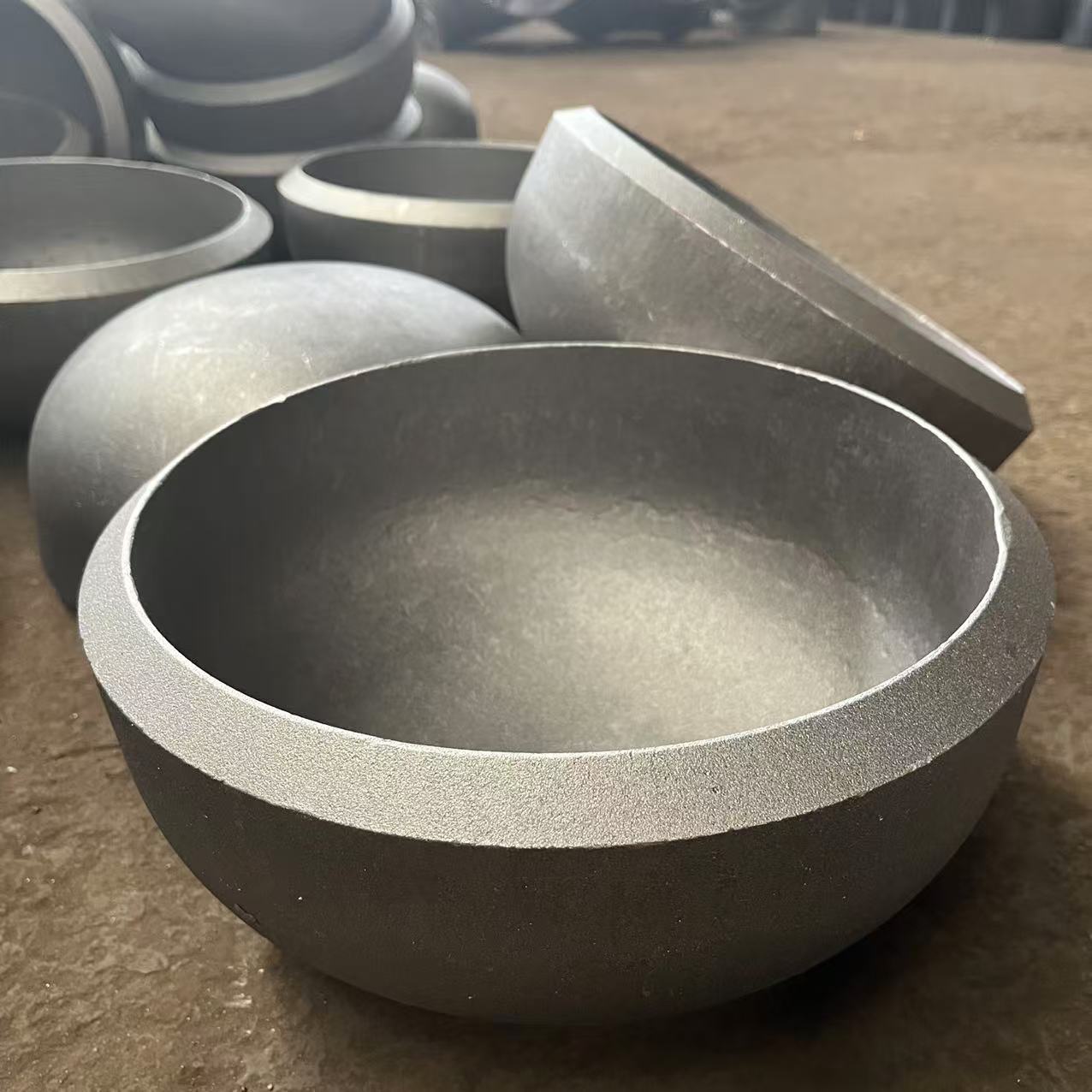

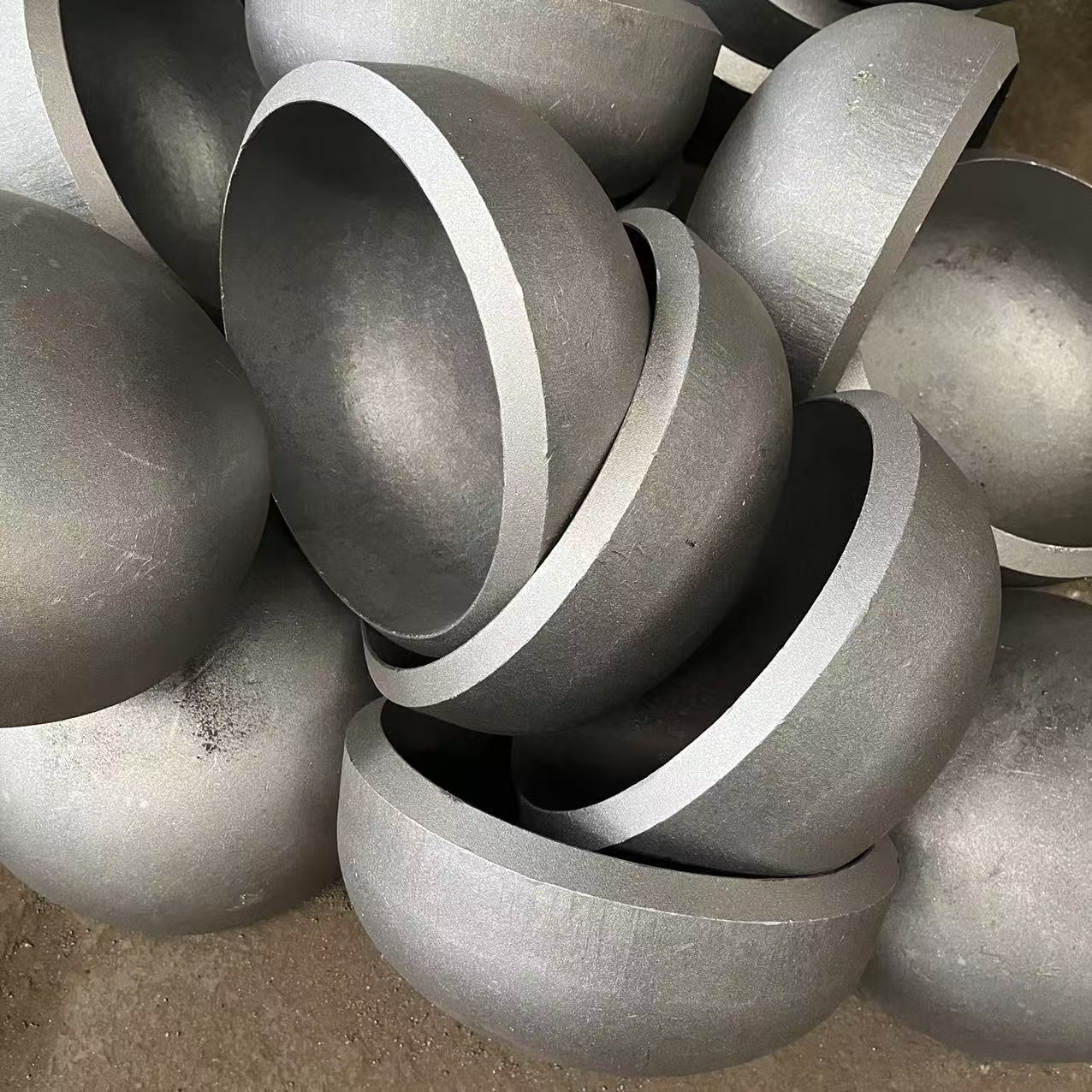

Product Show

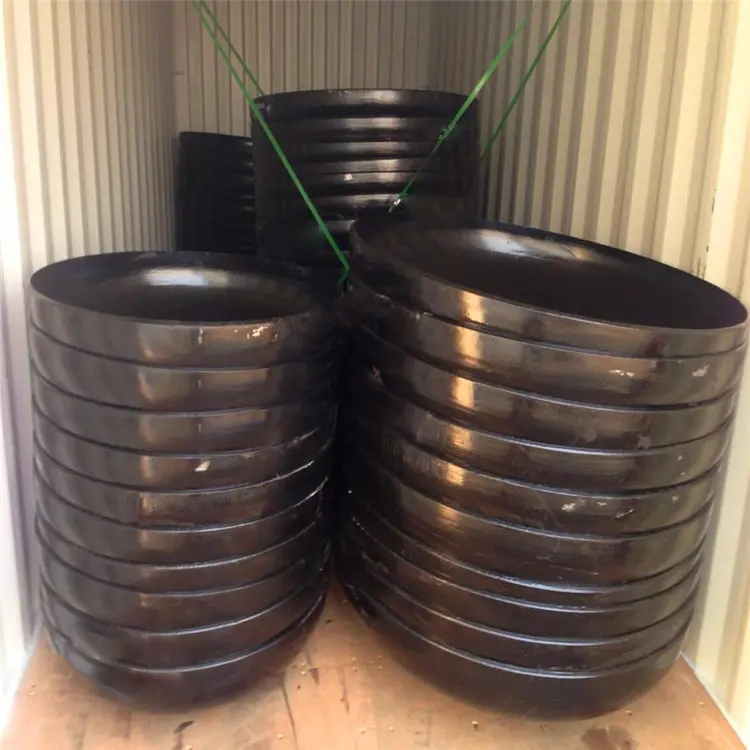

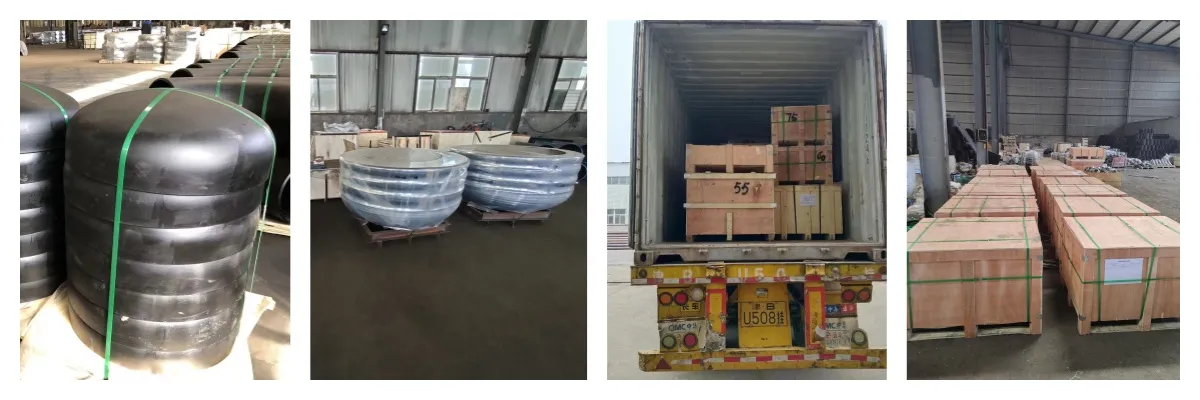

Packaging & Transportation

Features of Carbon Steel Pipe Caps

　　Carbon Steel End Caps are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.

　　Carbon Steel Pipe caps are widely well-known for the utmost output and outstanding results that it gives.

　　It is commonly made from the one steel plate, so it should be seamless. The carbon pipe end caps are available in various shapes, like the hemispherical, oval, round etc.
