Tripple Offset Meatal Seated Bufferfly Valve，Butterfly Valve Stockist In China
Butterfly valve is a type of regulating valve with a simple structure, which can be used for on/off control of low-pressure pipeline media. Butterfly valve refers to a valve whose closing element (valve disc or butterfly plate) is a disc that rotates around the valve axis to achieve opening and closing. Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metals, and radioactive media. It mainly plays a role in cutting off and throttling on pipelines. The butterfly valve opening and closing component is a disc-shaped butterfly plate that rotates around its own axis inside the valve body to achieve the purpose of opening, closing, or adjusting. Shengtian Group supplies various types and models of valves, including Globe Valve, Gate Valve, Ball Valve, Butterfly Valve, and Check Valve.
Grades: SS316, A126 FC20, A182 F316, A213 WCB, A351 CF8M, BRONZE B61, BRONZE B62, BROB62, Ductile Iron, FC200, A126 CL.B, A182 F316L, A276 316, A351 CF3M, A536 Ductile Iron, Nodular Cast Iron, SCPH2, A105
Materials: Mild Steel, Stainless Steel, Bronze, Cast Iron, Forged Steel.

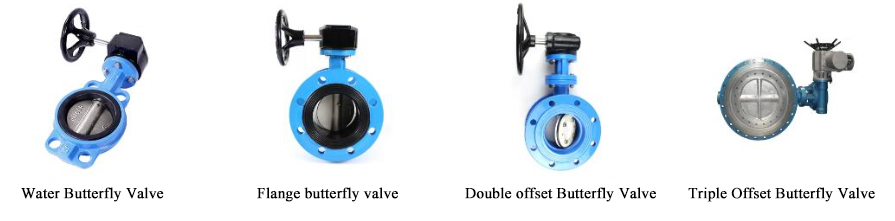

▶ Resilient Seat Butterfly Valve Design standard：API 609/EN593 Connection Flange：ISO 7005-2 PN10/16, EN 1092-2 PN10/16, ASME B16.5 CLASS 150, JIS 10K (DN40~DN300) Top Flange：ISO 5211 Face To Face：API 609A /EN558 20 series Test Standard：API 598 /EN12266-1 Working Pressure：PN10/16 ▶ Double Flange Double Eccentric Butterfly Valve Design standard Conform To：EN 593 Connection flange conform To：EN1092-2, ISO7005-2 Top flange conform to：ISO 5211 Face to face conform to：EN 558 Series 14 Test standard conform to：EN12266-1 Nominal working pressure：PN10/PN16/PN25/PN40 ▶ AWWA C504 Butterfly Valve Design Standards：AWWA C504/AWWA C516 Connection Flange：ASME B16.1 Class 125 AWWA C111/A21.11 Top Flange：MSS SP-101/ISO 5211 Face to Face：AWWA C504/AWWA C516 Test Standard：AWWA C504 ▶ Tripple Offset Meatal Seated Bufferfly Valve Size Range：3＂~128＂ (80mm~3200mm) Pressure Class：150lb~1500lb(PN25~PN260) Temperature Range：-196℃~+650℃（-321℉~+1202℉） Connection Type：wafer,lug,double flange,butt -welded Drive Type：Worm gear, Pneumatic, Electric,Hydraulic High Performance Butterfly Valve Pressure：Classl50, Class300 Size：Basic type: 2”-48”（50mm -1200mm) Fire safety type: 2”- 60”（50mm -1500mm) Temperature：-196°C ~ +650°C (-321 ℉~+1202℉） Connection Type：wafer, lug Drive Type：manual, worm gear, pneumatic, electric Applicable Medium: corrosive chemical media, water, gas, acid, alkali, steam, pharmaceutical, etc.
