Name: Butt Weld Cap
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

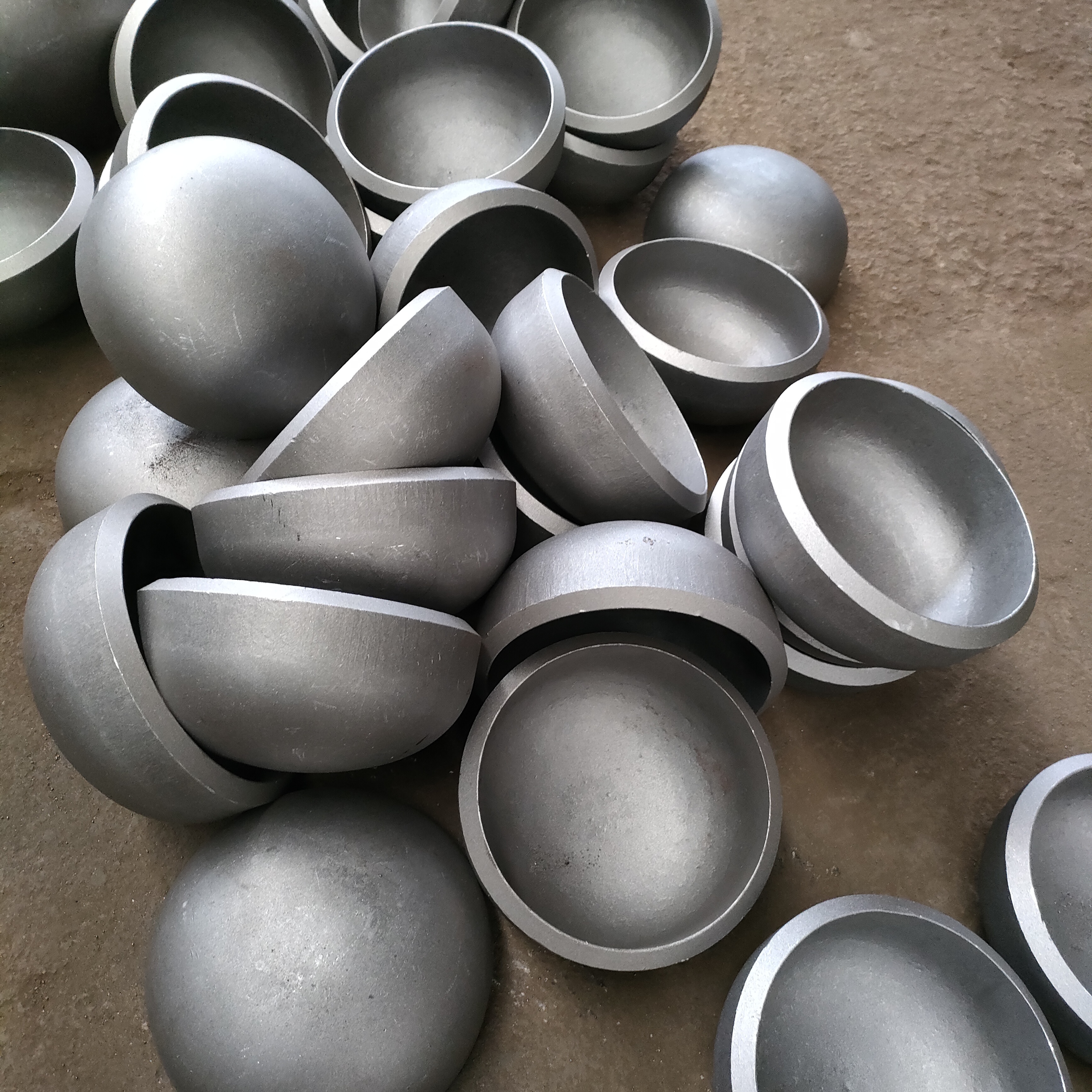

Butt Weld Cap Supplier

　　Basically butt weld cap will be applied, to shut down the end of a pipe. Butt weld cap is available for all pipe dimensions, and is sometimes also used for other purposes.Butt weld end caps are used for blocking off or sealing the end of a pipeline. The end cap is welded on at its weld prep to the relevant sized pipe within the pipeline that requires blocking off/sealing.Butt weld cap is an indispensable and important component in pipeline construction.

　　Butt Weld Cap Material :

　　Stainless Steel: ASTM A403 F304/304L/316/316L/317/317L/321 etc.

　　Carbon Steel: ASTM A105, A350 LF2/LF3 etc.

　　Alloy Steel: ASTM A182 F1/F5/F9/F11/F12/F22/F91 etc

　　Butt Weld Cap Standards:

　　ASME/ANSI B16.9 – Factory-Made Wrought Steel Buttwelding Fittings

　　MSS SP-75 Specification for High-Test, Wrought, Butt-Welding Fittings

　　BS 1640-1:Specification for steel butt-welding pipe fittings for the petroleum industry. Wrought carbon and ferritic alloy steel fittings

　　BS EN 10253 : Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements

　　DIN 2617 Steel butt-welding pipe fittings: caps

　　JIS B2311:Steel butt-welding pipe fittings for ordinary use

　　JIS B2312:Steel butt-welding pipe fittings

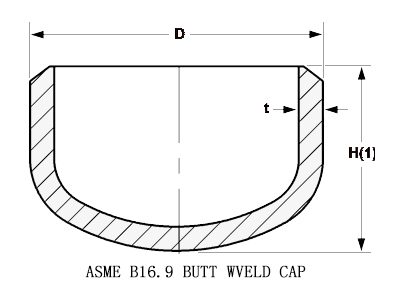

　 ASME B16.9 Butt Weld Cap Dimension

NPS	D(outer dimension)	H(Length)	t(Wall Thickness)	H1(Length)
1/2″	21.3	25.4	4.57	25.4
3/4″	26.7	25.4	3.81	25.4
1″	33.4	38.1	4.57	38.1
1 1/4″	42.2	38.1	4.83	38.1
1 1/2″	48.3	38.1	5.08	38.1
2″	60.3	38.1	5.59	44.4
2 1/2″	73	38.1	7.11	50.8
3″	88.9	50.8	7.62	63.5
3 1/2″	101.6	63.5	8.13	76.2
4″	114.3	63.5	8.64	76.2
5″	141.3	76.2	9.65	88.9
6″	168.3	88.9	10.92	101.6
8″	219.1	101.6	12.7	127
10″	273.1	127	12.7	152.4
12″	323.9	152.4	12.7	177.8
14″	355.6	165.1	12.7	190.5
16″	406.4	177.8	12.7	203.2
18″	457.2	203.2	12.7	228.6
20″	508	228.6	12.7	254
22″	558.8	254	12.7	254
24″	609.6	266.7	12.7	304.8
26″	660.4	266.7	…	…
28″	711.2	266.7	…	…
30″	762	266.7	…	…
32″	812.8	266.7	…	…
34″	863.6	266.7	…	…
36″	914.4	266.7	…	…
38″	965.2	304.8	…	…
40″	1016	304.8	…	…
42″	1066.8	304.8	…	…
44″	1117.6	342.9	…	…
46″	1168.4	342.9	…	…
48″	1219.2	342.9	…	…
