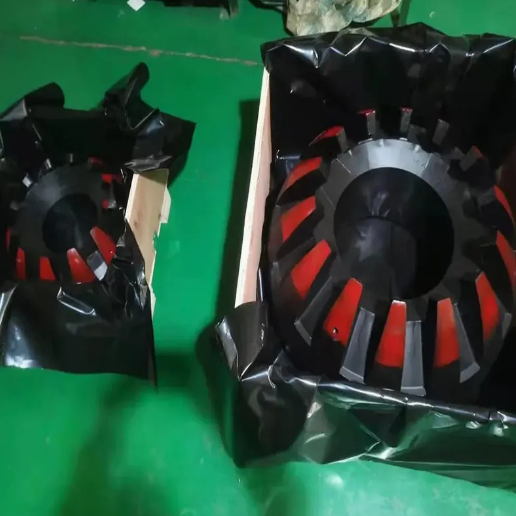

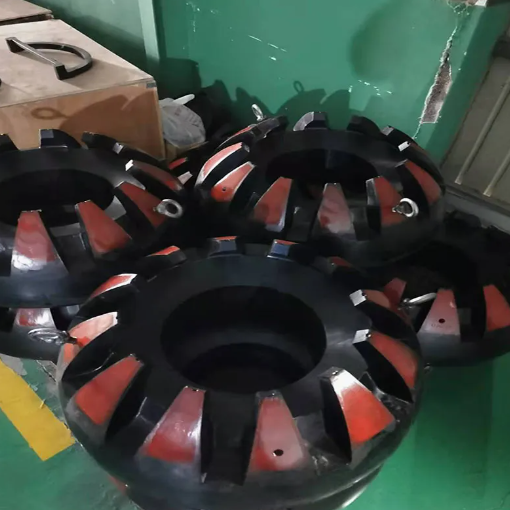

Name: Bop Packing Element
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Bop Packing Element Stockist,Drilling Spare Parts for Bop Factory,Bop Spare Parts Supplier

　　All the Bop Spare Parts are original or interchangeable.

　　Reasonable structure, easy operation, long life of plastic core.

　　Adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in and shapes, better performance by combining with ran blowout preventer in use.

Product Description

　　1. Scope of application

　　Suitable for sealing glue for blowout preventers for petroleum exploration, drilling, oil testing, workover, oil and gas wells, and well control at a rated temperature of -26ºC~149ºC core.

　　2. Specifications and models

　　Shaffer series packing elements. Interchangable with the original parts.

　　3. Executive standard: API SPEC 16A

Bop Packing Element Parameter

Name	Model
Bore size	7-1/16", 9", 11", 13-5/8", etc.
working pressure	3000psi, 5000psi, 10000psi and 15000psi
Model	18-35,18-21,23-35,28-21,28-35,35-35,35-21,35-70,53-21;28-70,35-70,54-14,75-3.5
Styles	globular;Cone type
Standard	API 16A

Detailed Photos

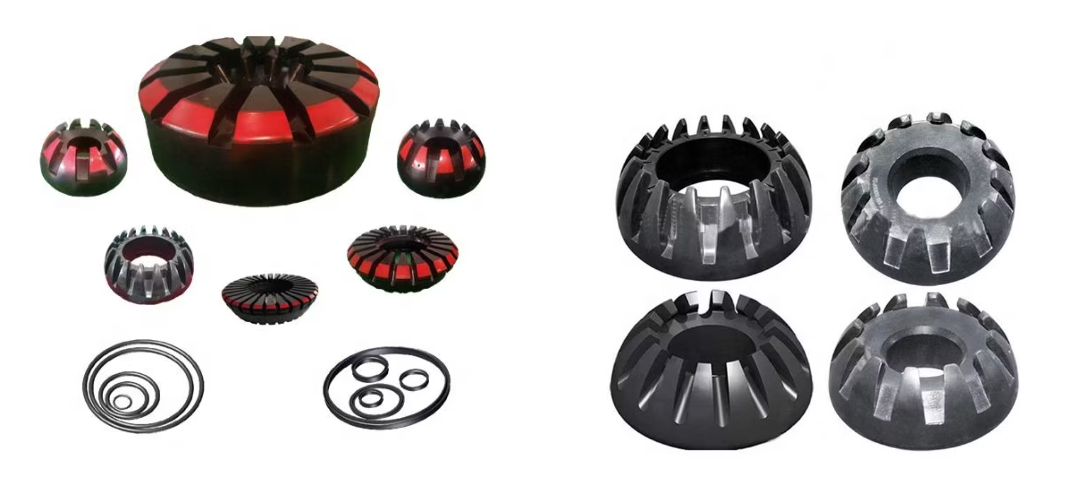

　　BOP part name: Packing element, shear ram, pipe ram, blind ram, variable bore ram, top sealing, front sealing, bonnet, piston, shell.

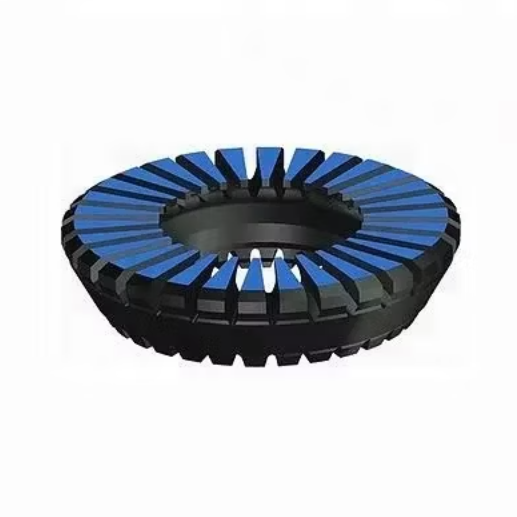

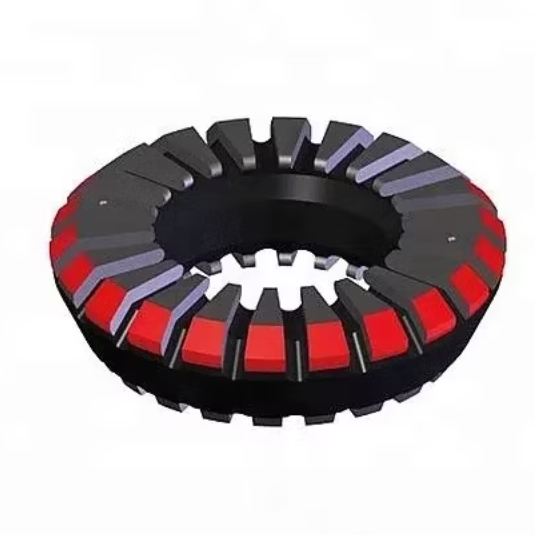

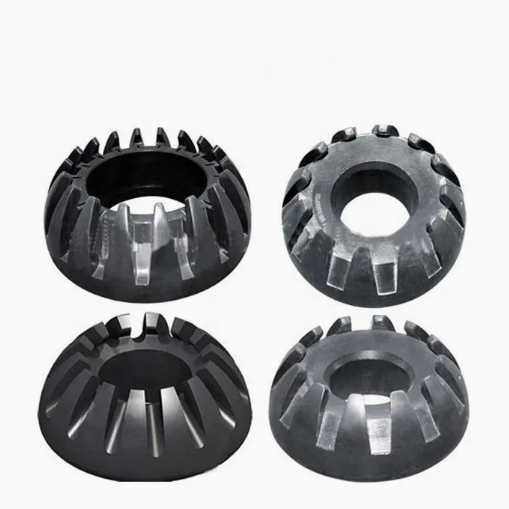

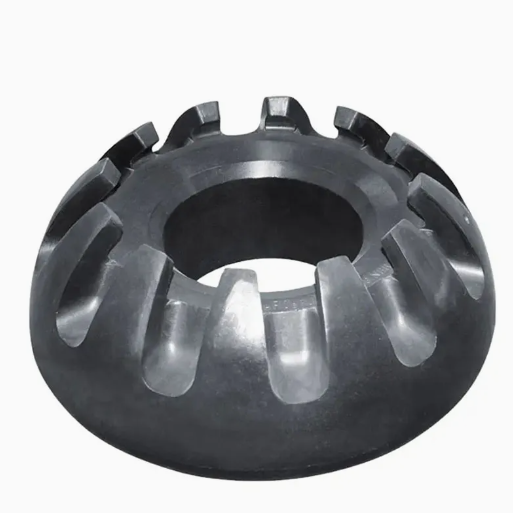

　　The packing element for Annular BOP has special type and taper type. The packing element is combined by the main body which is made up of the independent innovation rubber based polymer alloy material and the high strength metal frame, which conforms to the USA 16A, SATM D412, D624, D2240 and D471 standard. It is suitable for the drilling work on the oil field, which shares a high cost performance comparing to the other same type packing elements.

　　Shear ram is composed of upper ram body, lower ram body, top seal, right seal, left seal and tool face seal. Tool face seal is placed in front slot of the upper ram body, with right seal and left seal on the both sides. The shear ram is installed in the BOP in the same manner the common ram. but need to replace the hanger of the main piston to hunger. Otherwise it will not be used.

　　The Pipe Ram is use for single or double Ram Blow Out Preventer(BOP).The ram’s size is matched with the pipe’s OD. It can be closed between the pipe stem and well annular space.

　　The Blind Ram is use for single or double Ram Blow Out Preventer(BOP). It can be closed the well when the well without the pipe line or blowout.

　　The Variable bore ram as a improved type, is capable of sealing around drill pipes with a range of sizes and have advantages such as low cost and convenience, expatiate on the sealing well mechanism. The operation of the variable bore ram is simulated with the finite element model, the distribution of the stress is analyzed, which provides the toudation for optimizing the design of variable bore ram-type blowout preventer.
