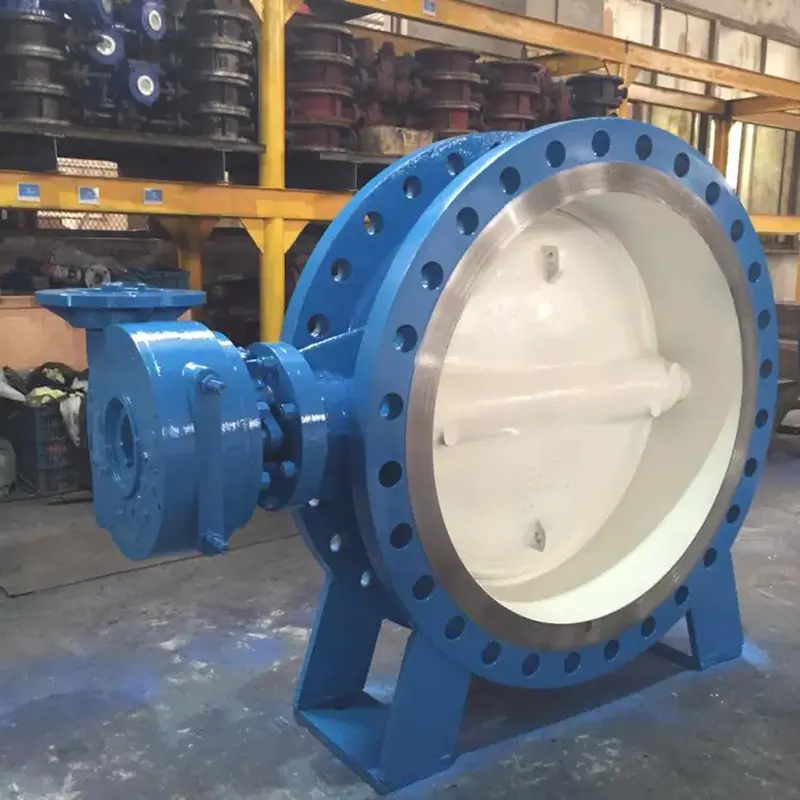

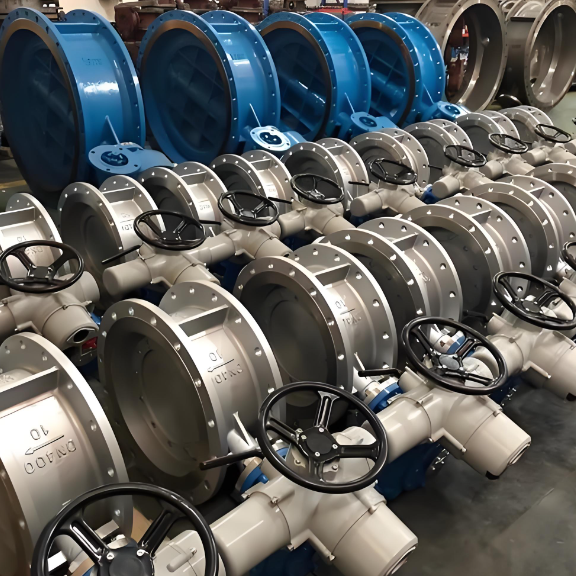

BFV303s-303L
Butterfly Valve
Medium:Water
Standard:EN593/AWWA C504/MSS SP-67
Pressure:CLASS 125-300/PN10-25/200-300PSI
Material:CI,DI

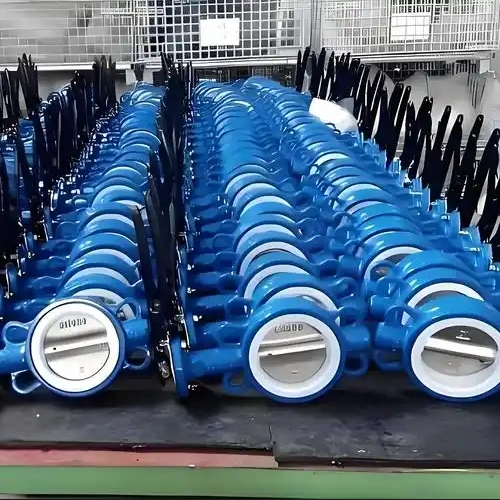

Type:Wafer Type
|
working pressure |
PN10, PN16 |
|
testing pressure |
shell: 1.5 times rated pressure seat: 1.1 times rated pressure |
|
working temperature |
-10 °C to 80°C (NBR) -10 °C to 120°C (EPDM) |
|
suitable media |
water, oil and gas |
Main material list
|
parts |
material |
|
body |
cast iron, ductile iron, |
|
seat |
EPDM, NBR,VITON, PTFE |
|
disc |
nickel ductile iron,AI bronze, stainless steel |
|
stem |
carbon steel, stainless steel |
|
bushing |
PTFE |
|
"O" ring |
PTFE |
|
pin |
stainless steel |
|
key |
stainless steel |
Executive Standard:
|
Design Standard |
EN 593 , MSS SP67 API 609 BS5155 |
|
Inspection & Test |
API 598 ISO 5208 EN 12266 |
|
End Standard |
ANSI B16.1 CL. 125LB & B16.5 CL. 150LB AS 2129 Table D & E BS 10 Table D & E DIN 2501 PN6, PN10 & PN16 EN 1092 PN6, PN10 & PN16 ISO 2531 PN6, PN10 & PN16 ISO 7005 PN6, PN10 & PN16 KS B 1511 / JIS B 2210 5K & 10K MSS SP44 CL. 150LB AWWAC207 SABS 1123 Table 1000/3 & Table 1600/3 |
|
Face to Face |
ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
|
Top Flange |
ISO 5211 |
Specifications:
Size DN50-DN600End Flange:DIN,BS,UNI,ISO,ANSI,AS,JIS
Face to Face:API609,BS5155,DIN3202,ISO5752
Top Flange:ISO 5211
Normal Pressure:PN1.0/1.6Mpa(150/200PSI)
Body:Cast Iron/Ductile Iron/WCB/ALB/CF8/CF8M
Disc:Ductile Iron/ALB/CF8M/CF8/Hastelloy Alloy/Monel
Stem:SS416/304/316/431
Seat:Hypalon/EPDM/Neoprene/NBR/Viton/Silicon/Heat-Resistant EPDM/White NBR/PTFE
Suitable Temperature:-45C to 150ºC
Suitable media include water, sewage, sea water, air, foodstuff and oil.
They are suitable for handles, gear operators, electric and pneumatic control actuators
