Ball valves, one of Shengtian Group’s main products, offer a lineup of valves compatible with a variety of materials. We apply standards such as ANSI/ASME and API,MSS,ISO,DIN,JIS to supply worldwide.
Ball valves, one of Shengtian Group’s main products, offer a lineup of valves compatible with a variety of materials. We apply standards such as ANSI/ASME and API,MSS,ISO,DIN,JIS to supply worldwide.

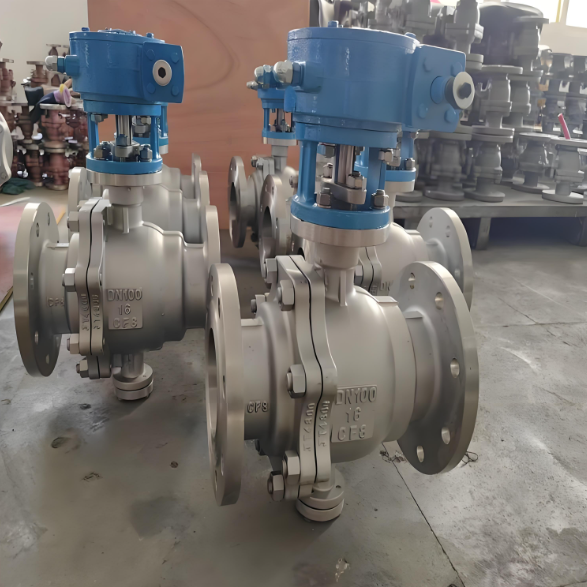

A ball valve is a quarter-turn type rotary, valve type, that has a hollow ball, through which the fluid passes, and then through a rotating 90° hollow ball (also called a “ball”) to control the flow of fluid through the valve. The ball has a hole or port through its center, which aligns with the pipeline when the valve is in the open position, allowing fluid to flow seamlessly. When the valve is closed, the ball rotates 90 degrees, and the hole is perpendicular to the flow path, effectively blocking the fluid and preventing any flow.
▶ Hard Seal Trunnion Mounted Ball valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2”～48”
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Soft Seal Trunnion Mounted Ball Valve
Design and Manufacture:API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～48＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN10.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Soft Seal Floating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T1967
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension:ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing:API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ FS Soft Seal Floating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-900LB（PN1.6-PN15.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.11, ASME B16.25, GB/T12224
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Hard Seal-Floating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Full Welded Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～40＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Top Entry Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～10＂
Pressure Ratings: 150LB-900LB（PN1.6-PN15.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Tee&Cross Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～8＂
Pressure Ratings: 150LB（PN1.6-PN4.0MPa）
Temperature Range: -29℃～350℃
End Connections: ASME B16.5 , JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Flange High Temperature Ball Valve
Design and Manufacture:API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～8＂
Pressure Ratings: 150LB（PN1.6-PN2.5MPa）
Temperature Range: -196℃～300℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
▶ Thin Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292
Size Range: 1/2”～8”
Pressure Ratings: 150LB（PN1.6-PN2.5MPa）
Temperature Range: -196℃～350℃
End Connections: ASME B16.5 , EN1092
Face to Face Dimension: ASME B16.10, EN 588
Inspection and Testing: API 6D,API 598
▶ Heating Ball Valve
Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-600LB（PN1.6-PN10.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480
