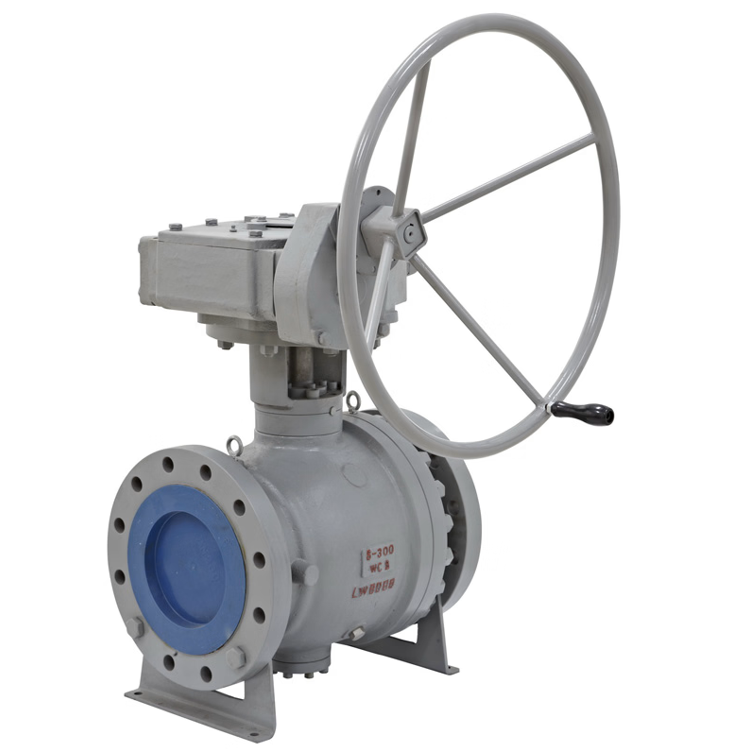

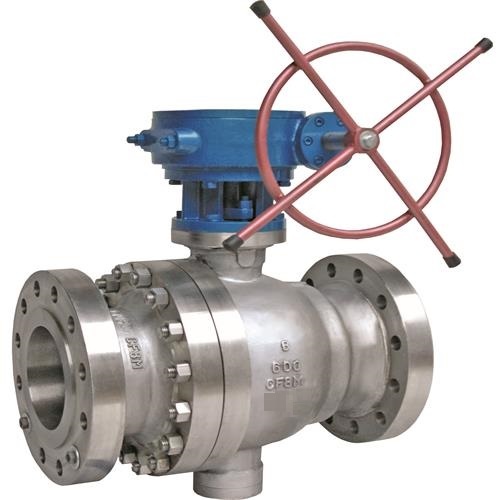

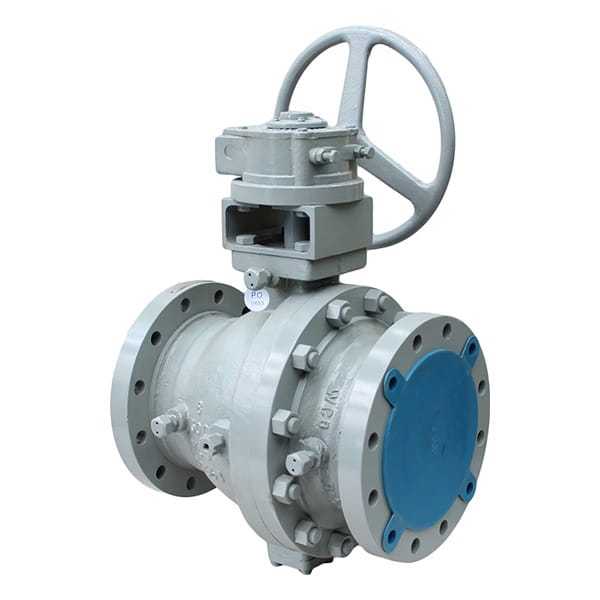

Name: BAL701 Trunnion Ball Valve
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

BAL701 Trunnion Ball Valve Exporter,Trunnion Ball Valve Supplier,Ball Valve Manufacturer

　　Trunnion mounted ball valves, construction to ASME B16.34 - API6D, 2/3 piece bolted body, split body, side entry, double block & bleed, flanged RF/RTJ to ANSI B16.5, face to face to ANSI B16.10, full/ reduced bore, ISO (5211) top work standardized for actuation, seat leakage rate to ISO 5208 Rate A, fire safe certified to BS 6755 Part II- API 607- API6FA, antistatic & blow out proof stem, self-relieving seats, vent & drain.

Construction is as follows

Size	2"-60"; DN50-DN1500
Normal pressure	Class 150/300/600/900/1500/2500; PN16/PN40/PN64/PN100/PN160/PN250
Design standard	API 6D, API 608,ASME B16.34, MSS SP-72,BS5351; ISO17292,EN13709
Marked	MSS SP-25
Fire safe design	API607,API 6FA
End flange	ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Face to Face	ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752
Top flange	ISO 5211
Test standard	API598,API6D; DIN3230, EN12266,ISO 5208
Suitable temperature	-10~200°C
Medium	Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Acidic environment	NACE MR0175
Operation	Hand Operated,Gear Operated, Electrical Actuated, Pheumatic Actuated

BAL701 Trunnion Ball Specification

Nominal diameter(in)			NPS 1/2-8
Nominal pressure(Mpa)			Class150-Class600
			MATERIAL
	NO	PART NAME	CARBON STEEL	STAINESS STELL
Material of parts	1	Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M	ASTM A351 CF3	ASTM A351 CF3M
	2	Stud	A193 B7M	A320 B8	A320 B8M	A320 B8	ASTM A182 B8M
	3	Ball	ASTMA105.ENP	ASTMA182 304	ASTMA182 316	ASTMA182 304L	ASTM A182 316L
	4	Seat	PTFE/NYLON/PEEK/PPL
	5	Anti-fire gasket	SST+Graphite
	6	Bonnet	ASTMA105	ASTMA182 304	ASTMA182 316	ASTMA182 304L	ASTM A182 316L
	7	Anti-static valve	Combined parts	Combined parts	Combined parts	Combined parts	Combined parts
	8	Stem	ASTM A 182 F6a	ASTM A182 304	ASTMA182 316	ASTMA182 304L	ASTM A182 316L
	9	Thrust bearing	PTFE
	10	Sliding bearing	PTFE
	11	O-ring	VITON
	12	Anti-fire gasket	SST+Graphite
	13	Seal gland	ASTM A105.ENP	ASTMA182 304	ASTMA182 316	ASTMA182 304L	ASTM A182 316L
	14	Socket head cap screw	A197 B7M	A320 B8	A320 B8M	A320 B8	A320 B8M
	15	Packing	Graphite
	16	Packing bushing	ASTM A 182 F6a	ASTM A182 304	ASTMA182 316	ASTMA182 304L	ASTM A182 316L
	17	Packing gland	ASTM A 182 F6a	ASTM A 182 F6a	ASTM A 182 F6a	ASTM A 182 F6a	ASTM A 182 F6a
	18	Anti-fire packing	SST+Graphite
	19	Socket head cap screw	A197 B7M	A320 B8	A320 B8M	A320 B8	A320 B8M
	20	Retainer ring	65Mn	65Mn	65Mn	65Mn	65Mn
	21	Hexagon nut	A194-2HM	A194-8	A194-8M	A194-8	A194-8M
Applicalbe service conditions		Applicable media	Water steam,oil,gas,liquefied gas,natural gas,etc	Nitric acidAcetic acid	Acetic acid	Strong Oxidizer	Urea
Applicalbe service conditions		Applicalbe temperature	120℃(PTFE).≤80℃(NYLON),≤250℃(PEEK), ≤250℃(PPL)
Design and manufacturing			API 608,API6D
Face-to face dimensions			ASME B16.10, API 6D
Type of connection			Flange	ASME B16.5/ASME B16.47		Bult welding	ASME B16.25
Pressure test			API598. API6D
Transmission mode			Manual, worm and worm gear transmission, pneumatic, electric

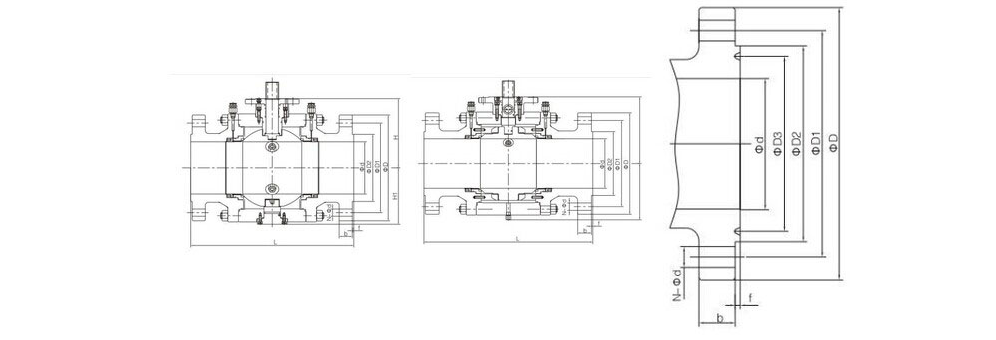

Dimensions (mm)

Pressure rating	Nominal Diameter		d	Flange		Bult welding	Raised face flange						W	cast steel	forged steel	Weight(kg)
Class	NPS	DN	d	L(RF)	L(RTJ)	L(BW)	D	D1	D2	f	b	N-Φd	W	H	H	cast steel	forged steel
150	1/2''	15	13	108	/	140	90	60.5	35	2	9	4-Φ16	140	80	78	2	△
	3/4''	20	19	117	/	152	100	70	43	2	10	4-Φ16	140	86	82	2.5	△
	1''	25	25	127	/	165	110	79.5	51	2	11	4-Φ16	140	98	95	3.5	△
	1 1/4''	32	32	140	/	178	115	89	64	2	11	4-Φ16	180	106	100	6.5	△
	1 1/2''	40	38	165	/	190	125	98.5	73	2	13	4-Φ16	180	133	128	7.5	△
	2''	50	50	178	191	216	150	120.5	92	2	14.5	4-Φ19	200	138	137	9	△
	3''	80	75	203	216	283	190	152.5	127	2	17.5	4-Φ19	300	175	148	19	△
	4''	100	100	229	241	305	230	190.5	157	2	22.5	8-Φ19	650	235	223	36	△
	6''	150	150	394	406	457	280	214.5	216	2	24	8-Φ22	800	285	278	78	△
	8''	200	201	457	470	521	345	295.5	270	2	27	8-Φ22	1000	342	336	160	△
300	1/2''	15	13	140	/	140	95	66.5	35	2	13	4-Φ16	140	80	78	2.5	△
	3/4''	20	19	152	/	152	115	82.5	43	2	14.5	4-Φ19	140	86	82	3.6	△
	1''	25	25	165	/	165	125	89	51	2	16	4-Φ19	140	98	95	5	△
	1 1/4''	32	32	178	/	178	135	98.5	64	2	17.5	4-Φ19	180	106	100	8.5	△
	1 1/2''	40	38	190	/	190	155	114.5	73	2	19.5	4-Φ22	180	133	128	10	△
	2''	50	50	216	232	216	165	127	92	2	21	8-Φ19	200	138	137	12	△
	3''	80	75	283	298	293	210	168.5	127	2	27	8-Φ22	300	175	148	28	△
	4''	100	100	305	321	305	255	200	157	2	30.5	8-Φ22	650	235	223	46	△
	6''	150	150	403	419	457	320	270	216	2	35	12-Φ22	800	285	278	104	△
	8''	200	201	502	518	521	380	330	270	2	40	12-Φ25	1000	342	336	208	△
600	1/2''	15	13	165	/	165	95	66.5	35	7	14.5	4-Φ16	140	78	68	5	△
	3/4''	20	19	190	/	190	115	52.5	43	7	16	4-Φ19	140	80	76	7	△
	1''	25	25	216	/	216	125	89	51	7	17.5	4-Φ19	180	110	106	9	△
	1 1/4''	32	32	229	/	229	135	98.5	64	7	21	4-Φ19	200	115	110	13	△
	1 1/2''	40	38	241	/	241	155	114.5	73	7	22.5	4-Φ22	250	135	128	17	△
	2''	50	50	292	295	292	165	127	92	7	26	8-Φ19	300	152	140	21	△
	3''	80	75	356	359	356	210	168.5	127	7	32	8-Φ22	650	224	213	43	△
	4''	100	100	432	435	432	275	216	157	7	38.5	8-Φ25	800	248	238	85	△

　　Shengtian Group utilizes the following standards in the manufacture of ball valves. It should be noted that not all styles, configurations and materials used in Shengtian Group valves meet all of these standards in their entirety.

　　The user therefore, should specify a given standard if there is a need to assure total compliance with a given standard.

API	(American Petroleum Institute)
API-6FA	Fire Test For Resilient-Seated Valves
API 5B	Inspection Of Threads
API-6D	Pipeline Valves, End Closures, Connectors And Swivels
API-Q1	Quality Programs
API-594	Wafer Check Valves
ASME	(American National Standard Institute)
ASME-B	16.5 - Pipe Flanges And Flanged Fittings
ASME-B	16.10 - Face-To-Face End-To-End Dimensions
ASME-B	16.42 Ductile Iron Pipe Flanges And Flanged Fittings
ASME-B	16.34 - Valves - Flanged End, Threaded And Butt Weld
ASME-B	(B1.20.1) - Pipe Threads General Purpose (Inch)
MSS	(Manufacturers Standardization Society)
MSS-SP6	Standard Finishes For Contact Faces Of Pipe Flanges And Connection End Flanges Of Valves And Fittings
MSS-SP25	Standard Marking System For Valves, Fittings, Flanges And Fittings
MSS-SP72	Ball Valves With Flanged Or Butt Welding Ends For General Service
NACE MR-01-75	Sulfide Stress Cracking, Resistant Metallic Material For Oil Field Equipment (NACE Materials Are Optional And Must Be Specified On Purchase Orders)

　　BAL701 Trunnion Ball Valve is a high-performance ball valve designed and manufactured according to American standards (ANSI/API/ASME). This product is suitable for industries such as petroleum, chemical, natural gas, power, and pharmaceuticals. It is widely used in pipeline systems for transporting liquids, gases, and steam media. Its main features include a full bore design, excellent sealing performance, flexible operation, easy installation, and compact structure. The valve adopts a floating structure, providing superior sealing performance and ensuring stable operation over an extended period.
