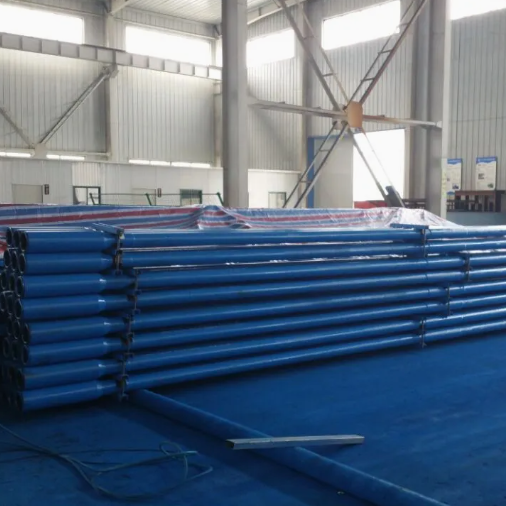

Name: API Oilfield Drill Collar
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

API Oilfield Drill Collar Manufacturer,Drill Collar Supplier,Drill Collar Factory

DRILL COLLAR

1. Material of API 7-1 Non-Magnetic Drill Collar Slick Drill Collar OD 79.4mm to 279.4mm: 4145H/4145H mod or Non-magnetic.
2. Standard: API7-1, NS-1.
A. Slick Drill Collar
Note: Drill collar is mainly used to provide bit weight to drill bit so that drill pipe is in tension. Especially drill collar can
keep drill bit centralized and hole track by large rigidity. The Drill collar are manufactured strictly from API Spec7-1 and
SY5411 standard.

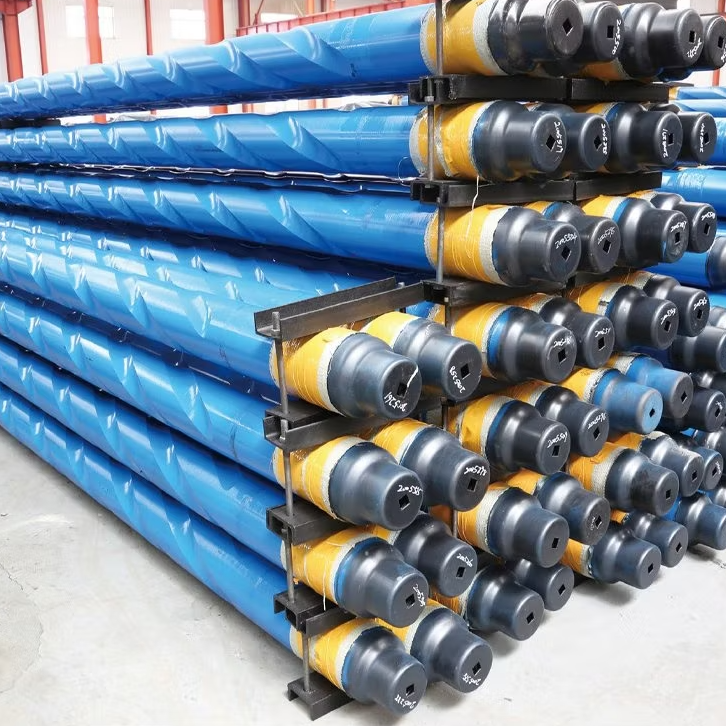

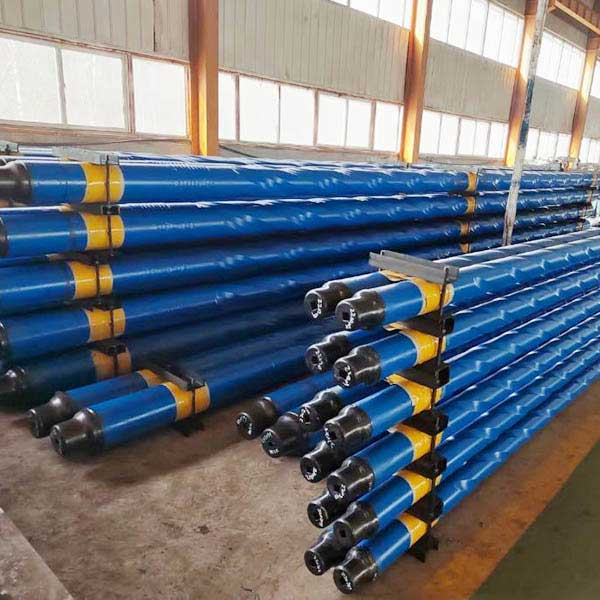

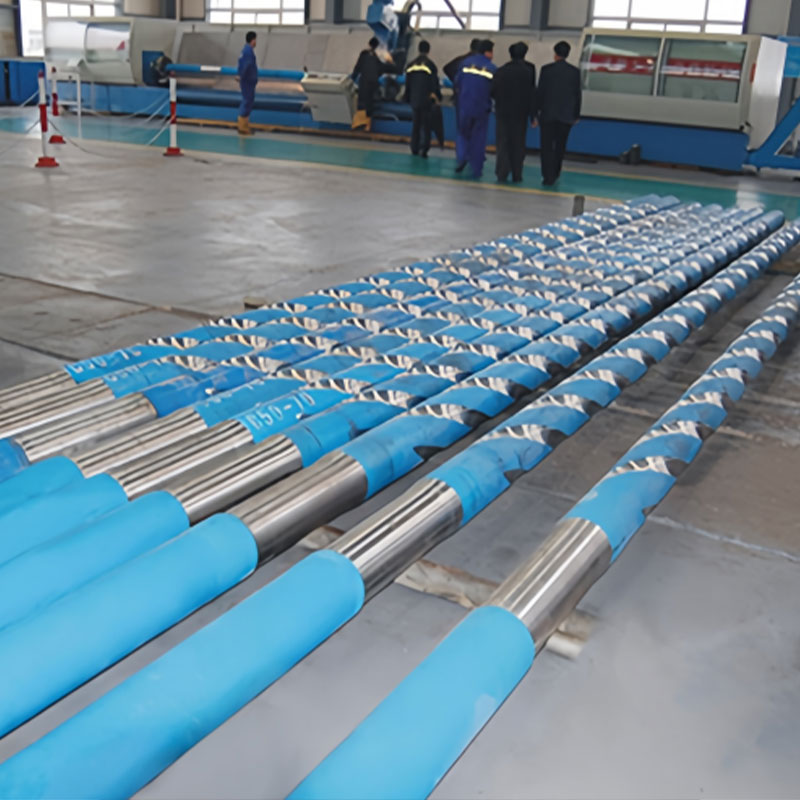

B. Spiral Drill Collar
Note: Spiral drill collar is used to reduce contact area with hole so as to avoid efficiently bit sticking from diffirential
pressure. The drill collars are manufactired strictly according to API Spec7-1 and Standard SY5144.
C. Spiral Drill Collar With Elevator Groove And Slip Groove
Note: Elevator groove and slip groove made on box thread face of slick drill collar or spiral drill collar can be used as lifting
sub and safety slip when trip out. The technical parameters for elevator groove and slip groove is as per API SPEC7-1. Hardbanding is optional at customers' requests.
D. Non-magnetic Drill Collar
The as cold rooled finish on both ID and OD surface with unique technical process strengthen the structure and ensures the tools with optimal resistance to stress,corrosion,cracking and the mechanical performance is greatly enganced.
High Quality API 7-1 NS-1 Non-Magnetic Drill Collar
Specifications for API 7-1 Non-Magnetic Drill Collar Slick Drill Collar OD 79.4mm to 279.4mm

Connections	OD mm	ID mm	Length mm
NC23-31	79.4	31.8	9150
NC26-35	88.9	38.1	9150
NC31-41	104.8	50.8	9150 or 9450
NC35-47	120.7	50.8	915 or 9450
NC38-50	127.0	57.2	9150 or 9450
NC44-60	152.4	57.2	9150 or 9450
NC44-60	152.4	71.4	9150 or 9450
NC44-62	158.8	57.2	9150 or 9450
NC46-62	158.8	71.4	9150 or 9450
NC46-65	165.1	57.2	9150 or 9450
NC46-65	165.1	71.4	9150 or 9450
NC46-67	171.4	57.2	9150 or 9450
NC50-67	171.4	71.4	9150 or 9450
NC50-70	177.8	57.2	9150 or 9450
NC50-70	177.8	71.4	9150 or 9450
NC50-72	184.2	71.4	9150 or 9450
NC56-77	196.8	71.4	9150 or 9450
NC56-80	203.2	71.4	9150 or 9450
6 5/8REG	209.6	71.4	9150 or 9450
NC61-90	228.6	71.4	9150 or 9450
7 5/8REG	241.3	76.2	9150 or 9450
NC70-97	247.6	76.2	9150 or 9450
NC70-100	254.0	76.2	9150 or 9450
8 5/8REG	279.4	76.2	9150 or 9450
