Name: API Drill Bit For Oil
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

API Drill Bit For Oil Factory,API Drill Bit Stockist,Drill Bit Manufacturer

Product Description

Size (inch mm):	5 7/8" 149mm, 6" 152mm, 6 1/2" 165mm, 6 3/4" 171.45mm 6 7/8" 174.625mm
IADC Code:	437 517 537 637
Teeth Type:	Chisel, Scoop, Conical inserts teeth
Bearing Type:	Rubber sealed journal bearing
Suitable Formation:	Soft, Medium, Hard formation
MOQ:	1-5 pieces
Thread Connection:	3 1/2" API REG, Pin
Application:	Water well drilling, Oil and gas, Geothermal, HDD pilot

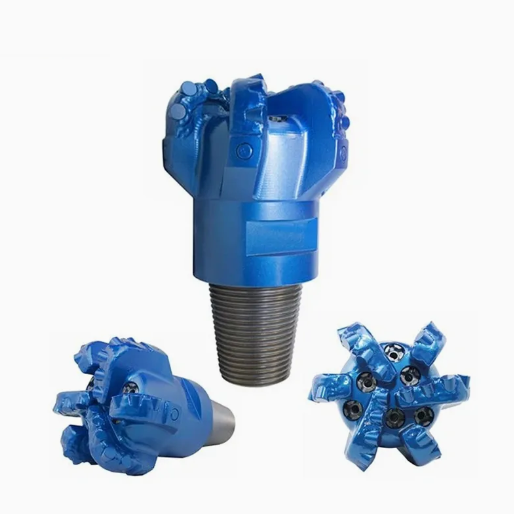

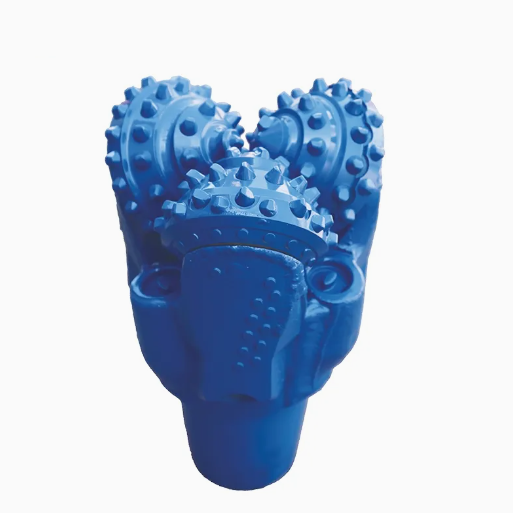

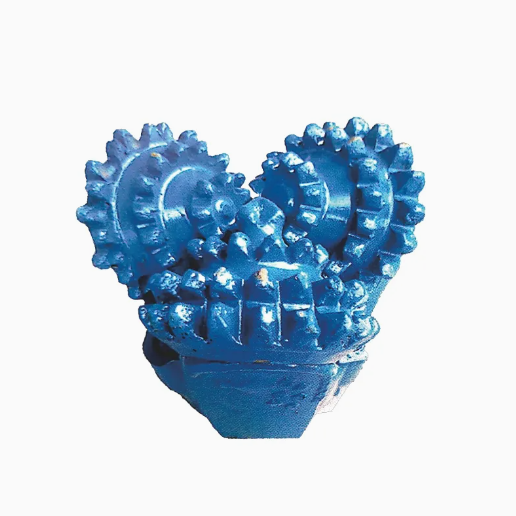

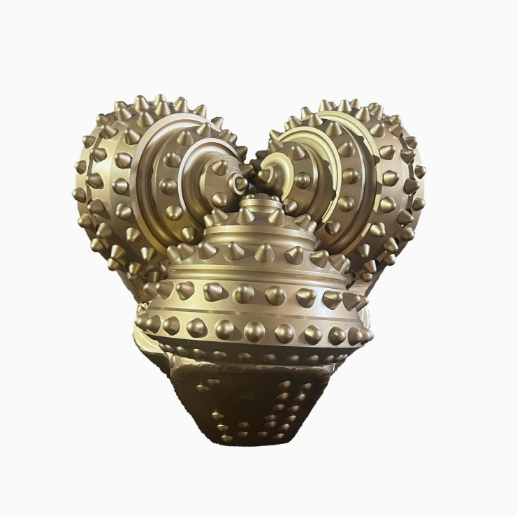

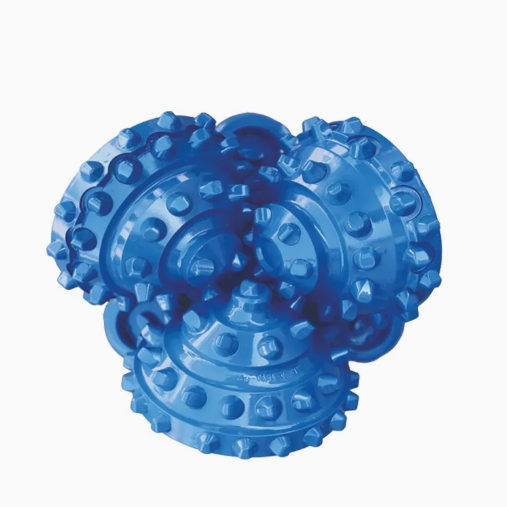

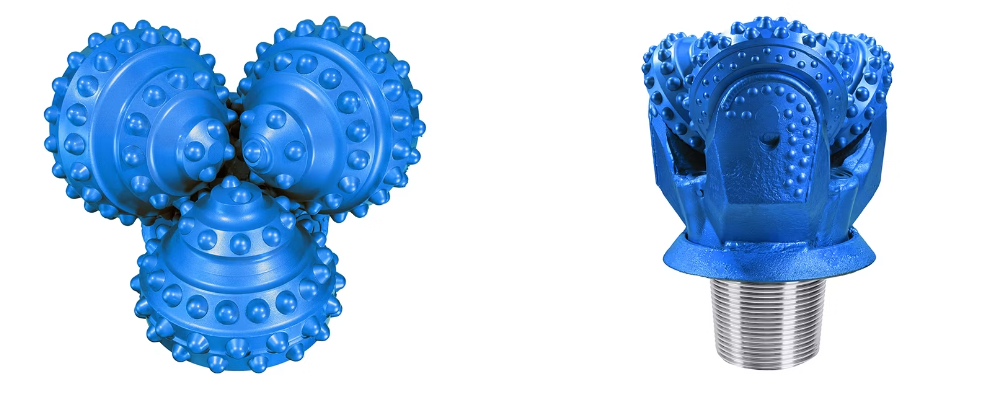

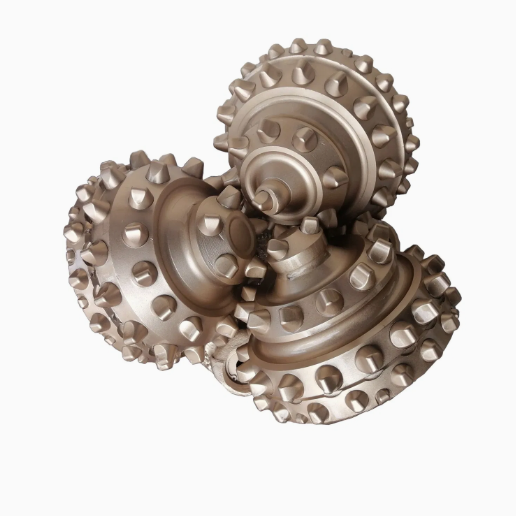

Product Display

API Drill Bit Structural characteristics

　　1.The thrust bearing is made of materials with high wear resistance, high hardness, and high temperature resistance to improve its load-bearing capacity.

　　2.The air-cooling system can improve the air circulation conditions in the bearing cavity andreduce the temperature inside the bearing cavity.

　　3.The cutting structure adopts circular arc hard alloy ball teeth to improve compressive strengthand wear resistance and reduce tooth breakage rate.

　　4.The palm back is equipped with hard alloy teeth and welded with wear-resistant alloy toreduce wear on the palm back and extend bearing life.

API Drill Bit Parameter

Drill Bit Size		Drill Bit Type Selection
IN	Size
5 7/8	149.23	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
6 1/4	158.75	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
6 3/4	171.45	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
7 7/8	200	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
8 1/2	215.9	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
8 3/4	222.25	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
9	228.6	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
9 7/8	250.825	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
11	279.4	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
12 1/4	311.15	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832
13 3/4	349.25	XMK532,XMK542,XMK612,XMK632,XMK642,XMK712,XMK722,XMK742,XMK832

　　Drill Bits from Shengtian Group are produced and processed according to , with the materials of steel grade including J55, K55, N80, N80-1, N80-Q, L80, P110 and so on. The couplings have three types, namely STC LTC and BTC. By numerically controlled lathe and import molding cutter, the processing of thread can be finished in one time, which ensures its commonality and interchangeability. We have complete testing abilities, adopting a whole set of single testing apparatus of thread, including tape, pitch, tooth depth, profile and so on. Our products have already passed the identification of the Quality Testing and Inspection Centre of Oil Pipe of CNPC (China National Petroleum Corporation).
