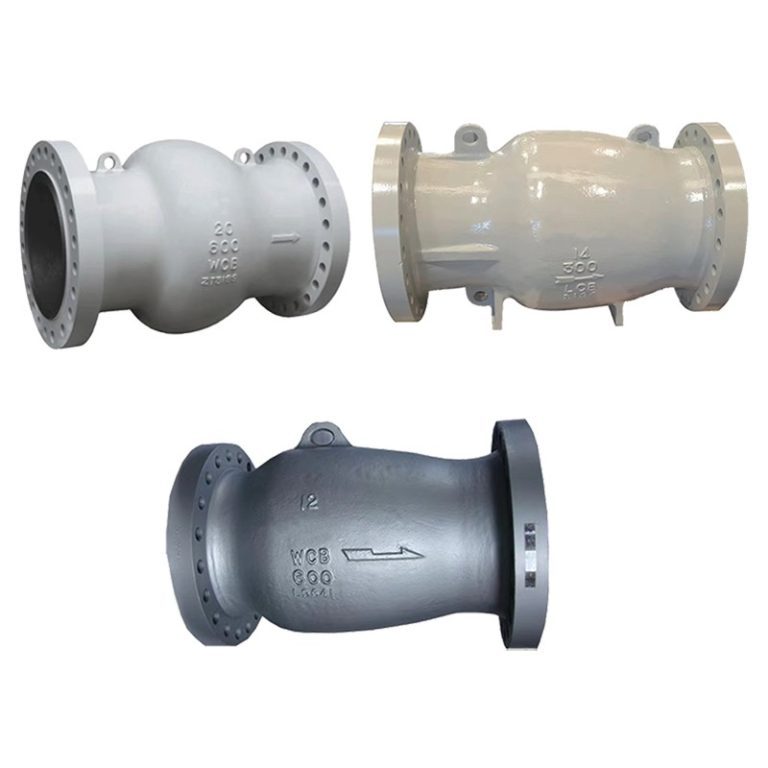

Name: API 6D Axial Flow Check Valve
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

API 6D Axial Flow Check Valve Manufacturer In China,Check Valve

　　API 6D Axial Check Valve, ASME B16.34 Valve, Carbon Steel WCB, Zero Water Hammer Valve, High-Pressure Pipeline Valve

API 6D Axial Flow Check Valve specifications

　　Product features

　　To API594

　　Face to face per ANSI B 16.10

　　Flange ends dimension ANSI B 16.5/ANSI B 16.47

　　Final inspection tests to API598.

　　Applicable temperature:

　　-196-540 different raw material for different work temperature

　　Applicable medium: Water, oil, gas and other causticity medium (different raw material for different medium)

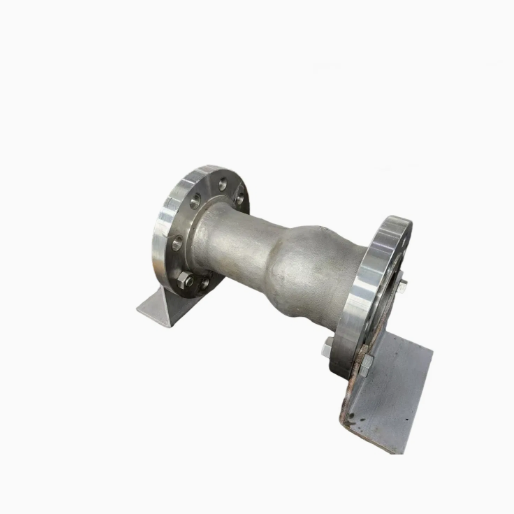

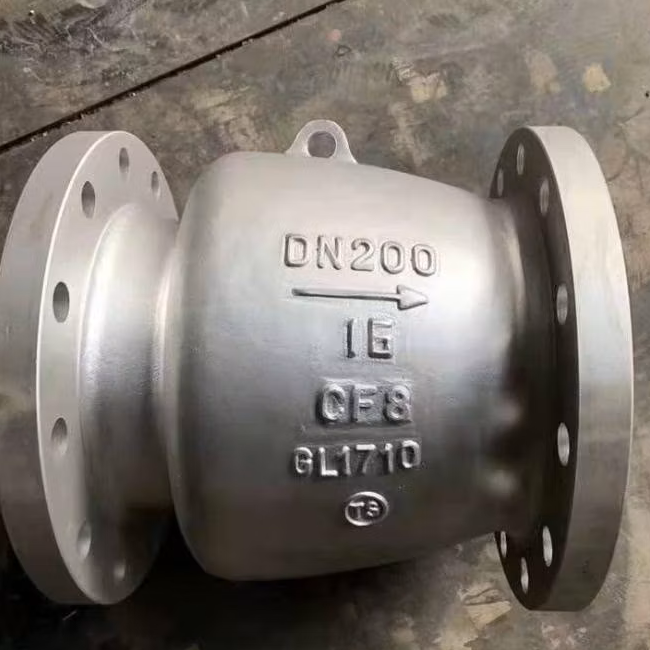

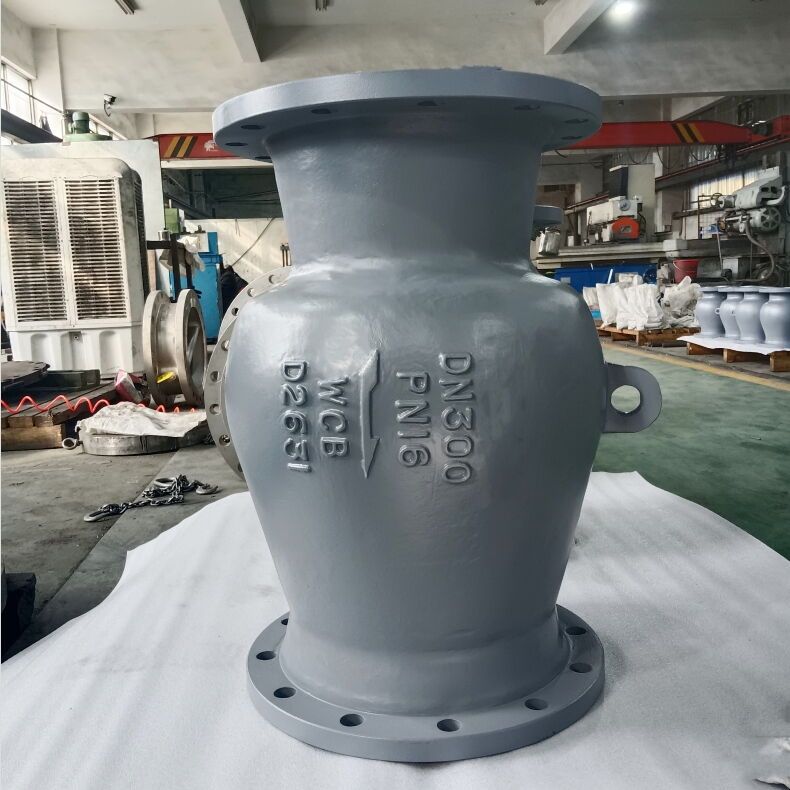

API 6D Axial Flow Check Valve Show

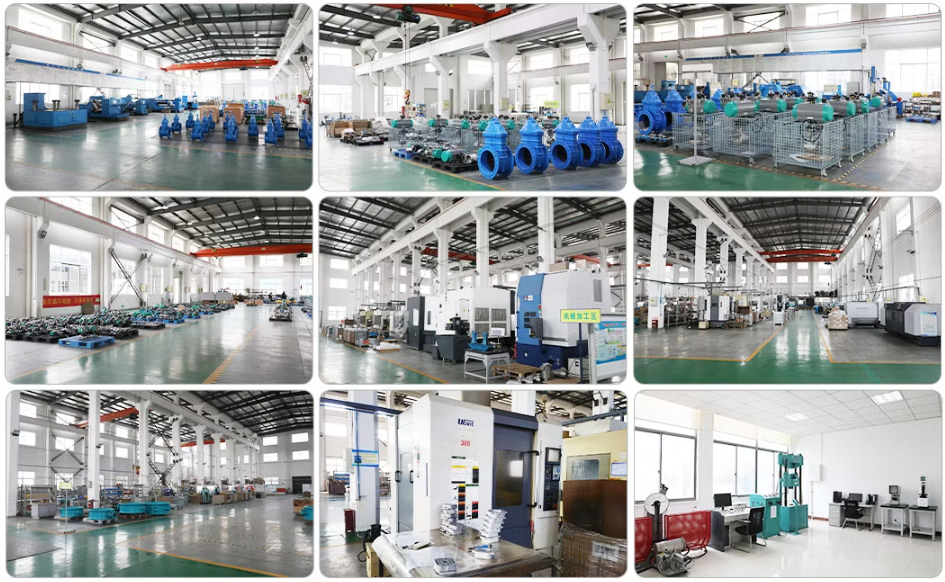

Valve Workshop

API 6D Axial Flow Check Valve Main Part & Materials

Part Names	Part Materials
Body	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304L	CF3M/F316L	C83600/C95800
Bonnet	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304L	CF3M/F316L	C83600/C95800
Disc/Ball/Wedge	WCB/A105	LCB/LF2	WC6/F22	CF8/F304	CF8M/F316	CF3/F304L	CF3M/F316L	C83600/C95800
Seat/Seat Ring	13%Cr	SS304	13%Cr	SS304	SS316	SS304L	SS316L	C83600/C95800
Seat/Seat Ring	PTFE/NBR/EPDM/VITON
Packing	Graphite/PTFE
Gasket	SS304+Graphite/SS304+Graphite
Bolts/Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M	B8M/8M
Suitable Medium	W.O.G etc.			HNO3, CH3OOH etc.				Sea Water etc.
Suitable Temperature	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C	-29~220 °C
