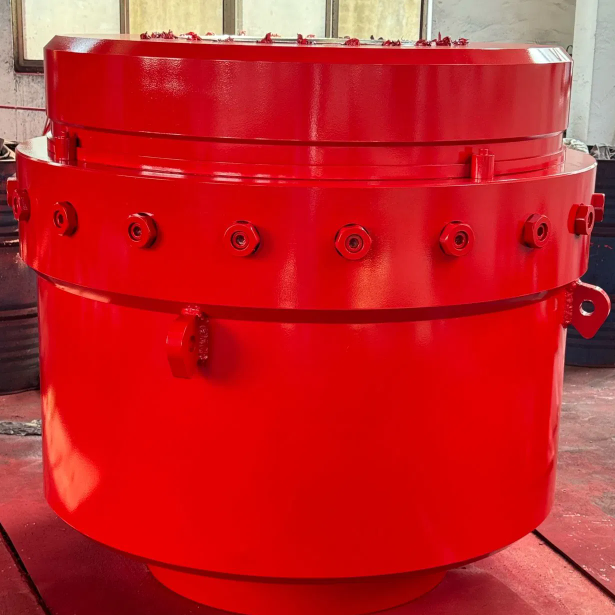

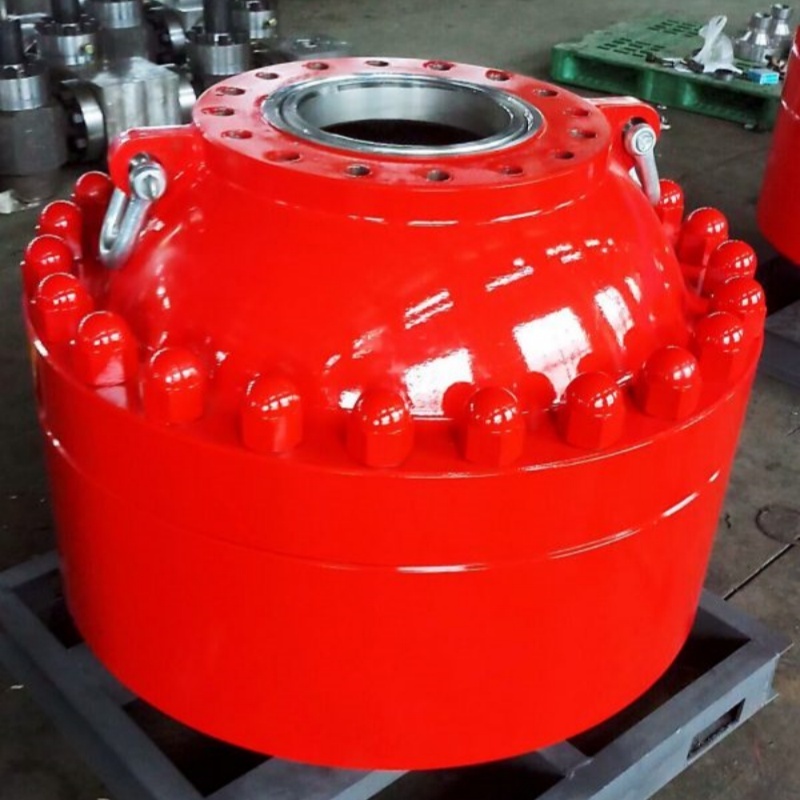

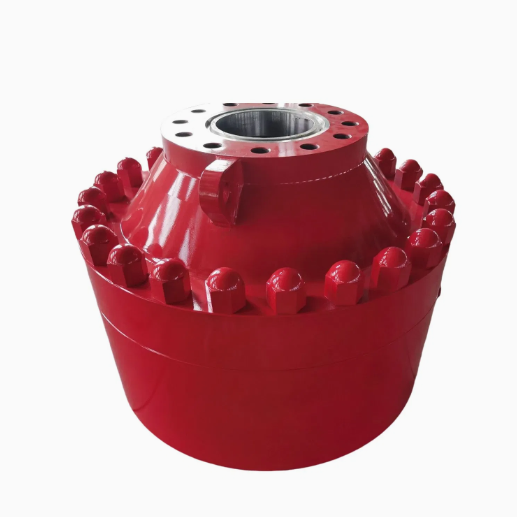

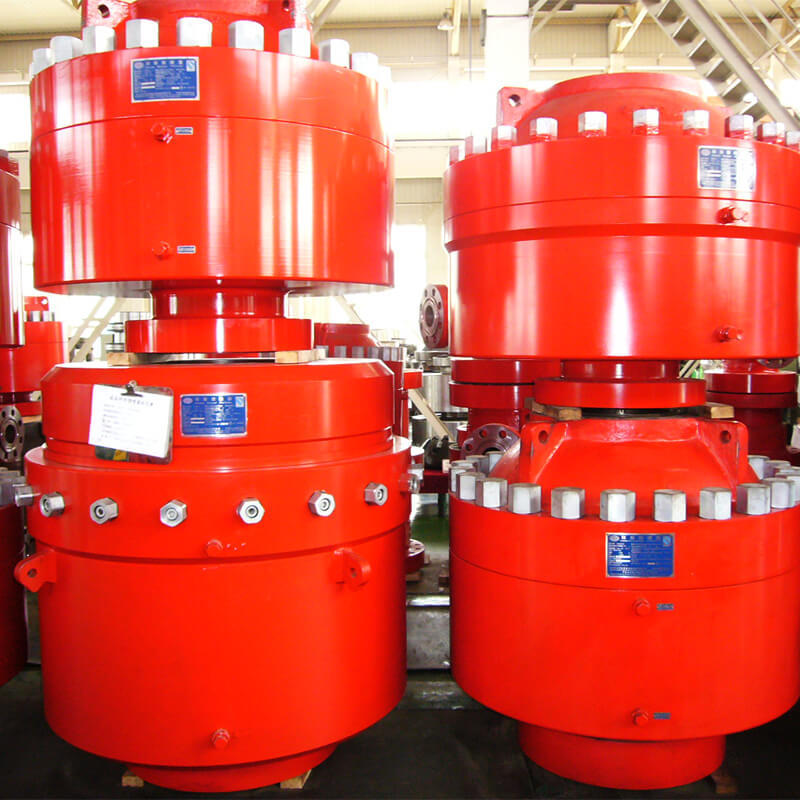

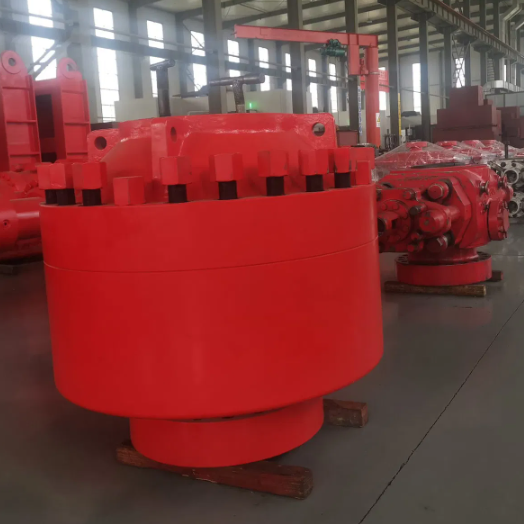

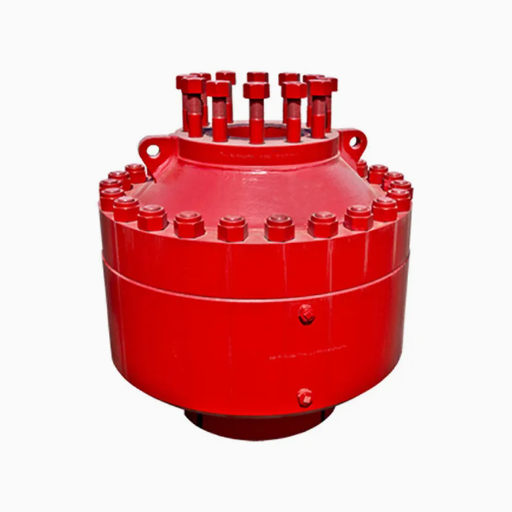

Name: Annular BOP
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Annular BOP Stockist,Well Control Equipment Supplier From China

　　Introducing the Annular BOP, a space-saving and efficient solution for your drilling needs. With its low operating pressure and compact structure, this BOP is perfect for situations where space is a priority.

　　Our Bolt Cover Annular BOP comes in a wide range of sizes, from 7 1/16" to 20 3/4" in bore, and working pressures ranging from 3000psi up to 10000psi. This versatility ensures that it can be tailored to suit any work application.

　　Trust Shengtian Group, a reputable company in the industry, to provide you with top-quality Well Control Equipment. Our Annular BOP is designed to meet the highest standards and deliver exceptional performance.

Product Description

　　Annular blowout preventer consists of body, upper housing, sealing element, dust-proof ring, and piston. It provides a rugged, reliable preventer and ease of service and widely used Offshore (subsea and surface) and onshore.

　　Annular blowout preventer is compact, seal any size kellys, drill pipe, tool joints, drill collars, casing or wireline. Sphericals also provide positive pressure control for stripping drill pipe into and out of the hole.

　　Annular blowout preventer is Manufactured in accordance with API Specification 16A, and NACE MR0175 per API Specification 16A, Temperature T20, Standard nitrile packing element: 40°F to 170°F.

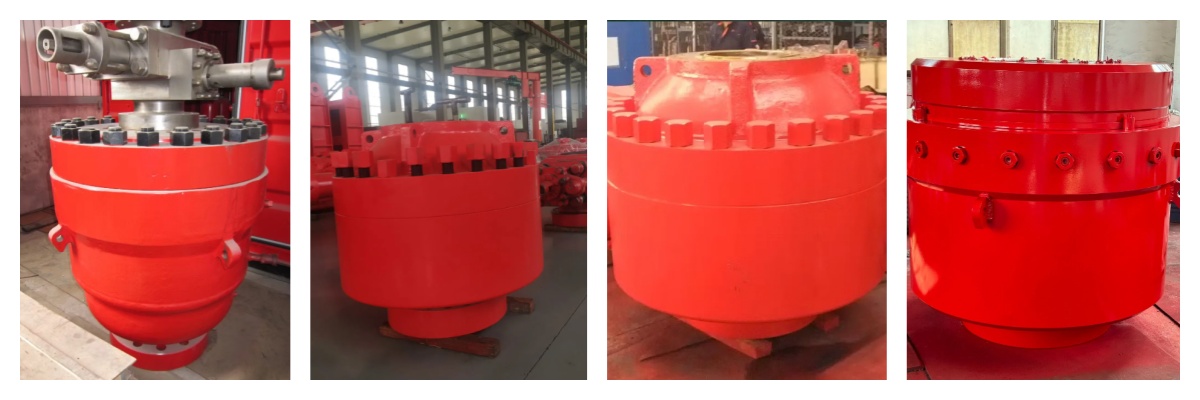

Product Display

Annular BOP Features

　　1. Rubber core store glue big quantity, small friction resistance, when switch pressure sealing ability.

　　2. Using hemispherical head, no stress concentration phenomenon when under pressure, casing stress evenly, easy to tear open outfit.

　　3. Piston stroke is short, low height, and set the wear ring.

　　4. long-life sealing element provides positive seal after hundreds of tests to full working pressure

　　5. Strong, simple construction- only five major parts, which simplifies maintenance.

　　6. Sealing element design provides long stripping life

　　7. High sulfate-resistant blowout preventer internal all parts contact well liquid surfacing high nickel base alloy, can achieve the highest levels of resistance to effect such as H2S and CO2. For the customer to choose.

Annular BOP Specification

Model	Main bore mm(in)	Working pressure MPa (psi)	Operating Pressure MPa	Connection type		Dimension mm		weight kg
Model	Main bore mm(in)	Working pressure MPa (psi)	Operating Pressure MPa	Top	Bottom	OD	Height	weight kg
FH18-21	179 (7-1/16)	21(3000)	8.4~10.5	studded	fanged	737	743	1350
FH18-35		35(5000)				737	790	1572
FH18-70/105		70(10000)				1092	1136	5070
FH23-21	228 (9)	21(3000)				900	830	2104
FH23-35	228 (9)	35(5000)				998	1200	3540
FH28-21	279 (11)	21(3000)				1013	838	2574
FH28-35		35(5000)				1138	1081	4410
FH28-35/70		35(5000)				1138	1096	4451
FH28-70/105		70(10000)				1448	1420	10800
FH35-35	346 (13-5/8)	35(5000)				1270	1160	6400
FH35-35/70		35(5000)				1270	1227	6843
FH35-70/105		70(10000)				1640	1664	15110
FH43-35	425 (16-3/4)	35(5000)				1524	1320	10834
FH48-70	476 (18-3/4)	70(10000)				1937	1882	27161
