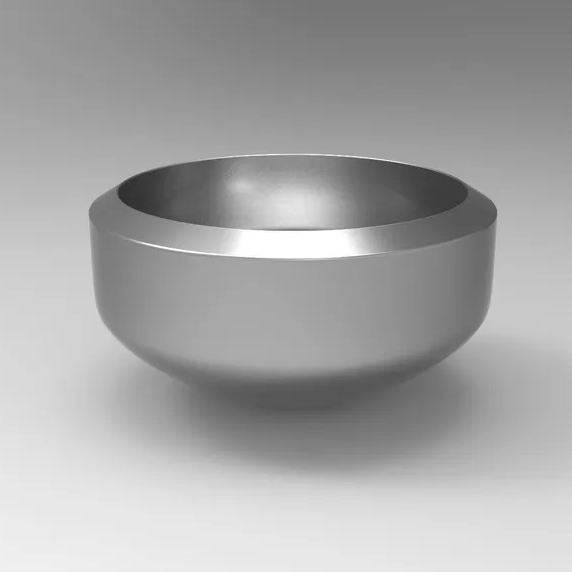

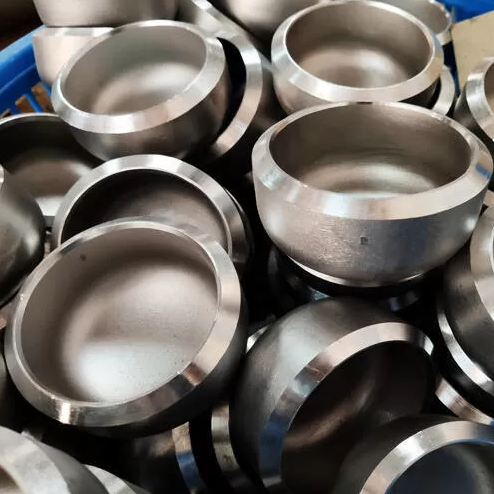

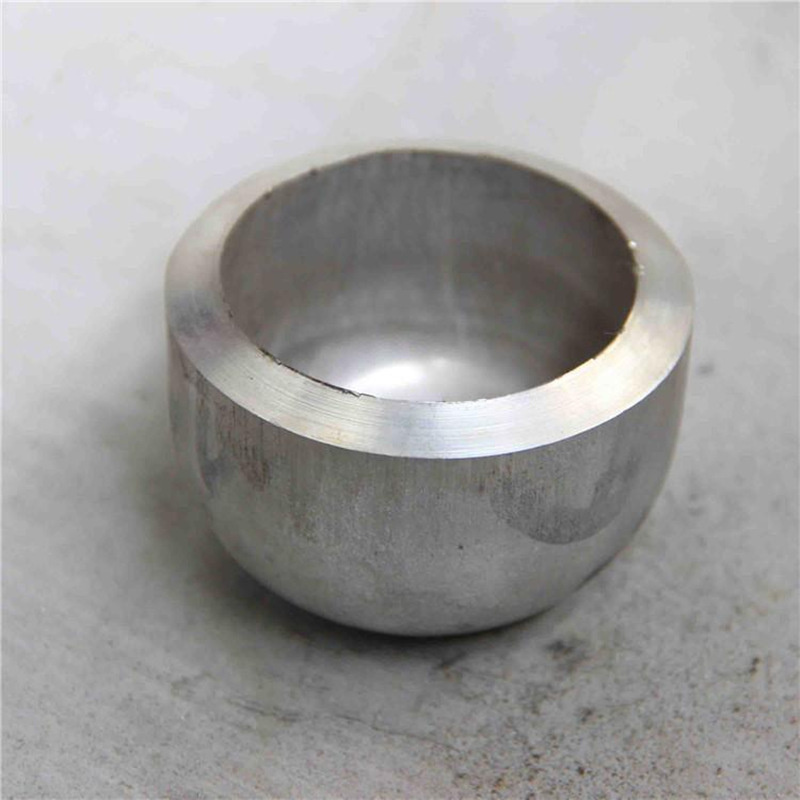

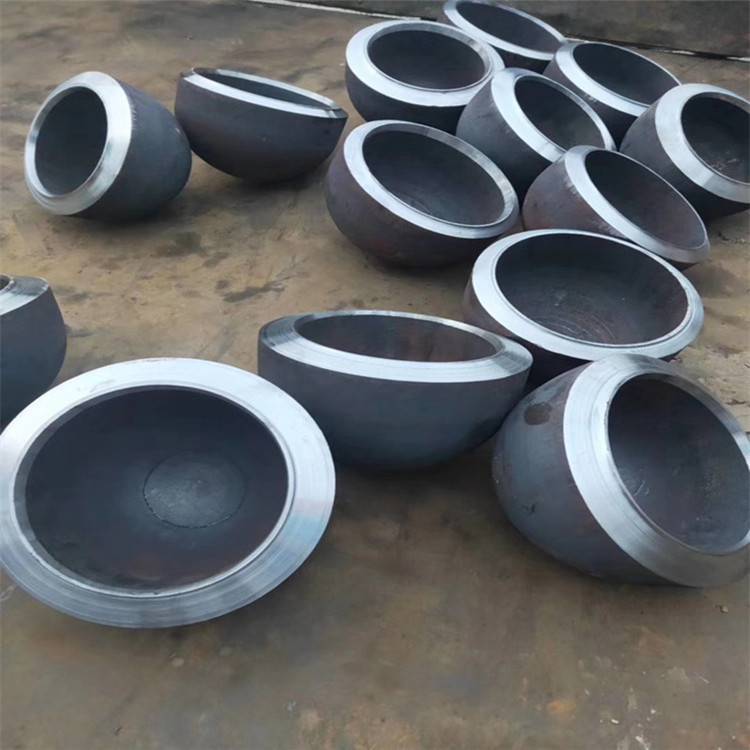

Alloy steel cap is a pipe fitting welded to the end of a steel pipe to cover the pipe. It is mainly used to close the pipeline system to ensure that the fluid in the pipeline will not leak. It is usually welded at the end of the pipeline to provide a reliable sealing effect.
Alloy steel cap is a pipe fitting welded to the end of a steel pipe to cover the pipe. It is mainly used to close the pipeline system to ensure that the fluid in the pipeline will not leak. It is usually welded at the end of the pipeline to provide a reliable sealing effect.
Alloy steel pipe caps are widely used in pipeline systems in the petroleum, chemical, electric power, metallurgy and other industries. Especially in high pressure, high temperature or highly corrosive environments, alloy steel butt weld pipe caps can provide a reliable sealing effect to ensure the safe operation of the pipeline system.
ASTM A234 is the material standard of American standard pipe fittings, which includes the grade of alloy steel, such as WP 5, WP 9, WP 11, WP 12, WP 22, WP 91, etc.
Characteristics Of Alloy Steel Material
CHEMICAL
LIMITS
C
Mn
P
S
Si
Cr
Mo
ASTM A234 WP5 CL1,CL3
MIN
0.30
4.00
0.440
MAX
0.150
0.60
0.040
0.030
0.50
0.650
ASTM A234 WP11 CL1
MIN
0.050
0.30
0.50
1.00
0.440
MAX
0.150
0.60
0.030
0.030
1.00
1.50
0.660
ASTM A234 WP11 CL2,CL3
MIN
0.050
0.30
0.50
1.00
0.440
MAX
0.200
0.80
0.040
0.040
1.00
1.50
0.650
ASTM A234 WP12
MIN
0.050
0.30
0.80
0.440
MAX
0.200
0.80
0.045
0.045
0.60
1.25
0.650
ASTM A234 WP22 CL1,CL3
MIN
0.050
0.30
1.90
0.870
MAX
0.150
0.60
0.040
0.040
0.50
2.60
1.130
Carbon is an important element in alloy steel butt weld pipe cap. It can improve the strength and hardness of alloys, but too high carbon content will reduce toughness and weld-ability. Therefore, the carbon content in the alloy needs to be controlled within a certain range, generally between 0.05%-0.2%.
Manganese is a commonly used alloying element. It can improve the strength and hardness of alloys while improving toughness. The manganese content is usually between 0.3%-0.8%. The right amount of manganese content helps to improve the overall performance of the alloy.
Mechanical Properties Of Alloy Steel Cap
MATERIAL
T.S (MPA)
Y.S (MPA)
EL %
ASTM A234 WP5 CL1
415min
205min
30min
ASTM A234 WP5 CL3
520min
310min
30min
ASTM A234 WP11 CL1
415 min
205 min
30min
ASTM A234 WP11 CL2
485min
275min
30min
ASTM A234 WP11 CL3
520min
310min
30min
ASTM A234 WP12 CL1
415 min
220min
30min
ASTM A234 WP12 CL2
485 min
275 min
30min
ASTM A234 WP22 CL1
415 min
205 min
30min
ASTM A234 WP22 CL3
520min
310min
30min
Yield strength is the stress when the material begins to produce significant plastic deformation. The yield strength of the alloy steel to the welded pipe cap is higher due to the reinforcement of the alloy elements. Tensile strength is the maximum stress that a material can withstand before tensile fracture.
